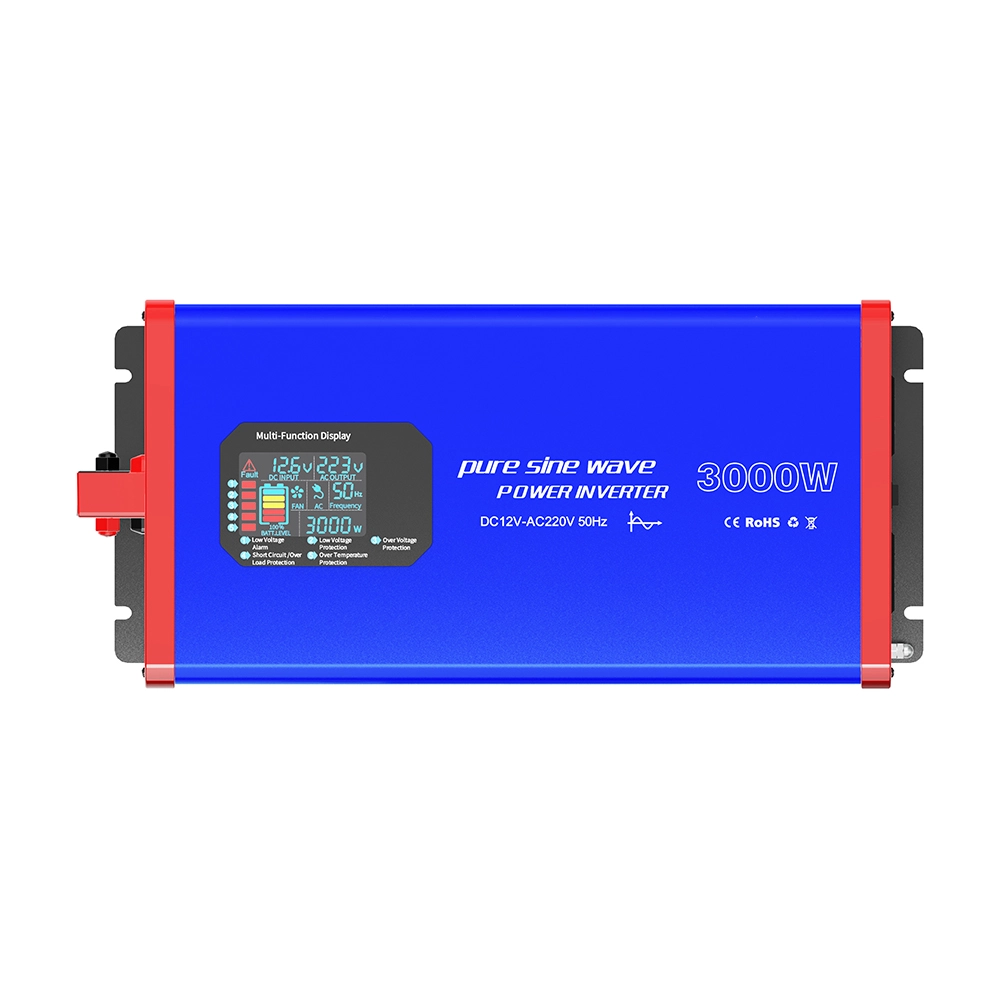

3000W Full-Power Pure Sine Wave Inverter, DC 12V to AC 220V Power Converter, Suitable for High-Power Precision Devices
This 3000W full-power pure sine wave inverter (Model: CS3000PSW) adopts pure sine wave output technology (waveform distortion rate <2%), and the output power is highly consistent with mains power quality. It can safely drive high-power precision loads such as air conditioners, refrigerators, medical instruments, and small industrial equipment, avoiding equipment malfunctions or shortened service life caused by unstable waveforms. The device supports DC 12V input (compatible with 10.5V-14.8V wide voltage), continuously outputs 3000W full power, and has a peak power of 6000W, easily coping with the instantaneous startup impact of high-power devices; it is equipped with 4 AC universal sockets (max current 16A) + 2 USB 3.0 fast-charging ports (22.5W per port) to meet the simultaneous power supply needs of multiple devices. Built-in six-fold safety protection (overload, overvoltage, undervoltage, short circuit, overtemperature, reverse connection), combined with dual intelligent silent cooling fans (noise ≤45dB), it achieves the triple advantages of "high power + high safety + low noise," suitable for home emergency, outdoor engineering, vehicle-mounted power supply, small industrial scenarios and other fields.
Quality Assurance
Ensure high standards in manufacturing and design, committing to products free of defects or quality issues.
Transportation
Supports sea, air, and express shipping.
Specifications
| Input Voltage | Output Voltage | Output Waveform | Power |
| DC 12V (wide voltage range 10.5V-14.8V) | AC 220V±5% (50Hz/60Hz automatic adaptation) | Pure Sine Wave, Distortion Rate <2% | Continuous Power 3000W, Peak Power 6000W |
| Product Size | N.W. | G.W. | Interface Configuration |
| 380×180×100mm | 4.5kg | 5.2kg | 4×AC Universal Sockets (16A), 2×USB 3.0 (22.5W) |
| Protection Function | Heat Dissipation System | Carton Specification | Carton Size |
| Overload, Overvoltage, Undervoltage, Short Circuit, Overtemperature, Reverse Connection Protection | Dual Intelligent Silent Cooling Fans (Noise ≤45dB) | 4 units per carton, gross weight 22kg | 55×52×40cm |
| Material | Single Packaging | ||
| Five-layer corrugated paper (waterproof + pressure-proof + moisture-proof treatment) | Size 48×25×15cm, including inverter host ×1, pure copper battery clip ×1, USB charging cable ×1, Chinese-English manual ×1, warranty card ×1 |
Product Details
Advantages and Competitiveness
Features
6-Layer Protection System
Application Scenarios
Customization Options
Frequently Asked Questions
Still have questions?
Delve into our list of frequently asked questions about stage effects equipment. Here, we address and clarify your top concerns.
Pure Sine Wave Inverters
What is the reason for the inverter automatically shutting down during operation?
It is likely that the protection mechanism is triggered: 1. Load overload (total power of connected devices exceeds 1000W); 2. Abnormal input voltage (battery voltage <10.8V or >14.5V); 3. Device overtemperature (excessively high ambient temperature or cooling fan failure). It is recommended to disconnect some loads, check the battery voltage or clean the heat dissipation port before trying again.
What appliances can this inverter support?
Rated 1500W, peak 3000W – supports most home appliances.
Can it run inductive loads like fridges or tools?
Yes, pure sine wave output supports all load types.
Does it have a charging (UPS) function?
No, this model is a pure inverter without UPS function.
Will reversing the positive and negative poles damage the device when connecting the battery?
The device has a built-in reverse connection protection function, which will automatically cut off the circuit when the positive and negative poles are reversed to avoid damage caused by reverse current inflow; just adjust the connection order of the positive and negative poles of the battery clip and re-power on to use normally.
Contact Our Power Solution Experts
Provide your project details and requirements, and Congsin will deliver customized inverter, portable power, or solar controller solutions with full technical support.
3000W Full-Power Pure Sine Wave Inverter (Labeled 6000W), DC 12V to AC 220V Power Converter, Suitable for High-Power Devices
This pure sine wave inverter (Model: CS3000PSW-L6000) features "3000W full continuous power output + labeled 6000W peak power." Adopting pure sine wave output technology (waveform distortion rate <2%), its power quality is close to mains power, which can safely drive high-power precision devices such as air conditioners, refrigerators, electric tools, and medical instruments, avoiding equipment malfunctions caused by unstable waveforms. The device supports DC 12V input (compatible with 10.5V-14.8V wide voltage): 3000W continuous power meets long-term stable power supply, and 6000W peak power easily copes with the instantaneous startup impact of devices. Equipped with 4 AC universal sockets (16A) and 2 USB 3.0 fast-charging ports (22.5W/port), it can supply power to 6 devices simultaneously. Built-in six-fold protection (overload, overvoltage, undervoltage, short circuit, overtemperature, and reverse connection), combined with dual intelligent silent cooling fans (noise ≤45dB), balances high-power performance and safety, making it suitable for home emergencies, outdoor engineering, vehicle-mounted power supplies, small commercial and other scenarios.
1500W Pure Sine Wave Inverter with Remote Control Function
This 1500W pure sine wave inverter converts DC 12V to AC 220V power, with a rated power of 1500W and a peak power of 3000W. Equipped with dual fans, LCD display, QC3.0 and PD Type-C fast charging ports, and remote control capability for stable and intelligent power output.
1000W Full-Power Pure Sine Wave Inverter, DC 12V to AC 220V Power Converter, Suitable for Precision Electronic Devices
This 1000W full-power pure sine wave inverter (Model: CS1000PSW) adopts pure sine wave output technology, with a stable waveform close to mains power, which can be safely adapted to precision electronic devices such as computers, projectors, medical instruments, and inverter home appliances to avoid device damage or malfunctions. The device supports DC 12V input (compatible with 10.8V-14.5V wide voltage), continuously outputs 1000W power, and has a peak power of 2000W, meeting the power needs of most household and small commercial devices. Equipped with 2 AC universal sockets, 2 USB 2.0 fast-charging ports (18W per port), built-in five-fold protection (overload, overvoltage, undervoltage, short circuit, overtemperature), and a silent cooling fan, it balances safety and portability, suitable for home emergencies, outdoor camping, vehicle-mounted power supplies, small office and other scenarios.
2000W Full-Power Pure Sine Wave Inverter, DC 12V to AC 220V Power Converter, Equipped with 3 AC Universal Sockets
This 2000W full-power pure sine wave inverter (Model: CS2000PSW-3S) adopts pure sine wave output technology (waveform distortion rate <3%), and the output power is close to mains power quality, which can safely drive precision electronic devices such as computers, inverter air conditioners, medical instruments, and audio equipment, avoiding equipment malfunctions or damage caused by unstable waveforms. The device supports DC 12V input (compatible with 10.5V-14.8V wide voltage), continuously outputs 2000W full power, and has a peak power of 4000W, easily meeting the instantaneous startup needs of high-power devices; it is core-equipped with 3 AC universal sockets (max current 16A), which can supply power to multiple home appliances or devices at the same time, and is matched with 2 USB 3.0 fast-charging ports (22.5W per port), balancing high-power supply and digital product charging. Built-in five-fold safety protection (overload, overvoltage, undervoltage, short circuit, and overtemperature), combined with dual silent cooling fans (noise ≤42dB), it achieves both safety and stability, suitable for home emergencies, outdoor operations, vehicle-mounted power supplies, small commercial and other scenarios.
