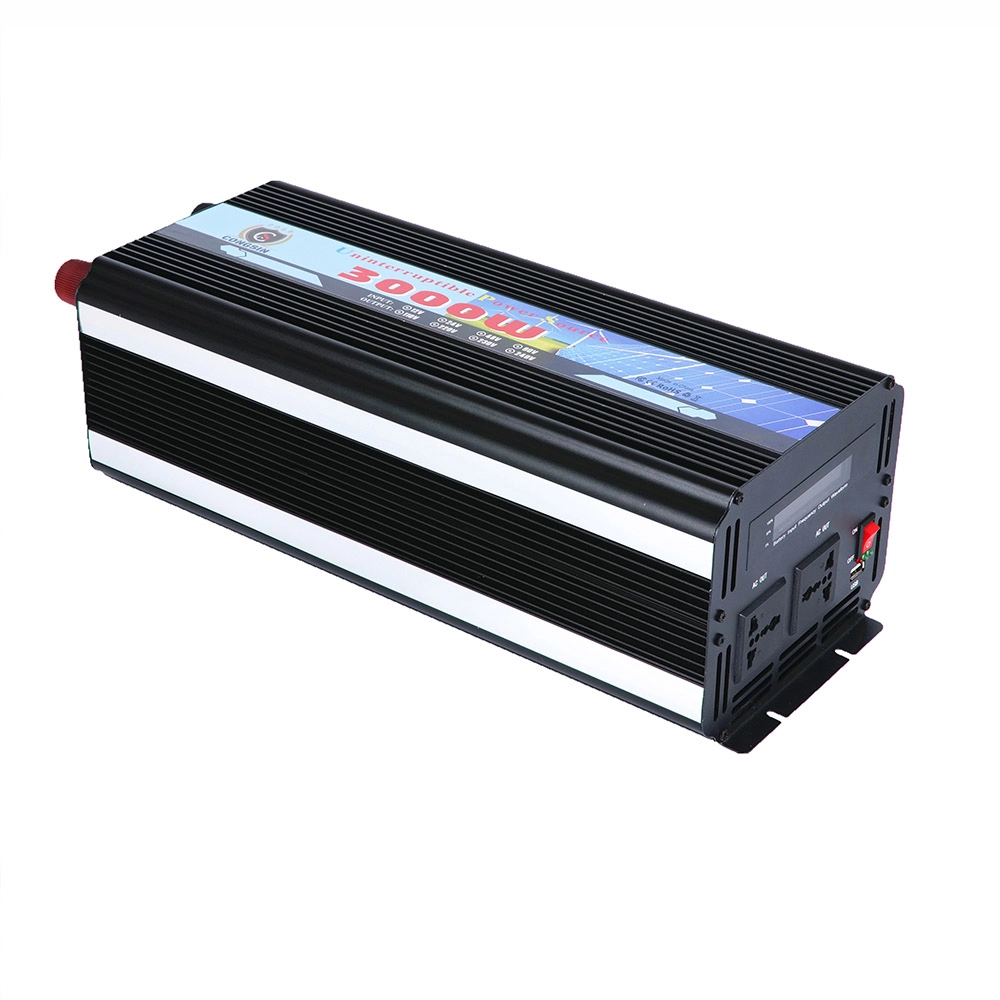

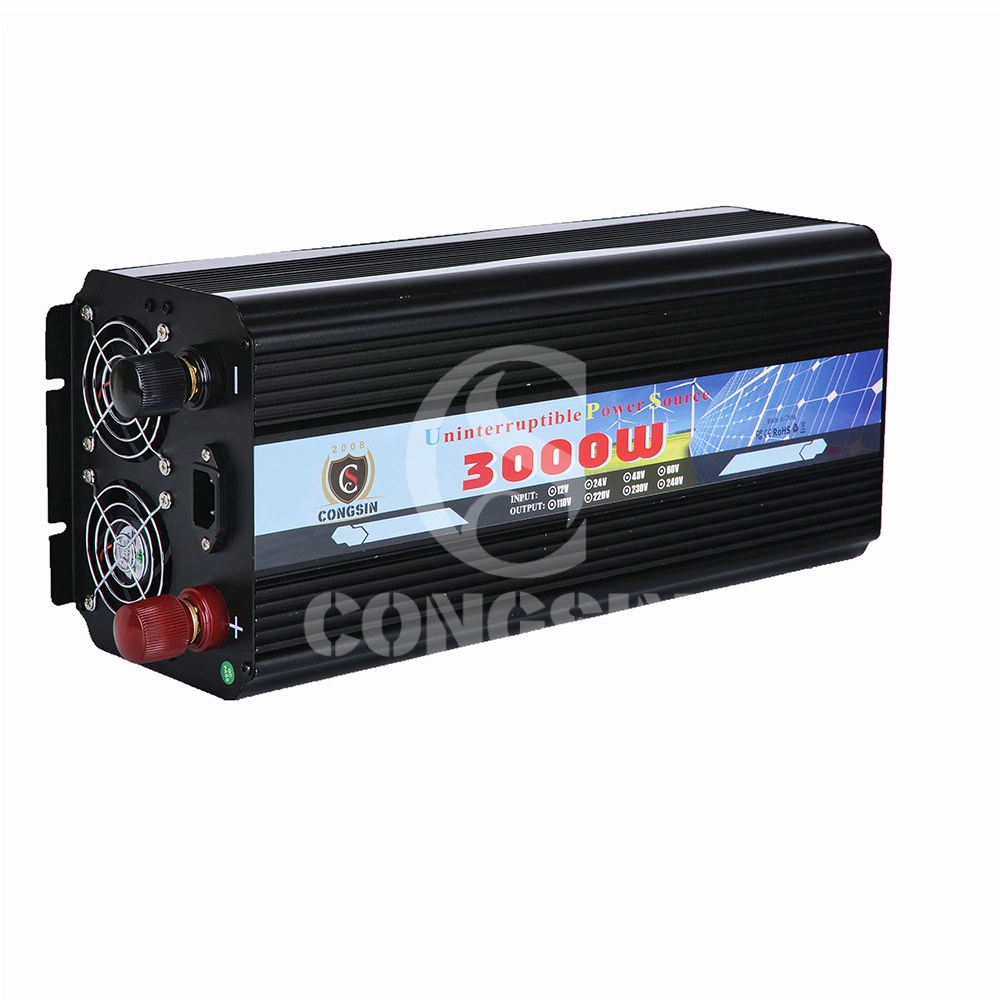

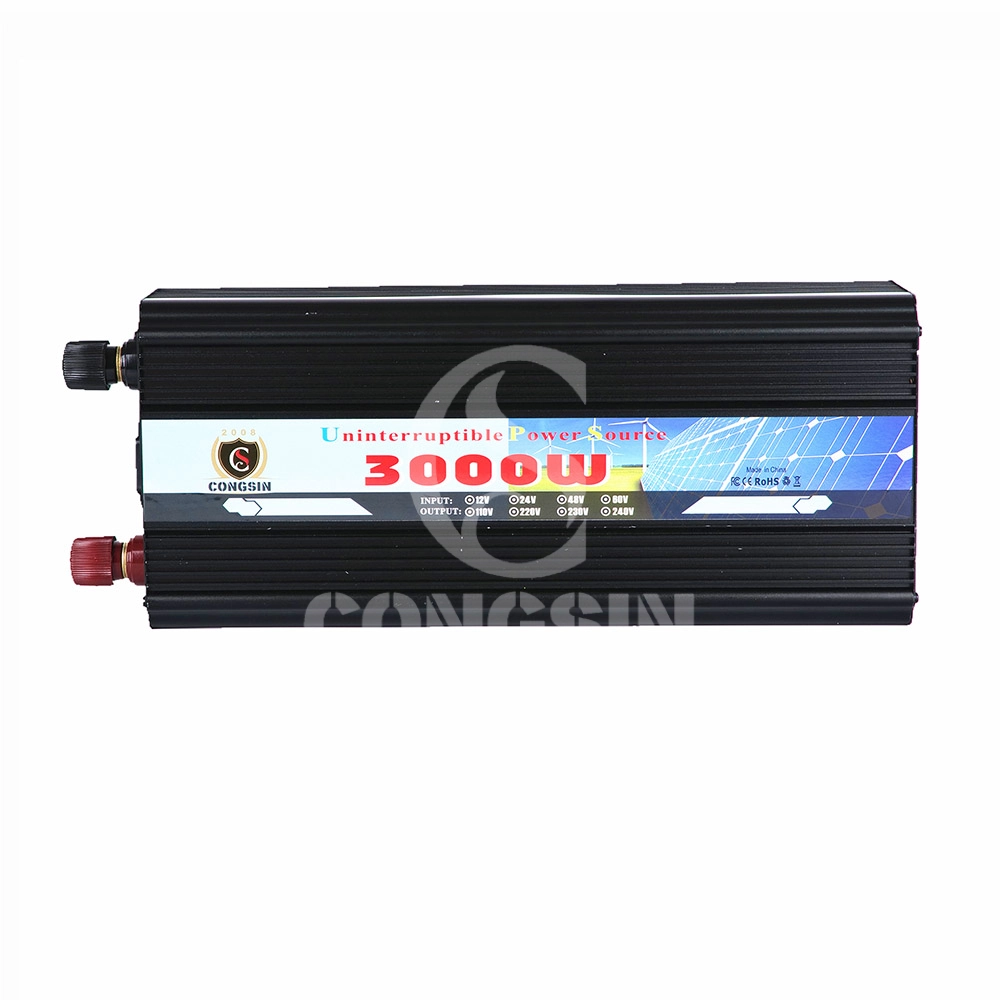

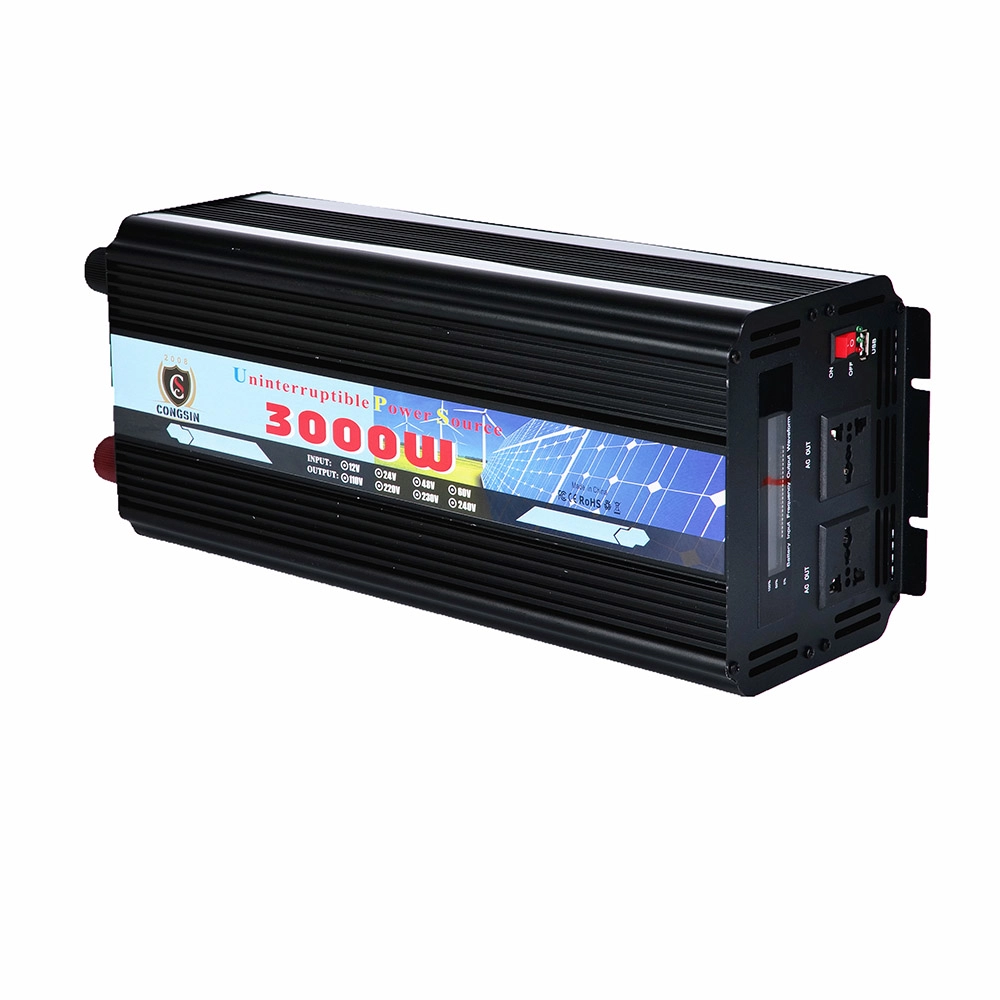

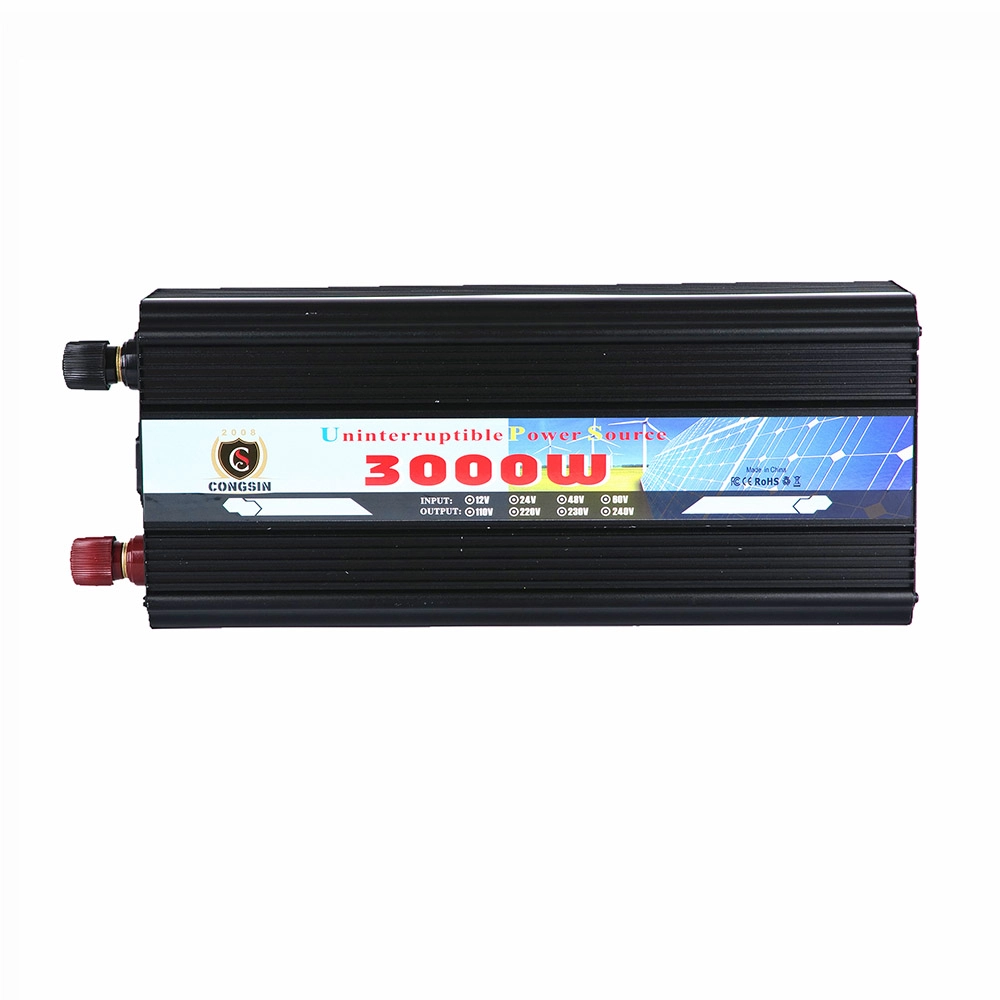

3000W Full-Power Modified Sine Wave Inverter with UPS Function, DC 12V to AC 220V Power Converter, Support Automatic Power-Off Switching
This 3000W full-power modified sine wave inverter (Model: CS3000UPS) is a multi-functional device integrating power conversion and emergency power supply. It can convert DC 12V battery power to AC 220V household voltage to meet the power needs of high-power devices; it is equipped with a core UPS function, which can automatically switch to battery power supply when the mains power is interrupted (switching time < 10ms), ensuring uninterrupted operation of key devices such as computers, servers, and medical equipment. The device is equipped with 3 AC universal sockets, 2 USB fast-charging ports, combined with an intelligent heat dissipation system and overload protection device, balancing practicality and safety, suitable for home, office, outdoor operations and other scenarios.
Quality Assurance
Ensure high standards in manufacturing and design, committing to products free of defects or quality issues.
Transportation
Supports sea, air, and express shipping.
UPS Modified Sine Wave Inverter Technical Specifications
Review the comprehensive technical data of our modified sine wave inverter with integrated UPS functionality. Explore precise engineering parameters—from sub-10ms automatic switching times to continuous power output limits—ensuring uninterrupted operation for your essential equipment during grid failures.
| Input Voltage | Output Voltage | UPS Switching Time | Power |
| DC 12V (compatible with 10.5V-14.5V wide voltage) | AC 220V±5% (50Hz/60Hz automatic adaptation) | ＜10ms | Continuous Power 3000W, Peak Power 6000W |
| Product Size | N.W. | G.W. | Interface Configuration |
| 380×180×120mm | 4.8kg | 5.5kg | 3×AC Universal Sockets, 2×USB 3.0 (22.5W) |
| Protection Function | Single Packaging | Carton Specification | Carton Size |
| Overload, Overvoltage, Undervoltage, Short Circuit, Overtemperature Protection | Size 45×25×18cm, including inverter host ×1, battery clip ×1, USB charging cable ×1, manual (Chinese-English bilingual) ×1, warranty card ×1 | 4 units per carton, gross weight 24kg | 50×48×40cm |
| Material | |||
| five-layer corrugated paper (waterproof treatment) |

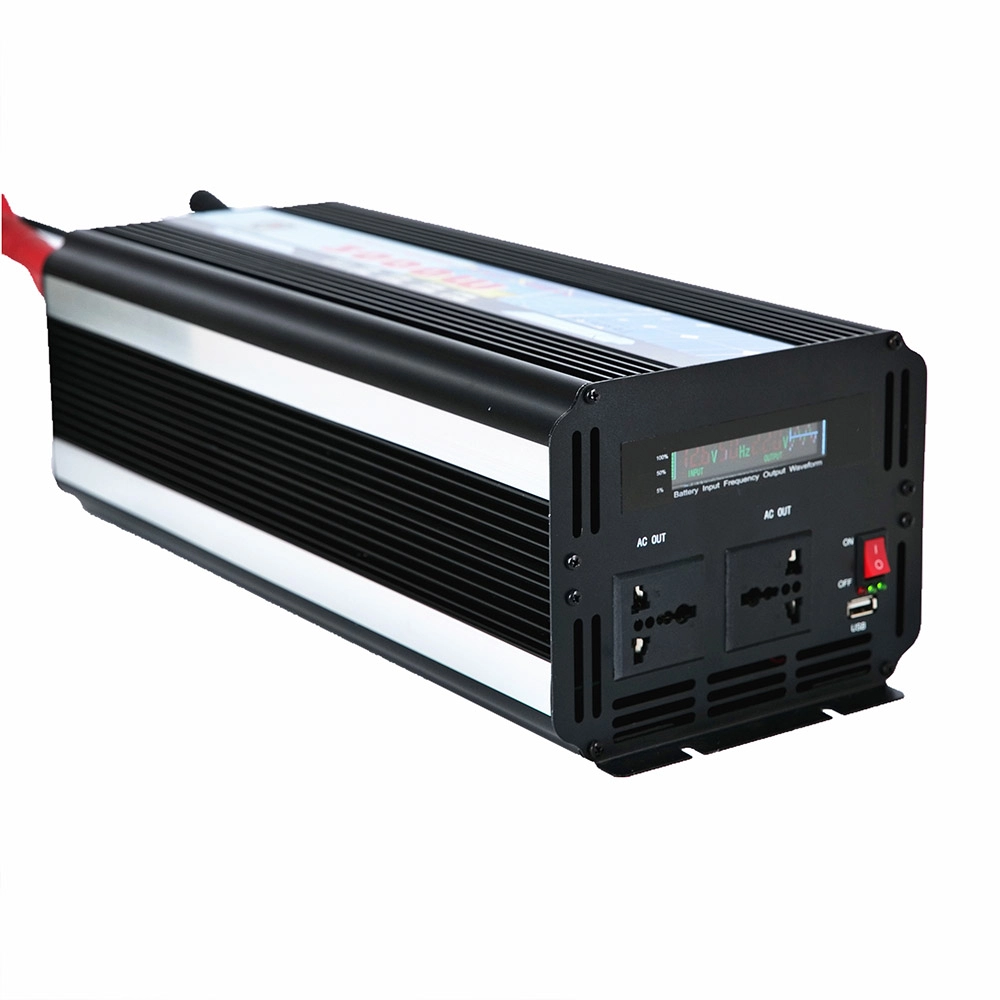

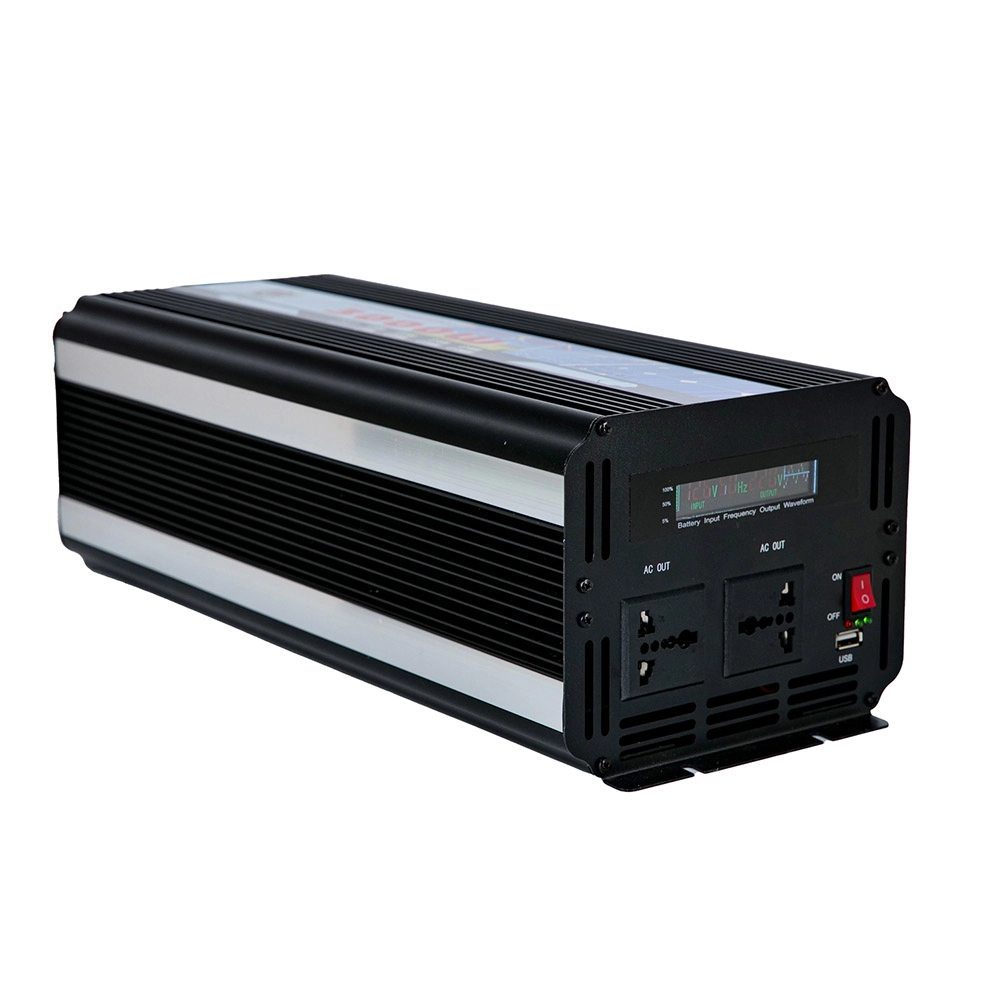

Emergency Power Converter Details & Interface Design
Discover the industrial-grade craftsmanship of our emergency power converter. Engineered for maximum operational reliability, it features high-speed USB fast-charging ports, universal AC sockets, and an intelligent heat dissipation structure to support seamless power transitions.
UPS Power Inverter Core Advantages
Engineered for robust energy efficiency and instantaneous power backup, this inverter guarantees stable modified sine wave output. Its factory-direct quality assurance and ultra-fast UPS switching mechanism make it an indispensable, highly cost-effective solution for global B2B procurement.
Uninterrupted Power Supply Functional Highlights
Explore the versatile capabilities of our power conversion system. Featuring automatic power-off switching, simultaneous multi-device powering, and adaptive thermal regulation, every function is meticulously designed to prevent work interruptions and data loss during power outages.

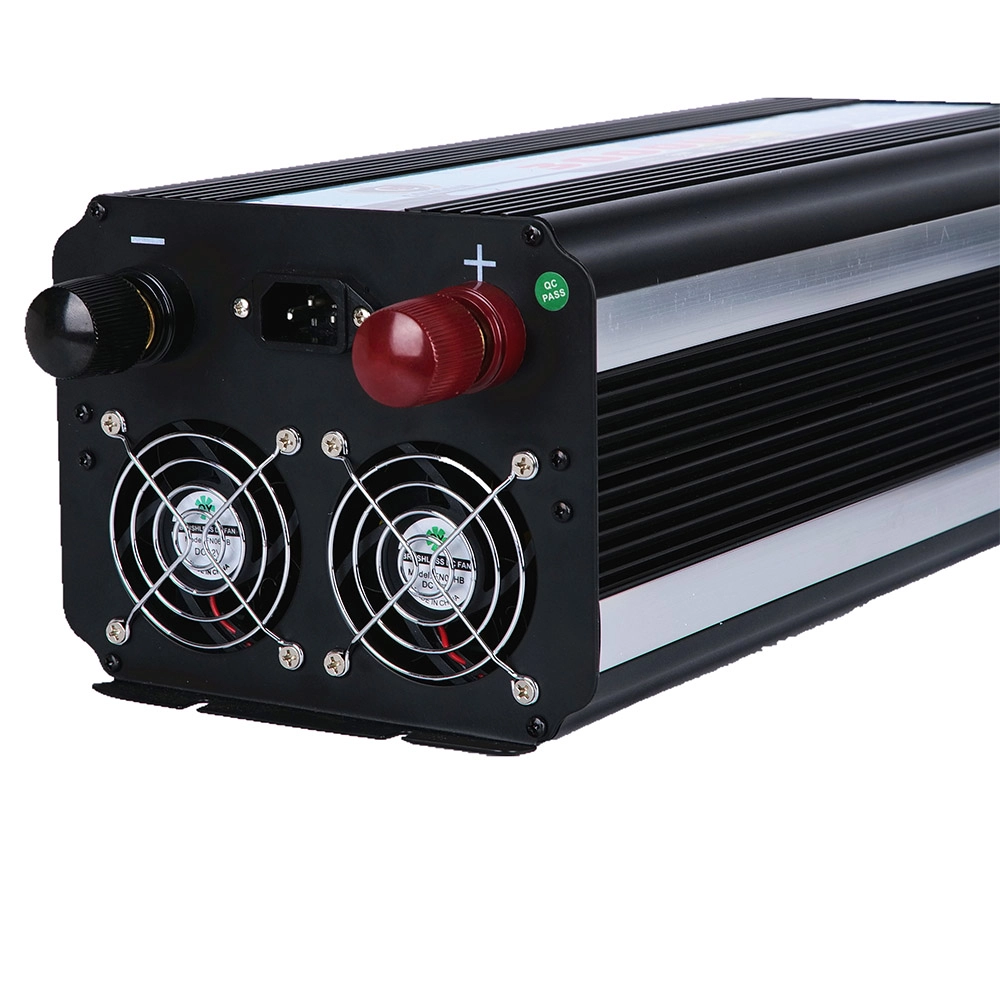

Intelligent Safety Protection & Thermal Management
Prioritizing user and equipment security, the system integrates a comprehensive multi-layer protection matrix safeguarding against overloads, short circuits, and voltage fluctuations. Paired with automated dual silent cooling fans, it ensures secure and continuous high-load operation.
Versatile Off-Grid & Emergency Backup Applications
Highly adaptable to critical operational environments, this integrated UPS power solution resolves sudden electricity outages. It serves as a dependable backup for office servers, medical assistance equipment, outdoor engineering tools, and residential emergencies.
OEM Inverter Customization & Branding Solutions
We offer flexible OEM/ODM manufacturing solutions tailored to distinct B2B market requirements. From custom input/output voltage configurations and PD fast-charging interface expansions to personalized logo integration, we empower enterprise clients to build competitive power product lines.
Frequently Asked Questions
Still have questions?
Delve into our list of frequently asked questions about stage effects equipment. Here, we address and clarify your top concerns.
Modified Sine Wave Inverters
Can the peak 720W supply power continuously?
The peak power is the instantaneous maximum power, and the continuous power supply is 360W. Ensure that the device power does not exceed the rated value when using.
What power appliance can this inverter run?
It has a continuous power of 800W, so it can run appliances within 800W; the peak power is 1500W, supporting the instantaneous startup of appliances within 1500W.
Can this 2000W inverter power an air conditioner?
If the air conditioner power is within 2000W and the input is AC220V, it can supply power normally. It is recommended to ensure stable power when starting.
How does reverse protection work?
When the positive and negative poles of the battery are reversed, the inverter will automatically cut off the circuit to avoid device damage and ensure power usage safety.
Is the cooling fan noisy?
The fan is designed for heat dissipation and will make some noise during operation, but it is within a reasonable range and will not interfere with normal use.
Contact Our Power Solution Experts
Provide your project details and requirements, and Congsin will deliver customized inverter, portable power, or solar controller solutions with full technical support.
1000W Modified Sine Wave Inverter with UPS Charger DC12V to AC220V 600W Rated Power Dual Universal Socket Inverter
This 1000W modified sine wave inverter has UPS charging function, with DC12V input and AC220V output, and 600W rated power. Equipped with dual universal sockets, two USB ports, an LCD display, and a battery clip, it is professionally designed and has stable performance. It can provide stable AC power conversion and UPS emergency power supply for computers, small home appliances, electronic devices, etc. in home emergency, office, outdoor and other scenarios, meeting the needs of simultaneous power supply and emergency power supply for multiple devices.
2000W Modified Sine Wave Inverter, DC 12V to AC 220V Power Inverter with 2 AC Sockets, 2 Cooling Fans & Battery Terminal Wire (Model: CS2000BIG)
Our CS2000BIG 2000W modified sine wave inverter is a high-power power conversion device that converts DC 12V from batteries into AC 220V electricity. It is designed for heavy-duty use, featuring 2 AC sockets to power multiple high-power devices simultaneously, 2 cooling fans for efficient heat dissipation, and battery terminal wire for stable connection. With its robust construction and large capacity, it is an ideal solution for powering tools, appliances, and equipment in various scenarios, from industrial use to home emergencies.
CS1000USB 1000W Modified Sine Wave Inverter with USB, Universal Socket & Battery Clip
The CS1000USB Modified Sine Wave Inverter is a reliable and portable power converter designed for home and vehicle use. It converts DC 12V to AC 220V with a rated output of 600W (peak 1000W). Equipped with a USB port and universal socket, it allows users to power laptops, TVs, and tools and charge mobile devices anytime, anywhere.
2000W Modified Sine Wave Inverter
This product is a 2000 W modified sine wave inverter with DC 12 V input and AC 220 V output and a rated power of 1200 W. It features 4 USB ports, an LCD display, two universal sockets, one cigarette lighter socket, and battery clips.
