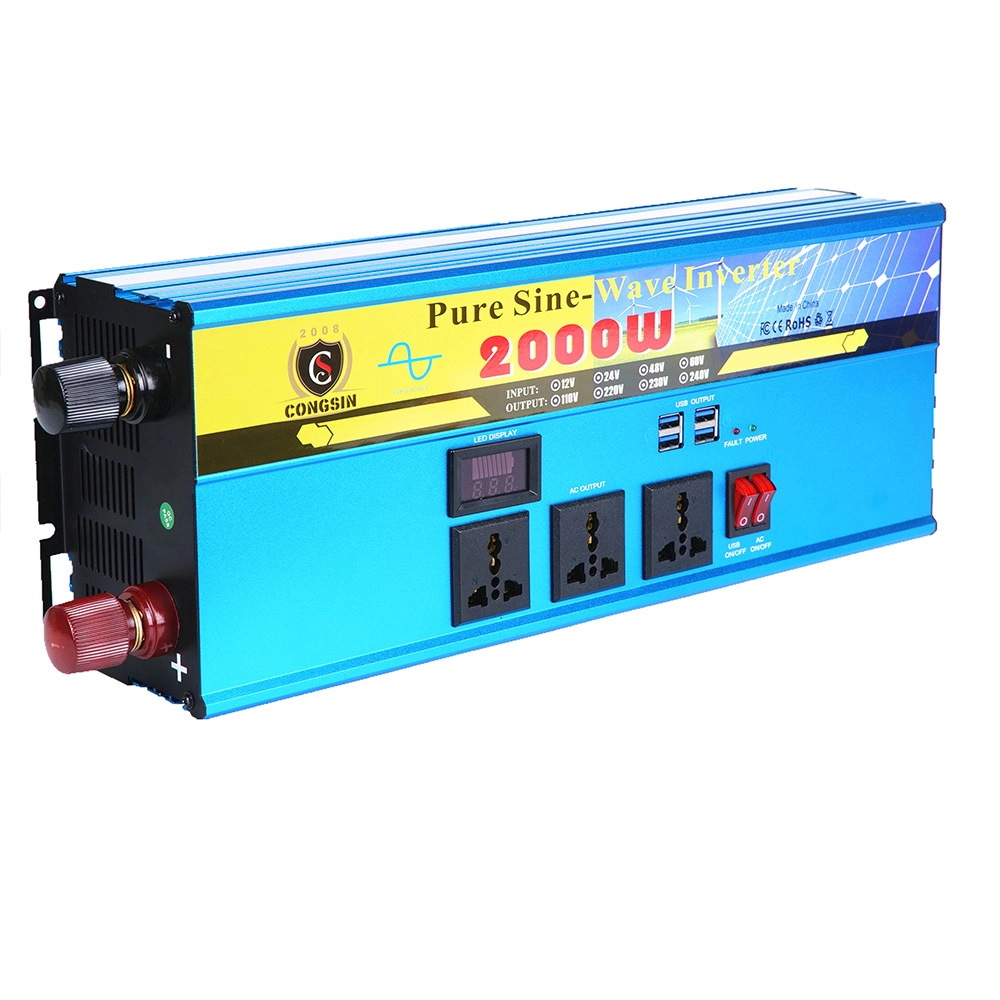

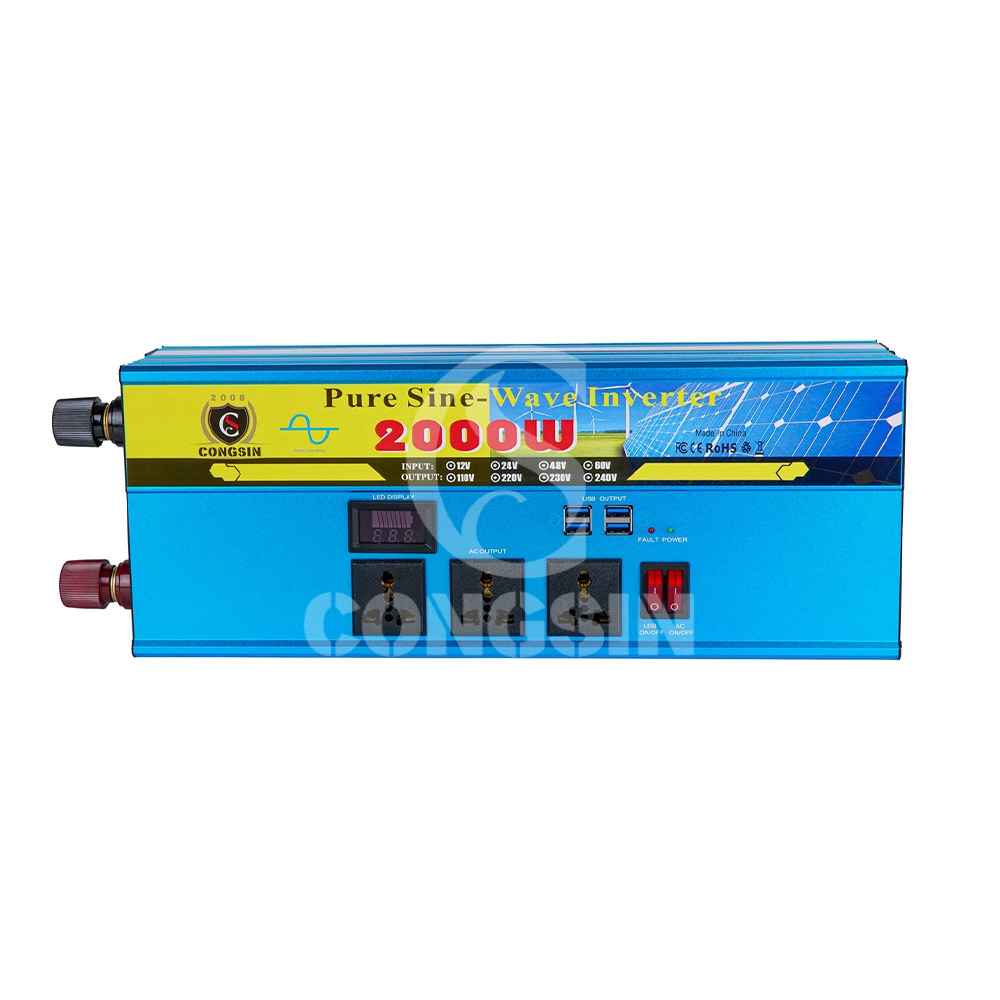

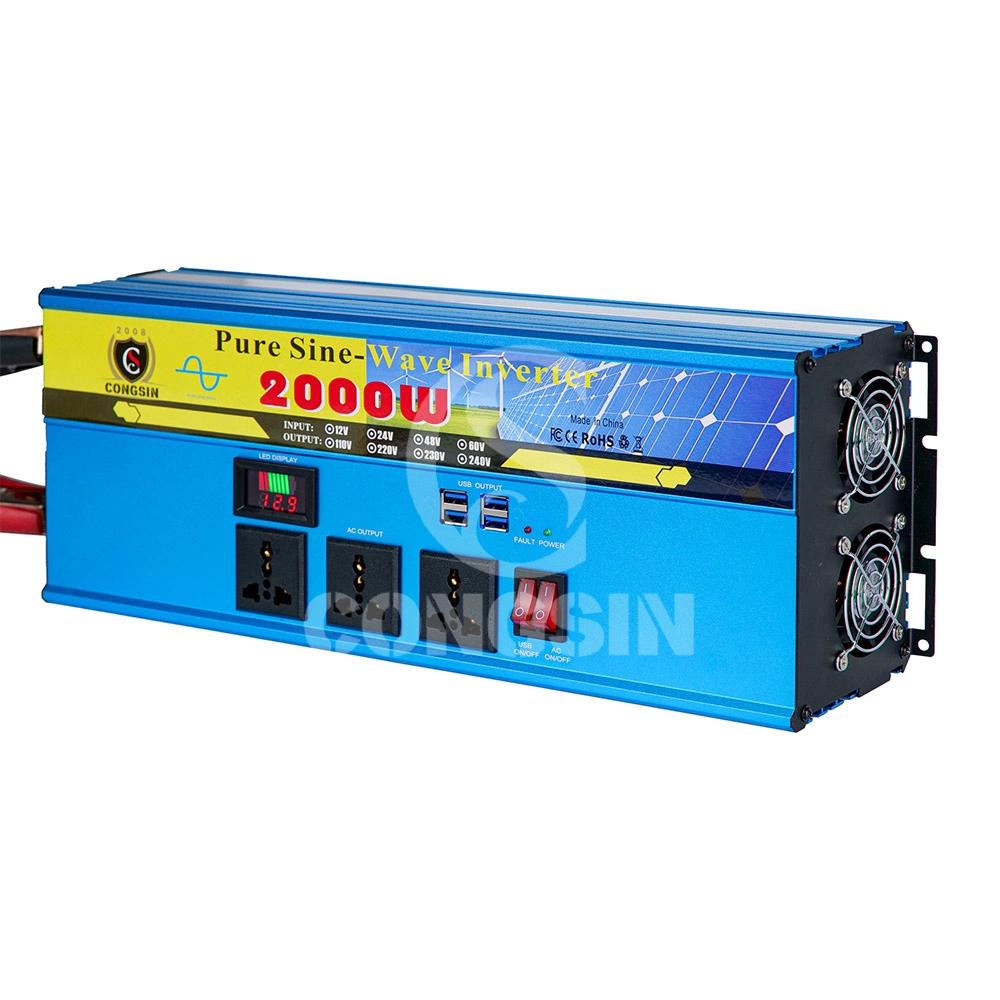

2000W Full-Power Pure Sine Wave Inverter, DC 12V to AC 220V Power Converter, Equipped with 3 AC Universal Sockets

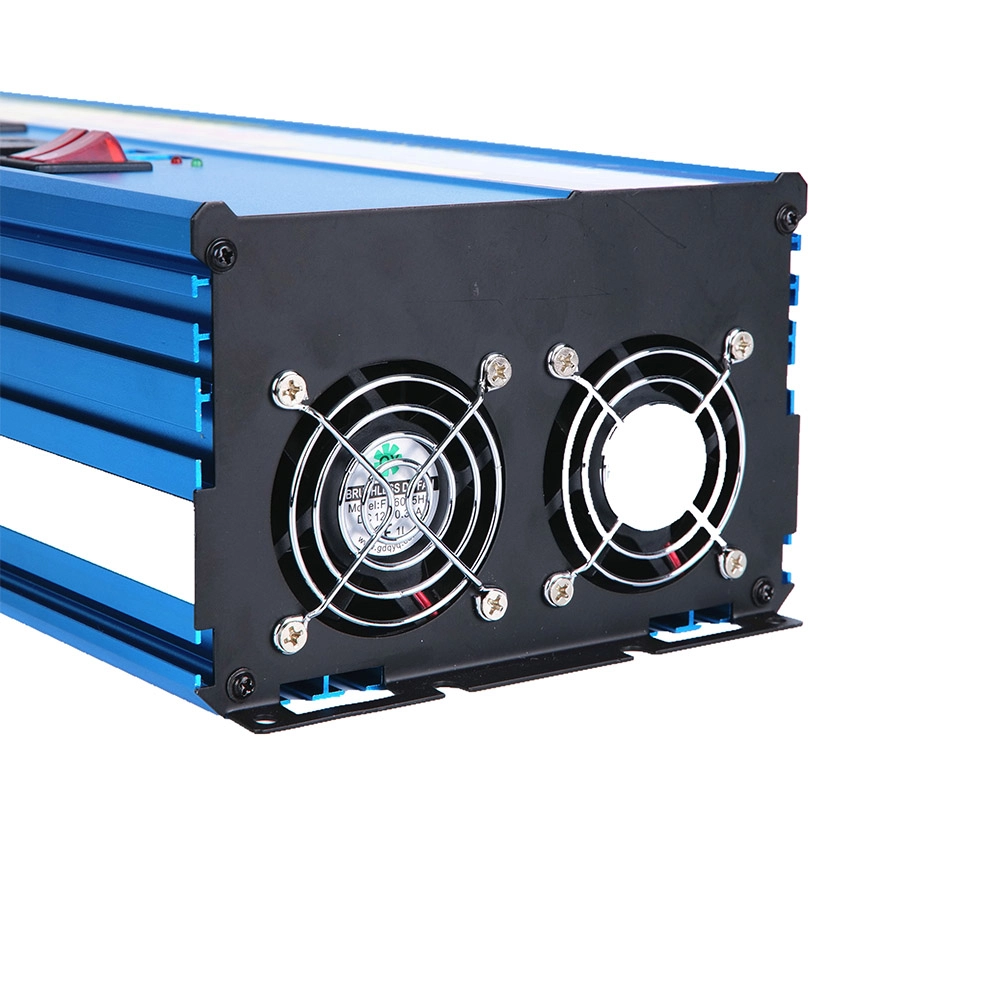

This 2000W full-power pure sine wave inverter (Model: CS2000PSW-3S) adopts pure sine wave output technology (waveform distortion rate <3%), and the output power is close to mains power quality, which can safely drive precision electronic devices such as computers, inverter air conditioners, medical instruments, and audio equipment, avoiding equipment malfunctions or damage caused by unstable waveforms. The device supports DC 12V input (compatible with 10.5V-14.8V wide voltage), continuously outputs 2000W full power, and has a peak power of 4000W, easily meeting the instantaneous startup needs of high-power devices; it is core-equipped with 3 AC universal sockets (max current 16A), which can supply power to multiple home appliances or devices at the same time, and is matched with 2 USB 3.0 fast-charging ports (22.5W per port), balancing high-power supply and digital product charging. Built-in five-fold safety protection (overload, overvoltage, undervoltage, short circuit, and overtemperature), combined with dual silent cooling fans (noise ≤42dB), it achieves both safety and stability, suitable for home emergencies, outdoor operations, vehicle-mounted power supplies, small commercial and other scenarios.
Quality Assurance
Ensure high standards in manufacturing and design, committing to products free of defects or quality issues.
Transportation
Supports sea, air, and express shipping.
Specifications
| Input Voltage | Output Voltage | Output Waveform | Power |
| DC 12V (wide voltage range 10.5V-14.8V) | AC 220V±5% (50Hz/60Hz automatic adaptation) | Pure Sine Wave, Distortion Rate <3% | Continuous Power 2000W, Peak Power 4000W |
| Size | N.W. | G.W. | Interface Configuration |
| 320×150×80mm | 2.8kg | 3.2kg | 3×AC Universal Sockets (16A), 2×USB 3.0 (22.5W) |
| Protection Function | Heat Dissipation System | Carton Specification | Carton Size |
| Overload, Overvoltage, Undervoltage, Short Circuit, Overtemperature Protection | Dual Silent Cooling Fans (Noise ≤42dB) | 8 units per carton, gross weight 28kg | 50×45×38cm |
| Material | Single Packaging | ||
| Five-layer corrugated paper (waterproof + pressure-proof treatment) | Size 40×22×12cm, including inverter host ×1, battery clip (pure copper) ×1, USB charging cable ×1, Chinese-English manual ×1, warranty card ×1 |
Product Details
Advantages and Competitiveness
Features
6-Layer Protection System
Application Scenarios
Customization Options
Frequently Asked Questions
Still have questions?
Delve into our list of frequently asked questions about stage effects equipment. Here, we address and clarify your top concerns.
Pure Sine Wave Inverters
Will reversing the positive and negative poles damage the device when connecting the battery?
The device has a built-in reverse connection protection function, which will automatically cut off the circuit when the positive and negative poles are reversed to avoid damage caused by reverse current inflow; just adjust the connection order of the positive and negative poles of the battery clip and re-power on to use normally.
Can it be used in RVs or trucks?
Yes. The device input voltage is DC 12V, which matches the battery voltage of RVs and trucks. It can be connected via battery clips or cigarette lighter interface (need to confirm that the maximum current of the cigarette lighter is ≥10A) to supply power to car refrigerators, parking air conditioners, laptops, etc.
What capacity battery is needed to drive a 1000W electric kettle?
It is recommended to match with a 12V 100Ah or larger capacity battery. When a 1000W electric kettle is working, the power consumption per hour is about 83Ah (1000W÷12V≈83A), and a 100Ah battery can support continuous work for about 1 hour (actual battery life is affected by battery aging).
Is the remote control standard?
It’s optional and available upon request.
What capacity battery is needed to meet long-term use?
It needs to be calculated according to the total power of the device, the formula is "Battery Capacity (Ah) = Total Device Power (W) × Usage Time (h) ÷ Input Voltage (12V)". For example, to drive a 1000W device for 5 hours, the required battery capacity = 1000×5÷12≈417Ah, it is recommended to use 2 200Ah batteries in parallel (total capacity 400Ah, actual usage about 4.8 hours).
Contact Our Power Solution Experts
Provide your project details and requirements, and Congsin will deliver customized inverter, portable power, or solar controller solutions with full technical support.
1500W Pure Sine Wave Inverter with Remote Control Function
This 1500W pure sine wave inverter converts DC 12V to AC 220V power, with a rated power of 1500W and a peak power of 3000W. Equipped with dual fans, LCD display, QC3.0 and PD Type-C fast charging ports, and remote control capability for stable and intelligent power output.
1000W Full-Power Pure Sine Wave Inverter, DC 12V to AC 220V Power Converter, Suitable for Precision Electronic Devices
This 1000W full-power pure sine wave inverter (Model: CS1000PSW) adopts pure sine wave output technology, with a stable waveform close to mains power, which can be safely adapted to precision electronic devices such as computers, projectors, medical instruments, and inverter home appliances to avoid device damage or malfunctions. The device supports DC 12V input (compatible with 10.8V-14.5V wide voltage), continuously outputs 1000W power, and has a peak power of 2000W, meeting the power needs of most household and small commercial devices. Equipped with 2 AC universal sockets, 2 USB 2.0 fast-charging ports (18W per port), built-in five-fold protection (overload, overvoltage, undervoltage, short circuit, overtemperature), and a silent cooling fan, it balances safety and portability, suitable for home emergencies, outdoor camping, vehicle-mounted power supplies, small office and other scenarios.
3000W Full-Power Pure Sine Wave Inverter, DC 12V to AC 220V Power Converter, Suitable for High-Power Precision Devices
This 3000W full-power pure sine wave inverter (Model: CS3000PSW) adopts pure sine wave output technology (waveform distortion rate <2%), and the output power is highly consistent with mains power quality. It can safely drive high-power precision loads such as air conditioners, refrigerators, medical instruments, and small industrial equipment, avoiding equipment malfunctions or shortened service life caused by unstable waveforms. The device supports DC 12V input (compatible with 10.5V-14.8V wide voltage), continuously outputs 3000W full power, and has a peak power of 6000W, easily coping with the instantaneous startup impact of high-power devices; it is equipped with 4 AC universal sockets (max current 16A) + 2 USB 3.0 fast-charging ports (22.5W per port) to meet the simultaneous power supply needs of multiple devices. Built-in six-fold safety protection (overload, overvoltage, undervoltage, short circuit, overtemperature, reverse connection), combined with dual intelligent silent cooling fans (noise ≤45dB), it achieves the triple advantages of "high power + high safety + low noise," suitable for home emergency, outdoor engineering, vehicle-mounted power supply, small industrial scenarios and other fields.
2000W Dual Input Modified Sine Wave Power Inverter (12V/24V or 48V/60V)
This 2000W modified sine wave inverter features a dual-input voltage design (12V/24V or 48V/60V), making it compatible with various DC systems. Compact, efficient, and versatile, it delivers a stable AC 220V output for home, vehicle, and solar power applications.
