Pure Sine Wave Inverter Fundamentals: How Clean AC Power Is Generated

Key Takeaways

• A pure sine wave inverter converts DC power from batteries, vehicles, solar systems, or other DC sources into AC output for connected loads.
• Clean AC power is generated through power conversion, switching control, waveform shaping, filtering, and output regulation.
• Pure sine wave output is generally smoother than modified sine wave output, but buyers should still confirm load requirements before procurement.
• B2B buyers should not choose an inverter only by wattage; they should also check input voltage, surge load, waveform quality, protection, cooling, documentation, and market requirements.
• Specific THD, efficiency, protection functions, voltage range, warranty, MOQ, delivery time, and certification coverage must be confirmed with the supplier.

Article Scope for B2B Buyers

This article explains the technical fundamentals of pure sine wave inverters for B2B buyer education. It is not a product availability list, pricing page, certification claim, or model specification sheet. Buyers should confirm product configurations, documentation, certification coverage, delivery terms, MOQ, warranty, and after-sales support directly with the supplier before procurement.

What Is a Pure Sine Wave Inverter?

A pure sine wave inverter is a power conversion device that changes DC power into AC power with a smooth waveform designed to be closer to the AC electricity supplied by utility grids. In B2B applications, this type of inverter is often considered when buyers need cleaner AC output for sensitive loads, professional equipment, transportation systems, outdoor operations, solar backup systems, or commercial power projects.

The main purpose of a pure sine wave inverter is not simply to “make AC power.” It is to generate AC output with a waveform that can better match the expectations of equipment designed for stable grid-like power. This can matter for loads such as motors, pumps, compressors, communication equipment, testing instruments, medical devices, office electronics, and certain solar or backup power systems.

However, buyers should avoid assuming that every application requires a pure sine wave inverter or that every pure sine wave inverter fits every load. The correct selection depends on input voltage, output voltage and frequency, load type, surge demand, power quality requirements, installation environment, and target-market standards.

Congsin is associated with power inverter products, including pure sine wave inverter solutions, modified sine wave inverters, portable power stations, and solar charge controllers. Specific product configurations, technical indicators, certification coverage, and customization options should be confirmed before procurement or publication.

Why Pure Sine Wave Output Matters

The term “pure sine wave” describes the shape of the AC output waveform. Utility grid power is normally represented as a smooth sine wave. Many electrical and electronic devices are designed to work with this kind of waveform.

When the waveform is smoother, connected equipment may operate with better compatibility, less electrical noise, and more predictable behavior. This is especially important when the load includes devices that are sensitive to waveform quality.

B2B buyers may care about pure sine wave output when they supply or integrate power systems for:

• Solar and off-grid power systems.
• RVs, service vehicles, trucks, and mobile work platforms.
• Outdoor offices and field construction equipment.
• Backup power systems for commercial facilities.
• Communication, security, or monitoring devices.
• Medical, laboratory, or precision equipment.
• Equipment with motors, pumps, transformers, or compressors.

These are general application scenarios. Buyers should always confirm actual load requirements, installation conditions, and safety standards before choosing an inverter.

How Clean AC Power Is Generated from DC Input

A pure sine wave inverter generates AC output through several power conversion stages. The exact circuit design may vary by product, but the basic principle can be explained in a practical way for procurement and engineering discussions.

Step 1: DC Input from a Battery, Vehicle, or Solar System

The inverter starts with DC input. This may come from a battery bank, vehicle electrical system, solar energy storage system, portable power source, or another DC supply.

• Input voltage, such as 12V, 24V, 48V, or another system voltage.
• Battery chemistry and battery management requirements.
• Whether the inverter is used with solar, vehicle, backup, or industrial DC systems.
• The stability of the DC input under real operating conditions.
• Cable sizing, fuse protection, and installation requirements.

The input side is important because unstable or mismatched DC supply can affect output performance, safety, and long-term reliability. Buyers comparing system voltage options can review related pages such as 12V pure sine wave inverter, 24V pure sine wave inverter, and 48V pure sine wave inverter options, while still confirming the final system requirements with the supplier.

Step 2: Power Conversion and Switching Control

After receiving DC input, the inverter uses power electronics to switch and control energy flow. This switching process is what makes DC-to-AC conversion possible.

For B2B buyers, the important point is not to request proprietary circuit details, but to confirm whether the inverter is suitable for the intended load and duty cycle.

• What application types is the inverter designed for?
• Is the inverter suitable for continuous operation in the target environment?
• What protection functions should be confirmed for the application?
• What cooling method or ventilation conditions are required?
• What test documents or technical materials can be provided?

Step 3: Waveform Shaping and Filtering

The inverter must shape the converted power into an AC waveform. In pure sine wave designs, waveform control and filtering help produce smoother output.

This stage is important because the waveform affects how connected equipment behaves. Loads such as motors, chargers, power supplies, communication devices, and precision instruments may respond differently depending on waveform quality.

• Output waveform type.
• Total harmonic distortion, if relevant to the project.
• Testing method for waveform quality.
• Behavior under different load conditions.
• Whether the inverter has been evaluated with similar application loads.

No THD value or performance level should be assumed unless it is provided in a confirmed datasheet or test report.

Step 4: AC Output for Connected Loads

The final output is AC power used by connected equipment. At this stage, buyers need to confirm voltage, frequency, load profile, and surge requirements.

• Output voltage, such as 110V, 120V, 220V, or 230V.
• Output frequency, such as 50Hz or 60Hz.
• Continuous power rating.
• Surge or peak power requirement.
• Load type: resistive, inductive, capacitive, electronic, or mixed.
• Whether the application includes motors, compressors, chargers, or sensitive electronics.

A pure sine wave inverter should be selected based on the real load profile, not only the rated wattage printed on a product page.

Pure Sine Wave vs Modified Sine Wave Inverter

Pure sine wave and modified sine wave inverters both convert DC power into AC power, but their output waveform is different.

A pure sine wave inverter produces a smoother waveform. A modified sine wave inverter produces a more approximate waveform, often with stepped transitions. Modified sine wave inverters may be suitable for some simple loads, but they may not be ideal for all equipment.

When Pure Sine Wave May Be Preferred

• Better compatibility with sensitive electronics.
• Cleaner AC output for professional equipment.
• More suitable power for motors or inductive loads.
• Lower risk of electrical noise in certain applications.
• Better alignment with grid-like AC expectations.

When Modified Sine Wave May Still Be Considered

A modified sine wave inverter may still be considered for simpler applications where the load can tolerate less refined waveform quality. However, the buyer should confirm compatibility before use.

For procurement teams, the practical question is: What type of load will the inverter power, and what waveform does that load require?

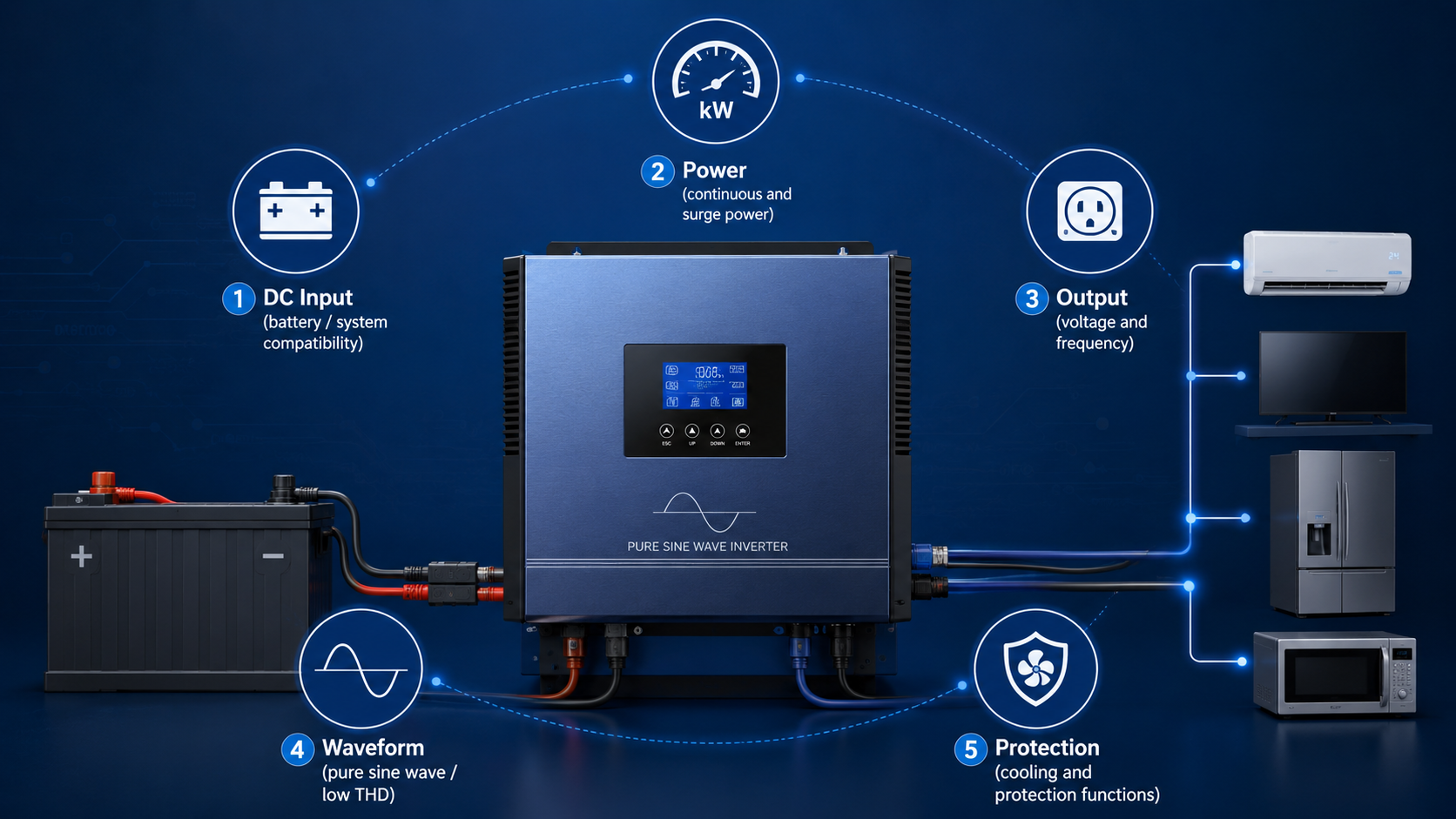

What B2B Buyers Should Check Before Selecting a Pure Sine Wave Inverter

Input Voltage and DC System Compatibility

Buyers should confirm whether the inverter matches the DC source. A product designed for one battery system should not be assumed to work with another without confirmation.

• Battery system voltage.
• Vehicle or solar system voltage.
• Battery chemistry and BMS requirements.
• DC cable and fuse requirements.
• Installation environment and operating conditions.

Continuous Power and Surge Power

Continuous power tells buyers how much load the inverter can support over time. Surge power relates to temporary startup demand from equipment such as motors, compressors, pumps, or power tools.

• Total continuous load.
• Startup or surge load.
• Number of devices connected at the same time.
• Expected daily operating hours.
• Safety margin requirements for the project.

Do not assume that a wattage rating alone is enough. Load type and startup behavior matter.

Output Voltage and Frequency

Different markets may require different AC output standards. B2B buyers selling into English, Russian, Arabic, or Spanish-speaking markets should confirm local requirements before selecting stock or placing OEM orders.

• Output voltage.
• Output frequency.
• Plug and socket expectations.
• Local installation practice.
• Whether the application is for vehicle, solar, backup, or professional use.

Waveform Quality and THD

For applications requiring cleaner AC power, waveform quality may be a critical selection factor. Buyers should ask whether waveform data, THD information, or test reports are available.

• What waveform is produced under typical load?
• Is THD data available?
• How is waveform quality tested?
• Does output behavior change under partial load or high load?
• Has the inverter been used with similar load categories?

Protection Functions and Cooling Design

Protection functions and thermal management affect safety and reliability. Buyers should verify which protections are included and how they behave under real operating conditions.

• Overload protection.
• Short-circuit protection.
• Over-temperature protection.
• Low-voltage and over-voltage protection.
• Reverse polarity protection, if applicable.
• Cooling fan or passive cooling design.
• Ventilation requirements.

These should be treated as supplier confirmation items unless model-specific documents are available.

Application Fit for English, Russian, Arabic, and Spanish-Speaking Markets

Because this topic targets multiple regions, buyers should not use one generic specification for every market. The same pure sine wave inverter concept may be applied differently depending on local power standards, climate, documentation needs, and sales channels.

English-Speaking Markets

• Check whether the inverter matches local AC voltage and frequency.
• Confirm whether documentation is clear for installers and end users.
• Review whether the inverter supports common RV, vehicle, backup, outdoor, and solar use cases.
• Confirm packaging and product descriptions for distributor channels.

Russian-Speaking Markets

• Confirm backup power, off-grid, and field-operation requirements.
• Check local language documentation needs.
• Review battery system compatibility.
• Ask about service, spare parts, and market documentation expectations.

Do not claim cold-weather performance unless confirmed by product testing.

Arabic-Speaking Markets

• Confirm ambient temperature expectations.
• Check ventilation and cooling needs.
• Review Arabic or bilingual documentation requirements.
• Confirm regional plug, voltage, frequency, and compliance documents.

Do not claim high-temperature performance unless confirmed in technical documentation.

Spanish-Speaking Markets

• Confirm whether Spanish datasheets or sales materials are required.
• Check voltage and frequency standards for the target country.
• Review local installer expectations.
• Confirm packaging, labeling, certification, and customs documentation needs.

How Distributors, Integrators, and Engineering Buyers Should Evaluate Suppliers

Distributors and trade buyers need more than product descriptions. They need product consistency, communication clarity, documentation, packaging, and repeat-order reliability.

Buyers comparing pure sine wave inverter manufacturer options should ask:

• Does the supplier provide clear product categories?
• Are pure sine wave and modified sine wave models clearly separated?
• Are datasheets, manuals, photos, and videos available?
• Are certifications and test reports available for specific models?
• Can the supplier explain voltage, power, waveform, and application differences?
• Are OEM, ODM, or private label options available for the project?
• What information is needed for an accurate quote?

Congsin’s site profile indicates business directions such as OEM/ODM, private labeling, distribution, and customization. The exact scope, process, and product applicability should still be confirmed for each project.

RFQ Checklist for Pure Sine Wave Inverter Buyers

A clear RFQ helps suppliers recommend a better solution. Instead of asking only for price, buyers should prepare technical and commercial context.

FAQ

What is a pure sine wave inverter?

A pure sine wave inverter is a DC-to-AC power conversion device designed to produce smoother AC output that is closer to utility grid power than modified sine wave output. It is often used when connected loads require cleaner AC power or better waveform compatibility.

How does a pure sine wave inverter generate clean AC power?

A pure sine wave inverter generates clean AC power through DC input processing, power conversion, switching control, waveform shaping, filtering, and AC output regulation. Exact circuit design varies by product and should be confirmed with the supplier.

Why do some devices need a pure sine wave inverter?

Some devices may require cleaner AC output because they are sensitive to waveform quality. Examples can include motors, compressors, communication equipment, medical devices, precision electronics, and certain power supplies. Buyers should always confirm load requirements before procurement.

What is the difference between pure sine wave and modified sine wave inverters?

Pure sine wave inverters produce smoother AC output, while modified sine wave inverters produce a more approximate waveform. The better option depends on load type, power quality requirements, budget, and application environment.

What should B2B buyers check before selecting a pure sine wave inverter?

B2B buyers should check input voltage, output voltage and frequency, continuous power, surge power, waveform quality, THD if required, protection functions, cooling design, documentation, certification requirements, and target-market standards.

Are pure sine wave inverters suitable for solar and backup power systems?

Pure sine wave inverters can be used in many solar, off-grid, and backup power applications, but the system must be designed around the battery type, load profile, voltage, frequency, installation environment, and local market requirements.

Discuss Your Pure Sine Wave Inverter Requirements

If you are evaluating pure sine wave inverters for distribution, system integration, transportation, outdoor power, solar backup, off-grid systems, or commercial use, prepare your application scenario, load profile, input voltage, output standard, target market, quantity estimate, and documentation requirements before contacting a supplier.
