Vehicle Load Qualification for Pure Sine Wave Car Inverters

Quick Answer

A pure sine wave car inverter is usually the lower-risk starting point when a vehicle power project must support sensitive electronics, communication devices, measurement equipment, mobile office devices, valuable chargers or mixed professional loads.

However, pure sine wave output is not automatic proof of compatibility. The project still needs to confirm the vehicle DC architecture, battery source, connection method, continuous load, startup demand, duty cycle, DC-side current, runtime target, installation condition, engine state, charging state and representative test result.

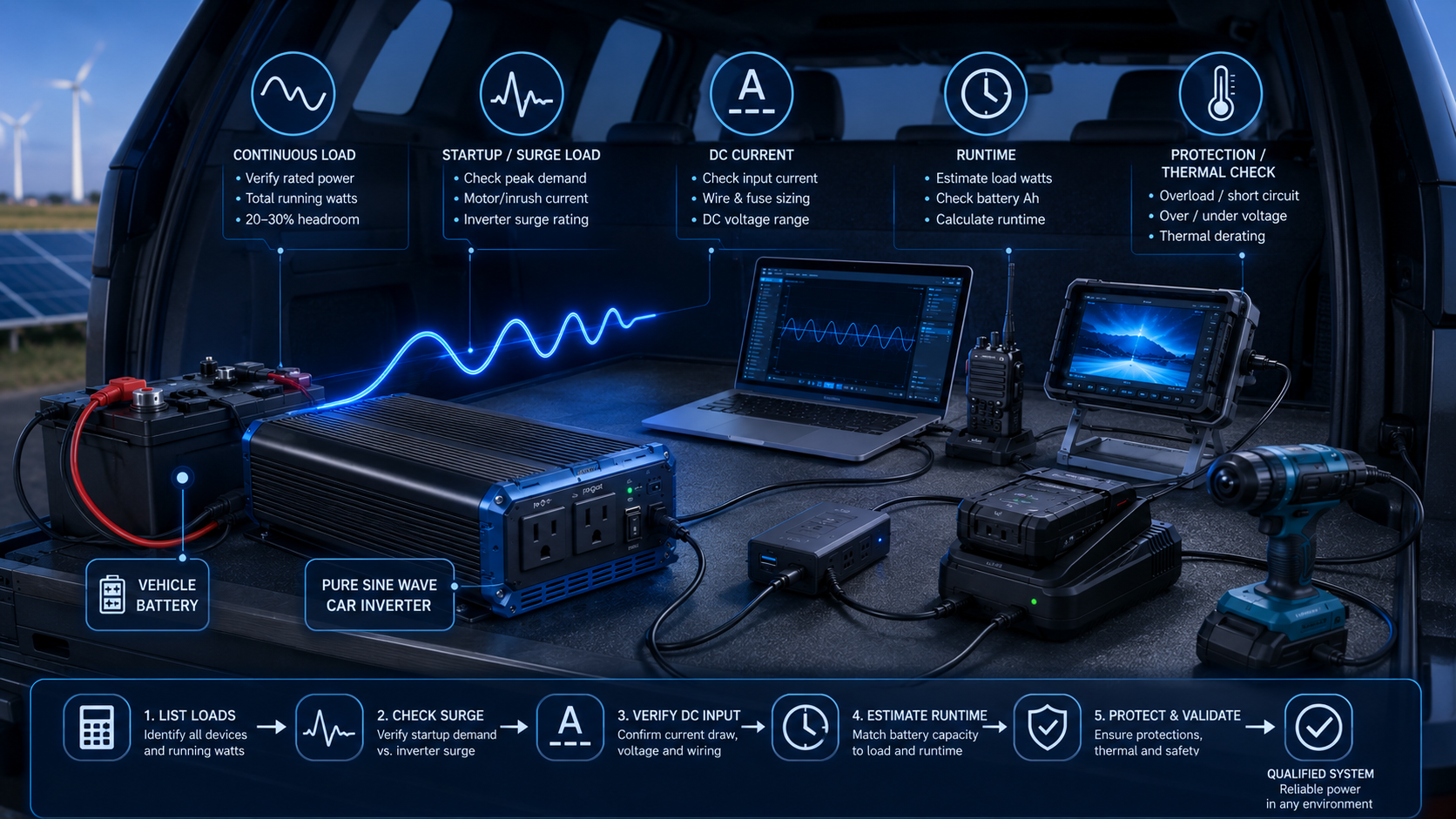

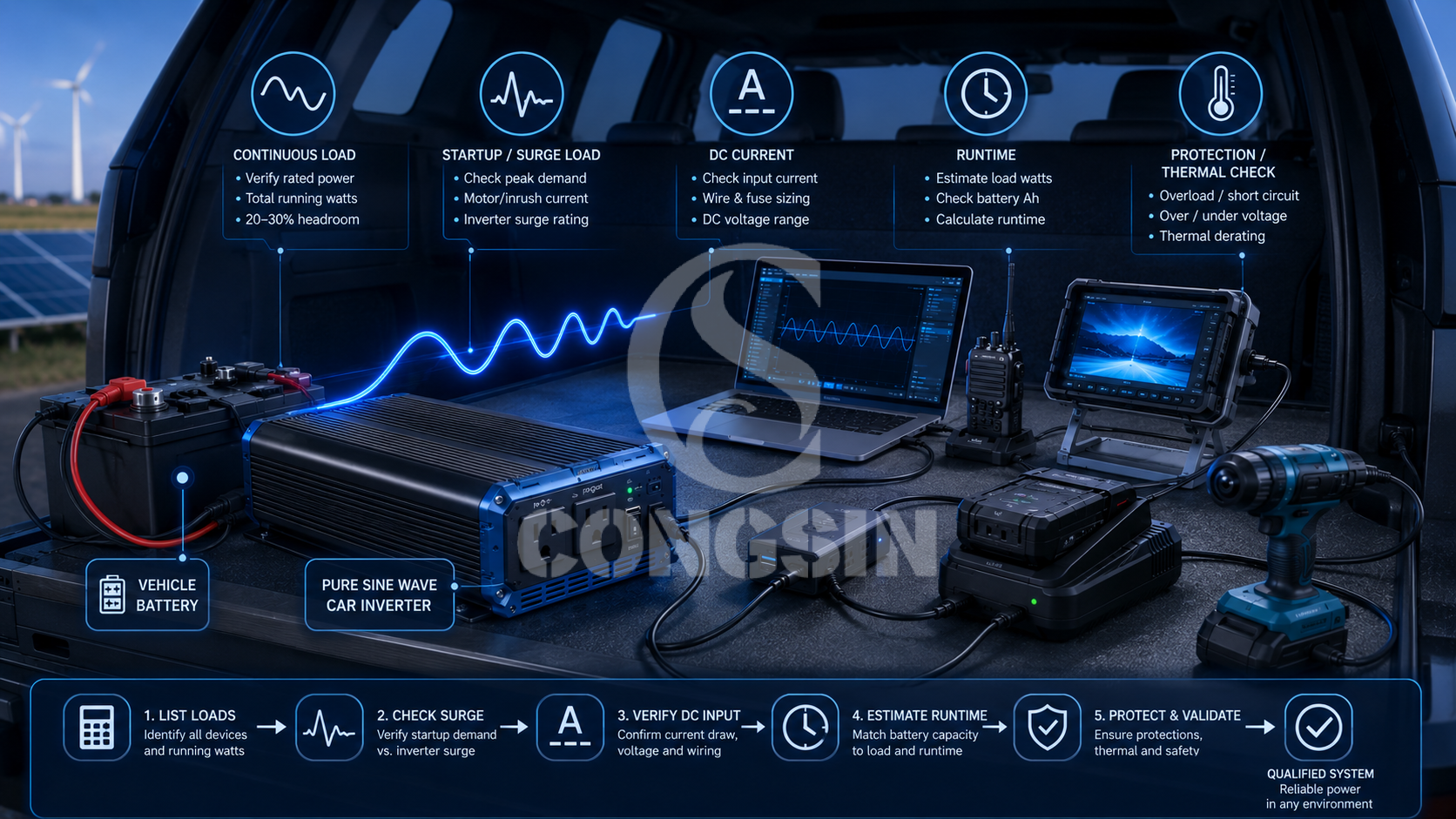

Project boundary → vehicle DC architecture → load model → waveform decision → power and DC limits → representative test → approval status → configuration lock → RFQ and handover

For waveform evidence and load-dependent behavior, buyers can review the pure sine wave inverter waveform quality guide.

Key Takeaways

• Define the vehicle DC source before selecting inverter capacity.
• Separate continuous load, startup demand and duty cycle.
• Approve a documented vehicle and load configuration, not only an inverter model.
• Revalidate material changes before fleet, distribution or multi-customer deployment.

Define the Project Scope and Product Boundary

This guide focuses on pure sine wave inverter configurations for vehicle electronics, mobile office systems, chargers and selected professional loads. Other inverter categories may follow a different selection path based on the documented load and project requirements.

The article should not be interpreted as a claim that every Congsin car inverter is pure sine wave, that every vehicle load requires pure sine wave output or that modified sine wave products have no suitable applications.

DC input, continuous output, surge behavior, efficiency, socket configuration, protection logic and load suitability vary by inverter model and must be confirmed for the quoted configuration.

Sample approval applies to the documented vehicle, DC source, inverter, installation and load configuration. It does not automatically approve another vehicle platform or a material configuration change.

Project Scope Record

Define the Vehicle Power Scenario

Vehicle inverter selection should begin with the operating scenario. The same inverter description may perform differently in a passenger vehicle, RV, truck, patrol vehicle, mobile office or fleet project because the load mix, battery source and user behavior are different.

A useful scenario definition should state where the inverter receives DC power, which loads are approved, how the user operates the system and what condition ends operation.

Define the Vehicle DC Power Architecture

Vehicle voltage alone does not define the power architecture. The project should record whether the inverter uses an accessory socket, direct starting-battery connection, auxiliary battery or dedicated DC supply.

Engine state and charging state should be recorded during testing. A configuration approved while the engine is running may not be approved for long engine-off operation. A system approved with an auxiliary battery may not be approved from a vehicle accessory socket.

No article should imply that all Congsin inverter models support every vehicle DC architecture. The architecture must be confirmed for the quoted configuration.

Build the Vehicle Load Model

A vehicle load model turns equipment names into engineering inputs. Instead of asking whether a car inverter can power electronics or tools, the project should define how each load behaves.

Continuous Load

Continuous load is the AC power required during normal operation. It shows the basic operating demand after startup. Examples may include laptops, routers, monitors, chargers, communication devices, lighting, instruments or other mobile work equipment.

Startup or Surge Load

Startup demand should be checked separately. Tools, fans, pumps, compressors, chargers and some adapters may draw more power during startup or restart than during normal operation.

Cycling Load

Intermittent loads should be converted into average demand when runtime or combined load matters.

Average Load = Running Power × Duty Cycle

Approved Load Model

For electronics and control-board behavior, buyers can review the sensitive load compatibility guide.

Decide Whether Pure Sine Wave Should Be Prioritized

The waveform decision should be based on load behavior and project risk.

Pure sine wave output should usually be prioritized when the vehicle system includes laptops and adapters, communication devices, measurement equipment, audio equipment, camera systems, control terminals, Active PFC power supplies, mixed mobile office loads, valuable equipment chargers or devices with unclear AC-input requirements.

Pure sine wave is generally a lower-risk starting point, not automatic proof of device compatibility.

Clean power evidence should be confirmed at the quoted configuration level. A supplier or project team may need to confirm waveform evidence, output voltage conditions, frequency conditions, load-dependent behavior, no-load consumption, protection behavior, restart logic and test conditions.

Waveform Decision Record

Check Continuous Power, Startup Demand and DC-Side Limits

This section connects AC load planning with the vehicle-side DC supply. It is a screening process, not a complete sizing or installation guide.

Continuous Power Screening

The project should total the loads that may operate together. The combined continuous load is the starting point for inverter capacity review.

Startup Demand Screening

Startup demand should be checked for tools, motors, pumps, fans, compressors, chargers and restart events. The highest startup event and the worst expected load sequence should be recorded.

DC Current Screening

A simple DC-side current screening formula is:

Approximate DC Current = AC Load ÷ Battery Voltage ÷ Inverter Efficiency

This formula is only an engineering screening tool. It is not a cable-size, fuse-size or breaker recommendation. Efficiency should be based on the quoted inverter model or a clearly documented assumption.

The DC side should confirm battery capability, BMS limit, socket capability, terminal condition, connector suitability, cable route, protection device, voltage drop and low-voltage protection.

Runtime Boundary

This guide records target runtime, battery source, stop condition and starting-battery protection. It does not expand into detailed Ah, Wh, DoD or approved operating time calculation. For runtime calculation, buyers can review the pure sine wave inverter battery runtime guide.

Illustrative Vehicle Load Qualification Example

The following example uses illustrative assumptions only. The values are not Congsin model specifications, vehicle recommendations or guaranteed performance.

Example Scenario: Mobile Work Vehicle

A project team wants to qualify a vehicle power configuration for a mobile work vehicle. The system is expected to support a laptop, router, monitor, charger and intermittent fan during field operation.

This example shows the qualification workflow. It does not approve a real vehicle, inverter model, battery system or tool configuration.

Validate the Representative Vehicle System

A sample should be tested as a representative vehicle power system, not only as a standalone inverter. The test configuration should match the project record.

Baseline Test

Where practical, the load should first be tested with its normal AC power source. Record startup, noise, temperature, charging behavior, restart and normal operation.

Vehicle System Test

The vehicle system test should use the intended or representative vehicle DC source, inverter, connection method, installation location and load set. It should check continuous operation, startup events, duty cycle, user sequence and stop condition.

Mixed-Load and Restart Test

Mixed-load testing checks whether devices remain stable when they run together. Restart behavior should be checked for load reset, inverter recovery, low-voltage recovery and repeated restart.

Thermal and Protection Review

Thermal and protection behavior should be recorded. Observe inverter condition, connector, cable, socket, low-voltage warning, shutdown, overload response and recovery behavior. Acceptance should follow product documentation, project requirements and supplier confirmation.

Assign the Sample Approval Status

The approval decision should be recorded clearly. A sample is not simply good or bad; it may pass only under specific configuration limits.

A Conditional Pass may be limited to a specific load list, prohibited load combination, startup sequence, auxiliary battery system, vehicle platform, engine state, connection method, installation condition or stop condition.

Lock the Approved Configuration

After a sample is approved, the approved configuration should be locked. This protects distributors, integrators, fleet operators and commercial buyers from uncontrolled field changes.

Changes That Require Revalidation

The configuration should be reviewed again when there is a change in vehicle platform, inverter model, battery source, connection method, cable route, installation location, added tool or charger, simultaneous load, startup sequence, engine state, plug type, output interface or customized configuration.

Prepare the Vehicle Load RFQ and Handover Record

A useful RFQ should describe the vehicle power scenario, not only ask for wattage and price. The handover record should use the same assumptions as the RFQ, sample test and final approved configuration.

For private-label or distributor projects, buyers can review the private label car inverter guide.

Brand and Product Connection

Congsin’s current site profile identifies DC-to-AC power inverters, portable power stations and solar charge controllers as core product directions. The same profile lists application directions including vehicles, RVs and trucks, outdoor offices, patrol and field construction work.

The profile also lists support for OEM/ODM, private labeling, distribution and bespoke customization. These points are relevant for distributors, system integrators and commercial buyers preparing vehicle power projects.

For a vehicle power discussion, buyers should provide the vehicle platform, DC voltage, battery source, connection method, load list, startup demand, runtime target, installation condition, target market and documentation requirements.

Model-specific performance and commercial terms should be confirmed for the quoted configuration.

Product category page: Pure Sine Wave Inverters

Contact page: Contact Congsin

Final Engineering Recommendation

Vehicle clean power planning should not start with a wattage label. It should start with project scope, vehicle DC architecture and a documented load model.

Project scope → vehicle scenario → DC architecture → load model → waveform decision → power and DC screening → illustrative qualification → representative testing → approval status → configuration lock → change control → RFQ and handover

A pure sine wave car inverter is often the lower-risk option for sensitive electronics, communication devices, mobile office loads and equipment with unclear AC-input requirements. Selected tools and mixed professional loads still require model-level review and representative testing.
