Vehicle-to-Home (V2H) Protocols: Powering Critical Loads with EV Battery Capacity

The Shift from Portable Generators to V2H Ecosystems

For decades, homeowners and off-grid homesteaders facing outages had a straightforward but expensive choice: buy a noisy portable generator, invest heavily in a dedicated home battery system, or sit in the dark. The widespread adoption of electric vehicles has quietly introduced a vastly superior alternative. The average EV carries a massive lithium battery pack that is already paid for—justified by transportation economics. V2H bidirectional charging technology serves as the infrastructure layer that unlocks this sunk cost. The engineering conversation for system integrators has shifted from "Do you want to buy a backup power system?" to "Do you want to unlock backup power capability from the 80kWh asset already parked in your garage?"

Defining V2H Bidirectional Charging for Residential & RV Use

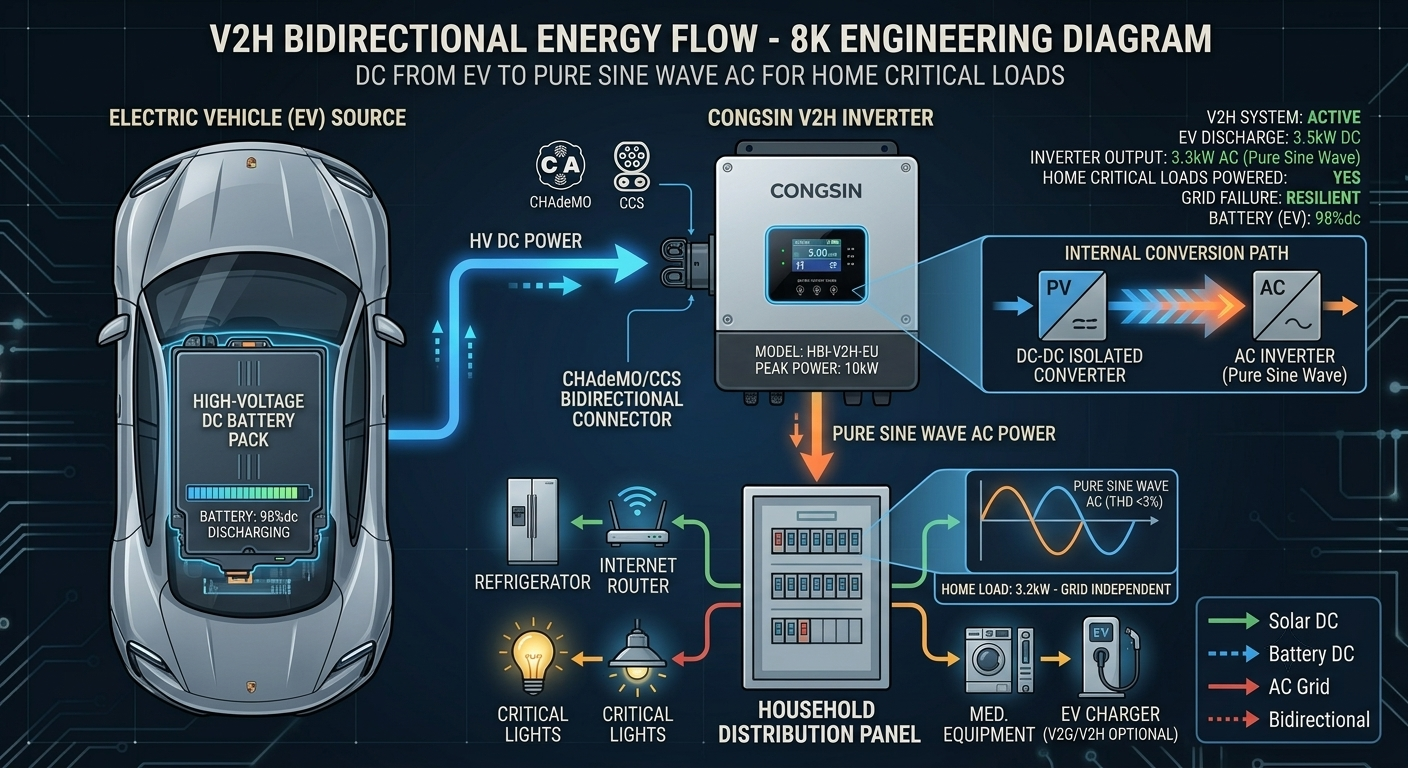

At its core, V2H bidirectional charging is the intelligent, two-way transfer of electricity between an EV and a residential or mobile electrical panel. The energy flow sequence follows a precise path. When grid power fails, the Home Energy Management System (HEMS) detects the outage and signals the bidirectional EVSE.

The EVSE draws DC power from the EV battery, passes it through an internal or external inverter stage, and delivers AC power to the home's critical load panel. Simultaneously, an automatic transfer switch (ATS) physically disconnects the home from the main grid to prevent dangerous back-feeding into utility lines.

The Protocol Bridge: CHAdeMO vs. CCS (ISO 15118)

The most significant technical constraint in V2H adoption is protocol compatibility. The bidirectional inverter cannot simply "pull" power; it must digitally negotiate with the vehicle's onboard Battery Management System (BMS).

AC vs. DC V2H Architectures: What Integrators Need to Know

System integrators must choose between two distinct hardware architectures when planning a residential or RV power system:

• AC-Coupled V2H (Onboard Inverter): The vehicle houses a bidirectional Onboard Charger (OBC). The EV outputs AC power directly to the home’s transfer switch. While simpler, output is bottlenecked by the vehicle's internal inverter (often limited to 3kW–7kW).
• DC-Coupled V2H (External Inverter): The vehicle outputs raw, high-voltage DC (200V–500V) directly to a heavy-duty bidirectional inverter mounted in the garage or RV bay. This is the preferred architecture for robust resilience, as dedicated external inverters handle significantly higher continuous loads and massive startup surges.

Surge Current Management and Load Prioritization

Understanding the practical load capacity of a V2H system prevents the disappointment of expecting whole-home backup from a setup designed for critical loads. A 6kW to 10kW V2H system handles lighting, refrigerators, routers, and medical devices seamlessly. However, the true engineering test lies in surge current management.

When a refrigerator compressor or an RV air conditioner starts, the electric motor demands a transient surge current 3 to 5 times its continuous running wattage. Premium DC-coupled V2H setups utilize external low-frequency inverters equipped with heavy iron-core transformers. These units provide massive magnetic saturation limits, sustaining 200% to 300% peak overload capacity for up to 20 seconds, preventing voltage collapse.

Commercial Case Study: Scaling Vehicular Emergency Power in South America

Once technical feasibility for vehicular power conversion is established, scaling these solutions into retail channels requires stringent compliance and localized engineering. While full V2H systems provide whole-house microgrids, the foundational layer of automotive energy resilience begins with highly accessible Vehicle-to-Load (V2L) emergency inverters.

EV Battery Capacity and Real-World Backup Runtime

The backup runtime potential of V2H bidirectional charging dramatically outperforms conventional home battery systems. The calculation depends on the EV's usable capacity (typically capped at a 20% floor to preserve emergency driving range), the critical load draw, and the inverter's efficiency (approx. 93%).

Runtime Formula: Runtime = (EV Usable kWh × V2H Inverter Efficiency) ÷ Average Load (kW)

Off-Grid Cabins and Mobile Living: The Ultimate V2H Application

While urban V2H provides excellent storm backup, the technology is revolutionary for off-grid homesteads and luxury RVs. An EV acting as a tow vehicle brings 75–100 kWh of energy to a campsite.

When plugged into an off-grid V2H bidirectional inverter, the vehicle functions as a silent, mobile power plant. If paired with a rooftop RV solar array or cabin solar panels, the V2H system orchestrates a closed-loop microgrid. Surplus daytime solar charges the EV battery, and the EV discharges at night. This architecture extends multi-day autonomy without proportionally increasing fixed battery bank investments.

Defending the EV Battery: Smart BMS and Cycle Life Management

Homeowners frequently worry that V2H will prematurely degrade their vehicle's battery. In reality, modern V2H inverters mitigate this entirely through deep BMS integration.

Home power draw (e.g., 3kW to 6kW) represents an incredibly low C-rate for a high-voltage EV battery designed to push 200kW to drivetrain motors. This gentle discharge induces virtually zero thermal stress. Furthermore, HEMS configurations enforce strict Depth of Discharge (DoD) limits, automatically ceasing power draw when the battery hits a safe floor (e.g., 20%), ensuring the user always retains emergency driving range.

Global Compliance: Safety Certifications for Residential V2H

Because V2H systems bridge high-voltage automotive DC and residential AC panels, distributors must ensure hardware complies with stringent electrical safety and anti-islanding codes.

Conclusion: Engineering the Future of Off-Grid Living with CONGSIN

The trajectory of residential and mobile energy storage is expanding far beyond fixed battery installations. V2H bidirectional charging is the definitive infrastructure layer that transforms an existing automotive asset into a dispatchable, high-capacity residential microgrid.

Executing this properly requires more than a standard plug. It demands bidirectional inverters equipped with advanced protocol communication (CHAdeMO/CCS2), heavy-duty surge handling for inductive loads, and uncompromising adherence to global safety standards like UL 9741 and EN 50549.
