Vehicle-to-Grid (V2G) Infrastructure: Engineering the Future of Mobile Energy Storage

Engineering Facts Buyers Should Verify

1. V2G is a complete vehicle-EVSE-site-grid ecosystem, not merely an isolated inverter.
2. Bidirectional-capable PHEVs may participate in V2G programs only when the vehicle, compatible EVSE, control system, and interconnection architecture all support reverse power flow.
3. In mixed-fleet markets, bidirectional-capable PHEVs may participate in V2X programs, while ICE vehicles with auxiliary batteries are generally better classified as mobile or off-grid power systems unless they connect through an approved grid-interactive architecture.
4. V2B (facility peak shaving) and V2G (utility grid export) are distinct applications subject to different dispatch controls and regulatory interconnection requirements.
5. The onboard/offboard decision changes the location of the converter and also affects vehicle certification, EVSE responsibilities, serviceability, communication ownership, and utility-interconnection planning.
6. Conventional DC-AC inverter manufacturing experience is adjacent engineering evidence, not proof of high-voltage V2G certification or grid-compliance.

The Reality of Vehicle-Grid Integration in Mixed-Fleet Markets

Integrating mobile energy storage into the grid requires a pragmatic assessment of vehicle availability. BEVs and bidirectional-capable PHEVs with sufficient battery capacity, predictable dwell time, compatible charging interfaces, and suitable warranty conditions may serve as practical V2G resources.

The success of these programs relies heavily on fleet availability parameters, specifically the vehicle's arrival SoC, minimum departure SoC, dwell time, daily mileage, vehicle availability, battery warranty, grid-service revenue, and charging-station availability.

System Boundary: Auxiliary battery inverters installed in conventional ICE commercial vehicles can power field tools or isolated loads (V2L). However, they do not constitute V2G unless the system includes approved grid synchronization, anti-islanding protection, metering, utility interconnection agreements, and dispatch control.

Complete V2G System Layers and Responsibilities

A v2g bidirectional inverter cannot function in a vacuum. Deploying grid-interactive mobile storage requires engineering coordination across four distinct system layers:

1. Vehicle Layer: Includes the high-voltage battery, BMS, EV Communication Controller (EVCC), and adherence to vehicle OEM approval, battery warranty, maximum charge/discharge rates, and available energy windows.
2. Power-Conversion Layer: The physical hardware executing the AC/DC and DC/AC conversion, responsible for converter efficiency, isolation, DC voltage range, continuous output, and fault handling.
3. Site-Control Layer: The Energy Management System (EMS) that monitors fleet availability, optimizes tariffs, enforces the vehicle's minimum SoC, respects departure schedules, and manages load priority.
4. Grid Layer: Encompasses voltage/frequency synchronization, anti-islanding safeguards, revenue-grade metering, utility interconnection agreements, commissioning, and aggregator participation.

V2X Mode Decision Matrix

System integrators must clearly define the power destination, as this dictates the regulatory and hardware requirements of the project.

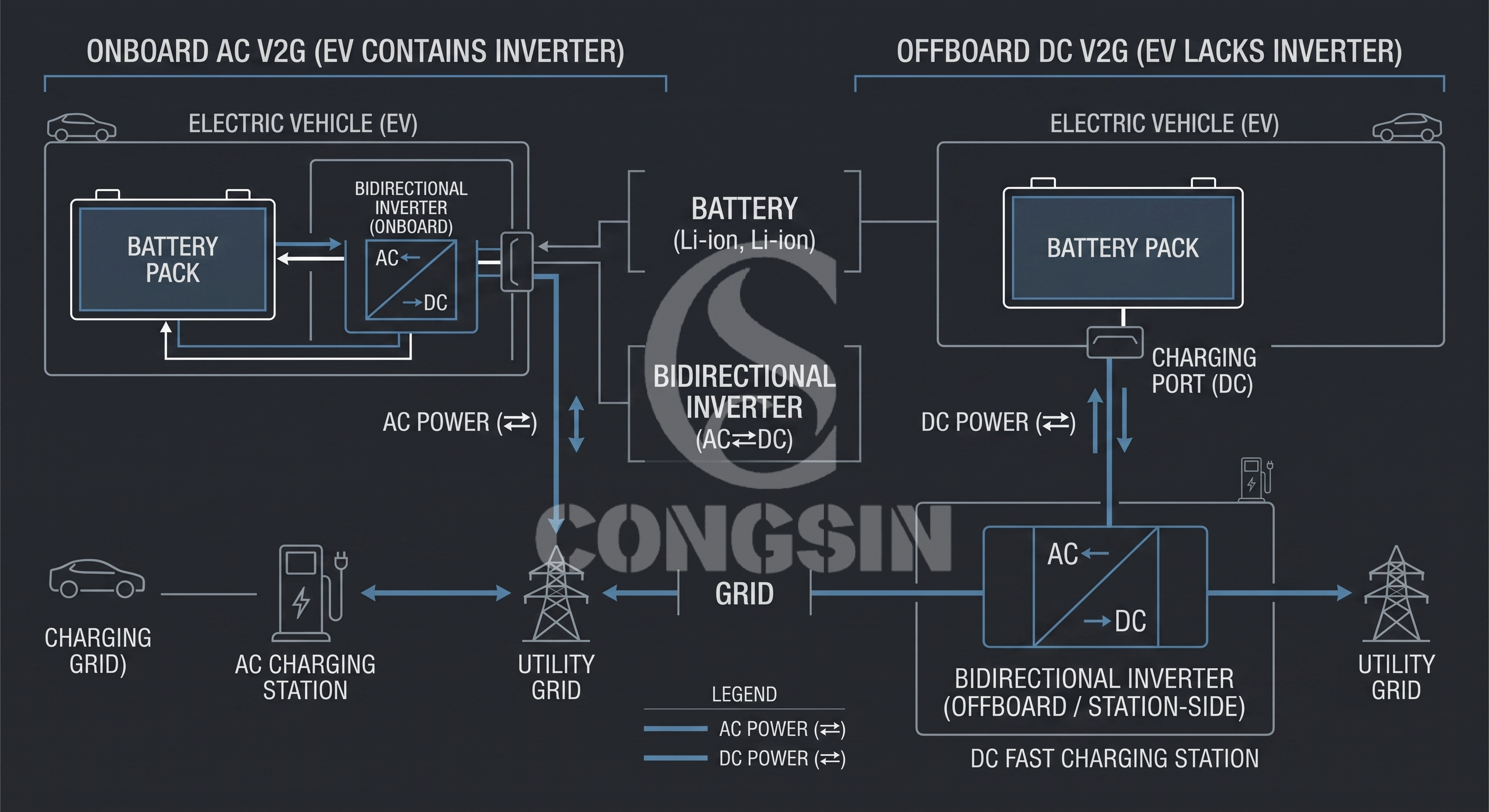

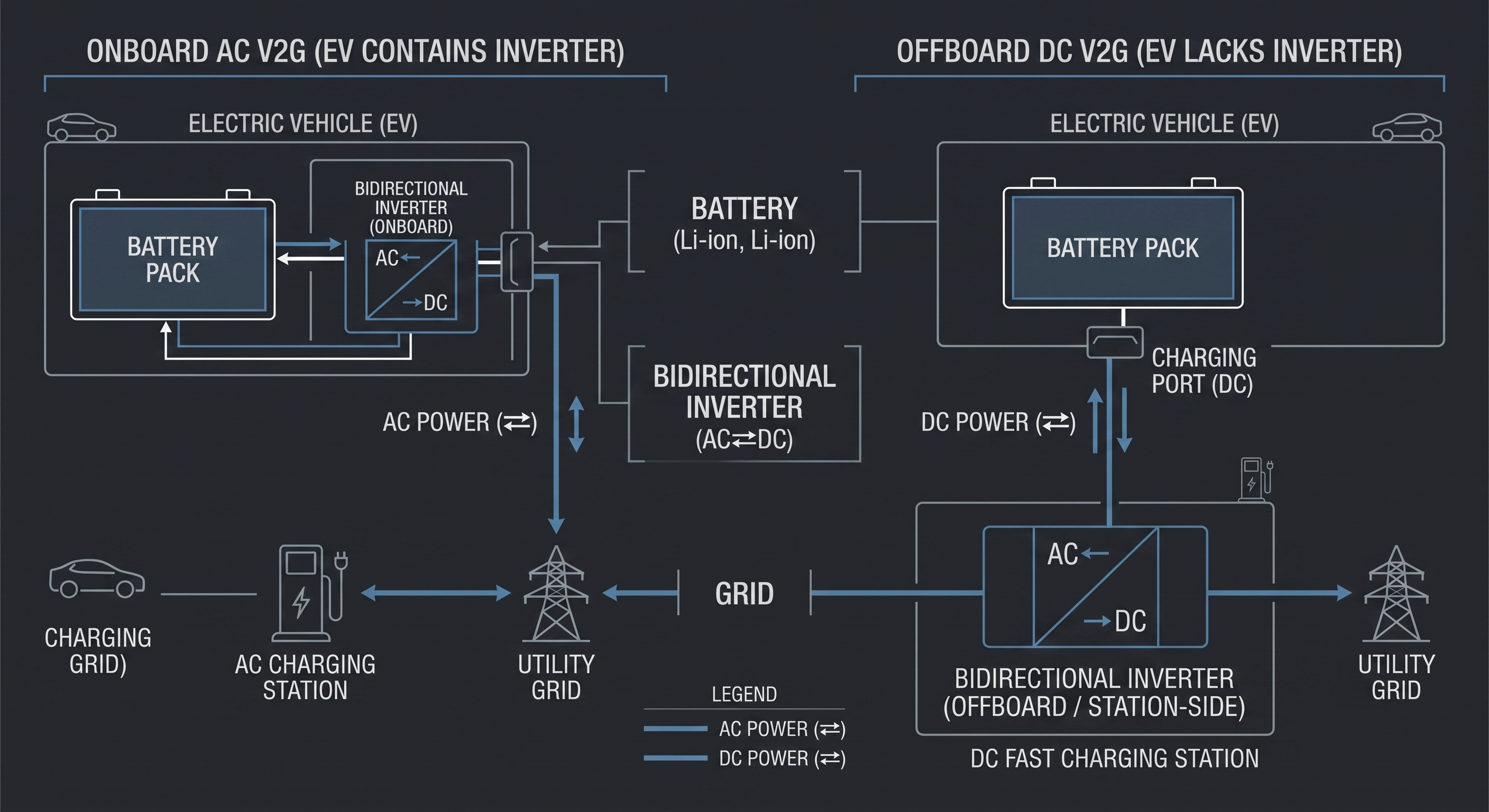

Onboard and Offboard V2G Power-Conversion Architectures

The physical location of the bidirectional inverter dictates the entire system's design, cost, and certification pathway.

Buyer Decision Summary: Onboard architectures move more conversion responsibility into the vehicle, while offboard architectures place more power-conversion, cooling, service, and certification responsibilities in the EVSE. Neither route is universally superior; the correct choice depends on compatible vehicle interfaces, target power, deployment market, service model, and certification pathway.

Switching and magnetic architecture within the selected converter are critical design choices. Surge and overload capability depend strictly on semiconductor sizing, DC-link energy, magnetic design, control limits, protection settings, and thermal margins.

Communication Layers from the Vehicle to the Grid

V2G requires continuous, secure digital handshakes across multiple communication boundaries to execute power transfers safely.

• Vehicle ↔ EVSE: ISO 15118-20 defines messages and sequencing that support bidirectional power transfer between the EVCC (vehicle) and SECC (charger). Final charging or discharging permission also depends on vehicle limits, EVSE status, site-control policies, cybersecurity, and grid-service commands.
• EVSE ↔ Charging Management System (CMS): OCPP may support communication between compatible EVSE and charging-management platforms, depending on the version and implemented feature profile.
• Site Controller ↔ Fleet/Building EMS: Utilizes Modbus, Ethernet, CAN, or APIs. This layer translates V2H/V2B operating strategies and site energy-management policies into actionable limits (e.g., minimum SoC, departure schedules).
• Utility/Aggregator Layer: Relies on protocols like OpenADR, DERMS interfaces, or utility-specific APIs to communicate demand response events, dispatch commands, and dynamic tariff signals.

*Cybersecurity Evaluation Points: Certificate lifecycle, device identity, authentication, secure firmware updates, event logging, remote-access control, and data ownership.*

Grid-Connected Power Export and Intentional Islanding

The electrical behavior of the bidirectional inverter changes dramatically depending on whether the grid is present or absent.

Grid-Connected Power Export

When exporting to the utility, the inverter operates in grid-following mode. Engineering priorities include precise voltage and frequency synchronization, active and reactive power control, ramp-rate management, rapid anti-islanding disconnects, and revenue-accurate metering.

Intentional Islanding and Backup Loads

When the grid fails, a backup-capable system must execute a defined transition into grid-forming operation. The transition may be uninterrupted or interrupted depending on the isolation equipment, protection architecture, control sequence, and validated transfer time. This requires approved transfer or isolation equipment, neutral and grounding reconfiguration, black-start control, load shedding logic, and sufficient transient capacity to handle motor surges.

Buyer Evidence Request: Transfer time, black-start sequence, neutral/ground diagram, load-shedding logic, supported motor-start tests, restoration sequence, and anti-backfeed verification.

Potential Standards, Protocols, and Interconnection Frameworks

Applicable requirements depend on converter location, AC or DC power export, system voltage, vehicle interface, grid-export mode, islanding capability, and target jurisdiction. Buyers must request the exact model, certification scope, test laboratory, report number, validity date, and supported operating mode.

Thermal Validation in V2G Inverter Designs

Depending on the grid-service use case, V2G equipment may experience sustained power export, frequent charge/discharge transitions, or short-duration high-power events. Thermal validation should therefore be based on the intended duty cycle rather than a single nameplate power point.

Buyers should verify continuous power duration, intended duty cycle, charge/discharge transition frequency, ambient temperature limits, cooling architecture, derating curves, semiconductor hotspots, magnetic hotspots, capacitor temperatures, IP rating and contamination protection, and the system response to fan or pump failures.

Industry Architecture Case: Blue Bird Electric School Bus V2G Project

(Note: This is an external industry case published by the U.S. Department of Energy and is not a CONGSIN-delivered project. It is provided strictly as an architectural reference.)

The external Blue Bird school-bus project illustrates how onboard versus offboard conversion decisions can affect hardware responsibilities, vehicle–EVSE communication, metering, certification, and utility-interconnection planning. It demonstrates that the choice between onboard and offboard power-conversion architectures directly impacts hardware design, ISO 15118 communication sequencing, and the grid certification roadmap, underscoring that V2G is a multi-layered ecosystem effort rather than a simple inverter swap.

Buyer Evaluation Checklist for V2G Inverter OEMs

When sourcing hardware for V2G or mobile microgrid platforms, procurement teams should evaluate suppliers against these comprehensive criteria:

*CONGSIN reports existing SMT, PCB assembly, wave-soldering, calibration, and aging-test capabilities across its current power-product portfolio. These facilities provide relevant manufacturing infrastructure but should not be interpreted as validated production capacity for a certified V2G platform.*

Advancing Mobile Energy Storage with OEM Partners

A viable V2G project depends on coordinated vehicle compatibility, bidirectional power conversion, secure EV–EVSE communication, site-level energy control, grid protection, utility interconnection, and model-specific validation.

A V2G program still requires separate confirmation of converter architecture, vehicle and EVSE compatibility, communication interfaces, grid functions, prototype status, and model-specific compliance. Buyers should treat the initial engagement as a feasibility and development review rather than assume the availability of an off-the-shelf certified V2G product.
