Load Capacity Engineering: Sizing a UPS Inverter for Comprehensive Backup

Introduction: The Critical Nature of Accurate Power Sizing

In the realm of specialized commercial fleets, emergency response vehicles, and off-grid communication hubs, electrical reliability is not merely a convenience—it is an absolute operational mandate. When engineers are tasked with designing mobile or remote power architectures, a minor miscalculation in load capacity can trigger catastrophic system failures, resulting in offline servers, disabled medical equipment, or compromised communication networks. The foundational step to guaranteeing mission-critical continuity is precisely sizing a UPS inverter to handle both everyday operations and extreme high-demand scenarios. This requires moving beyond basic wattage estimations and engaging in rigorous electrical capacity engineering. By meticulously auditing the power consumption of every connected device and understanding the dynamic nature of electrical loads, engineers can architect an uninterrupted power supply (UPS) network that never falters. For further reading on the critical standards of power reliability, organizations like the IEEE Power & Energy Society provide extensive guidelines on maintaining grid-level stability in localized power networks.

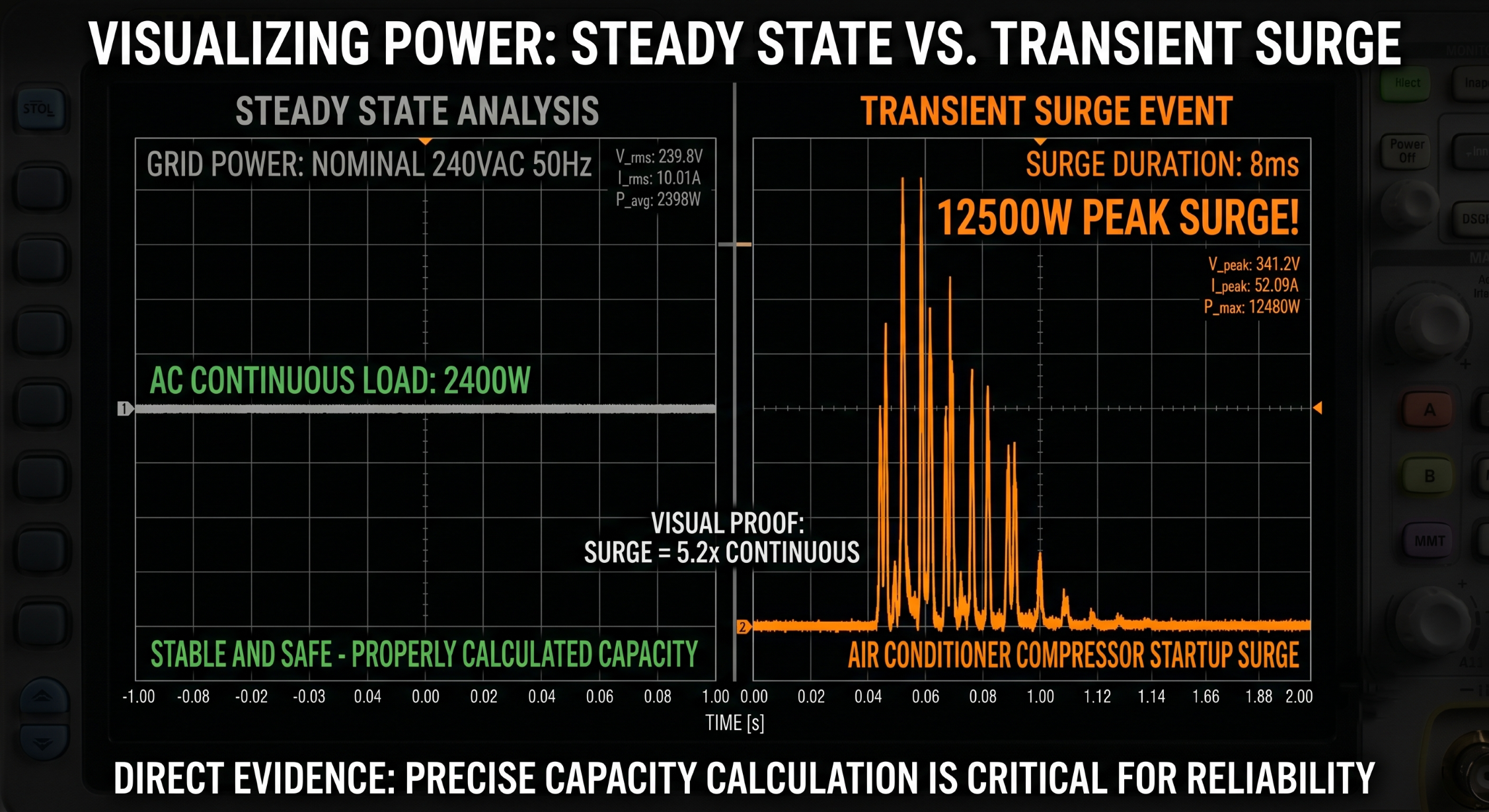

Decoding the Load: Continuous vs. Surge Wattage

The most common and devastating error in electrical system design is failing to differentiate between running power and startup power. To engineer a reliable system, one must deeply understand the dynamic between continuous vs. surge wattage. Continuous wattage is the baseline power required to keep an electronic device running indefinitely, such as a 300W server rack. However, inductive loads—devices utilizing heavy electric motors or compressors—require a massive, instantaneous influx of kinetic energy to overcome resting inertia. Industry data demonstrates that a standard 15000 BTU vehicle roof air conditioner may run continuously at 1500W but will easily demand a staggering 3300W to 3500W for a few milliseconds during startup. If the selected inverter lacks the internal capacitor banks to absorb this 2.3x surge multiplier, the system will immediately trip its overload protection, shutting down the entire electrical grid. Accurately mapping these surge spikes is non-negotiable for system stability.

Power Capacity Planning for Modular UPS Systems

Executing successful power capacity planning requires a strategic approach to thermal management and hardware longevity. It is a fundamental engineering flaw to operate a power conversion device at 100% of its maximum rated capacity for extended periods. When an inverter runs constantly at its absolute limit, the internal solid-state components, specifically the MOSFETs and transformers, generate extreme heat. Thermal data indicates that operating an inverter at 95% capacity reduces its overall lifespan by nearly 40% compared to operating it at a safer 70% to 80% threshold. Therefore, professional engineers employ the "20% Headroom Rule." If your rigorous load audit determines that your simultaneous continuous load is 2000W, your capacity planning must dictate a minimum inverter size of 2400W to 2500W. This deliberate oversizing drastically reduces thermal stress, prevents the cooling fans from running at maximum RPM constantly, and ensures the system maintains peak efficiency during demanding, continuous operation.

Constructing a Bulletproof Modular UPS Project BOM

Once the exact wattage requirements and safety margins are mathematically established, project managers must translate these calculations into a physical procurement strategy. Building a comprehensive modular UPS project BOM (Bill of Materials) is essential to ensure that every component in the power chain is perfectly rated for the intended capacity. A UPS system is only as strong as its weakest electrical link. The BOM must not only specify the exact inverter but also detail the required lithium battery bank capacity (measured in amp-hours) and the precise gauge of the direct current (DC) wiring. For example, pushing 2000W through undersized cables will cause a dangerous voltage drop and extreme heat accumulation, creating a severe fire hazard. By referencing standards from the National Fire Protection Association (NFPA), engineers can construct a meticulous BOM that guarantees the fuses, breakers, and heavy-duty 4/0 copper cables perfectly match the inverter’s maximum current draw.

Voltage Architecture Selection: Moving Beyond 12V

As power demands scale upwards, relying on a traditional 12-volt battery architecture becomes physically and thermally prohibitive. When designing a heavy-duty commercial power inverter system that exceeds 2000 watts, engineers must strongly advocate for transitioning to a 24V off-grid inverter or even a 48V architecture. The underlying physics, dictated by Ohm’s Law, demonstrates that doubling the system voltage strictly cuts the required amperage in half for the exact same wattage load. For data comparison: generating 3000W of power on a 12V system requires a massive 250 amps of DC current, necessitating extremely thick, expensive, and inflexible copper cables. By upgrading to a 24V system, that current drops to just 125 amps. This 50% reduction in amperage drastically minimizes heat generation, significantly lowers voltage drop across long cable runs, and improves the overall DC-to-AC conversion efficiency of the inverter, resulting in a significantly safer and more robust commercial power network.

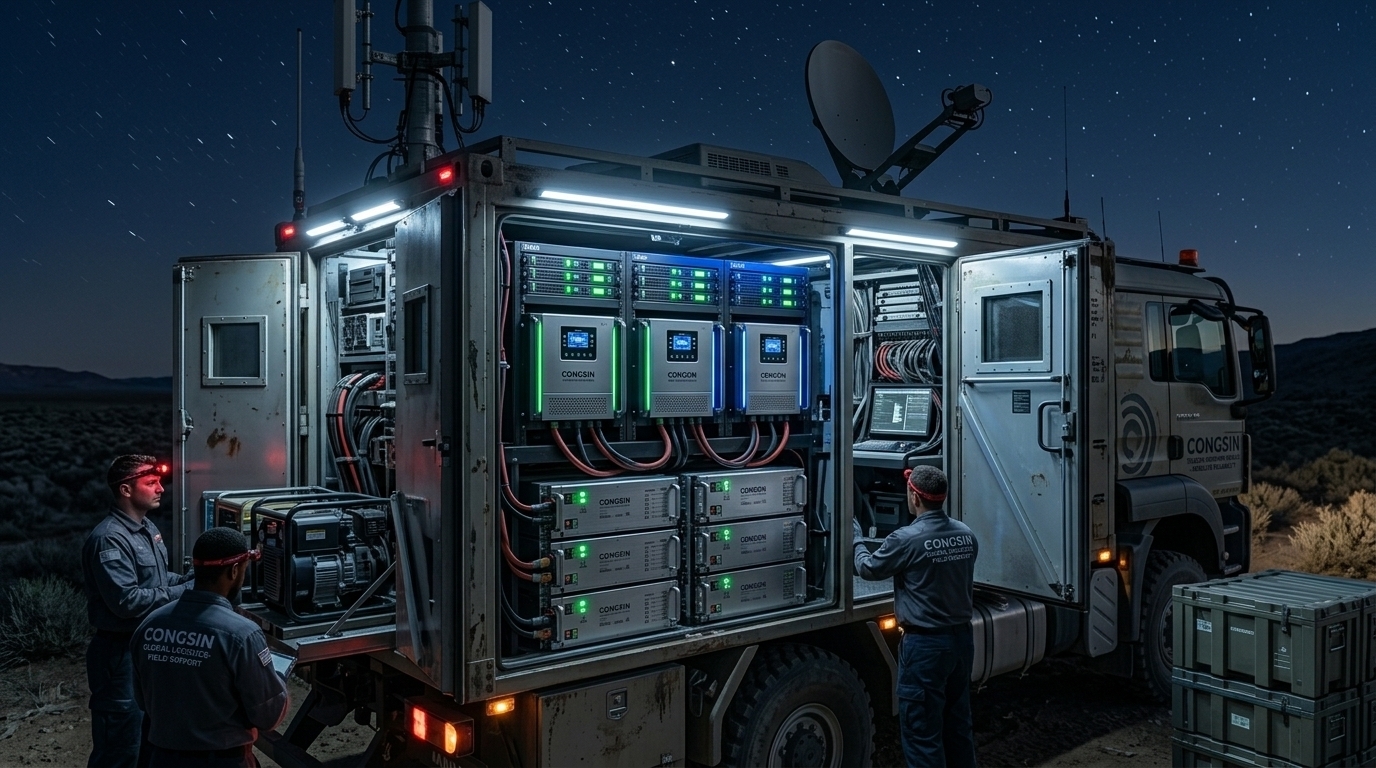

Sizing Inverters for Specialized Telecom and Fleet Vehicles

Mobile communication hubs and mobile command centers present highly unique capacity challenges. When specifying telecom fleet inverters, standard consumer-grade metrics are entirely insufficient. These specialized vehicles house ultra-sensitive radio frequency amplifiers, satellite uplink arrays, and dense routing hardware that operate 24/7. The capacity engineering must account for a zero-tolerance policy regarding power interruption. Top-tier telecom inverters must feature a transfer switch mechanism capable of shifting from unstable shore power to internal battery backup in under 10 milliseconds. Furthermore, the inverter must possess advanced active power factor correction (PFC) to handle the complex, non-linear loads generated by hundreds of networking power supplies. Data shows that utilizing inferior modified waveforms on such equipment increases harmonic distortion by up to 30%, which can permanently damage sensitive logic boards. Therefore, sizing an oversized, pure sine wave unit is mandatory for fleet vehicle integrators to ensure flawless signal transmission.

Matching Inverter Capacity with High-Output Charging

In high-end vehicle modifications, sizing the inverter's AC output is only half of the engineering equation. Modern commercial inverters often function as combined "inverter/chargers," meaning they must be expertly matched to the vehicle's energy replenishment systems. When calculating overall system capacity, engineers must evaluate the integration between the inverter's internal charging module, the high-capacity lithium iron phosphate (LiFePO₄) battery bank, and the vehicle's dedicated high-amp alternator. If an engineer specifies a massive 4000W inverter equipped with a 150A internal charger, but the vehicle's alternator and wiring harness can only safely deliver 80A, the system will inevitably suffer from chronically undercharged batteries or burned-out vehicle alternators. Comprehensive capacity planning ensures that the energy expenditure (the AC load) and the energy recovery (the DC charging curve) are perfectly mathematically balanced, allowing the vehicle to seamlessly replenish its reserves while driving between deployment sites.

Evaluating the 1500W to 3000W Range for Heavy-Duty Applications

For the vast majority of luxury recreational vehicles and specialized emergency response trucks, the 1500w to 3000w range represents the absolute sweet spot for power capacity optimization. While it might be tempting to install massively oversized 5000W units, doing so often wastes precious physical space and drains batteries faster due to higher idle power consumption. A highly engineered, industrial-grade 3000w car inverter offers the perfect equilibrium. To put this capacity into a data perspective, a true 3000W pure sine wave inverter can simultaneously power a high-draw microwave (1200W), an induction cooktop on medium heat (1000W), and a residential refrigerator (400W), while still leaving a 400W buffer for charging laptops and running LED lighting networks. By meticulously engineering the electrical panel to prevent the air conditioner from engaging at the exact moment the microwave starts, integrators can maximize the utility of a 3000W unit without crossing into unnecessary and costly overcapacity.

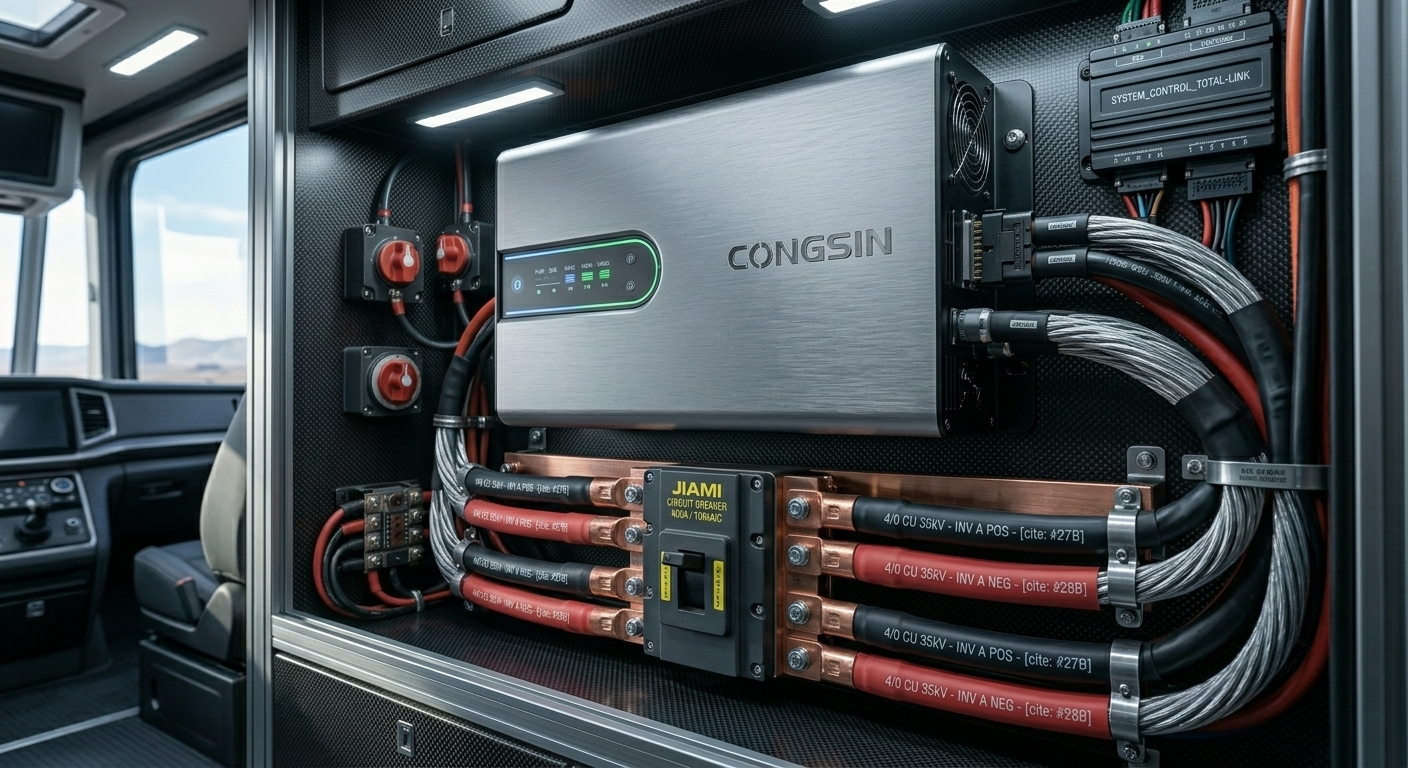

Strategic Procurement: Leveraging OEM Power Solutions

For large-scale vehicle manufacturers and enterprise-level system integrators, attempting to build a custom fleet using rigid, off-the-shelf power components severely limits design innovation. To achieve true electrical excellence, visionary engineering directors leverage advanced oem power solutions. Collaborating directly with a manufacturer with deep R&D capabilities allows for the creation of inverters that are sized precisely to the inch for specific vehicle chassis compartments. Beyond physical dimensions, OEM integration allows engineers to mandate bespoke internal capacities—such as ordering a highly specific 2200W unit to perfectly match a proprietary battery bank. Furthermore, OEM partnerships enable the integration of advanced CAN bus communication protocols, allowing the customized inverter to transmit real-time capacity data, temperature warnings, and load diagnostics directly to the vehicle's central touchscreen interface, providing an unparalleled, highly integrated user experience that sets the fleet apart from competitors.

Conclusion

Accurate capacity engineering is the definitive line between a robust, reliable power network and a catastrophic system failure. From meticulously calculating surge multipliers to optimizing 24V architectures, every mathematical decision dictates the safety and longevity of your mobile infrastructure. CONGSIN delivers heavily engineered, rigorously tested pure sine wave solutions designed to carry your most demanding commercial loads. Partner with CONGSIN to secure rock-solid, uninterrupted power capacity for your next major deployment.

Frequently Asked Questions (FAQs)

• What is the most critical step when sizing a UPS inverter for a commercial fleet?

  The most critical step in sizing a UPS inverter is conducting a rigorous load audit. You must calculate the simultaneous continuous watts required to run your equipment and critically and accurately measure the peak surge watts required to start heavy inductive loads like air conditioning compressors.

• How does proper continuous vs. surge wattage planning prevent system shutdowns?

  Understanding continuous vs. surge wattage prevents the inverter's internal breakers from tripping. While a motor may run continuously at 1000W, it can demand 3000W for a fraction of a second to start. The inverter must be sized to absorb this massive kinetic surge without dropping the voltage.

• Why is incorporating headroom vital in power capacity planning?

  Professional power capacity planning dictates never running an inverter at 100% load continuously. Adding 20% to 30% headroom prevents severe thermal buildup inside the chassis, stops cooling fans from overworking, and dramatically extends the physical lifespan of the inverter's solid-state components.

• How does a 24V off-grid inverter improve efficiency over a 12V system?

  A 24V off-grid inverter cuts the required DC current exactly in half compared to a 12V system for the same wattage. This 50% reduction in amperage minimizes dangerous heat generation, reduces voltage drop across wires, and allows the use of thinner, more cost-effective copper cabling.

• What are the unique technical requirements for telecom fleet inverters?

  Telecom fleet inverters must power highly sensitive networking and radio equipment. Therefore, they require a pure sine wave output with ultra-low harmonic distortion to prevent hardware damage, alongside an ultra-fast transfer switch (under 10 milliseconds) to guarantee zero downtime during power transitions.

• Why is the 1500w to 3000w range so popular for luxury vehicle builds?

  The 1500w to 3000w range is the optimal balance of size, efficiency, and power. A high-quality 3000W unit provides enough robust capacity to simultaneously run a roof-mounted air conditioner and heavy kitchen appliances without the excessive idle battery drain associated with massive 5000W+ inverters.
