RV Pure Sine Wave Inverter Selection and System Qualification: Battery Matching, Load Planning and Power Architecture

Quick Answer

A pure sine wave inverter for RV systems should be selected by matching the inverter with the battery architecture, AC load profile, startup demand, charging sources and installation conditions.

RV operating profile → battery architecture → load model → inverter configuration → charging architecture → installation and ventilation → representative testing → approval → RFQ and deployment

Pure sine wave output is often a lower-risk choice for laptops, communication devices, chargers, control electronics, measurement equipment and other sensitive loads. However, waveform type alone does not determine whether the complete RV system is suitable.

For the broader technical foundation, review the complete pure sine wave inverter guide.

Define the RV Mobile Energy System Boundary

An RV inverter should be evaluated inside the complete mobile energy architecture rather than treated as an independent accessory.

Battery source → DC distribution and protection → inverter → AC distribution → onboard loads → charging sources → monitoring and operating rules

The central engineering question is:

Under which RV platform, battery architecture, load profile, charging condition and installation environment can the inverter configuration be approved?

For basic sizing and product-selection considerations, see the existing RV selection and sizing guide. This page instead focuses on system qualification, integration and B2B deployment.

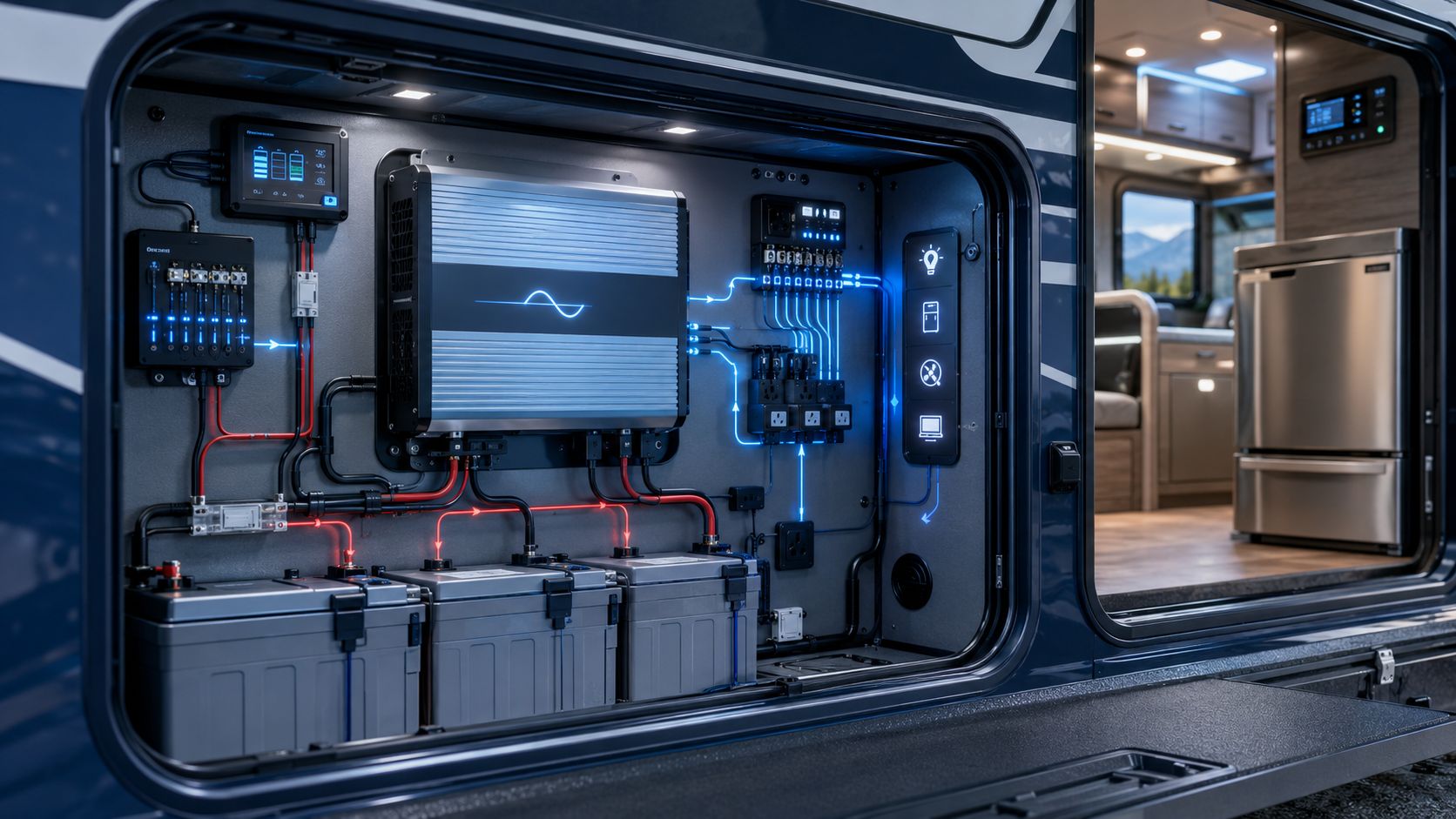

RV Pure Sine Wave Inverter System Architecture

A useful RV architecture separates energy storage, power conversion, AC demand and charging sources into clear engineering blocks.

A unit that operates correctly during a short bench test may behave differently when connected to an actual battery bank, restricted installation space and mixed RV load profile.

Build the RV Operating Profile

RV power demand changes according to how the vehicle is being used.

A configuration validated with active charging should not automatically be treated as approved for extended battery-only use. Likewise, testing one appliance at a time does not prove suitability for mixed-load operation.

Match the Battery Architecture With RV Inverter Requirements

Battery architecture is one of the main inputs when selecting a pure sine wave inverter for an RV.

12V, 24V and Higher-Voltage RV Systems

A 24V architecture is not automatically better. The appropriate choice depends on the documented vehicle platform, battery system, load requirement and inverter configuration.

Screen DC Current

Approximate DC Current = AC Load ÷ Battery Voltage ÷ Inverter Efficiency

This is an engineering screening relationship rather than a cable-size, fuse-size or breaker recommendation. Efficiency should come from the quoted model documentation or a clearly documented project assumption.

Confirm Battery-to-Inverter Compatibility

• Nominal battery voltage
• Operating voltage range
• Battery chemistry
• Battery-management limits where applicable
• Usable battery energy
• Charging architecture
• Inverter input requirements
• Low-voltage behavior
• Recovery or restart conditions

Battery Capacity Is More Than Ah

Battery planning should connect capacity with continuous demand, startup demand, intermittent loads, duty cycle, simultaneous operation, operating duration, reserve requirement and stop conditions.

For a dedicated engineering treatment, review the pure sine wave inverter battery sizing guide.

Build the RV Load Model Before Selecting the Inverter

An RV inverter should not be selected from the sum of appliance labels alone. The load model should describe how equipment actually operates.

Continuous Loads

Representative RV loads may include laptops, routers, communication devices, televisions or displays, chargers, control electronics, mobile office equipment, selected comfort or kitchen devices and professional equipment. The exact equipment list should come from the project.

Startup Loads

Selected refrigerators, pumps, fans, compressor-type equipment, chargers and motor-driven devices may demand more power during startup than during normal operation. The project should identify both the highest startup event and which other loads may already be operating when it occurs.

Duty Cycle

Average Load = Running Power × Duty Cycle

Duty cycle becomes particularly important during overnight or off-grid operation.

Simultaneous Operation

A system that can operate each appliance separately may still be unsuitable when several devices run together. Representative mixed-load combinations should therefore form part of sample validation.

Evaluate Pure Sine Wave Output for RV Electronics

Pure sine wave output is most relevant when the RV contains sensitive or power-quality-dependent equipment.

Pure sine wave output should be treated as a compatibility factor rather than a universal appliance approval certificate.

For more detailed load-specific review, see appliance compatibility with inverter output.

Loads Requiring Representative Testing

• Compressor-type equipment
• Pumps
• Motors
• Repeated-start loads
• High-demand appliances
• Mixed professional equipment

Illustrative RV Application Validation Example

This example is illustrative only. It is not a named Congsin customer case, model specification or guaranteed performance claim.

An RV system integrator needs to support a mobile load group containing communication equipment, laptop chargers, a refrigerator-related load and other daily-use electronics.

Selecting the inverter only from total rated wattage would leave several engineering questions unanswered.

Battery compatibility → normal load combination → highest startup event → charging-active condition → battery-only condition → installation environment → representative operating period

Connect the Inverter With RV Charging Sources

RV systems may receive charging energy from several sources depending on the project architecture, including vehicle charging, shore power, solar charging or another project-defined source.

Charging State Changes the Qualification Condition

Charging active → battery-only → charging restored

These are different operating states. A configuration approved under one condition should not automatically be considered approved under another.

RV Solar Integration

A solar-equipped RV can use a pure sine wave inverter when the solar charging system, battery architecture, inverter input and AC load requirements are compatible.

For related mobile off-grid architecture, review the RV and marine off-grid inverter guide.

Plan RV Installation, Ventilation and Thermal Management

Installation conditions can materially affect long-duration inverter operation. RV systems often combine limited space, storage compartments, restricted airflow, vibration, changing ambient conditions and long operating periods.

Select the Installation Location

• Mounting position
• Available installation volume
• Airflow path
• Nearby heat sources
• Cable routing
• Inspection access
• Surrounding materials
• Environmental exposure

Maintain Ventilation

Airflow should not be unintentionally restricted by luggage, stored equipment, interior panels, covers or cable bundles. An inverter tested in open air may behave differently after installation inside a confined RV compartment.

Review Long-Duration Conditions

Representative validation should observe inverter operating behavior, nearby connector condition, load stability, protection events, recovery behavior and the effects of sustained use.

Review Vibration and Mobile Installation Conditions

An RV is a moving platform. The power system may therefore experience repeated vibration and mechanical movement.

The installation review should consider mounting stability, connector retention, cable support, terminal strain, movement near surrounding structures and differences between RV platforms.

Where vibration is material to the project, representative vehicle operation should be included in validation. Any specific vibration rating should come from the quoted model documentation.

Common RV Pure Sine Wave Inverter Selection Mistakes

Choosing Only by Wattage Rating

Many buyers begin with categories such as 1000W, 2000W or 3000W. Rated output is important, but it is only one variable.

An inverter with sufficient rated power may still be unsuitable if the battery architecture, startup demand or installation condition does not match the actual RV operating profile.

Selecting the Inverter Before Defining the Battery Architecture

A weak selection sequence is:

Choose inverter → find a battery system

A stronger engineering sequence is:

Battery architecture → load requirement → operating duration → inverter configuration

Testing Individual Loads Instead of Real Operating Conditions

Testing a refrigerator, charger or laptop separately does not reproduce the complete RV operating condition. Representative validation should include likely combinations such as continuous electronics, active chargers and the expected startup load.

Ignoring Installation and Thermal Conditions

Bench testing does not reproduce every RV environment. Restricted airflow, enclosed compartments, vehicle vibration and long-duration use can change operating conditions, so installation forms part of the approved configuration.

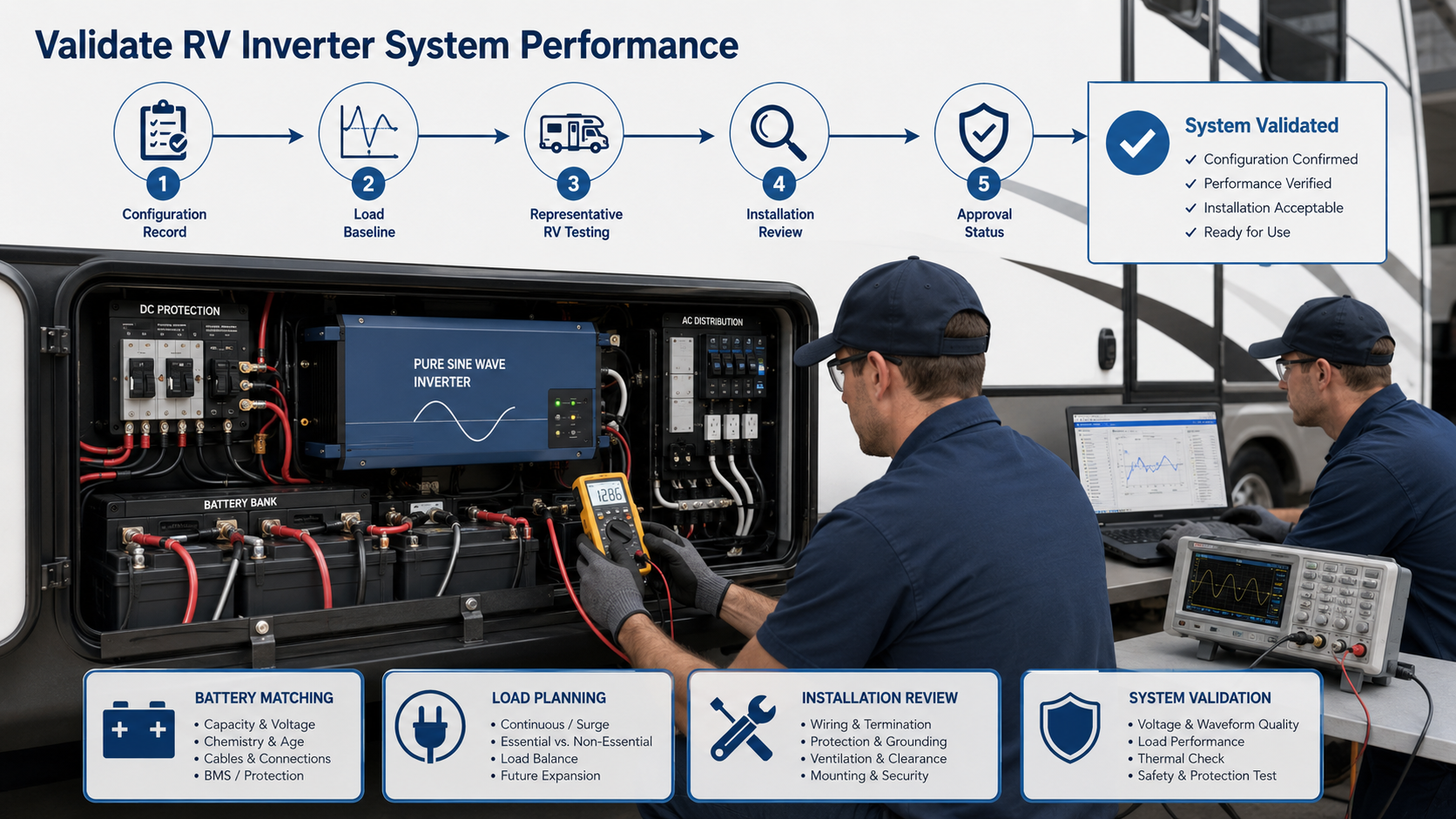

Validate RV Inverter System Performance

Sample approval should evaluate the complete RV power system.

Step 1 — Record the Configuration

Document the RV platform, battery architecture, inverter model, connection method, installation position, load list, startup sequence, charging state and operating profile.

Step 2 — Establish the Load Baseline

Where practical, operate important loads from their normal AC source before inverter testing and observe normal startup, restart, charging and operating behavior.

Step 3 — Test the Representative RV Configuration

Operate the intended load group from the selected battery and inverter system. Review continuous operation, startup events, mixed loads, charging-active operation, battery-only operation and low-voltage response.

Step 4 — Review Installation Conditions

Inspect ventilation, mounting, connectors, supported cabling and operation under representative duration.

Step 5 — Assign Approval Status

Lock the Approved RV Configuration

Approval should apply to the documented configuration rather than the inverter model alone.

If the battery system, vehicle platform, charging arrangement, load set or installation location changes materially, the configuration should be reviewed again.

RV Inverter Supplier Qualification Checklist

A B2B buyer should evaluate the inverter supplier against the system requirements rather than wattage and unit price alone.

Prepare the RV RFQ and Handover Record

A useful RFQ should describe the complete RV power requirement.

Commercial terms, model specifications, price, MOQ, sample schedule, lead time and warranty conditions should follow the current quotation and order documentation.

How CONGSIN Approaches RV Inverter System Evaluation

For RV power projects, the useful starting point is the documented mobile energy requirement rather than power rating alone.

A project discussion can consider:

• Battery voltage
• Charging architecture
• AC load profile
• Startup requirements
• Installation environment
• Target-market documentation requirements

Congsin's current site profile states support for OEM/ODM, private labeling, distribution and bespoke customization. For distributors and system integrators, project discussions may therefore include voltage requirements, application scenarios, interface requirements, branding needs and project documentation.

These capabilities do not mean that every inverter configuration is automatically suitable for every RV. Exact input range, output capability, surge behavior, protection logic, efficiency, applicable certification scope and customization feasibility should be confirmed for the quoted configuration.

FAQ

What size pure sine wave inverter is suitable for an RV?

There is no single inverter size suitable for every RV. The required configuration depends on continuous load, startup demand, simultaneous loads, battery architecture, operating duration and the equipment being powered.

Why use a pure sine wave inverter for RV applications?

Pure sine wave output is often a lower-risk option for laptops, chargers, communication equipment, control electronics and other sensitive AC devices. Equipment compatibility should still be confirmed under representative conditions.

Should an RV use a 12V or 24V inverter system?

The correct voltage depends on the RV electrical architecture, battery system and AC load demand. A 24V system may reduce DC current compared with an equivalent 12V configuration, but it is not automatically the correct choice for every RV.

How do I match an RV inverter with a battery bank?

Match the inverter with the documented battery voltage, operating range, battery chemistry, charging architecture, load profile and required operating duration. The exact inverter input limits should come from the quoted model documentation.

Can RV solar systems work with pure sine wave inverters?

Yes, when the solar charging system, battery architecture, inverter requirements and load profile are compatible. Solar charging should be evaluated as part of the complete RV energy architecture.

What loads need pure sine wave power in an RV?

Sensitive electronics such as laptops, communication equipment, control devices, measurement electronics and selected chargers often benefit from pure sine wave output. Other appliances may also require representative compatibility testing.

How should RV inverter suppliers be evaluated?

Suppliers should be evaluated by battery compatibility, documented inverter behavior, representative load validation, installation requirements, technical documentation, configuration control and project support.

Can RV inverter systems be customized for different markets?

Project customization may involve voltage requirements, interfaces, branding, documentation or other project-defined needs. Congsin's current site profile states support for OEM/ODM, private labeling and bespoke customization, while feasibility should be confirmed for the specific project.

Can a pure sine wave inverter run an RV air conditioner?

A pure sine wave inverter may support an RV air-conditioning system when the inverter configuration, battery architecture, startup demand, continuous load and operating conditions are properly matched. Air conditioners should be evaluated as representative high-demand and startup loads rather than by running power alone.

What is the difference between an RV inverter and an RV inverter charger?

An RV inverter converts DC battery power into AC output. An inverter charger may combine inverter operation and battery-charging functions in one system. The appropriate configuration depends on the RV electrical architecture, charging sources and project requirements.

Final Engineering Recommendation

A pure sine wave inverter for RV applications should be selected and approved as part of a documented mobile energy configuration.

RV operating profile → battery architecture → charging architecture → load model → pure sine wave requirement → inverter selection → DC-side screening → installation and ventilation → representative validation → configuration lock → supplier qualification → RFQ and handover

The final approval should apply to the documented RV platform, battery system, inverter configuration, load set, charging state and installation environment.

Request an RV Pure Sine Wave Inverter Configuration Review

Provide the RV platform, battery voltage and architecture, AC load profile, startup requirements, charging method, installation conditions, target market and customization requirements for a model-specific configuration discussion.
