Load Worksheet: Calculating Running Watts, Startup Watts and Expansion Margin
A pure sine wave inverter wattage calculator should be treated as an engineering worksheet rather than a simple wattage lookup tool. This guide explains how to calculate running watts, evaluate startup requirements, review expansion margin, check battery-side capability and prepare structured RFQ information for inverter selection.
- Quick Answer
- Key Takeaways
- Pure Sine Wave Inverter Wattage Calculation Framework
- Why a Load Worksheet Is More Reliable Than Wattage Guessing
- Build the Complete Load Data Worksheet
- Understanding Running Watts vs Startup Watts
- How to Avoid Startup Watt Calculation Errors
- Worked Load Worksheet Example
- Build Operating Scenarios Before Selecting an Inverter
- Convert Worksheet Results Into an Inverter Capacity Shortlist
- Check Battery-Side Capability
- Compare Worksheet Results With Supplier Specifications
- Validate the Selected Configuration
- Load Worksheet Revision Control
- RFQ Handover Checklist for Inverter Buyers
- How CONGSIN Supports Load Review
- FAQ
- Final Recommendation
- Request a Pure Sine Wave Inverter Load Configuration Review
Quick Answer
How Do You Calculate Pure Sine Wave Inverter Wattage Requirements?
A pure sine wave inverter wattage calculation should begin with the complete load profile instead of selecting an inverter only by equipment wattage labels.
The calculation process should separate continuous running demand, temporary startup demand, future expansion requirements and battery-side capability before comparing available inverter configurations.
The recommended engineering workflow is:
Define Loads → Calculate Running Watts → Evaluate Startup Conditions → Review Expansion Margin → Check Battery Capability → Compare Specifications → Validate Configuration → Prepare RFQ
The correct inverter capacity is not automatically the highest wattage option. It is the configuration that has been validated for the required operating conditions.
Key Takeaways
- A wattage calculator should be treated as an engineering worksheet, not only a simple calculation tool.
- Running watts define the continuous operating requirement.
- Startup watts define temporary power demand during specific operating events.
- Expansion margin should reflect project requirements rather than an automatic fixed percentage.
- Supplier specifications should be compared using the same technical definitions and test conditions.
- A complete load worksheet can improve RFQ accuracy and supplier communication.
Pure Sine Wave Inverter Wattage Calculation Framework
A pure sine wave inverter converts DC battery power into AC output power. Selecting the correct configuration requires understanding both the AC load profile and the DC-side system capability.
A professional load evaluation should produce separate planning results:
| Planning Input | Engineering Purpose |
|---|---|
| Running Watts | Defines normal continuous operating demand |
| Startup Watts | Defines temporary power demand during startup events |
| Expansion Margin | Defines future planning flexibility |
These three values should be evaluated separately because they represent different operating conditions.
Why a Load Worksheet Is More Reliable Than Wattage Guessing
A load worksheet creates a documented calculation process that allows buyers, distributors and system integrators to explain why a specific inverter configuration is being considered.
Instead of asking only:
"What wattage inverter should be selected?"
the worksheet helps answer:
- Which loads operate continuously?
- Which loads operate simultaneously?
- Which equipment creates startup demand?
- What future expansion should be considered?
- Can the battery system support the required DC input?
- How should supplier specifications be compared?

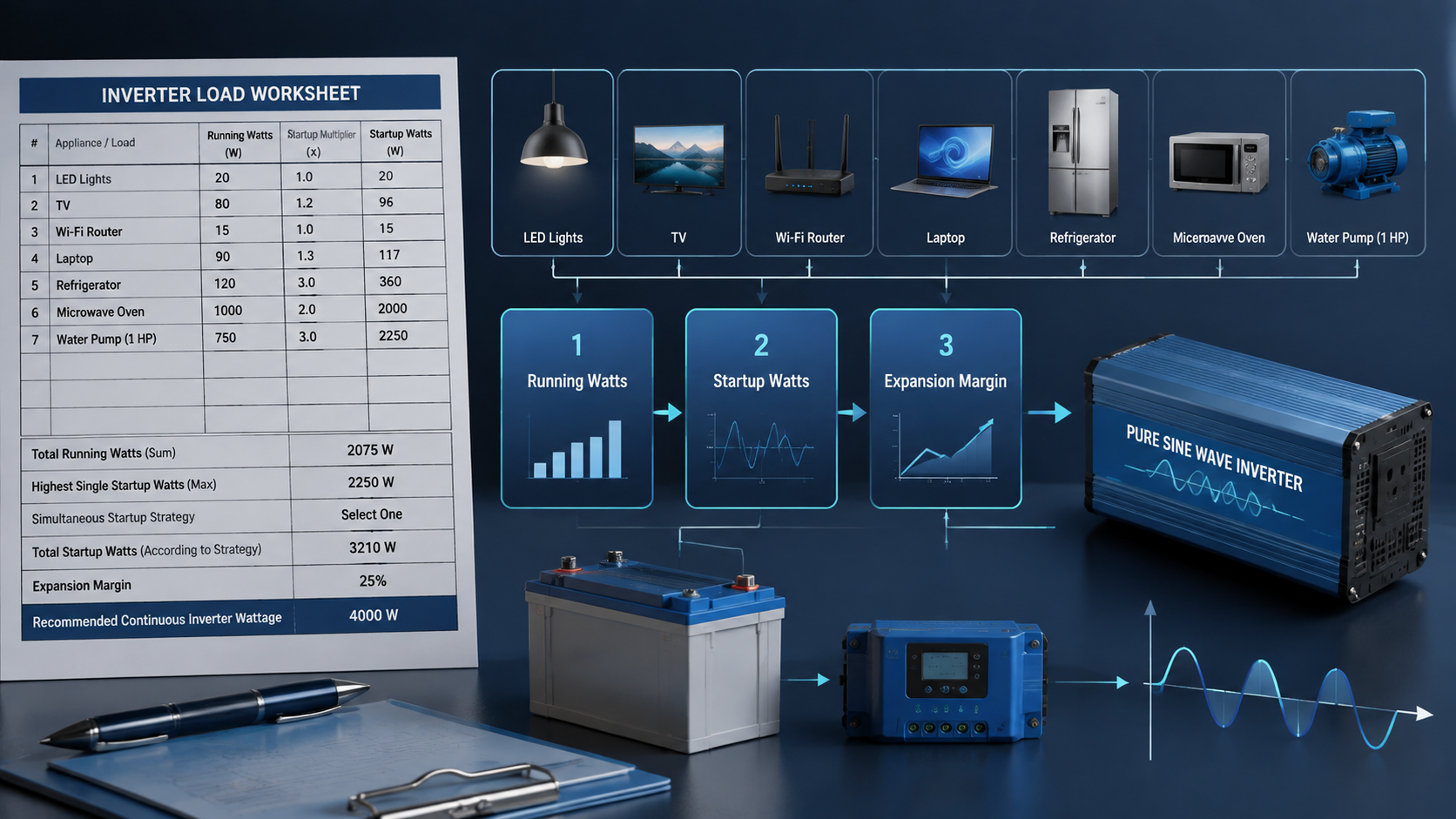

Build the Complete Load Data Worksheet
A professional inverter load worksheet should capture equipment information, operating conditions and the source of each calculation input.
Step 1 — Record Equipment Information
The first step is creating a complete list of connected equipment and identifying how each load contributes to the inverter requirement.
| Worksheet Field | Purpose |
|---|---|
| Equipment Name | Identify the connected load |
| Quantity | Calculate total demand |
| Running Watts | Record normal operating power |
| Startup Watts | Record temporary startup requirement |
| Operating Scenario | Define when the load operates |
| Data Source | Identify input reliability |
Step 2 — Calculate Total Running Watts
Running watts define the continuous electrical demand when equipment operates under normal conditions.
The basic calculation is:
Total Running Watts = Quantity × Running Watts per Unit
For multiple loads operating at the same time:
Continuous Running Load = Sum of Simultaneous Running Loads
The calculation should reflect the actual operating scenario. Loads that never operate together should normally be evaluated as separate operating scenarios rather than automatically combined into one total.
Step 3 — Identify Startup Requirements
Startup requirements describe temporary power demand that may occur when certain equipment begins operation.
Startup demand should be evaluated separately from continuous demand because the definition of startup power can vary between equipment specifications.
| Startup Input | Evaluation Method |
|---|---|
| Total Startup Watts | Use the complete startup demand value without adding the same running watts again |
| Additional Startup Watts | Evaluate the increase above normal running demand |
Step 4 — Add Expansion Margin
Expansion margin represents future planning requirements that may affect the inverter selection.
Expansion should be based on known project conditions instead of applying an automatic oversized capacity assumption.
Possible expansion factors include:
- Additional equipment.
- Future operating scenarios.
- Application upgrades.
- Changed load patterns.
Understanding Running Watts vs Startup Watts
Running watts and startup watts describe different parts of an electrical load profile.
| Parameter | Meaning | Selection Consideration |
|---|---|---|
| Running Watts | Normal continuous power requirement | Defines the regular operating boundary |
| Startup Watts | Temporary power demand | Defines short-duration capability requirements |
| Expansion Margin | Future planning allowance | Supports project flexibility |
A common calculation mistake is treating startup demand as an additional fixed load on top of all running loads without checking how the startup value is defined.
How to Avoid Startup Watt Calculation Errors
Startup calculation errors often occur because buyers compare different specification definitions as if they represent the same measurement.
Before adding startup demand, confirm:
- Whether startup watts represent total startup demand.
- Whether startup watts represent only additional increase.
- Which loads are already operating during startup.
- How long the startup event lasts.
- Whether the battery-side system can support the demand.
Example: Total Startup Demand
| Item | Value |
|---|---|
| Running Load | 500W |
| Startup Demand | 1500W |
| Additional Calculation | Do not add 500W again if 1500W already represents total startup demand |
Worked Load Worksheet Example
The following example demonstrates how a worksheet can organize load information before inverter selection.
Illustrative example only. Values are not CONGSIN model specifications or universal application recommendations.
| Load | Qty | Running Watts | Total Running Watts | Startup Watts | Data Source |
|---|---|---|---|---|---|
| Communication Equipment | 1 | 120W | 120W | 120W | Manufacturer Datasheet |
| Display System | 1 | 180W | 180W | 180W | Nameplate |
| Pump | 1 | 500W | 500W | 1500W | Measured Value |
Future Expansion and Future Startup Review
Future expansion should be reviewed together with possible future startup conditions.
Adding new equipment may increase both normal operating demand and temporary startup requirements.
A complete review should consider:
- Future continuous running load.
- Future startup events.
- Updated operating scenarios.
- Additional validation requirements.
Build Operating Scenarios Before Selecting an Inverter
A complete load evaluation should consider different operating scenarios rather than relying on one theoretical maximum value.
For professional inverter projects, the selected capacity should be reviewed against the actual conditions in which the system will operate.
| Scenario | Operating Condition | Evaluation Purpose |
|---|---|---|
| Normal Operation | Regular operating loads without startup events | Confirm continuous power requirement |
| Startup Event | Existing loads combined with temporary startup demand | Evaluate surge response capability |
| Future Operation | Current loads plus planned expansion | Review future capacity requirements |
A larger inverter capacity does not automatically solve an incorrect load definition. The input assumptions should be reviewed before selecting the final configuration.
Convert Worksheet Results Into an Inverter Capacity Shortlist
After completing the worksheet, buyers can translate the calculated requirements into a capacity shortlist for supplier evaluation.
Worksheet Results → Continuous Requirement → Startup Requirement → Capacity Shortlist → Specification Comparison → Validation
The purpose of the worksheet is to define the electrical requirement. The next step is comparing available inverter configurations based on documented specifications.
For capacity comparison between different inverter classes, review:
1000W vs 1500W vs 2000W vs 3000W pure sine wave inverter capacity selection guide
Check Battery-Side Capability
An inverter converts DC battery energy into AC output power. Therefore, the battery-side system must support the required conversion demand.
Understand the AC Load and DC Demand Relationship
DC Current ≈ AC Load ÷ Battery Voltage ÷ Efficiency
Efficiency should be entered as a decimal value in the calculation.
| Efficiency Value | Decimal Format |
|---|---|
| 90% | 0.90 |
| 95% | 0.95 |
Example:
90% efficiency = 0.90
This calculation provides a simplified planning reference only. Actual DC current requirements may vary depending on inverter efficiency, operating load, battery condition, cable design, protection components and application-specific electrical requirements.
Battery planning should consider:
- Battery voltage.
- Available battery capacity.
- Continuous current capability.
- Cable and protection design.
- Operating environment.
For battery planning considerations, review:
pure sine wave inverter battery sizing guide
Why a Larger Inverter Does Not Always Mean Longer Runtime
A larger inverter provides higher power conversion capability, but it does not create additional stored energy.
Runtime depends on:
- Battery capacity.
- Actual connected load.
- Inverter efficiency.
- Operating conditions.
Compare Worksheet Results With Supplier Specifications
A completed worksheet allows buyers to compare supplier proposals using the same technical requirements.
Supplier specifications should not be compared only by headline wattage. Buyers should confirm how each specification is defined and tested.
| Supplier Specification | Buyer Review Point |
|---|---|
| Exact Inverter Model | Confirm proposed configuration |
| Continuous Rating | Compare normal operating capability |
| Surge Rating Definition | Confirm whether surge represents total temporary output capability or additional startup support |
| Surge Duration | Understand temporary capability period |
| Test Condition | Understand specification evaluation conditions |
| DC Input Requirements | Confirm battery compatibility |
| Technical Documentation | Support project approval |
Validate the Selected Configuration
A worksheet provides a calculated requirement. Validation confirms whether the selected inverter configuration performs under representative operating conditions.
Step 1 — Record the Configuration
Document:
- Inverter configuration.
- DC input condition.
- Battery system.
- Worksheet version.
- Operating scenario.
- Application environment.
Step 2 — Validate Normal Operation
Confirm that the inverter supports the expected continuous operating condition.
Step 3 — Validate Startup Events
Review representative startup conditions including:
- Starting equipment.
- Background active loads.
- Inverter response.
- DC-side behavior.
Step 4 — Confirm Approved Operating Envelope
| Validation Item | Record |
|---|---|
| Approved inverter configuration | |
| Validated continuous load | |
| Validated startup scenario | |
| Battery condition |
Load Worksheet Revision Control
For professional projects, the load worksheet should be managed as a controlled engineering document.
Revision control helps teams track changes when equipment lists, operating conditions or application requirements are updated.
| Field | Purpose |
|---|---|
| Project Reference | Identify the application |
| Worksheet Version | Track document updates |
| Revision Date | Record modification timing |
| Change Summary | Explain updated requirements |
RFQ Handover Checklist for Inverter Buyers
A completed load worksheet can become the technical foundation of an inverter supplier RFQ.
Instead of requesting an inverter based only on a wattage number, buyers can provide structured application information that allows suppliers to evaluate the requirement more accurately.
Buyer Information
| Requirement | Purpose |
|---|---|
| Application Description | Define project conditions |
| Continuous Running Load | Define normal operating demand |
| Startup Scenario | Define temporary power requirements |
| Battery Voltage | Confirm DC-side compatibility |
| Operating Environment | Review application conditions |
| Expansion Requirements | Review future planning needs |
Supplier Confirmation
Supplier proposals should be reviewed against the same technical requirements defined in the load worksheet.
| Supplier Information | Buyer Review Purpose |
|---|---|
| Exact Inverter Model | Confirm proposed configuration |
| Continuous Rating | Compare continuous operating capability |
| Surge Rating Definition | Confirm temporary output capability definition |
| Surge Duration | Understand temporary capability period |
| Test Condition | Understand specification evaluation conditions |
| DC Input Requirement | Confirm battery compatibility |
| Technical Documentation | Support project approval |
How CONGSIN Supports Load Review
CONGSIN supports inverter project discussions by connecting load analysis, DC-to-AC configuration and application requirements.
For distributors, system integrators and commercial buyers, a structured load worksheet helps organize discussions around:
- Inverter configuration requirements.
- Battery-side considerations.
- Operating conditions.
- Application requirements.
- Technical documentation.
A professional inverter evaluation process begins with defining the actual power requirement before selecting a specific configuration.
Exact model ratings, surge duration, efficiency, protection behavior and application suitability should be confirmed according to the quoted configuration and project requirements.
FAQ
What is a pure sine wave inverter wattage calculator?
A pure sine wave inverter wattage calculator is a planning method used to evaluate inverter requirements by calculating running watts, startup scenarios, simultaneous loads and expansion requirements.
How do I calculate the inverter size I need?
Calculate simultaneous running loads first, then evaluate startup scenarios, expansion requirements and battery-side capability before comparing inverter specifications.
Should I calculate running watts or startup watts first?
Running watts normally establish the continuous operating baseline, while startup watts should be evaluated separately as temporary power requirements.
Why are startup watts higher than running watts?
Some equipment requires additional power during startup before reaching stable operation. The startup requirement should be evaluated according to the equipment specification definition.
Should startup watts be added to running watts?
Not always. If startup watts already represent total startup demand, the running watts of the same load should not be added again.
What is the formula for calculating inverter running watts?
The formula is:
Continuous Running Load = Sum of Simultaneous Running Loads
How much expansion margin should an inverter system include?
Expansion margin depends on project requirements and should not be treated as a universal fixed percentage.
Can a larger inverter solve insufficient battery capacity?
A larger inverter increases power conversion capability but does not create additional stored energy. Battery capability must be reviewed together with inverter requirements.
How do distributors use wattage calculations during RFQ preparation?
Distributors use load calculations to communicate requirements, compare supplier specifications and prepare structured quotation documentation.
Final Recommendation
A pure sine wave inverter wattage calculator should function as an engineering worksheet rather than a simple wattage lookup tool.
The recommended workflow is:
Define Loads → Calculate Running Watts → Evaluate Startup Scenario → Add Expansion Margin → Review Battery Capability → Compare Specifications → Validate Configuration → Prepare RFQ
The most suitable inverter configuration is not necessarily the highest wattage option. It is the configuration that matches the documented load profile, startup conditions and operating environment.
Request a Pure Sine Wave Inverter Load Configuration Review
For distributors, system integrators and commercial projects, prepare:
- Application details.
- Running load requirements.
- Startup conditions.
- Battery voltage.
- Operating environment.
- Future expansion considerations.
Contact CONGSIN for a project-based inverter configuration discussion.
This 3000W full-power pure sine wave inverter (Model: CS3000PSW) adopts pure sine wave output technology (waveform distortion rate <2%), and the output power is highly consistent with mains power quality. It can safely drive high-power precision loads such as air conditioners, refrigerators, medical instruments, and small industrial equipment, avoiding equipment malfunctions or shortened service life caused by unstable waveforms. The device supports DC 12V input (compatible with 10.5V-14.8V wide voltage), continuously outputs 3000W full power, and has a peak power of 6000W, easily coping with the instantaneous startup impact of high-power devices; it is equipped with 4 AC universal sockets (max current 16A) + 2 USB 3.0 fast-charging ports (22.5W per port) to meet the simultaneous power supply needs of multiple devices. Built-in six-fold safety protection (overload, overvoltage, undervoltage, short circuit, overtemperature, reverse connection), combined with dual intelligent silent cooling fans (noise ≤45dB), it achieves the triple advantages of "high power + high safety + low noise," suitable for home emergency, outdoor engineering, vehicle-mounted power supply, small industrial scenarios and other fields.
This 1000W modified sine wave inverter has UPS charging function, with DC12V input and AC220V output, and 600W rated power. Equipped with dual universal sockets, two USB ports, an LCD display, and a battery clip, it is professionally designed and has stable performance. It can provide stable AC power conversion and UPS emergency power supply for computers, small home appliances, electronic devices, etc. in home emergency, office, outdoor and other scenarios, meeting the needs of simultaneous power supply and emergency power supply for multiple devices.
This 1500W pure sine wave inverter converts DC 12V to AC 220V power, with a rated power of 1500W and a peak power of 3000W. Equipped with dual fans, LCD display, QC3.0 and PD Type-C fast charging ports, and remote control capability for stable and intelligent power output.
Our CS2000BIG 2000W modified sine wave inverter is a high-power power conversion device that converts DC 12V from batteries into AC 220V electricity. It is designed for heavy-duty use, featuring 2 AC sockets to power multiple high-power devices simultaneously, 2 cooling fans for efficient heat dissipation, and battery terminal wire for stable connection. With its robust construction and large capacity, it is an ideal solution for powering tools, appliances, and equipment in various scenarios, from industrial use to home emergencies.
Get in Touch with Our Team
You can also communicate with us directly through our online contact form. Please fill in the following information, and our team will contact you as soon as possible after receiving your message.
CONGSIN is a trusted OEM factory for power inverters, solar charge controllers, and DC converters. Reliable solutions for global B2B buyers.
High Quality
7/24 Service
Guaranteed Warranty
© 2025 Congsin. All Rights Reserved.
WeChat
Scan QR Code
sin cong
teaimei10
Whatsapp: +8618028086791
Scan QR Code
