Small Office Continuity: Powering Computers, Networks and Communication Equipment

Quick Answer

A pure sine wave inverter for office backup should be selected only after the office has defined which business services must remain available during an outage.

Start by mapping each required service to the computers, network devices, communication equipment and supporting devices it depends on. Define which devices must operate together, how long each service must remain available, what interruption or restart behavior is acceptable, and what equipment can be removed if battery energy becomes limited.

Then determine whether the project requires only battery-based AC backup with a managed changeover, or whether it requires an exact inverter model or configuration with documented UPS-oriented or transfer behavior.

Office continuity depends on complete service chains, not individual devices.

Power continuity does not automatically guarantee service continuity.

Pure sine wave output and UPS transfer capability are separate product characteristics.

Pure sine wave describes the AC output waveform. It does not, by itself, define how a system responds when utility power disappears, how long a transfer takes, or whether a particular computer or network device remains uninterrupted.

The final project should therefore qualify both the electrical requirement and the continuity architecture.

For detailed electronic-load compatibility, use the sensitive load compatibility guide.

For complete inverter sizing after the office requirements are defined, use the How to Size a Pure Sine Wave Inverter guide.

Key Takeaways

• Small office backup should be designed around required business services rather than total office connected wattage.
• Computers, network equipment and communication devices often form dependency chains that should be evaluated together.
• A powered computer may still be unable to perform its required function if the network service it depends on is unavailable.
• Shared infrastructure, business endpoints and conditional office loads should be separated before sizing.
• Pure sine wave output and UPS transfer capability should be qualified independently.
• Standard inverter backup and UPS-style automatic backup can represent different project architectures.
• Runtime can be extended by reducing the permitted load state, not only by increasing battery capacity.
• Low-load or standby inverter behavior may become more relevant during long-duration reduced-load operation.
• Controlled shutdown and recovery should be defined before system validation.
• Office backup should be validated at both the electrical level and the service level.
• Final capability should always be confirmed for the exact inverter model, battery system and connected office equipment.

Define the Office Continuity Objective

Before calculating watts, define what the office must continue to accomplish during an interruption.

A request such as “We need an inverter for the office computers” does not yet define the project.

A stronger requirement defines which business services must remain available, how long they must remain available, which equipment is required to support them, and what interruption, shutdown and recovery behavior is acceptable.

That turns the project from device counting into continuity engineering.

Define the Required Continuity Window

The required backup duration should come from the project. Depending on the application, the objective may involve:

• continuity through a short utility interruption;
• enough operating time to finish current work;
• several hours of reduced office activity;
• extended battery-supported operation;
• operation until another power source becomes available.

There is no universal small-office backup duration. The required continuity window affects both battery energy and the number of devices that can remain active.

Define the Minimum Business Services

The project should identify which functions must remain available. Depending on actual office requirements, examples can include:

• internet or external network access;
• local network access;
• selected computers;
• communication services;
• selected charging functions;
• POS or checkout equipment where applicable;
• security or monitoring equipment where applicable;
• selected local storage or network equipment where applicable.

These are project examples, not a universal essential-equipment list. The office owner or project team should determine which services are required.

Define Acceptable Service Degradation

A backup system does not necessarily need to reproduce normal full-office operation throughout the entire outage. Possible project-defined conditions can include:

• full office operation;
• reduced user operation;
• network and communication continuity;
• selected business endpoints only;
• controlled shutdown.

This creates a structured method for preserving higher-value services as available battery energy decreases.

Map Business Services to Equipment Dependencies

The next step is to map each required business service to the devices that support it. This dependency map is more useful than a flat equipment list because office services often rely on multiple devices functioning together.

Build a Service Dependency Chain

A general network-access chain may look like:

External Access → Gateway / Modem / ONT → Router → Switch or Wireless Access Point → User Device

Actual offices may use a different architecture. The purpose of the chain is not to prescribe equipment. It is to identify all powered elements required for a service to function.

Business Service → Required Devices → Supporting Devices → Power Requirement

Identify Single Points of Service Loss

A relatively low-power device can still be important if multiple users depend on it.

Which powered devices become functionally useless when another required device is offline?

For example, keeping several workstations powered provides limited continuity value if the required shared network path is unavailable. This is why service dependency should be established before inverter sizing.

Separate Shared Infrastructure From Business Endpoints

Shared infrastructure may include project-specific:

• gateway equipment;
• routers;
• switches;
• wireless access points;
• communication infrastructure.

Business endpoints may include:

• selected computers;
• selected displays;
• communication terminals;
• POS devices where applicable;
• other project-defined office electronics.

This makes it possible to reduce the number of active endpoints while preserving shared services.

Build the Minimum Office Continuity Stack

A practical office backup plan can organize equipment into four functional tiers.

Tier 1 — Shared Infrastructure

This tier contains equipment required to maintain shared connectivity or communication services. Depending on the project, it may include selected:

• gateways;
• routers;
• switches;
• wireless access points;
• communication infrastructure.

The exact devices and quantities must come from the actual office architecture.

Tier 2 — Essential Business Endpoints

This tier contains the user or business equipment required to maintain the defined minimum office function. Examples may include:

• selected laptops or desktop computers;
• selected monitors;
• communication terminals;
• POS equipment where applicable;
• other project-defined business endpoints.

The number of active endpoints should be defined by the continuity objective rather than by the total number of devices normally present in the office.

Tier 3 — Conditional Office Loads

Conditional loads can remain available when capacity and stored energy permit. Examples can include:

• additional monitors;
• printers;
• optional charging equipment;
• nonessential peripherals.

These loads should not automatically be included in the minimum continuity state.

Tier 4 — Separately Qualified Loads

Certain equipment may require separate review because of:

• high sustained demand;
• relevant temporary demand;
• unclear compatibility;
• strict interruption tolerance;
• disproportionate effect on runtime.

Separately qualified does not mean unsupported. It means additional project-specific verification is required.

Create the Office Continuity Matrix

The Office Continuity Matrix connects required services with the devices and electrical conditions needed to preserve them.

The office continuity matrix links business services to the equipment and power conditions required to keep those services available.

It can also provide a common technical reference when distributors, integrators and suppliers evaluate the same project.

Define Office Operating States

Office continuity should be evaluated under several operating states rather than one fixed load list.

Normal Office Mode

Normal Office Mode represents the ordinary equipment set when the normal power source is available. Its total connected load provides context, but it should not automatically become the backup-system requirement.

Continuity Mode

Continuity Mode represents the main power-loss operating state. It may include:

• Shared Infrastructure;
• Essential Business Endpoints;
• selected Conditional Office Loads.

This state normally defines the main simultaneous office backup load.

Extended Outage Mode

When the outage lasts longer than expected, the permitted load set can be reduced. A project may choose to:

• reduce active workstations;
• remove additional displays;
• defer printing;
• stop optional charging;
• disable nonessential peripherals.

The exact load-reduction sequence remains project-specific.

Network / Communication-Only Mode

Some projects may define a network-only or communication-only state after selected user endpoints are shut down.

This can reduce power demand while preserving project-defined connectivity or communication services. It is an operating strategy, not an automatic inverter feature.

Controlled Shutdown Mode

When remaining battery energy is insufficient for continued operation, the office should have a planned shutdown state.

Which devices can be removed first, and which service chain should remain available until the final stage?

Calculate the Maximum Credible Office Load

The inverter requirement should be derived from the permitted operating states.

Office Continuity Load = Sum of Devices Required in the Selected Continuity State

Determine Simultaneous Running Demand

For each continuity state, identify which devices actually operate together.

The result may include:

• shared infrastructure;
• selected user endpoints;
• communication equipment;
• permitted peripherals.

The highest credible simultaneous running condition becomes an important continuous-power input.

Account for Device State Changes

Office electronics can operate under different states, including:

• startup;
• charging;
• active use;
• idle;
• sleep;
• transition or restart.

Where these states materially affect demand, use manufacturer information or representative measurements. Avoid assigning one generic wattage to all computers or network equipment.

Use the Load Worksheet for Detailed Calculation

After the continuity equipment set is defined, detailed load calculations can be transferred to the pure sine wave inverter load worksheet. The office continuity process determines which loads belong in a particular operating state, while the worksheet handles the detailed power calculation.

Separate Power Continuity From Service Continuity

An electrical result and a business-service result are not necessarily the same.

Power continuity does not automatically guarantee service continuity.

Powered Does Not Always Mean Operational

After a power event, some equipment may need to:

• remain energized;
• restart;
• reconnect to a network;
• restore a local operating state;
• reconnect to an external service.

Actual behavior depends on the equipment and application. The project should therefore test more than the presence of output voltage.

Identify Dependency Failure Modes

A continuity review can evaluate situations such as:

• a gateway restarting;
• a router remaining powered while another network dependency is offline;
• a workstation staying powered while connectivity is unavailable;
• several devices restarting at the same time.

These scenarios cannot be resolved by a simple wattage calculation.

Define Service Acceptance Criteria

Project-specific acceptance conditions may include:

• required devices remain energized;
• selected equipment restarts normally;
• required connectivity returns;
• users can resume the required activity;
• shutdown occurs in the intended order;
• recovery occurs acceptably.

The exact acceptance criteria should be documented before validation.

Define Interruption and Backup Architecture Requirements

This is the point where the office continuity requirement becomes a product-architecture requirement.

Pure Sine Wave Output vs UPS Capability

These are separate characteristics. Pure sine wave output describes the AC output waveform. UPS or transfer capability relates to how an exact product or configuration responds to a change in the available power source.

Pure sine wave output and UPS transfer capability are separate product characteristics.

A pure sine wave specification does not by itself establish:

• automatic transfer;
• transfer time;
• zero interruption;
• uninterrupted computer operation;
• restart behavior.

Any such requirement must be verified at exact-model level.

Standard Inverter Backup

Some projects may allow:

• managed or manual changeover;
• a controlled interruption;
• device restart;
• battery-based AC backup after the changeover.

In that case, the main technical checks may include:

• pure sine wave output;
• continuous load capability;
• relevant temporary demand;
• battery architecture;
• restart behavior;
• operating runtime.

UPS-Style Automatic Backup

Other projects may require:

• automatic response to utility loss;
• a defined transfer characteristic;
• reduced interruption for selected office electronics.

In that case, the buyer should specifically verify:

• exact inverter or UPS-oriented architecture;
• documented transfer behavior;
• actual connected-device interruption tolerance;
• representative system validation.

This does not mean every pure sine wave inverter provides UPS behavior. It also does not mean one UPS-oriented product's transfer specification applies to another model.

Match Architecture to the Continuity Requirement

This table defines characteristics to verify. It does not recommend a particular product or imply that every CONGSIN inverter provides every listed function.

For detailed UPS-oriented planning, see the pure sine wave UPS inverter guide.

Build the Runtime Budget

Office continuity is both a power problem and an energy-management problem.

Separate Infrastructure Runtime From Endpoint Runtime

Shared infrastructure may require a different operating period from user equipment.

For example, one project may keep network or communication infrastructure active after selected user endpoints are shut down. Another project may require the complete continuity stack for the entire backup period. The planning model should support both approaches.

Calculate Energy by Operating State

Energy Requirement = Power × Operating Time

For the office:

Continuity Energy = Sum of Each Active Device's Power × Required Operating Time

Where different devices operate for different periods, calculate each energy contribution separately.

Extend Runtime Through Load-State Management

Runtime can be extended by changing the permitted load state, not only by increasing battery capacity.

Continuity Mode → Extended Outage Mode → Network / Communication-Only Mode → Controlled Shutdown

Detailed battery sizing should then be completed using the battery sizing guide for pure sine wave inverters.

Build the Office Continuity Design Envelope

The planning process should produce a documented design envelope rather than a single inverter wattage.

These requirements represent different dimensions of continuity and should not be collapsed into one wattage value.

Check Sensitive Office Electronics Separately

Continuity architecture defines what must remain available. Compatibility determines whether the exact connected electronics behave acceptably with the proposed inverter system.

Computers and Electronic Power Supplies

Computers and related power supplies can differ by design and operating state.

Final compatibility should therefore use actual equipment and exact inverter documentation rather than a universal computer assumption. Detailed power-supply and sensitive-load behavior belongs in the sensitive load compatibility guide.

Network and Communication Equipment

Network and communication devices may use:

• direct AC inputs;
• external AC adapters;
• other project-specific power arrangements.

Where an external adapter is used, the complete power path is:

Inverter AC Output → AC Adapter → End Device

The adapter should therefore be treated as part of the operating chain when validating the system. Check the actual equipment's input requirement, adapter, restart behavior and power-source documentation.

Commercial Office Electronics

A project may also include POS equipment, security or monitoring devices, or selected storage or network devices where applicable. These should be treated as project-specific loads and individually qualified. Their inclusion here does not imply universal compatibility or a general product guarantee.

Translate the Continuity Plan Into Inverter Requirements

Once the continuity design envelope is complete, it becomes an input to exact inverter selection.

Continuous Output Requirement

Compare the exact inverter's continuous output rating with the maximum credible simultaneous load in the selected office continuity state. Do not derive the requirement from a generic “small office” wattage.

Temporary Capability

If the office equipment produces a relevant startup, charging or transition event, record it separately. Temporary demand should be included only where the actual project requires it.

AC Output Requirement

Confirm the office's:

• nominal AC voltage;
• frequency;
• applicable output configuration.

These requirements depend on the connected equipment and target market.

Battery Architecture

The DC system should support:

• required operating time;
• exact inverter input requirements;
• relevant current demand;
• project operating conditions.

Battery-bank design should remain in the dedicated battery-sizing process.

Backup Architecture

The exact proposed model or configuration should be evaluated against the required architecture:

• standard battery inverter backup;
• UPS-oriented automatic backup;
• another project-defined transfer approach.

Low-Load and Standby Behavior

Long-duration reduced-load operation can make inverter self-consumption more relevant to runtime planning.

This may be especially important where the office spends substantial time in Extended Outage Mode, Network / Communication-Only Mode, or another low-load state.

Where relevant, check low-load or standby consumption for the exact inverter model. No universal value should be assumed.

Exact-Model Verification

Before approval, confirm the quoted model's:

• product architecture;
• continuous output;
• relevant temporary capability;
• temporary-duration definition where applicable;
• transfer behavior where applicable;
• DC input;
• AC output;
• relevant efficiency data;
• low-load or standby behavior where relevant;
• protection and recovery behavior;
• technical documentation.

For the complete sizing workflow, use the How to Size a Pure Sine Wave Inverter guide.

Buyers may also review the current CONGSIN pure sine wave inverter range before beginning exact-model qualification.

Plan Controlled Shutdown and Recovery

A continuity design should define what happens as stored energy declines and what happens when the normal power source returns.

Define Shutdown Order

The project should specify which equipment may be removed first.

Conditional Loads → Selected Business Endpoints → Shared Infrastructure

This is one possible planning model, but the final order should be project-defined.

If communication continuity must be maintained, the project may keep network infrastructure operating after selected user endpoints are shut down. This is an operating rule, not an inverter feature.

Preserve Required Service Dependencies

A device with low power consumption can still be operationally important if other equipment depends on it. Therefore, shutdown decisions should be based on service dependency as well as watts.

Define Recovery Order

A general recovery model may be:

Supporting Infrastructure → Network Services → User Equipment

Actual restart behavior should be verified.

Where several devices restart automatically, the project should also check whether simultaneous restart creates a temporary electrical load issue, a service-recovery issue, or an undesirable sequence. No automatic recovery sequencing capability should be assumed unless it is documented for the exact system.

Validate Electrical and Service Continuity

Office backup should be validated at two levels:

1. Electrical level
2. Service level

A successful electrical result does not automatically prove that the required office service remains available.

Service-Level Validation Matrix

Normal Continuity Test

Operate the required continuity stack under representative conditions. Confirm both electrical stability and availability of the defined business services.

Transition Test

Where transfer behavior is relevant, reproduce the intended change from normal power to backup operation. Observe:

• inverter or backup-system behavior;
• connected-device response;
• network recovery;
• required service availability.

Extended Runtime Test

Operate the system using the intended reduced-load state. Confirm that the expected runtime strategy remains practical without removing a required dependency.

Controlled Shutdown Test

Remove equipment according to the documented shutdown plan. Verify that the required service remains available until its intended shutdown stage.

Recovery Test

Restore normal power or the project-defined recovery source. Check both electrical recovery and business-service recovery.

Office Equipment + Network Dependencies + Communication Equipment + Inverter + Battery + Backup Architecture + Operating Rules

B2B Application Priorities

The shared objective is to replace a vague request for “office backup power” with a repeatable technical requirement.

Prepare a Small Office Continuity RFQ

A useful RFQ should contain the continuity architecture as well as the load requirement.

Buyer Provides

Commercial terms such as price, MOQ and lead time should be requested from the supplier rather than assumed.

Supplier Confirms

• exact inverter model;
• product architecture and UPS capability where applicable;
• continuous output rating;
• relevant temporary capability;
• temporary-rating definition and duration where applicable;
• documented transfer behavior where applicable;
• DC input configuration;
• AC output configuration;
• relevant efficiency information;
• low-load or standby behavior where relevant;
• protection and recovery behavior;
• technical documentation;
• available customization;
• recommended validation approach.

This creates a consistent basis for comparing supplier proposals.

How CONGSIN Supports Office Backup Project Discussions

CONGSIN's current site includes pure sine wave inverter products for battery-based AC applications as well as UPS-oriented inverter products or configurations.

For a small office project, the first step should therefore be to define the required continuity architecture before selecting an exact inverter model.

A project discussion can begin with:

• required business services;
• equipment dependency map;
• selected continuity stack;
• simultaneous operating load;
• interruption requirement;
• required runtime;
• backup architecture expectation;
• battery architecture;
• AC output requirement;
• destination market;
• project quantity;
• customization requirements.

Exact continuous output, temporary capability, UPS or transfer behavior, efficiency, low-load behavior, protection, charging functions where applicable, compatibility and available configuration must be verified for the quoted model.

For broader commercial context, buyers may also review the office and retail inverter solutions page.

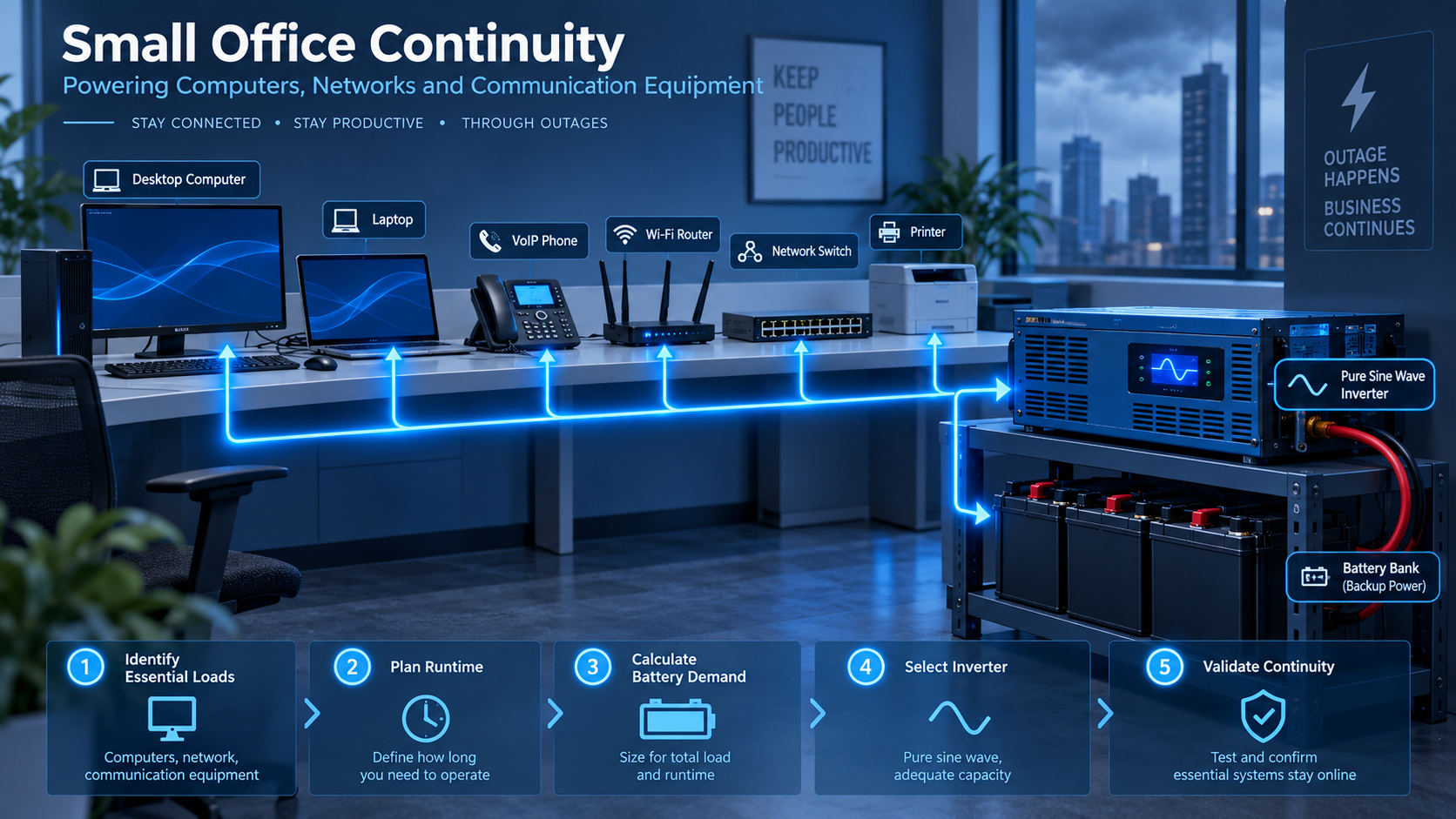

Final Small Office Continuity Workflow

A practical office continuity project can be organized into eight stages.

Stage 1 — Define the Business Continuity Objective

Identify the business services that must remain available and the required operating period.

Stage 2 — Map Services and Equipment Dependencies

Identify the complete equipment chain required to support each service.

Stage 3 — Build the Minimum Continuity Stack

Separate Shared Infrastructure, Essential Business Endpoints, Conditional Office Loads and Separately Qualified Loads.

Stage 4 — Define Operating States and Interruption Requirements

Document Continuity Mode, Extended Outage Mode, optional Network / Communication-Only Mode, Controlled Shutdown Mode and equipment-specific interruption expectations.

Stage 5 — Calculate Continuous Load and Runtime

Determine maximum credible simultaneous demand and energy requirements for each selected operating state.

Stage 6 — Define the Backup Architecture and Design Envelope

Document whether the project requires standard inverter backup, UPS-oriented automatic backup or another defined approach together with AC, DC, runtime and operating requirements.

Stage 7 — Verify the Exact Inverter and Battery Configuration

Confirm actual model capabilities rather than extending one product's specifications to a wider series.

Stage 8 — Validate Electrical and Service Continuity

Test transition, operating states, runtime, shutdown and recovery at both the power and business-service levels.

The final design objective is not simply to keep the office equipment powered.

Preserve the required business service chain using a defined equipment stack, backup architecture, runtime budget, interruption requirement, shutdown strategy and validated inverter-battery configuration.

FAQ

What equipment should be included in a small office inverter backup plan?

Begin with the business services that must remain available. Map each service to the shared infrastructure, computers, communication equipment and supporting devices it requires. Build the backup load from that minimum continuity stack rather than automatically including every office device.

Can a pure sine wave inverter power computers and network equipment?

A pure sine wave inverter can be considered for computer, network and communication loads, but final compatibility should be checked using the actual equipment, power supplies or adapters, AC requirements, battery architecture and exact inverter model. Pure sine wave output alone does not establish UPS or transfer behavior.

Is a pure sine wave inverter the same as a UPS inverter?

No. Pure sine wave describes the output waveform. UPS or transfer capability describes another aspect of the product or system architecture. If automatic backup or a particular interruption characteristic is required, it should be confirmed for the exact proposed model or configuration.

How do I calculate the backup load for computers, routers and communication equipment?

First define the continuity state and identify all devices that must operate simultaneously to preserve the required services. Add their running requirements and include relevant startup or transition demand where applicable. Detailed calculations can then be completed using a load worksheet.

Can I keep only the network and communication equipment powered during a long outage?

A project may define a network-only or communication-only operating state if that meets its continuity objective. Reducing the active equipment set can reduce energy demand and extend runtime, but the actual service dependencies should be verified before endpoints are removed.

How should transfer time be evaluated for office backup equipment?

Begin with the interruption tolerance of the actual computers, network devices and communication equipment. Then compare that requirement with documented transfer behavior for the exact proposed backup product or architecture and perform representative system testing where necessary. No single transfer value should be assumed suitable for every device.

How do I estimate battery runtime for a small office backup system?

Define each continuity state, identify the devices active in that state, and determine how long each device needs to operate. Convert the resulting power and time requirements into energy demand, then complete battery sizing using the exact inverter and selected battery architecture.

What information should I provide when requesting an office backup inverter configuration?

Provide the required business services, device list and quantities, dependency map, running load, temporary demand where relevant, required runtime, interruption expectations, desired backup architecture, utility-input condition, shutdown and recovery rules, battery architecture, AC voltage and frequency, installation environment, destination market, project quantity and customization or documentation requirements.

Request a Small Office Continuity Configuration Review

For distributors, system integrators, IT and network integrators, mobile or field-office partners, and commercial or institutional buyers, prepare:

• required business services;
• computer, network and communication equipment list;
• device quantities;
• service dependency map;
• running load;
• relevant temporary demand;
• required continuity period;
• planned operating states;
• interruption requirements;
• backup architecture expectation;
• utility-input condition;
• shutdown order;
• recovery order;
• battery architecture;
• required AC voltage and frequency;
• installation environment;
• destination market;
• project quantity;
• customization requirements;
• technical documentation requirements.

Contact CONGSIN to discuss a model-specific office backup configuration
