Home Backup Power Design: Matching Pure Sine Wave Inverters to Essential Loads

• Continuous power and temporary startup demand are separate requirements.
• Stored battery energy and battery current-delivery capability are separate constraints.
• Pure sine wave output and automatic transfer capability are separate product characteristics.
• Product-family fit is a shortlist decision; exact-model qualification is the approval decision.
• The complete inverter-battery-load system should be validated under representative operating conditions.

If the household load set has not yet been prioritized, first use the essential home backup load planning guide. This page begins after that decision and focuses on system qualification.

1. From Essential Loads to a System Requirement

An approved essential-load plan is not yet an inverter specification. It tells the project what must remain available during an outage, but the system designer still has to translate that operating intention into electrical and architectural requirements. This is the point where home backup planning becomes a system-engineering task.

The imported design input should include the required loads, simultaneous-use rules, startup-sensitive equipment, runtime targets, any agreed load-shedding sequence, and the confidence level of the source data. A nameplate value, manufacturer datasheet, project measurement and planning estimate do not have the same certainty. Where a value is still an estimate, it should remain identified as such until it can be confirmed.

These states are not separate sizing exercises. Together they define the operating envelope that the inverter-battery system must support. The highest sustained load may occur during Normal Backup, the longest runtime may occur during Minimum Essential operation, and the most demanding short-duration event may occur when a compressor or motor starts while background loads remain active.

That distinction matters because a system can satisfy one condition and fail another. A configuration may have enough continuous power but insufficient temporary capability. It may have enough inverter power but insufficient battery energy. It may have enough stored energy but inadequate DC current capability. It may also deliver suitable AC output while failing the project requirement if its backup transition behavior is unsuitable for the connected loads.

Before inverter selection begins, the project team should normalize the approved input into one controlled record. Use consistent units, identify which values are measured and which are estimated, and record which combinations of loads are permitted. This prevents different suppliers or integrators from reconstructing the project assumptions differently.

Essential loads define what the backup system must support; approved operating scenarios define when and how those loads must be supported.

2. Build the Power and Energy Envelope

The power and energy envelope is the numerical core of the design. It converts the approved operating scenarios into sustained power, temporary demand and runtime requirements. These quantities should remain separate because they answer different engineering questions.

Power Requirement

Continuous Requirement = Highest Sustained Load of the Approved Simultaneous Operating Scenarios

The continuous requirement should not be calculated by adding every appliance that could theoretically be connected to the home. It should reflect the highest credible sustained condition allowed by the approved operating rules. If certain appliances are not permitted to operate together, the inverter requirement should preserve that rule.

Temporary Requirement = Active Background Load + Relevant Startup or Transition Demand

Temporary demand should be evaluated in the context in which it actually occurs. A refrigerator, freezer, pump, fan or other startup-sensitive load should not be examined in isolation if other approved loads remain active at the same time. The temporary requirement is therefore a system condition rather than simply the startup value of one appliance.

Universal startup multipliers should not replace better evidence. Manufacturer data, representative measurements and verified project data are preferable. Planning estimates may be used during early design, but they should remain clearly identified until confirmed.

A useful power envelope usually consists of a small number of approved operating scenarios rather than one oversized total. This makes the design easier to audit and gives the supplier a clearer basis for exact-model qualification.

If Normal Backup produces the highest sustained load, that condition should drive continuous output. If a startup event creates the highest short-duration demand, that event should drive temporary capability. These two requirements should not be merged into one headline wattage.

Design margin should also be treated as a project decision rather than an automatic percentage. Additional margin may be appropriate for uncertainty, future load growth or another documented requirement, but it should not be used to hide missing load data.

For detailed load arithmetic and scenario totals, use the pure sine wave inverter load worksheet.

Energy and Runtime Requirement

Energy Requirement = Power × Operating Time

Power tells the project what the inverter must deliver at a given moment. Runtime tells the project how long the battery must support a defined operating state. A relatively high-power load used briefly may dominate temporary inverter capability while contributing relatively little total energy use. A lower-power load that remains active for many hours may have a much larger effect on battery requirements.

Runtime should therefore be assigned by operating state. A project may begin in Normal Backup, move to Reduced-Energy operation if an outage continues, and preserve a Minimum Essential state for the longest required duration.

Longer runtime can be achieved by changing the permitted load state, not only by increasing battery capacity.

The energy envelope should hand off to battery design with clear assumptions. The project should identify the required operating states and durations, while the battery-design step confirms usable capacity, applicable operating limits and the current capability required by the inverter.

System losses matter, but a universal inverter-efficiency value should not be invented for every model. Where efficiency is needed for detailed runtime calculation, use documented information for the proposed equipment or identify the value as a planning assumption until it is confirmed.

Battery Energy and Current Capability

Stored Energy ≠ Current Delivery Capability

A battery system must satisfy both constraints. Stored energy determines whether the required operating states can continue for the required time. Current-delivery capability determines whether the DC side can support sustained and temporary inverter demand without unacceptable voltage behavior or another system limitation.

A battery bank that appears adequate in Wh or Ah may still require further review if the inverter creates high DC current demand.

The system requirement should therefore define the battery voltage architecture, usable-energy requirement, expected current capability and recovery or charging source. It should also identify whether charging is expected to be integrated into the proposed system or provided externally.

Battery voltage is a system decision. The selected architecture must match the exact inverter DC input and must be appropriate for the project power and current requirements.

This page does not prescribe a universal battery voltage, conductor size, protection rating or fuse size because those decisions require exact equipment data and actual installation conditions.

For detailed battery-bank calculations, use the battery sizing guide for pure sine wave inverters.

3. Define the Battery and Backup Architecture

The inverter rating is only one part of a home backup system. The project must also define how the battery, inverter, AC loads, charging source and backup behavior work together. This architecture determines whether the selected hardware can actually deliver the intended service during an outage and recover correctly afterward.

The battery interface should be defined around usable energy, current capability and compatibility with the exact inverter DC input. The DC side also requires an installation design covering the conductor path, connection length where relevant, terminals or connectors, isolation and protection.

Final conductor and protection values should come from the exact equipment documentation and project design rather than a universal rule.

The AC interface is equally important. Specify the required output voltage, frequency, connected-load requirements and destination market. A configuration appropriate for one market or appliance set may not be the correct configuration for another.

Architecture selection should be driven by the service requirement rather than by a preferred product label. If a controlled interruption is acceptable, a managed battery-inverter arrangement may be suitable. If approved loads require automatic transfer, that requirement should be defined before the exact product is selected.

Pure sine wave output and automatic transfer capability are separate product characteristics.

Pure sine wave describes the AC waveform. It does not by itself establish automatic transfer, zero interruption, a universal transfer time or guaranteed continuity for every connected device.

Where UPS-oriented behavior is required, the exact proposed model or system should be checked for transfer architecture, documented behavior and compatibility with the actual connected loads.

For deeper transfer and UPS planning, refer to the pure sine wave UPS inverter guide. For appliance-specific waveform, startup and restart considerations, use the appliance compatibility guide.

The boundary between inverter functions and external system functions should also remain clear. Transfer, charging, solar control, protection, distribution and load management may be provided by different parts of the project.

The requirement should state what the complete system must do without assuming that every function is integrated into the inverter. This gives a supplier a clearer basis for confirming whether a function is integrated, external or not required.

Charging and recovery should be designed explicitly. A project may use utility charging, solar-supported charging or another compatible source. The presence of a charging source changes the system from a simple stored-energy arrangement into an energy-consumption-and-recovery architecture.

Recovery planning should define how stored energy is restored, whether loads remain active during recharge, how the system returns to normal operation and whether restart sequencing matters.

4. Qualify the Exact Inverter Configuration

Once the power, energy and architecture requirements are complete, the project can move from system design to product qualification. A product family helps create a shortlist, but the approval decision belongs at the exact-model level.

Depending on the architecture, the shortlist may include a pure sine wave battery inverter, a UPS-oriented configuration or a recharge-supported arrangement where applicable. That general fit does not prove that one particular model meets the complete project requirement.

Product-family fit is only a shortlist step. Final approval should be against a specific model and configuration.

Exact-model qualification should be evidence-based. Useful evidence can include applicable product documentation, supplier confirmation for the proposed configuration and representative system validation where required.

If a capability is essential but has not been documented or confirmed, it should remain an open item rather than being inferred from a related model, a product-family description or a general market expectation.

After the exact model is qualified, the project should lock the actual supply configuration. A useful configuration lock can include the exact model, DC input version, AC output version, required backup functions, interfaces, documentation and approved project customization.

A home backup system should be approved against a specific product configuration, not only a nominal wattage class.

The configuration lock also acts as change control. If a supplier, distributor or integrator later proposes a different model, DC version, AC version, interface or backup function, the replacement should be checked against the same qualification envelope before acceptance.

This is particularly useful for OEM, private-label and multi-unit projects because a commercial substitution can otherwise change the technical behavior that was originally approved.

For broader inverter sizing methodology, use the How to Size a Pure Sine Wave Inverter guide.

Buyers can also review the current CONGSIN pure sine wave inverter range before exact-model qualification.

5. Validate the Complete Home Backup System

An inverter can meet its own documented ratings while the complete system still fails the project requirement. Validation should therefore test the approved configuration as a system rather than treating the inverter as an isolated component.

Approved Loads + Battery + DC Interface + Inverter + AC Loads + Backup Architecture + Operating Rules

The validation object is the complete system. A startup test should include the background loads expected to remain active. A runtime test should use an approved operating state and representative battery condition.

A transfer test, where required, should consider both inverter behavior and the response of the actual connected loads. Recovery should check how the system returns to service and how charging resumes according to the project architecture.

A useful validation record should identify the tested configuration, battery condition, active loads, operating state, relevant startup event, transfer condition where applicable and observed result.

The goal is not to create a universal laboratory procedure. It is to demonstrate that the proposed project configuration satisfies the approved requirement. Where a result depends on an exact model or project condition, that context should remain attached to the result.

Load shedding is a project operating rule unless automatic load management is explicitly documented for the exact system.

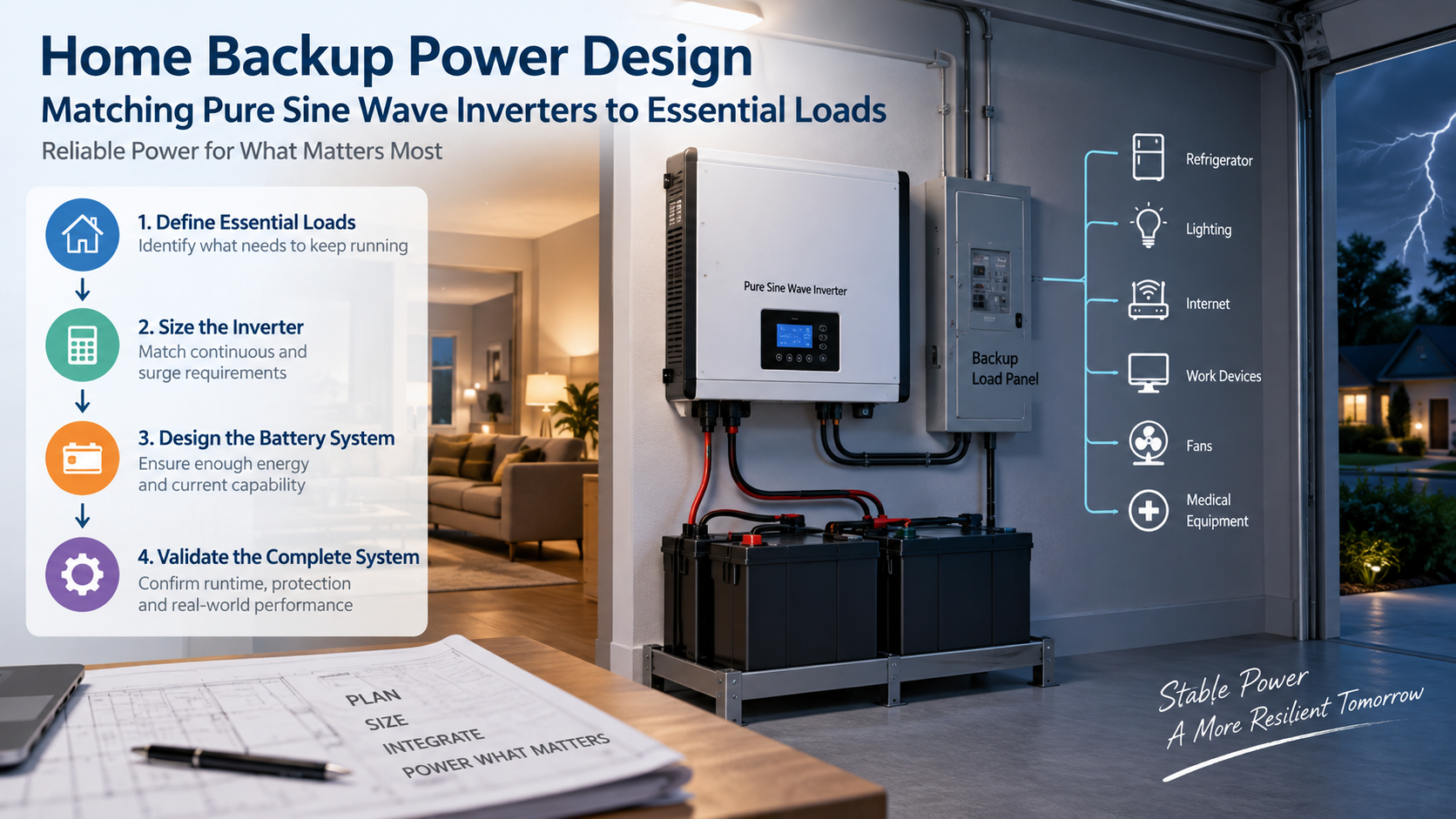

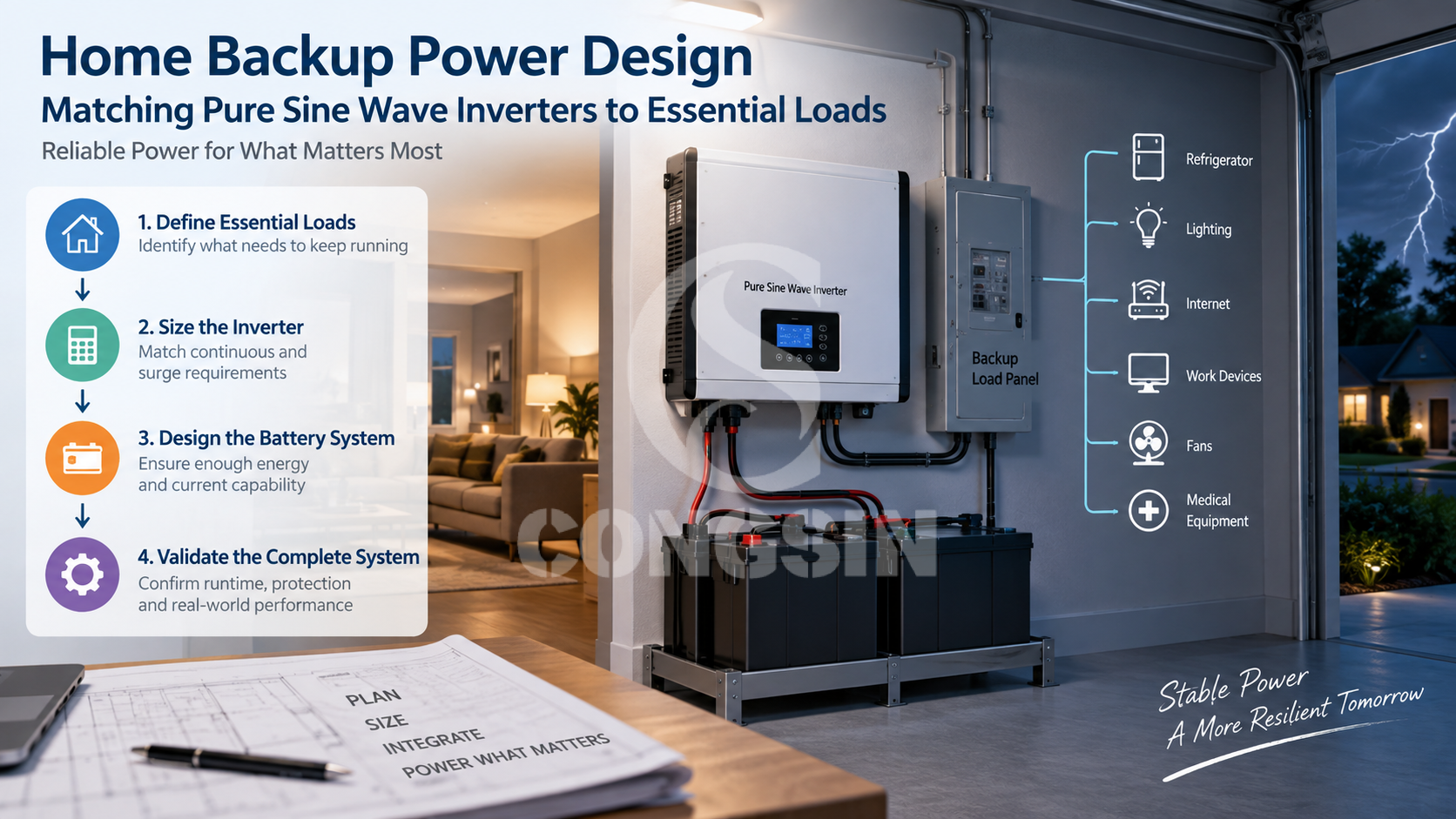

Six-Stage Home Backup Qualification Workflow

The complete design can be summarized as a controlled six-stage process that connects the approved load plan to exact-model qualification and complete-system validation.

1. Import the approved essential-load and operating-scenario data.
2. Define sustained power, temporary demand and runtime.
3. Translate runtime into battery and DC requirements.
4. Define AC output, backup, transfer and charging architecture.
5. Qualify and lock the exact inverter configuration.
6. Validate the complete inverter-battery-load system.

The objective is to convert an approved load plan into a controlled system requirement and verify one specific inverter-battery configuration against it.

6. Turn the Design Into a B2B RFQ

For distributors, backup-system integrators, solar or storage partners, professional buyers, OEM/private-label projects and suitable non-industrial battery-based mobile or outdoor applications, the final engineering output should be converted into a concise RFQ.

The RFQ should communicate the actual system requirement rather than only a desired inverter wattage.

The supplier should return the exact proposed model, continuous and temporary ratings, the definition and duration of temporary capability where applicable, DC and AC versions, transfer and charging capability where applicable, efficiency or standby information where relevant, protection and recovery behavior, applicable technical documentation, and available customization.

Commercial terms such as price, MOQ and lead time should be requested for the actual project rather than assumed in advance.

CONGSIN Project Discussion

CONGSIN supplies DC-to-AC power inverter products and lists solar charge controllers among its current core product areas. The company supports OEM/ODM, private labeling, distribution and project-based customization discussions.

Exact ratings, transfer behavior, charging functions, efficiency, standby behavior, protection behavior and other model-specific capabilities should be confirmed for the proposed configuration rather than generalized across the product range.

Buyers who are still at an earlier selection stage can review the home backup inverter selection guide.

For broader inverter fundamentals, see the complete pure sine wave inverter guide.

FAQ

How do I turn an essential-load list into a home backup inverter requirement?

Begin with the approved simultaneous operating scenarios rather than the appliance list alone. Define the highest sustained load, relevant temporary startup demand, runtime by operating state, battery energy and current requirements, AC/DC interfaces and backup architecture. These outputs form the system requirement used to qualify an exact inverter configuration.

Should inverter wattage be chosen before battery design?

Not ideally. Inverter power and battery requirements should be developed from the same approved operating envelope. The inverter must support sustained and temporary demand, while the battery must provide both the required usable energy and the DC current capability needed by that inverter under the same scenarios.

Is stored battery energy enough to determine system suitability?

No. Stored energy determines whether the required runtime can be achieved, but current-delivery capability determines whether the battery can support the inverter under sustained and temporary power demand. Both constraints should be checked against the selected DC architecture.

Does a pure sine wave inverter automatically provide UPS backup?

No. Pure sine wave describes the AC output waveform. Automatic transfer or UPS-oriented behavior is a separate product or system characteristic. If the project requires automatic backup, the exact model or configuration should be checked for documented transfer architecture and compatibility with the connected loads.

What is the difference between product-family fit and exact-model qualification?

Product-family fit identifies a suitable general architecture. Exact-model qualification confirms whether one specific model and configuration meets the sustained power, temporary demand, DC input, AC output, transfer, charging, operating and documentation requirements of the project.

What information should be included in a home backup inverter RFQ?

Include the approved loads and simultaneous-use scenarios, continuous and temporary power requirements, runtime by operating state, battery architecture, charging source, AC voltage and frequency, backup or transfer requirement, destination market, project quantity, configuration needs, OEM/private-label requirements and required documentation.
