Quick Answer Summary
A pure sine wave inverter is a power-conversion device that changes Direct Current (DC) from a battery into Alternating Current (AC), producing a smooth, continuous waveform that closely resembles the electricity supplied by a public utility grid. The actual waveform quality and frequency stability must always be verified against the specific model's test reports. A pure sine waveform addresses waveform quality, but it does not independently prove sufficient power, startup capability, battery compatibility, grounding suitability, or approval for a specific appliance.
CONGSIN Published Model Examples: CONGSIN publishes the CS2000PSW-3S with 2000W continuous output, 4000W peak output, and waveform distortion below 3%. The CS3000PSW is published with 3000W continuous output, 6000W peak output, and waveform distortion below 2%. These values apply only to the named models. Buyers should request the applicable input, load, frequency, temperature, measurement, and peak-duration conditions before procurement.
The Core Technology Behind Pure Sine Wave Inverters
At the heart of a battery-based power system, the inverter performs the critical task of energy translation. Many pure sine wave inverter designs use high-frequency switching, digital control, pulse-width modulation, and output filtering. Exact topology, transformer architecture, switching strategy, and control logic vary by model.
A critical metric for evaluating this waveform is Total Harmonic Distortion (THD). Acceptable THD depends on the connected equipment and project requirements. Buyers should request model-specific THD data at defined DC input, AC load, frequency, and temperature conditions. Based on currently published product information, CONGSIN lists waveform distortion below 3% for the CS2000PSW-3S and below 2% for the CS3000PSW. Buyers should request the applicable DC input, AC load, output frequency, ambient temperature, test instrument, and measurement method.
Efficiency, Standby Consumption, and Thermal Losses
Company-Published R&D Capability: CONGSIN’s R&D materials list development targets or technical capability claims that include conversion efficiency above 94% and standby consumption below 1W. These values should not be treated as specifications for every catalogue model. Buyers should request a model-specific efficiency curve showing test results at representative load levels, together with no-load consumption, standby-mode definition, input voltage, ambient temperature, fan behavior, and measurement conditions.
- Efficiency at 10%, 25%, 50%, 75%, and 100% load where available
- DC input voltage during testing and AC output voltage/frequency
- Resistive or mixed test load configurations
- No-load consumption and precise standby-mode definition
- Fan on/off temperature thresholds and thermal derating curves

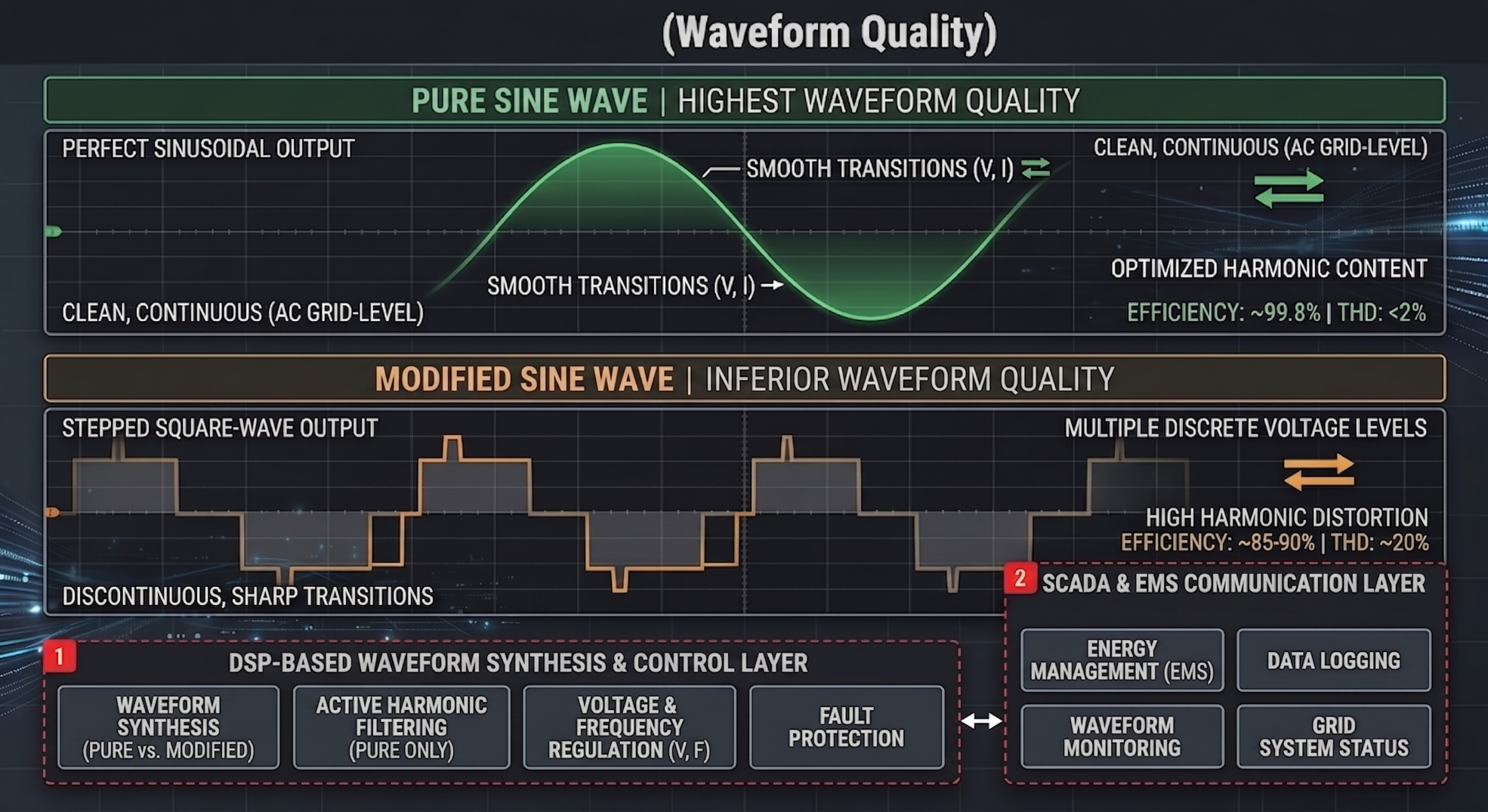

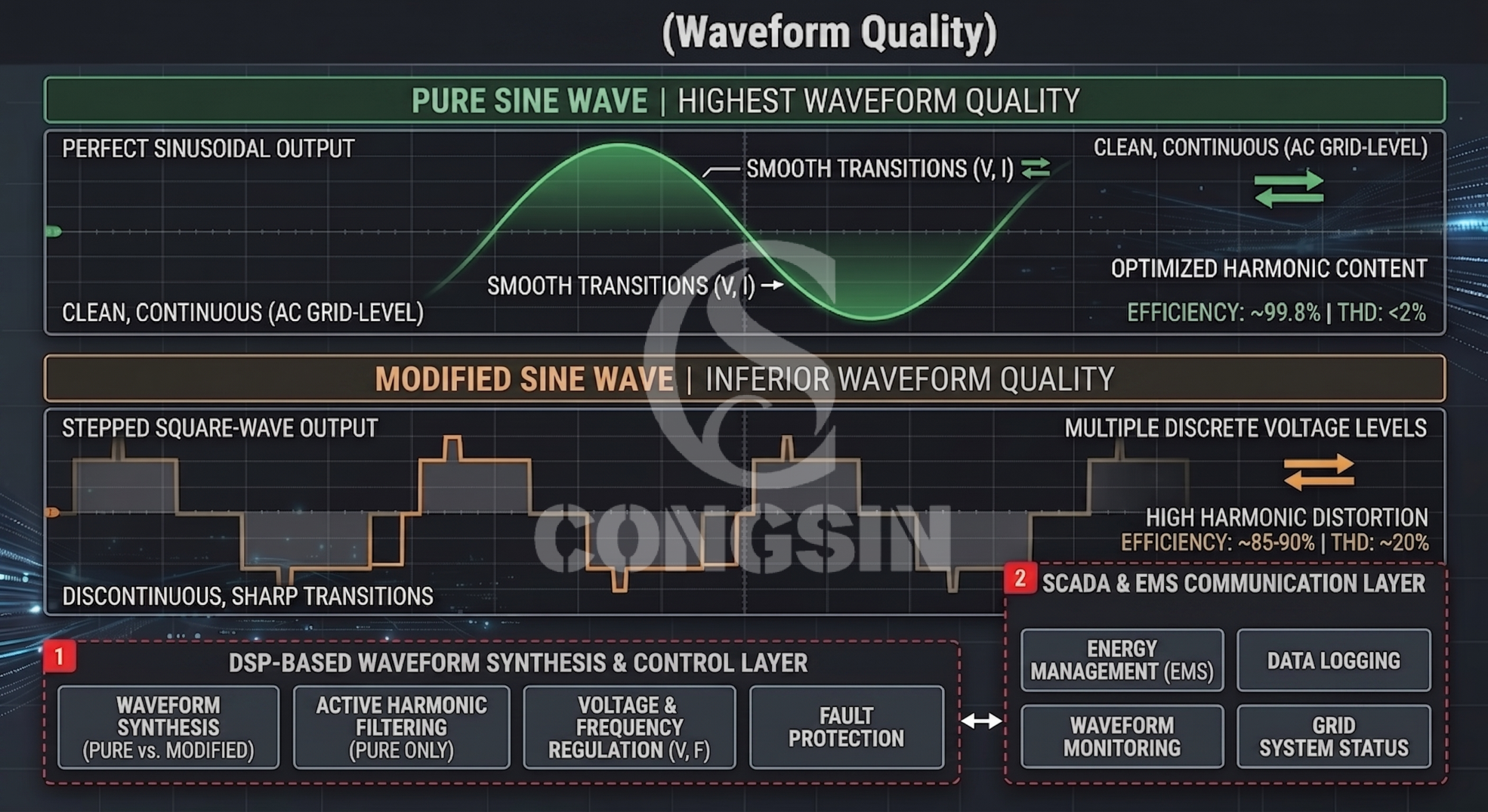

Pure Sine Wave vs. Modified Sine Wave: A Comprehensive Application and Procurement Comparison
For distributors and system integrators, choosing between waveform technologies is a primary architectural decision.
| Evaluation Dimension | Pure Sine Wave Inverters | Modified Sine Wave Inverters |
|---|---|---|
| Waveform Profile | Smooth, continuous, and rounded curve | Blocky, stepped, squared-off curve |
| Load Suitability | Generally preferred for waveform-sensitive electronics, motor-driven appliances, audio equipment, and devices whose manufacturer specifies sinusoidal AC input. *Medical, life-support, laboratory, or safety-critical applications require explicit equipment-manufacturer approval, project-level electrical design, and applicable compliance review.* |
Some resistive loads, incandescent lighting, and selected simple devices may operate on modified sine wave output, subject to manufacturer guidance and testing. |
| Potential Operational Impacts | May reduce waveform-related noise, heating, or abnormal motor behavior compared with an incompatible stepped waveform. | May cause noise, additional heating, unstable operation, or incompatibility in selected loads. The result depends on the appliance input circuit, motor design, startup behavior, load level, and manufacturer guidance. |
| Buyer Verification | THD, voltage regulation, frequency stability, surge behavior, and appliance guidance | Load compatibility, noise, heating, startup behavior, and manufacturer guidance |
*If you are sourcing for highly cost-sensitive or basic emergency applications, explore the Modified Sine Wave Inverters category. For complex or sensitive loads, return to the Pure Sine Wave Inverters catalogue.*
Key Specifications for System Integrators
Evaluating a pure sine wave inverter requires a clear understanding of its capacity and electrical boundaries.
- Continuous Power: Continuous power is the output the exact model is rated to sustain under its specified DC input, ambient temperature, cooling, load type, and test conditions.
- Surge Power: Buyers must acquire comprehensive surge data. A published peak value without its allowable duration, battery condition, voltage-drop limit, and protection response is insufficient to prove compatibility with a motor, compressor, transformer, pump, or microwave.
- DC Input Voltage Options: Higher nominal DC voltage can reduce current for the same output power. However, 12V, 24V, or 48V selection must follow the exact inverter input range, battery configuration, charging system, cable length, fuse and breaker design, and expansion plan. Availability within the CONGSIN pure sine wave range should be confirmed by exact model.
| Model Example | Published Input/Output | Continuous/Peak | Published THD | Frequency / Duration | Published Features |
|---|---|---|---|---|---|
| CS1000PSW | 12V DC / 220V AC | 1000W / 2000W | Request datasheet | Request model data | 2 AC sockets, 2 USB, 5 protections |
| Published 1500W Remote-Control Product |
12V DC / 220V AC | 1500W / 3000W | Request datasheet | Request model data | LCD, dual fans, QC3.0, PD Type-C, remote |
| CS2000PSW-3S | 10.5–14.8V DC / 220V±5% | 2000W / 4000W | Published below 3% | Request model data | 3 AC sockets, 2 USB, 5 protections |
| CS3000PSW | 10.5–14.8V DC / 220V AC | 3000W / 6000W | Published below 2% | Request model data | 4 AC sockets, 2 USB, 6 protections |
Model-Data Boundary: *These are company-published examples, not a complete product-series specification. Buyers should verify the latest model code, input range, output frequency, voltage regulation, THD test conditions, peak duration, protection thresholds, socket configuration, and certification scope.*
Practical Applications and Deployment Scenarios
Pure sine wave inverters are used across multiple mobile, off-grid, backup, and project-specific applications.
RVs and campers | Utility vehicles and trucks | Marine and mobile-power applications | Off-grid homes | Household backup | Outdoor and field-service use | Selected small-office loads
Telecommunications, healthcare, server, laboratory, and commercial-infrastructure projects should be treated as project-specific engineering applications. Pure sine waveform alone does not establish redundancy, transfer performance, grounding, isolation, continuous-duty capability, electromagnetic compatibility, or destination-market approval.
System Architecture Overview
A standalone pure sine wave inverter is the DC-to-AC conversion stage within a wider battery-based power system. System architectures typically follow one of these distinct paths:
- Solar Path: Solar array → Compatible MPPT/PWM controller → Battery bank → Standalone pure sine wave inverter → AC loads
- AC Charging Path: Utility or generator → Compatible AC charger or inverter-charger → Battery bank
- Bypass or Transfer Path: Available only on models with a documented AC input, transfer switch, charger, or bypass circuit.
*These paths describe system-level architectures. They do not mean that a standalone pure sine wave inverter contains an MPPT controller, AC charger, transfer switch, or bypass circuit.*
Successfully integrating the inverter requires matching its input parameters with flooded lead-acid, AGM, gel, or lithium-based batteries. LiFePO4 systems generally require compatible BMS limits and charging settings. Lead-acid systems may require chemistry-specific charger settings, DC fuses or breakers, ventilation for applicable battery types, and temperature compensation where supported.
Battery runtime should be estimated from usable battery energy rather than nominal amp-hour capacity alone. The calculation must account for battery voltage, permitted depth of discharge, inverter efficiency at the expected load, cable losses, temperature, battery aging, and low-voltage shutdown behavior. Runtime calculations are estimates. Motor cycling, changing loads, battery voltage sag, fan operation, USB loads, and battery condition can materially change actual operating time.
Advanced and Optional Features
Depending on the exact model or approved custom project, monitoring and operation may use a wired remote panel, proprietary communication port, serial interface, Bluetooth, Wi-Fi, app-based control, or another agreed interface. CONGSIN publishes selected pure sine wave products with features such as LCD displays, remote control, QC3.0, PD Type-C, and multiple AC or USB outputs. Availability should be confirmed by exact model and production revision.
Company-level customization capability does not mean that every catalogue model can accept every interface. Adding Bluetooth, Wi-Fi, serial communication, app control, or a remote panel may require PCBA, firmware, enclosure, EMC, documentation, and certification changes. Furthermore, a pure sine waveform does not automatically mean AC charging, UPS transfer, bypass, or bidirectional conversion.
Safety, Protection, and Market Compliance
Reliability in power electronics is defined by how the device reacts to anomalies. Common model-dependent functions may include overload, short circuit, DC under-voltage, DC over-voltage, over-temperature, and reverse-polarity protection. Buyers should verify thresholds, alarm behavior, shutdown logic, recovery method, and required external protection. The number of listed protections does not by itself establish protection quality. CONGSIN publishes five protection functions for the CS2000PSW-3S and six for the CS3000PSW. These lists differ by model and should not be generalized to the full range.
Company-Published Quality Process: CONGSIN publishes company-level processes that include 24-hour burn-in, full-load testing, and extended stress cycles. Buyers should confirm whether each activity applies to every unit or a sampling plan, and request the test duration, load level, ambient condition, pass criteria, data record, and nonconformance procedure for the exact order.
- CE Declaration of Conformity and supporting technical documentation
- FCC reports or authorization records where applicable
- UL or ETL listing/certification where required
- RoHS material-compliance documentation
- Rating label, user manual, warnings, and packaging information
Installation and Preventive Maintenance
Safe installation requires appropriate DC overcurrent protection, correctly sized cables, secure terminations, ventilation clearance, and compliance with the exact product manual. Unless the model has a documented enclosure or IP rating, protect it from direct water exposure, condensation, excessive humidity, conductive dust, flammable materials, and blocked airflow. Preventive inspection should be performed by qualified personnel after the system has been safely isolated. Inspection may include checking terminals, cables, fuses, fans, vents, alarms, discoloration, corrosion, abnormal odor, and recorded over-temperature or shutdown events.
Sizing Logic for Engineering and Installation
Apply a design margin based on the exact model’s rating, duty cycle, ambient-temperature derating, startup demand, battery-voltage drop, cable losses, and planned expansion rather than one universal percentage.
- List simultaneous loads: List the loads expected to operate simultaneously. Do not automatically add every appliance in the building unless all are run at the same time.
- Verify rated or measured running power: Map continuous power requirements accurately.
- Identify startup-sensitive loads: Focus heavily on motor, compressor, pump, transformer, or microwave demands.
- Confirm surge parameters: Determine whether startup events can overlap and confirm required surge magnitude and duration.
- Estimate DC current draw: Calculate expected DC current using the lowest realistic battery voltage and the inverter efficiency applicable to the expected load, rather than using nominal battery voltage alone.
- Evaluate voltage drop boundaries: Ensure line metrics match the low-voltage shutdown thresholds perfectly under peak load.
- Apply structural corrections: Account for ambient-temperature derating, cable voltage drop, inverter efficiency losses, battery condition, installation altitude where applicable, and planned expansion before selecting the final model.
- Cross-reference against product data: Confirm the entire analytical result against the exact model datasheet and laboratory test evidence.
OEM/ODM Custom Solutions and Manufacturing Partner Evaluation
For volume purchasers and brand owners, CONGSIN offers OEM services (Logo, Housing Color, Label, Packaging, Standard Technology Adaptation) and ODM services (Structural design, Electrical specifications, PCB/Software, App/Smart Control).
*Boundary Note: PCBA, firmware, housing, voltage, socket, or communication customization is subject to engineering feasibility, MOQ, NRE, testing, certification impact, schedule, and written approval.*
| Evaluation Dimension | Evidence to Request from Manufacturing Partner |
|---|---|
| 1. Electrical and Performance Parameters | |
| Exact Model & Waveform | Model code, hardware revision, verified continuous power, surge duration, and THD at defined DC input and AC load. |
| Efficiency & Electrical Limits | Full efficiency curve, no-load and standby power consumption metrics, nominal battery range, and output voltage regulation. |
| Thermal & Protection Logic | Ambient operational thresholds, variable fan logic, acoustic noise parameters (dB), derating graphs, trigger thresholds, and shutdown recovery maps. |
| 2. Customization and Quality Assurance | |
| Custom Engineering Scope | Housing modifications, region-specific socket validation, brand typography, display panels, customized firmware, or specialized remote control options. |
| Quality Protocols & Traceability | Incoming component tracking, SMT inspection data, full-load burn-in logs, end-of-line functional checks, approved BOM maps, and firmware version controls. |
| 3. Commercial, Delivery, and Compliance Approval | |
| Compliance & Testing Credentials | Exact model listings, applicant names, specific laboratory accreditation data, test reports, engineering samples, and clear Golden Sample sign-offs. |
| Warranty & Spare Parts Lifecycle | BOM warranty boundaries, systematic troubleshooting divisions, replacement turn-arounds, and verified spare part availability terms. |
| Production Readiness | Monthly core capacity logs, material lead times, line distribution logic, pilot run thresholds, and reorder alignment rules. |
*A Golden Sample agreement should include more than the physical inverter housing. It must define the approved model revision, structural BOM, PCBA tracing, firmware compilation hashes, socket engineering, marking labels, manual versions, test requirements, and strict acceptance criteria.*
Conclusion
Selecting a pure sine wave inverter requires more than matching a wattage label. The final decision should align waveform quality, continuous output, startup surge, battery voltage, cable design, runtime, thermal conditions, protection behavior, and destination-market requirements.
CONGSIN publishes pure sine wave inverter products and customization capabilities for vehicle, mobile, off-grid, backup-power, and project-specific applications. Model availability, THD, efficiency, standby use, peak duration, optional features, test records, and compliance scope should be confirmed for the selected product and production revision.
Discuss Your Pure Sine Wave Inverter Requirements with CONGSIN
Please provide your target parameters below to initiate an objective engineering feasibility evaluation.
FAQ
What types of loads generally require a pure sine wave inverter?
Pure sine wave is generally preferred for waveform-sensitive equipment, motor-driven appliances, audio systems, and devices whose manufacturer specifies sinusoidal AC input. Medical, laboratory, life-support, or other safety-critical use requires explicit equipment-manufacturer approval and project-level validation.
How do I choose between a 12V, 24V, or 48V pure sine wave inverter?
The correct battery voltage depends on the exact inverter input range, required output power, battery configuration, cable length, overcurrent protection, charging equipment, and expansion plan. Higher nominal DC voltage can reduce current, but availability and suitability must be confirmed for the selected CONGSIN model.
Are pure sine wave inverters automatically capable of charging batteries from the grid?
No. A standalone pure sine wave inverter only performs DC-to-AC conversion. Integrated AC charging, transfer switches, or bypass circuits are available only in models with documented charging, transfer, or bypass hardware.
How should system integrators calculate the required inverter size?
Integrators should follow a comprehensive checklist: calculate simultaneous running load, startup-sensitive loads, surge magnitude and duration, realistic battery voltage, DC current, voltage drop, thermal derating, efficiency losses, and battery condition before selecting the final model.
What compliance documents are needed for importing pure sine wave inverters?
Required documents depend on the destination market, exact product function, installation type, socket configuration, voltage, and applicable safety, EMC, environmental, listing, labeling, and declaration requirements. Importers must review full test files on a model-specific base.
What factors should volume purchasers evaluate in an OEM inverter manufacturer?
Purchasers should request the exact model datasheet, THD data, efficiency curves, peak-duration evidence, no-load consumption, protection thresholds, burn-in records, engineering samples, specific certificate scopes, golden sample approval, robust engineering change control processes, warranty, and spare parts availability profiles.
