Motor Load Planning: Refrigerator Startup Current, Runtime and Battery Demand

Quick Answer

A pure sine wave inverter for a refrigerator should be selected from the actual refrigerator operating profile rather than running wattage alone.

First identify the exact appliance and record its normal running load. Then determine compressor startup current or startup power using manufacturer data or representative measurement where available. Review restart behavior, identify how long the compressor actually operates over the required period, establish daily AC energy consumption, and confirm whether the battery can provide both the required energy and the temporary startup current.

Finally, compare those requirements with the continuous rating, temporary or surge capability, surge duration, DC input, AC output and protection behavior of the exact inverter model.

Refrigerator Identification → Running Load → Startup and Restart → Daily Energy → Battery Demand → DC Path → Design Envelope → Exact-Model Verification → System Validation

Two engineering checks must remain separate:

A refrigerator system should pass both checks independently before the inverter-battery configuration is approved.

A system may contain enough stored battery energy to operate for many hours but still fail when the compressor starts because the battery, BMS, DC wiring or inverter cannot support the temporary current event.

The opposite can also occur: the system may start the compressor successfully but have insufficient stored energy for the required runtime.

For the broader sequence from application definition through exact-model validation, review the How to Size a Pure Sine Wave Inverter guide.

For a broader overview of pure sine wave inverter selection, see the pure sine wave inverter guide.

Key Takeaways

• Refrigerator running power does not define compressor startup behavior.
• Startup current or startup power and running power should be treated as separate design inputs.
• A universal 2×, 3× or 5× refrigerator surge multiplier should not replace appliance-specific data where better information is available.
• Compressor startup capability and refrigerator runtime are separate engineering checks.
• Refrigerator daily energy should not automatically be calculated as rated running watts × 24 hours unless the compressor actually operates continuously.
• Manufacturer daily energy data or representative measured Wh/day is generally more useful for runtime planning than rated compressor wattage alone.
• Battery energy capacity mainly affects runtime, while battery current capability affects whether the DC system can support compressor startup.
• DC voltage drop should be evaluated under startup conditions rather than from open-circuit battery voltage alone.
• Final compatibility should be confirmed using the exact refrigerator, battery architecture and inverter model.

Define the Refrigerator Load Before Selecting the Inverter

A refrigerator-specific inverter project should begin with the appliance rather than a target inverter wattage.

A request such as “We need a 1500W inverter for a refrigerator” does not explain how the value was determined.

For B2B selection, the useful starting point is a documented refrigerator requirement that identifies the appliance, electrical input, operating behavior, startup information, daily energy profile and battery-system conditions.

That creates a technical basis that can be reviewed by distributors, system integrators, project teams and inverter suppliers.

Record Exact Appliance Data

Where available, collect:

• refrigerator manufacturer;
• exact model;
• nameplate information;
• AC voltage;
• AC frequency;
• rated current;
• running power;
• startup current or startup power;
• compressor information where available;
• documented daily energy consumption;
• manufacturer guidance regarding inverter or generator operation.

A clear appliance record reduces the risk of assuming that all refrigerators behave the same way.

Two refrigerators with similar running wattage may use different compressor or electronic-control architectures and may therefore behave differently during startup, restart or changing DC-side conditions.

Identify Compressor and Control Loads

The compressor is usually an important element in refrigerator startup planning, but it is not always the only electrical load.

Depending on the appliance design, the refrigerator may also include:

• electronic control boards;
• internal fans;
• lighting;
• defrost functions;
• displays;
• other auxiliary components.

The sizing process should therefore evaluate the refrigerator as the complete connected appliance.

Refrigerator designs may use different compressor and control architectures, so startup behavior should be confirmed from the actual appliance rather than inferred only from the appliance category.

For broader discussion of motor, compressor and electronic-control compatibility, review the appliance compatibility guide.

Record Data Sources

Every important design input should have a traceable source.

An engineering estimate can support preliminary sizing, but it should remain clearly labelled as an estimate until verified. This distinction becomes important when different suppliers compare the same project.

Separate Running Load From Startup Demand

A refrigerator has at least two electrical conditions that matter for inverter planning:

1. normal operating load;
2. compressor startup event.

These conditions should not be collapsed into one number.

Running Power Defines the Normal Operating Requirement

Running power describes the refrigerator's demand after the compressor has started and the appliance has entered normal operation.

This value contributes to:

• continuous inverter loading;
• simultaneous-load planning;
• AC energy calculation.

But running watts alone should not determine the final inverter size.

If the refrigerator's normal running requirement is within the inverter's continuous rating but the compressor startup event exceeds the inverter's temporary capability, the system may still fail.

For detailed load-list calculations, use the pure sine wave inverter load worksheet.

Startup Current or Startup Power Defines the Temporary Event

A compressor can temporarily require different electrical conditions during startup than during normal operation.

The startup requirement may be expressed as:

• startup current;
• startup power;
• compressor electrical data;
• measured temporary demand.

The engineering question is: Can the complete inverter and battery system support the refrigerator's temporary startup event while required background loads remain active?

Use Manufacturer or Compressor Data Where Available

Some appliance or compressor documentation may provide starting current, locked-rotor current, startup-related electrical information or generator/inverter guidance.

Where this information is available and applicable, it can become part of the startup review.

The complete system still needs to account for:

• refrigerator controls;
• other appliance loads;
• simultaneous background loads;
• DC battery capability;
• inverter temporary-power definition;
• surge duration.

Avoid Universal Startup Multipliers

Startup Watts = Running Watts × Fixed Multiplier

General examples such as 2×, 3× or 5× may appear in simplified discussions, but they should not be treated as universal refrigerator rules.

Manufacturer Data → Measured Data → Verified Project Data → Clearly Labelled Engineering Estimate

For detailed explanation of continuous, peak and surge terminology, use the continuous vs peak inverter power guide.

Evaluate Refrigerator Restart Conditions

A refrigerator is a cycling load. This makes restart behavior relevant where the application depends on reliable repeated operation.

Initial Start and Restart May Be Different Events

Depending on the refrigerator design and operating condition, restart behavior can be influenced by compressor condition, appliance control logic, battery voltage, previous operating state and DC-side voltage drop.

Test the Relevant Restart Sequence

Normal Operation → Shutdown → Restart

or:

Normal Operation → Power Interruption → Recovery → Refrigerator Restart

No universal restart delay should be assumed. The test sequence should reflect the actual appliance and project.

Check Battery Voltage During Restart

Battery voltage measured before startup does not necessarily represent the voltage available at the inverter during the compressor event. Temporary current can create voltage drop across the battery, DC cables, terminals, lugs, connectors and protection components.

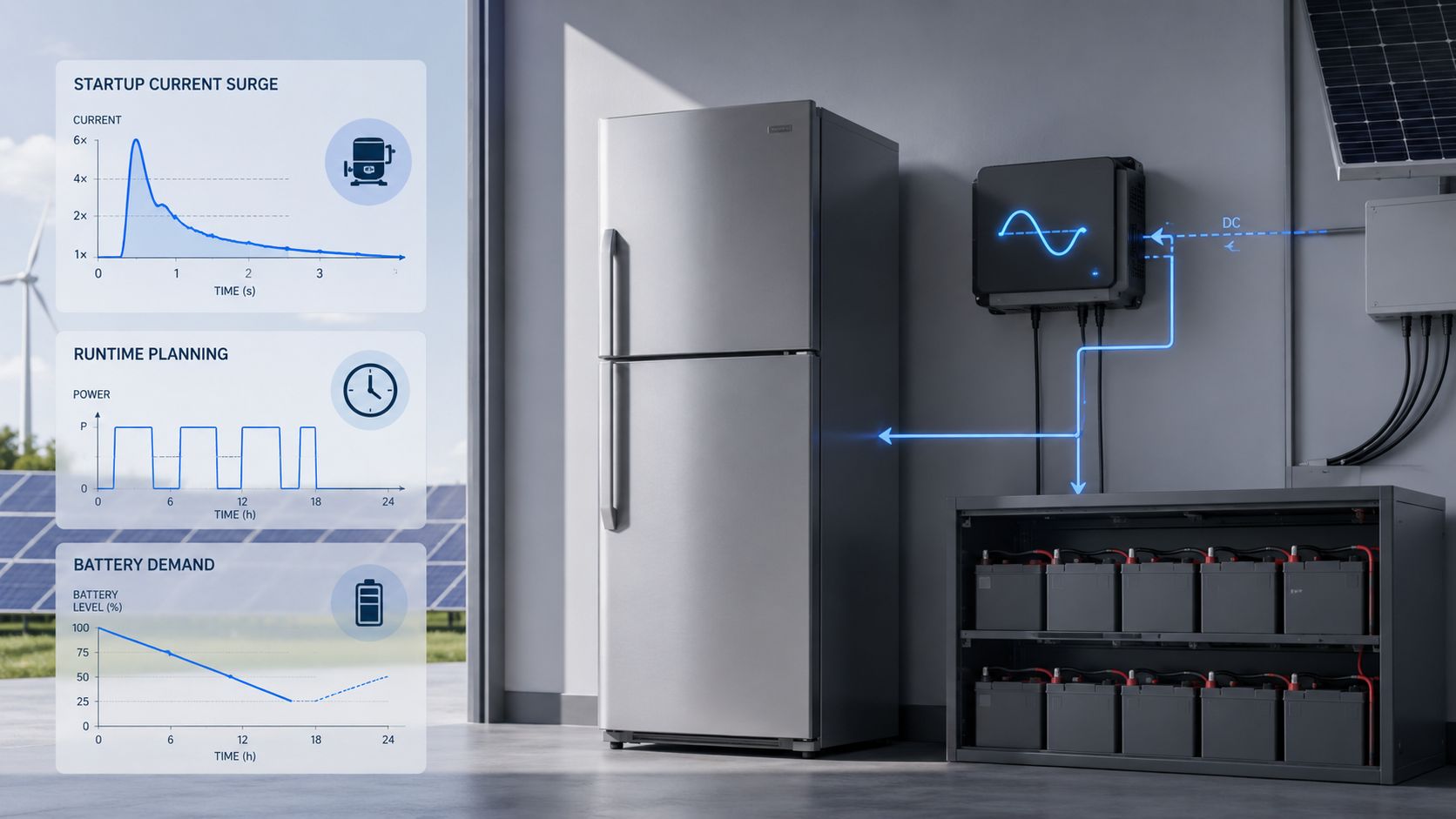

Separate Startup Capability From Runtime Capability

Startup Capability

Can the system support the compressor's short-duration electrical event?

• compressor startup current or power;
• other AC loads active at that moment;
• battery current capability;
• BMS current limitation where applicable;
• DC voltage drop;
• inverter temporary capability;
• surge duration.

Runtime Capability

Can the battery provide enough energy for the refrigerator to operate for the required period?

• daily refrigerator energy consumption;
• actual compressor cycling;
• inverter efficiency;
• battery energy;
• other system loads;
• required operating duration.

A system can pass one check and fail the other, so both should be documented separately before the configuration is approved.

Determine Refrigerator Daily Energy

Do Not Automatically Use Rated Watts × 24 Hours

Rated compressor watts × 24 hours should not be used automatically unless the compressor genuinely operates continuously.

Preferred Energy Data Hierarchy

Calculate Energy From Actual Operating Time

AC Energy = Running Power × Actual Operating Time

Daily AC Energy = Sum of Each Operating State's Power × Time

For example, watts × hours = watt-hours. The purpose is to establish the refrigerator's AC energy requirement before moving into the DC-side battery calculation.

Convert Daily Energy Into Battery Demand

1. How much energy is required?
2. Can the battery support compressor startup current?
3. Can the DC system maintain adequate voltage during the event?

Convert AC Energy to DC Energy

Required DC Energy ≈ AC Energy ÷ Inverter Efficiency

Efficiency should be entered as a decimal, and the real calculation should use applicable efficiency information for the exact proposed inverter where available. This relationship is a planning reference rather than a complete battery-bank design method.

Separate Battery Energy From Battery Current

Battery energy capacity mainly affects runtime, while battery current capability affects whether the DC source can support compressor startup.

Confirm Battery Architecture

• nominal battery voltage;
• battery current capability;
• BMS limitations;
• representative battery condition;
• voltage behavior during startup.

For detailed Ah, Wh, runtime and battery-bank planning, use the battery sizing guide for pure sine wave inverters.

Check DC Wiring and Voltage Drop

Check the Complete DC Path

• battery terminals;
• cable length;
• conductor size;
• cable routing;
• lugs;
• connectors;
• fuse holders;
• breakers;
• distribution connections.

The final cable and protection design should be based on the exact inverter, current, battery system and applicable installation requirements. This page does not assign universal cable or fuse sizes.

Measure Voltage Under Compressor Startup

What voltage does the inverter actually receive while the compressor is starting?

A normal battery reading before startup may not reveal a problem that appears only under temporary load.

Build the Refrigerator Inverter Design Envelope

These values define separate requirements and should not be collapsed into one wattage number.

Output 1 — Continuous Load Requirement

Defines the refrigerator's sustained operating demand together with relevant simultaneous AC loads.

Output 2 — Startup and Restart Requirement

Defines the temporary electrical capability required for compressor startup and relevant restart conditions.

Output 3 — Daily Energy Requirement

Defines how much AC energy the refrigerator must receive over the required operating period.

Output 4 — DC-System Requirement

Defines battery voltage, stored energy, current capability, BMS conditions and DC-path requirements.

Select and Verify the Exact Inverter Model

Exact-Model Verification Matrix

Buyers may review the current CONGSIN pure sine wave inverter range before discussing a model-specific configuration.

Validate the Refrigerator-Inverter-Battery System

Normal Cycling Test

Operate the refrigerator under representative conditions and confirm stable normal compressor cycling.

Compressor Startup Test

Can the complete system start the refrigerator reliably under the intended load condition?

Restart Test

Where repeated cycling is important, test the relevant restart sequence using the actual appliance and application behavior.

Representative Battery Condition

Where appropriate, validate under battery conditions representative of normal field use.

Simultaneous Load Test

If the refrigerator shares the inverter with other devices, include the actual background load during testing.

Installed Environment

Review DC cable routing, mounting, ventilation, connection quality, environmental conditions and battery location.

B2B Refrigerator Project Priorities

Prepare a Refrigerator-Specific RFQ

Buyer Provides

• refrigerator manufacturer and exact model;
• nameplate data;
• AC voltage and frequency;
• running load;
• startup current, startup power or relevant compressor data;
• manufacturer daily energy or representative measured Wh/day;
• battery architecture;
• background loads;
• DC cable distance;
• installation environment;
• destination market;
• expected quantity;
• customization and documentation requirements.

Supplier Confirms

• exact inverter model;
• continuous output rating;
• temporary or surge rating;
• surge definition;
• surge duration;
• DC input configuration;
• AC output voltage and frequency;
• applicable efficiency data;
• low-load or no-load consumption where relevant;
• protection and recovery behavior;
• relevant technical documentation;
• available customization;
• sample-validation expectations.

How CONGSIN Supports Refrigerator Project Review

CONGSIN supplies DC-to-AC inverter products for battery-based applications and supports OEM/ODM, private labeling, distribution and project-based customization discussions.

Exact compatibility, continuous output, temporary capability, surge duration, efficiency, protection behavior, AC/DC configuration and applicable documentation should be confirmed for the quoted inverter model and actual refrigerator.

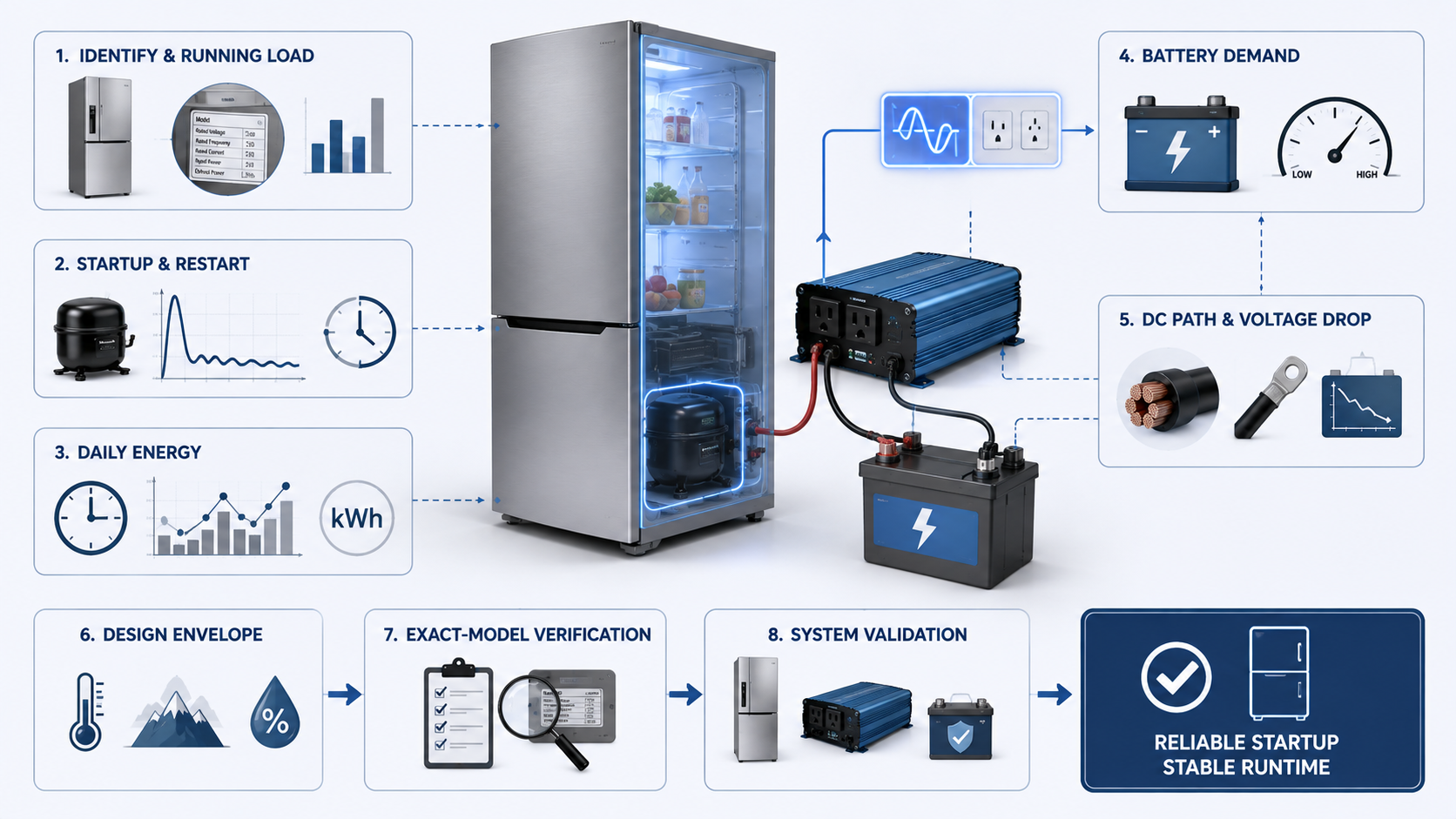

Final Refrigerator Load Planning Workflow

Stage 1 — Identify the Refrigerator

Record the exact refrigerator model, AC requirements, nameplate data and available manufacturer information.

Stage 2 — Record the Running Load

Determine normal operating demand using manufacturer, nameplate or representative measured data.

Stage 3 — Define Startup and Restart Events

Identify startup current or startup power and determine whether restart behavior should be separately validated.

Stage 4 — Determine Runtime and Daily Energy

Use manufacturer daily energy, representative measured Wh/day or measured operating time rather than automatically using rated watts × 24 hours.

Stage 5 — Calculate Battery Demand

Translate required AC energy into a DC energy requirement using applicable model-specific inverter efficiency information.

Stage 6 — Check DC Current and Wiring

Confirm battery current capability, BMS conditions, DC-path resistance and inverter input voltage during startup.

Stage 7 — Verify the Exact Inverter Model

Confirm continuous rating, temporary capability, duration, DC input, AC output, efficiency, protection and technical documentation.

Stage 8 — Validate the Complete System

Test the actual refrigerator, inverter, battery, DC wiring and simultaneous loads under representative normal, startup, restart and installed conditions.

Use an exact inverter and battery configuration that satisfies the documented refrigerator running load, startup and restart requirements, daily energy demand, DC current capability, AC requirements and validated installation conditions.

FAQ

Does a refrigerator need a pure sine wave inverter?

Refrigerator compatibility should be evaluated from the actual compressor, controls, AC input requirements and inverter output characteristics. A pure sine wave inverter is generally the more appropriate waveform category for compressor-based and electronically controlled appliances, but exact compatibility still requires model-specific verification.

What size pure sine wave inverter should I use for a refrigerator?

Do not select an inverter from refrigerator running watts alone. Define the continuous running load, startup current or startup power, restart condition, background loads, battery architecture and required AC output, then compare those requirements with the exact inverter model's documented continuous and temporary ratings.

Why is refrigerator startup current higher than running current?

A compressor can require different electrical conditions while starting than during normal operation. The actual startup demand depends on the refrigerator and compressor design, so manufacturer information or measured values should be used where available.

Should I use a fixed surge multiplier for a refrigerator compressor?

No universal multiplier should automatically be applied to every refrigerator. Compressor design, electronic controls and operating conditions vary. Manufacturer startup information or representative measured data is preferable, with clearly labelled engineering estimates used only where better information is unavailable.

How do I calculate refrigerator battery runtime?

Start with manufacturer daily energy data or representative measured Wh/day where available. If these are unavailable, use measured compressor operating time rather than automatically assuming rated compressor power for 24 hours. Convert the required AC energy into DC energy using applicable inverter efficiency, then perform full battery-bank sizing for the selected architecture.

Does a refrigerator run continuously on an inverter?

The refrigerator may remain connected continuously, but the compressor may cycle according to cooling demand. Daily energy should therefore be based on documented energy consumption or representative measured operation rather than assuming continuous compressor operation.

Why can an inverter start a refrigerator once but fail during restart?

Restart conditions can differ depending on the appliance state, battery voltage, control behavior and DC-side voltage drop. If reliable repeated operation is required, the actual refrigerator-inverter-battery system should be tested through representative startup and restart cycles.

What information should I provide when requesting an inverter for a refrigerator?

Provide the refrigerator manufacturer and model, nameplate data, AC voltage and frequency, running load, startup current or power where available, daily energy or measured operating profile, battery architecture, other simultaneous loads, cable distance, installation conditions, target market, expected quantity and any customization or documentation requirements.

Request a Refrigerator Load and Inverter Configuration Review

Prepare the refrigerator model, nameplate data, AC requirements, running load, startup information, daily energy profile, battery architecture, simultaneous loads, installation conditions, destination market and project requirements before requesting a model-specific configuration review.

Contact CONGSIN to discuss a refrigerator-specific inverter configuration
