Efficiency Engineering for Pure Sine Wave Inverters: Conversion Losses, Standby Consumption and Thermal Design

Key Takeaways

• Pure sine wave inverter efficiency should be evaluated across real load conditions, not only at one ideal test point.
• Conversion losses can occur at the DC input stage, switching stage, magnetic components, filtering stage, wiring and output stage.
• Standby consumption matters in RV, truck, off-grid, telecom, outdoor and backup systems because idle power draw can reduce available battery runtime.
• Heat is a practical signal of power loss, and poor thermal design may affect performance, protection behavior and service life.
• B2B buyers should ask suppliers for test conditions, load points, no-load current, thermal behavior and model-specific documentation.
• Congsin provides DC-to-AC power inverters, portable power stations and solar charge controllers, and supports OEM/ODM, private labeling, distribution and bespoke customization. Specific efficiency data, thermal test results, certification coverage, MOQ, price, lead time and after-sales commitments need customer confirmation.

What Does Pure Sine Wave Inverter Efficiency Actually Mean?

Pure sine wave inverter efficiency measures how much DC input power is converted into usable AC output power. In simple terms, if an inverter receives power from a battery or DC source, part of that energy becomes AC power for the load, while the remaining part is lost mainly as heat, switching loss, magnetic loss, cable loss or standby consumption.

For B2B buyers, efficiency matters because it affects battery runtime, heat generation, enclosure design, installation space, component stress and long-term operating cost. However, efficiency should not be treated as a single fixed number. A pure sine wave inverter may perform differently under light load, medium load, full load, surge load, high ambient temperature or unstable battery voltage.

A peak efficiency value may be useful, but it does not describe the whole operating profile. Distributors, system integrators and OEM buyers should ask how the value was measured, what load percentage was used, which input voltage was applied, whether the test used a resistive or inductive load, and whether the data applies to the exact model being purchased.

For readers who need the broader system context first, see the pure sine wave inverter guide and the explanation of what a pure sine wave inverter is.

Peak Efficiency vs. Real Operating Efficiency

Peak efficiency is usually measured under a specific load condition. It may represent the best operating point of a particular inverter model, but many real systems do not operate at that point continuously.

For example, a system may run a refrigerator, communication device, small tool, lighting circuit or electronic control board at different times of the day. In such cases, partial-load efficiency can be more important than peak efficiency. If the inverter spends most of its time at low or medium load, buyers should evaluate the efficiency curve across several load points instead of relying on one headline number.

For distributors and traders, this helps avoid overselling a product based on a single specification. For system integrators, it helps estimate battery capacity, runtime and heat dissipation more accurately.

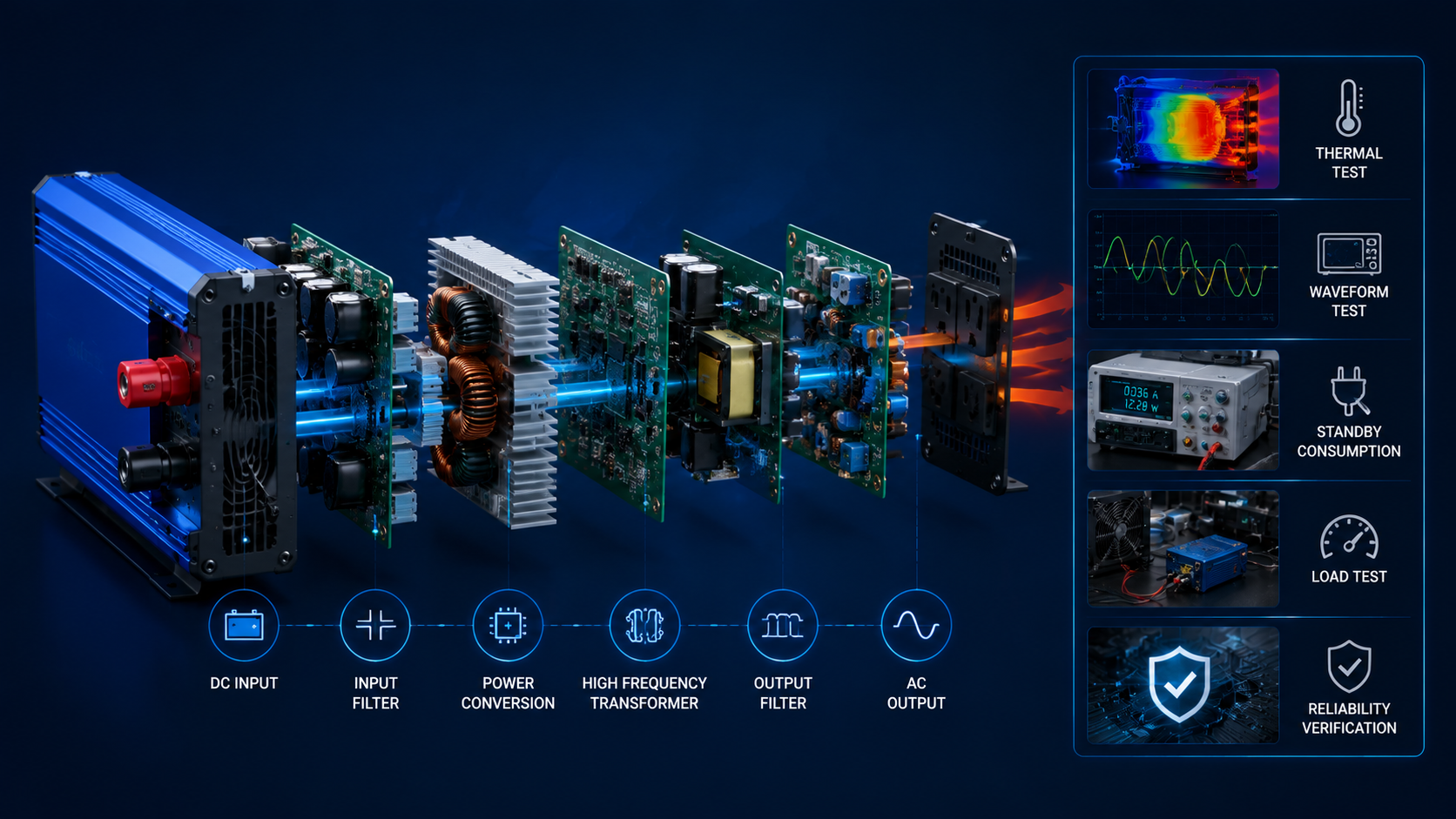

Where Conversion Losses Happen Inside a Pure Sine Wave Inverter

Pure sine wave inverters convert DC power into AC power through multiple electrical stages. Each stage can contribute to energy loss. Understanding these loss points helps B2B buyers compare suppliers more effectively and ask better technical questions during RFQ or sample approval.

For more background on waveform formation, see this explanation of the DC-to-AC conversion process.

DC Input Stage and Battery-Side Losses

Before power reaches the internal conversion circuit, losses may occur on the battery side. These can come from undersized cables, long cable runs, poor terminal contact, fuse holders, connectors or voltage drop under heavy current.

Low-voltage systems, such as 12V applications, often involve higher current than 24V or 48V systems at the same power level. Higher current can increase cable loss and heat if the installation is not designed properly. This does not mean one voltage is always better than another; the correct choice depends on load power, cable length, battery system, application environment and market requirements.

Switching Stage and Semiconductor Losses

Inside the inverter, power semiconductors switch DC power at high frequency to create a controlled AC waveform. Losses may occur during switching, conduction and control operations. These losses are influenced by design choices, load level, switching frequency, component selection and thermal management.

For B2B buyers, the practical question is not only which components are used, but whether the supplier can provide stable performance under the intended load and environment. A well-prepared buyer should ask for model-specific data rather than assuming that all inverters with the same rated power behave the same way.

Transformer, Inductor and Filtering Losses

Pure sine wave output requires waveform shaping and filtering. Magnetic components and filters can help improve waveform quality, but they may also introduce energy loss depending on design and operating conditions.

This is one reason efficiency should be evaluated together with waveform quality. An inverter with clean output, stable frequency and reliable protection may be more suitable for sensitive loads than an option that only claims a higher efficiency number without clear test documentation.

For applications involving computers, audio equipment, communication devices, control boards, compressors or motors, buyers should compare efficiency together with THD, voltage stability, surge capacity and load compatibility.

Output Stage and Load-Dependent Losses

Different loads affect inverter behavior in different ways. Resistive loads, inductive loads and electronic loads may create different current patterns, startup demands and thermal stress.

• heating elements and simple resistive loads;
• motors, pumps and compressors with startup current;
• power adapters and chargers with nonlinear current draw;
• communication equipment and control systems that require stable power;
• tools and mobile work devices that operate intermittently.

A pure sine wave inverter selected only by rated wattage may not deliver the expected runtime or reliability if the actual load profile is not reviewed. B2B buyers should prepare a load list before asking for a recommendation.

Why Standby Consumption Matters for B2B Applications

Standby consumption is the power an inverter uses when it is turned on but not actively powering a significant load. Some buyers overlook this because it seems small compared with rated output power. In reality, standby consumption can be important in battery-based systems that remain powered for long periods.

Standby Power vs. No-Load Current

Standby power and no-load current are related but not always presented in the same way. Some suppliers may state no-load current in amperes, while others may state standby consumption in watts. Buyers should confirm the measurement method, input voltage and operating mode.

For example, no-load current at 12V cannot be compared directly with no-load current at 24V or 48V without conversion. Buyers should ask the supplier to clarify the unit, voltage condition and whether the inverter was in normal standby, power-saving mode or another operating state.

The Hidden Cost of Idle Operation

Standby consumption becomes especially important in systems with long idle periods, such as RV and camper power systems, truck cabin power systems, marine and mobile service applications, off-grid homes and cabins, outdoor workstations, patrol and inspection systems, field construction systems and small office backup systems.

If an inverter remains on for many hours while the load is intermittent, standby consumption may reduce available battery runtime. This can affect customer satisfaction, warranty discussions, system sizing and repeat orders.

Load Profile: The Missing Factor in Efficiency Claims

Efficiency is meaningful only when it is connected to the load profile. Two systems using the same inverter may have different real-world performance if their loads, duty cycles and environments are different.

Resistive, Inductive and Electronic Loads

Resistive loads are usually easier to predict. Inductive loads such as motors and compressors may require higher startup current. Electronic loads may create nonlinear current demand and may also be sensitive to waveform quality.

A buyer evaluating pure sine wave inverter efficiency should not only ask, “What is the efficiency?” A better question is: “What is the efficiency under the load type, operating time and input voltage used in our actual application?”

Continuous Loads vs. Intermittent Loads

Continuous loads place long-term thermal demand on the inverter. Intermittent loads may create frequent startup events, short high-current periods and variable operating points.

• a small office backup system may run computers, routers and communication devices continuously;
• a refrigerator may cycle on and off and require startup surge;
• a mobile work vehicle may power tools intermittently;
• a remote outdoor site may keep communication equipment on for long hours;
• an RV system may combine lighting, chargers, small appliances and occasional motor loads.

Surge Events and Efficiency Trade-Offs

Surge capacity is not the same as continuous power. Some loads require short startup power that is much higher than normal running power. If surge behavior is not considered, the inverter may shut down, overheat or trigger protection even if the running wattage appears acceptable.

Thermal Design: How Heat Affects Efficiency and Reliability

Losses inside an inverter often become heat. Heat does not only affect comfort or enclosure temperature; it may also influence electronic component stress, protection behavior, derating and long-term reliability.

Heat Sink, Fan and Airflow Design

Thermal design may include heat sinks, airflow channels, fan control, enclosure layout, component spacing and temperature monitoring. The correct design depends on power level, installation space, ambient temperature and load profile.

Buyers should avoid assuming that two inverters with the same rated wattage have the same thermal performance. The external appearance may not reveal internal heat dissipation capability.

Ambient Temperature and Installation Space

Inverter efficiency and reliability are affected by installation environment. A unit installed in a hot vehicle compartment, sealed cabinet, outdoor box or poorly ventilated space may experience higher internal temperature than one installed in an open, cool and ventilated area.

Thermal Derating and Protection Behavior

Thermal derating means the inverter may reduce output or trigger protection when internal temperature rises. This can help protect components, but it may affect the end user if the system was not designed with enough margin.

Buyers should confirm whether a model has thermal protection, how it responds to high temperature, whether it alarms before shutdown and how it recovers after cooling. These details are important for engineering contractors, telecom projects, mobile work systems and commercial backup applications.

How to Compare Efficiency Data from Different Suppliers

B2B buyers often receive datasheets from multiple suppliers. If the efficiency numbers were measured under different conditions, direct comparison may be misleading.

Ask for Test Conditions, Not Just a Percentage

Check Efficiency Across Multiple Load Points

For a practical project, buyers may request efficiency data at several load points, such as low load, 25%, 50%, 75% and full load. This helps determine how the inverter behaves in real use.

A distributor may use this data to position different models for different customer segments. A system integrator may use it to estimate runtime and heat. An OEM buyer may use it to compare model platforms before private labeling or customization.

Compare Standby, Low-Load and Full-Load Performance

Some applications spend more time at low load than full load. Others operate near rated power for long periods. Some remain on standby most of the day. Because of this, buyers should not select only by peak efficiency.

A stronger purchasing comparison includes standby consumption, low-load efficiency, mid-load efficiency, full-load efficiency, thermal rise during sustained operation, protection behavior during overload or surge, and output waveform stability.

Confirm Whether Data Applies to the Exact Model

It is risky to apply one model’s test data to an entire product series without confirmation. Differences in rated power, input voltage, output voltage, cooling method, enclosure size and component layout may affect efficiency and thermal behavior.

Efficiency Considerations for Different B2B Buyers

For Distributors and Traders

Distributors and traders need product information that is clear, defensible and easy to explain to downstream customers. Efficiency claims can support product positioning, but only when they are backed by appropriate documentation.

• Does the efficiency data apply to the exact model?
• Is the standby consumption suitable for battery-based users?
• What load types are recommended?
• Are waveform quality and protection features documented?
• Are certifications valid for the target market and exact model?
• What information can be used in sales materials?

For System Integrators and Engineering Contractors

System integrators need to understand how inverter efficiency affects total system design. A small difference in efficiency may influence battery capacity, heat dissipation, cable size and runtime assumptions.

Important project inputs include total load list, running watts and startup watts, expected operating hours, battery voltage and capacity, cable length, installation layout, enclosure ventilation, ambient temperature, output voltage, output frequency and required documentation.

For Transportation and Outdoor Partners

Vehicles, RVs, trucks, marine environments and outdoor work systems often face vibration, limited installation space, changing temperature and battery limitations. In these applications, efficiency and standby consumption can directly affect user experience.

Buyers should evaluate low standby consumption, battery protection behavior, heat dissipation in compact spaces, ventilation requirements, surge handling for tools or compressors, stable output for electronics and communication devices, and durability under mobile use conditions.

For Professional Institutions and Commercial Users

Commercial and professional users may value stable operation, documentation, safety, repeatability and maintenance planning. For these buyers, efficiency should be reviewed together with reliability and verification.

RFQ Checklist: What to Confirm Before Ordering

The following checklist can help buyers prepare a more accurate RFQ for efficiency-focused pure sine wave inverter projects.

Sample Approval: How to Verify Efficiency Before Volume Orders

For OEM buyers, distributors and project-based customers, sample approval should not only check whether the inverter turns on and powers a load. It should verify whether the product performs under realistic conditions.

1. Confirm the exact model, input voltage and output configuration.
2. Test the inverter at several load points.
3. Measure no-load current or standby power.
4. Check heat rise during sustained operation.
5. Test startup behavior with relevant loads.
6. Confirm output voltage and frequency stability.
7. Review waveform quality if sensitive loads are involved.
8. Check protection behavior during overload, low voltage and high temperature.
9. Compare test results with supplier documentation.
10. Record any changes required before volume order.

How Congsin Can Support Efficiency-Focused Inverter Projects

Congsin is a power inverter manufacturer with site-confirmed experience in DC-to-AC power inverters, portable power stations and solar charge controllers. The company profile states that Congsin supports OEM/ODM, private labeling, distribution and bespoke customization, and that its products are used in vehicles, solar systems, RVs and trucks, off-grid homes, outdoor offices, patrol and field construction work.

For available product categories, buyers can review pure sine wave inverters. For project-based requirements, buyers can also discuss OEM/ODM customization or review supplier documentation through a neutral quality and reliability review.

For efficiency-focused inverter projects, buyers can prepare a load profile and discuss requirements such as input voltage, output voltage and frequency, target runtime, standby expectations, installation space, environmental conditions and certification needs.

Final Buying Advice

Pure sine wave inverter efficiency is an engineering and procurement topic, not just a datasheet number. A better inverter selection process should connect efficiency with conversion losses, standby consumption, load profile, battery runtime, wiring, cooling, thermal protection and supplier documentation.

For B2B buyers, the strongest approach is to define the real application first, then request model-specific data under relevant test conditions. Distributors can use this to reduce customer mismatch. System integrators can use it to design safer and more predictable systems. Transportation and outdoor partners can use it to protect battery runtime and improve field reliability. Commercial users can use it to verify documentation before adoption.
