Inverter Battery Runtime Estimation: Converting Ah and Wh into Practical Operating Time
- Quick Answer
- Key Takeaways
- Define the Runtime Question
- Build the Load Model
- Convert Ah into Nominal Wh
- Convert Nominal Wh into Usable Energy
- Calculate Practical Runtime
- Hypothetical Runtime Examples
- Check DC Current and System Limits
- Correct for Field Conditions
- Validate the Representative System
- Runtime Calculation and RFQ Inputs
- Calculation Assumption Record
- How Congsin Can Support a Project Discussion
- Final Engineering Recommendation
- FAQ
Quick Answer
A practical pure sine wave inverter battery runtime estimate starts by converting battery Ah into Wh, adjusting nominal battery energy into usable energy, and comparing that usable energy with the average AC load.
Battery Wh = Battery Voltage × Battery Ah
Usable Battery Wh = Battery Wh × Allowed Usable Fraction
Estimated Runtime = Usable Energy ÷ Average Load
Key Takeaways
- Battery Ah is not runtime. It must be converted into Wh by using the battery-system voltage.
- Nominal Wh is not approved operating time. Usable fraction, inverter efficiency, self-consumption, reserve margin and field conditions affect practical results.
- Cycling loads should be converted into average load by using duty cycle before runtime is estimated.
- A DC current check helps identify battery, BMS, terminal, cable and protection-limit risks.
- Calculated runtime, protection-limited runtime and approved operating time should be clearly separated.
- For B2B projects, runtime should be validated with the documented inverter, battery, wiring, load, environment and stop condition.
Define the Runtime Question
Runtime estimation becomes useful only when the buyer defines which runtime is being discussed. A formula result, an automatic shutdown point and an approved project value are not the same thing.
Calculated Runtime
Calculated runtime is the result of a formula. It uses battery voltage, Ah or Wh, usable fraction, load watts, efficiency and other assumptions. This value is useful for planning, but it is not a project approval result.
Protection-Limited Runtime
Protection-limited runtime is the time until the inverter, battery BMS, low-voltage protection, thermal protection or another system limit stops operation. This may be shorter than the calculated runtime when the load is high, battery voltage drops, wiring losses increase or the battery cannot support the required discharge current.
Approved Operating Time
Approved operating time is the runtime accepted for a specific project after calculation, supplier confirmation and representative testing. For B2B projects, this is the most useful number. It should be tied to the documented inverter, battery, wiring, load, environment, stop condition and acceptance criteria.
Build the Load Model
Runtime depends on the load model, not only on inverter wattage or battery capacity. The same battery bank can produce different operating time when the load mix, duty cycle, startup behavior or stop condition changes.
Continuous Load
Continuous load is the AC power required after equipment reaches normal operation. Examples may include communication devices, control terminals, small office equipment, lighting, chargers, fans, monitoring devices and other AC loads.
The measured or specified continuous AC watts should be used wherever possible. Product names alone are not enough for a reliable runtime estimate.
Startup and Surge Load
Startup demand may not dominate total energy consumption, but it can decide whether the system starts and remains stable. Motors, pumps, compressors, refrigerators, power tools and some power supplies may create short high-demand events.
These events can trigger voltage drop, inverter protection or battery BMS limits even when the theoretical runtime looks acceptable. For sensitive load behavior, buyers can review the sensitive load compatibility guide.
Cycling Loads and Duty Cycle
Cycling loads do not run continuously at full power. Refrigerators, pumps, compressors, fans and thermostatically controlled equipment may operate only part of the time.
Average Load = Running Power × Duty Cycle
For several loads, calculate the average load of each device and then add them together:
Total Average Load = Average Load 1 + Average Load 2 + Average Load 3...
Convert Ah into Nominal Wh
Battery Ah alone does not define stored energy. A 100Ah battery at 12V and a 100Ah battery at 24V do not have the same nominal energy. Runtime should therefore start with Wh.
Nominal Battery Wh = Battery Voltage × Battery Ah
For battery banks, series and parallel wiring affect the calculation. In general, series connection increases voltage and parallel connection increases Ah capacity. The final configuration should be confirmed by the battery supplier, inverter supplier or project engineer.
Convert Nominal Wh into Usable Energy
Nominal Wh is not the same as usable energy. The first adjustment is the usable fraction of the battery. This depends on battery chemistry, BMS settings, battery condition, discharge limits, reserve requirement and project rules.
Usable Battery Wh = Nominal Battery Wh × Allowed Usable Fraction
The usable fraction should be confirmed from battery documentation or project requirements. It should not be assumed from a generic article.
Lead-Acid Battery Discharge-Rate Boundary
For lead-acid batteries, the rated Ah is usually tied to stated test conditions and a defined discharge rate. When the discharge current is high, the battery may deliver less usable capacity than its rated Ah suggests.
This guide does not assign a universal Peukert exponent or discharge derating factor. Buyers should refer to the battery manufacturer’s discharge curves or data sheet, especially when the inverter load is high relative to the battery capacity. Lithium batteries also require confirmation because BMS discharge current, low-temperature behavior, low-voltage cutoff and protection logic can limit practical runtime.
Calculate Practical Runtime
Runtime can be calculated at two levels. The buyer should use one method consistently and avoid double-counting efficiency.
Basic AC-Side Formula
Use this method when the estimate converts battery energy into expected AC-side usable energy.
AC-Side Usable Wh = Battery Voltage × Battery Ah × Usable Fraction × System Efficiency Factor
Estimated Runtime = AC-Side Usable Wh ÷ Average AC Load W
In this method, the system efficiency factor already accounts for expected conversion losses. Do not divide by efficiency again.
More Detailed DC-Side Formula
Use this method when calculating battery-side draw more directly.
Battery-Side Average Power ≈ Average AC Load ÷ Inverter Efficiency + Inverter Self-Consumption
Estimated Runtime = Usable Battery Wh ÷ Battery-Side Average Power
The inverter self-consumption value must be in the same power basis used in the calculation. If the supplier provides no-load consumption, standby consumption or efficiency data, the unit and test condition should be checked before use.
Hypothetical Runtime Examples
The following examples are for calculation demonstration only. They are not Congsin model data, not battery recommendations and not runtime guarantees.
Example 1: Fixed Load
| Item | Hypothetical Input |
|---|---|
| Battery voltage | 12V |
| Battery capacity | 100Ah |
| Nominal energy | 12V × 100Ah = 1,200Wh |
| Allowed usable fraction | 80% |
| System efficiency factor | 90% |
| Average AC load | 150W |
AC-side usable energy = 1,200Wh × 0.80 × 0.90 = 864Wh
Estimated runtime = 864Wh ÷ 150W = 5.76 hours
This is a calculated runtime. The approved operating time may be lower after reserve margin and testing.
Example 2: Mixed Load
| Load | Operating Pattern | Average Power |
|---|---|---|
| Communication device | 40W continuous | 40W |
| Laptop or terminal | 70W continuous | 70W |
| Small fan | 60W for 50% duty cycle | 30W |
| Charger | 100W for 30% duty cycle | 30W |
Total average AC load = 40W + 70W + 30W + 30W = 170W
With a hypothetical 24V 100Ah battery, 75% usable fraction and 88% system efficiency factor:
AC-side usable energy = 2,400Wh × 0.75 × 0.88 = 1,584Wh
Estimated runtime = 1,584Wh ÷ 170W = 9.32 hours
This estimate depends heavily on duty-cycle assumptions. If the fan or charger runs longer than expected, runtime will be shorter.
Example 3: Cycling Load
| Load | Running Power | Duty Cycle | Average Power |
|---|---|---|---|
| Compressor or pump load | 300W | 25% | 75W |
| Control load | 30W | 100% | 30W |
| Communication load | 20W | 100% | 20W |
Total average AC load = 75W + 30W + 20W = 125W
With a hypothetical 12V 150Ah battery, 70% usable fraction and 85% system efficiency factor:
AC-side usable energy = 1,800Wh × 0.70 × 0.85 = 1,071Wh
Estimated runtime = 1,071Wh ÷ 125W = 8.57 hours
The startup behavior of the compressor or pump must still be tested. A system can have enough energy for runtime but still fail during restart.
Check DC Current and System Limits
Runtime calculation should be paired with a battery-side current check.
DC Current ≈ AC Load ÷ Battery Voltage ÷ Inverter Efficiency
Example: if the AC load is 600W, the battery system is 12V and the assumed inverter efficiency is 90%, then:
DC Current ≈ 600W ÷ 12V ÷ 0.90 = 55.6A
This current is only an engineering check. It is not a cable-size, fuse-size or installation recommendation. Buyers should confirm whether the battery, BMS, terminals, connectors, fuse, breaker, cable length and inverter DC input can support the expected current and startup conditions.
Correct for Field Conditions
Practical runtime changes in real installations. Battery aging, ambient temperature, ventilation, cable voltage drop, connector resistance, inverter self-consumption, protection settings, battery BMS limits, repeated startup cycles and simultaneous loads can all change field performance.
For waveform-related load behavior, buyers can review the pure sine wave inverter waveform quality guide.
| Application | Runtime Driver | Charging Factor | Stop Condition to Define |
|---|---|---|---|
| Solar backup | Critical load and outage duration | Solar recovery may vary by site | Target backup time or low-voltage cutoff |
| Off-grid office | Daily energy use and mixed loads | Solar or generator recovery | End of work period or reserve threshold |
| RV or truck power | Space, weight and DC wiring limits | Vehicle or solar charging | Vehicle battery protection or target runtime |
| Field work | Tools, communication and lighting | Portable or vehicle-based charging | Task completion, shift time or reserve limit |
| Commercial backup | Critical operation continuity | Backup strategy and recharge time | Project-approved operating time |
This page focuses on runtime estimation rather than battery-bank sizing. When the calculation shows that the battery is too small for the required runtime, the buyer should move to capacity planning through the battery bank sizing guide for pure sine wave inverters.
Validate the Representative System
A runtime estimate should be validated before sample approval or project deployment. The validation process should follow the same configuration used in the calculation.
- Confirm the inverter model.
- Confirm the battery voltage, Ah or Wh, chemistry and condition.
- Confirm the cable length, fuse or breaker, connectors and ventilation.
- Confirm the AC load list and duty cycle.
- Record the calculation assumptions.
- Run the representative load.
- Observe low-voltage behavior, restart behavior and thermal behavior.
- Record the stop condition.
- Decide whether the result is accepted, conditionally accepted or rejected.
A useful test record should answer one main question: did the documented system meet the required approved operating time under representative conditions?

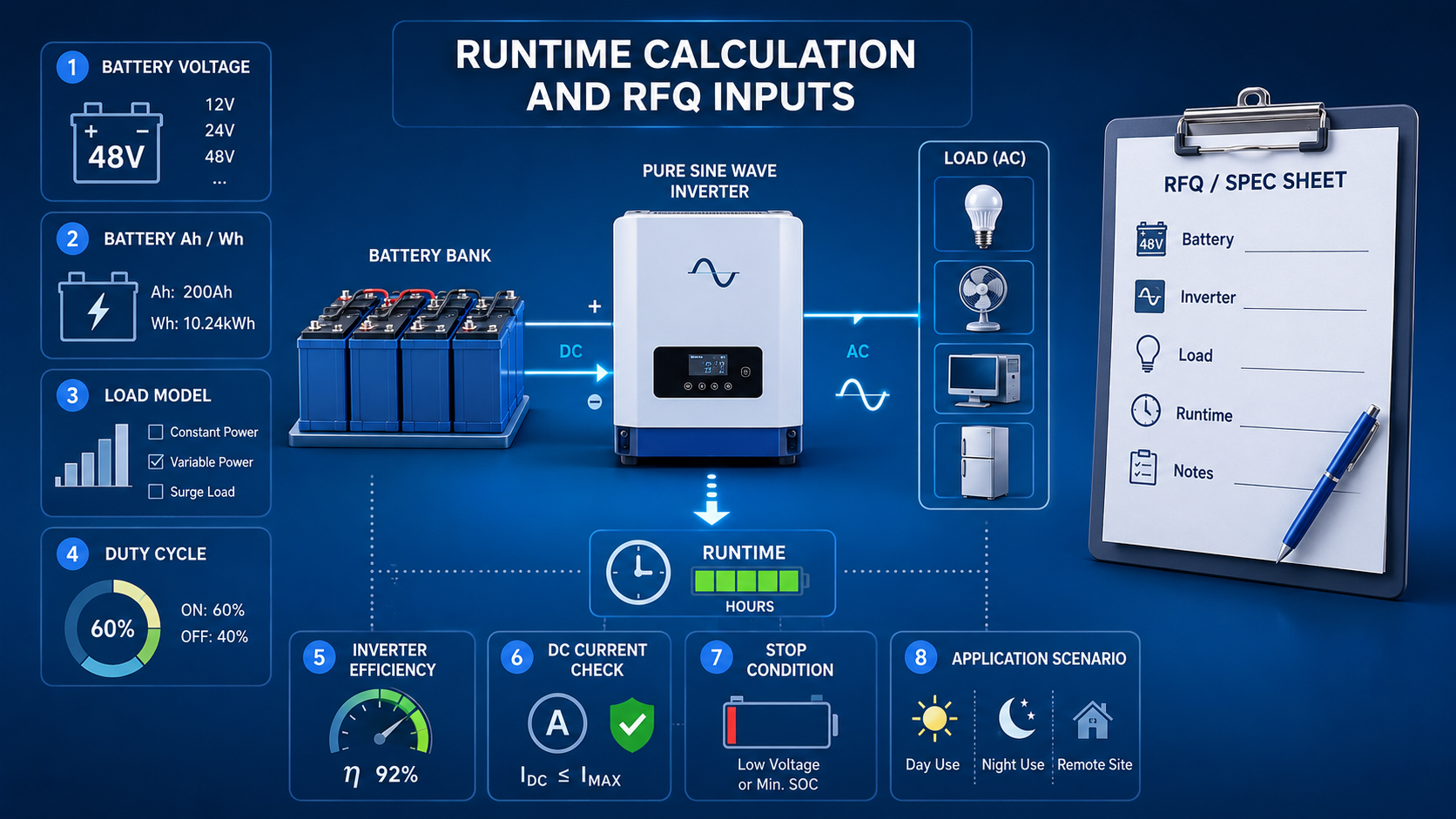

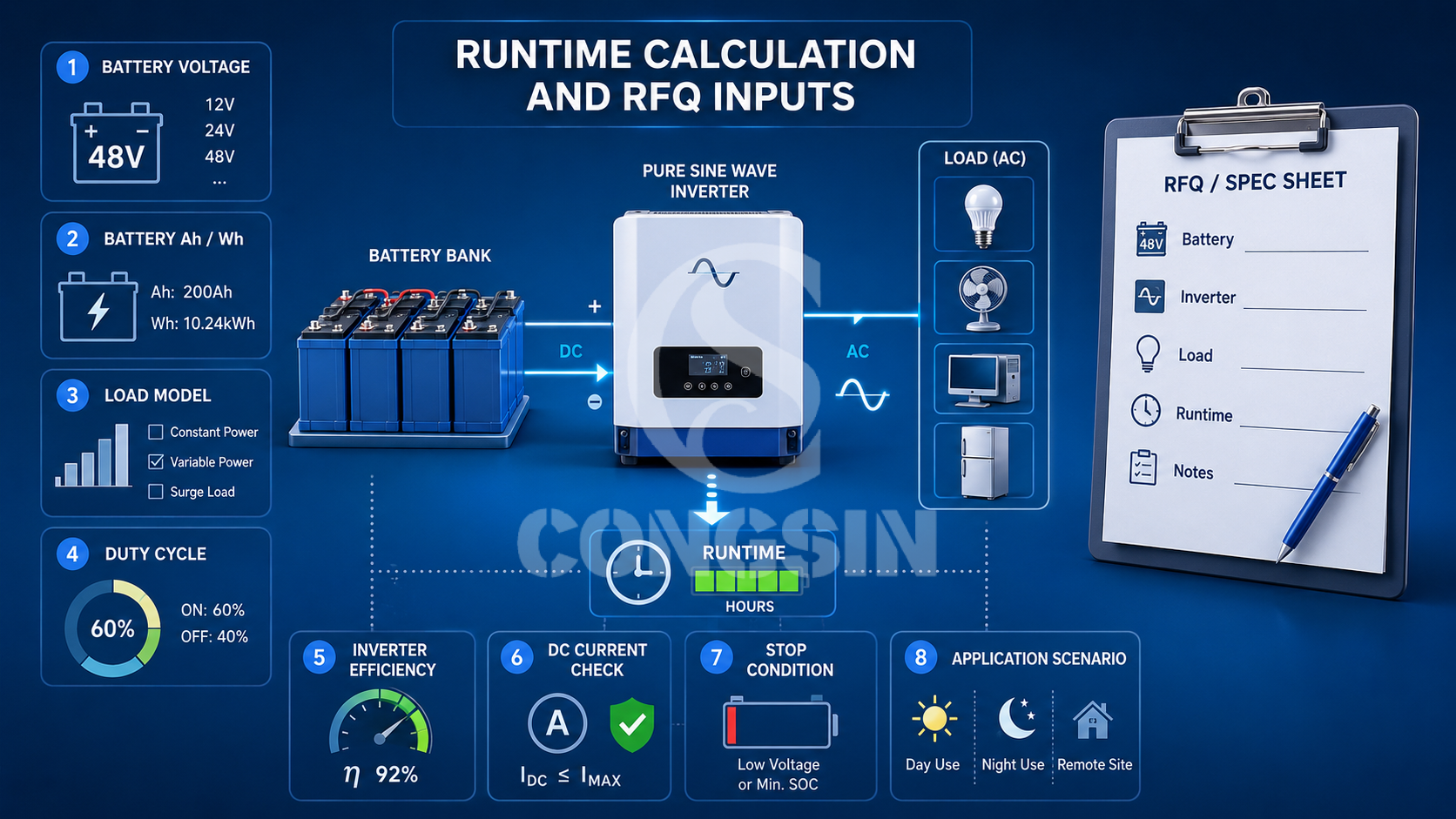

Runtime Calculation and RFQ Inputs
The RFQ should combine calculation inputs and supplier confirmation items in one place. A request that only states inverter wattage or battery Ah is not enough for project-level runtime review.

Runtime calculation should connect battery voltage, Ah or Wh, load model, duty cycle, efficiency, DC current, stop condition and RFQ documentation.
| Area | Buyer Should Provide | Supplier or Project Team Should Confirm |
|---|---|---|
| Application | Solar backup, off-grid, vehicle, field work or commercial backup | Whether the requested runtime scenario is technically suitable |
| Battery system | Voltage, Ah or Wh, chemistry, BMS and configuration | Compatible DC input and discharge limitations |
| Load model | Continuous loads, cycling loads and startup loads | Inverter output and protection behavior |
| Duty cycle | Running time percentage for intermittent loads | Whether duty-cycle assumptions need testing |
| Efficiency basis | Calculation method and assumed factor | Model-specific data under stated conditions where available |
| DC current | Approximate battery-side current | Battery, BMS and installation suitability |
| Stop condition | Low-voltage cutoff, target time or reserve threshold | Acceptance and restart logic |
| Commercial terms | Target quantity and purchasing stage | MOQ, price, lead time, sample schedule, warranty and service terms to be confirmed |
For product category review, buyers can use Pure Sine Wave Inverters and Solar Charge Controller.
For broader inverter selection context, buyers can also review the pure sine wave inverter guide.
Calculation Assumption Record
A runtime result should not be separated from its assumptions. This table helps prevent a runtime number from being reused for a different battery, inverter, cable, load or environment.
| Assumption | Value or Source to Record |
|---|---|
| Battery voltage | Project value or battery documentation |
| Battery Ah or Wh | Battery documentation |
| Battery chemistry and condition | Battery documentation, test record or project note |
| Allowed usable fraction | Battery documentation or project rule |
| Inverter efficiency basis | Supplier data or stated assumption |
| Inverter self-consumption | Supplier data where available |
| Average AC load and duty cycle | Measured value, load specification or project assumption |
| Ambient temperature and installation | Test or installation condition |
| Reserve margin and stop condition | Project requirement |
| Validation result | Test record and acceptance status |
How Congsin Can Support a Project Discussion
Congsin’s verified site profile identifies DC-to-AC power inverters, portable power stations and solar charge controllers as core product directions. It also lists support for OEM/ODM, private labeling, distribution and bespoke customization.
For a runtime discussion, buyers should prepare the battery voltage, Ah or Wh, battery chemistry, load model, target runtime, operating environment, solar or backup use case and required documentation. Any model-specific efficiency, surge behavior, no-load consumption, protection logic, certification scope, commercial terms and service terms should be confirmed for the quoted model and project.
Submit the battery and load profile for a project discussion: Contact Congsin.
Final Engineering Recommendation
Battery Ah is not runtime, and nominal Wh is not approved runtime.
Ah → nominal Wh → usable Wh → average AC load → efficiency method → DC current check → field correction → representative validation → approved operating time
A runtime estimate becomes useful only when its assumptions, stop condition and test result are documented. When the available battery cannot meet the required approved operating time, the project should move to battery-bank capacity planning rather than treating a calculated runtime as a guarantee.
FAQ
How do you calculate pure sine wave inverter battery runtime?
Convert battery Ah into Wh, adjust for usable battery fraction, apply one consistent efficiency method, then divide usable energy by average AC load. The result is a calculated estimate that should be validated under representative conditions.
What is the difference between calculated runtime and approved operating time?
Calculated runtime is the formula result. Approved operating time is the project-accepted runtime after assumptions, stop condition and testing are documented.
Why is Ah not enough to estimate inverter runtime?
Ah does not show stored energy unless battery voltage is known. Runtime calculations should start by converting Ah into Wh.
How do you calculate duty-cycle loads?
Use Average Load = Running Power × Duty Cycle. For multiple loads, calculate each average load and add them together.
Why can actual runtime be lower than the theoretical calculation?
Actual runtime can be reduced by inverter losses, self-consumption, battery aging, temperature, cable voltage drop, high discharge current, BMS limits, protection settings and load variation.
Why should DC current be checked in a runtime estimate?
The battery may have enough Wh on paper, but the required DC current may exceed the limits of the battery, BMS, terminals, wiring or protection devices. The check helps identify system-limit risk.
Can one runtime result apply to a different inverter or battery?
No. A runtime result applies only to the documented inverter, battery, wiring, load, environment and stop condition. Major configuration changes require new calculation or testing.
What should be included in a runtime RFQ?
A runtime RFQ should include battery voltage, Ah or Wh, chemistry, load list, duty cycle, target runtime, stop condition, environment, installation details and required documentation.
Does pure sine wave output guarantee longer runtime?
No. Runtime depends on load watts, battery energy, inverter efficiency, self-consumption, installation and operating conditions. Pure sine wave output can reduce waveform-related compatibility uncertainty for many loads, but it does not guarantee runtime.
When should buyers move from runtime estimation to battery sizing?
When the available battery cannot meet the required approved operating time, the project should move to battery-bank sizing and capacity planning.
