Load Management: Utilizing Bidirectional Inverters for Facility Peak Shaving

The Rising Cost of Residential TOU Tariffs

As utility grids adapt to the influx of intermittent renewable energy, many regions have implemented Time-of-Use (TOU) pricing structures. During the late afternoon and evening—when solar generation drops and household consumption spikes—electricity prices often peak. For households and off-grid communities, managing this peak load has become a primary financial objective, driving the need for intelligent, automated load-management systems behind the meter.

What Is Peak Shaving with EV Batteries?

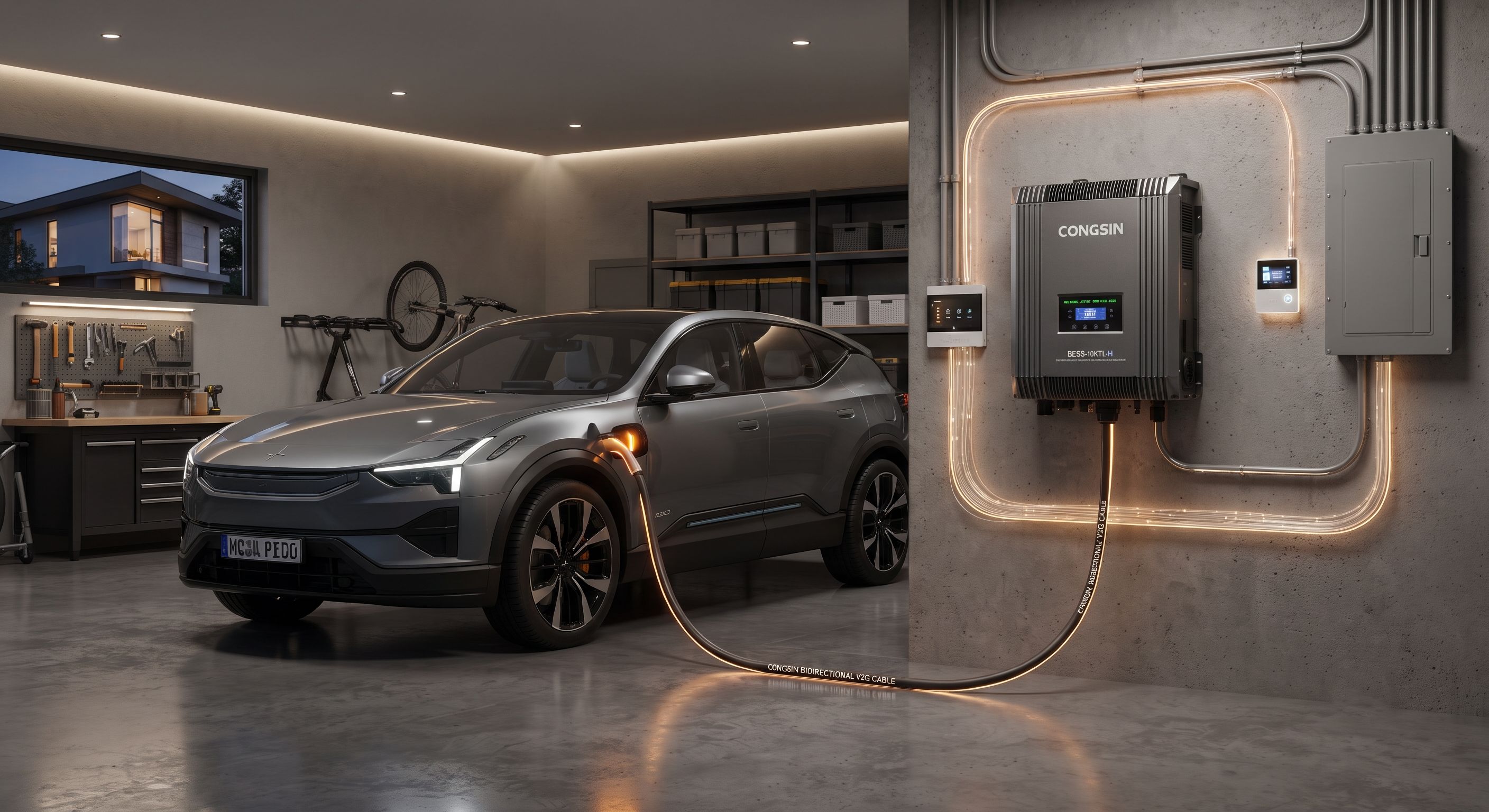

Through a Vehicle-to-Home (V2H) architecture, a bidirectional system monitors household energy consumption. When peak tariff hours begin, the bidirectional inverter discharges DC power from the EV battery, inverts it to standard AC power, and supplies it to the home's electrical panel. Once the peak period ends, the system automatically transitions back to grid power and recharges the EV overnight using lower-cost electricity.

The Role of Bidirectional Inverters

An EV battery cannot power a home on its own; the core engine of this load-management strategy is the bidirectional inverter. Utilizing advanced Digital Signal Processing (DSP), the inverter manages real-time current monitoring and instantaneous AC/DC conversion. When performing peak shaving, the inverter must dynamically match the voltage, frequency, and phase of the household's electrical system, ensuring that sensitive electronics experience no power quality degradation during the switchover.

EV Battery Peak Shaving vs. Static BESS

When evaluating residential load-management solutions, integrators frequently compare EV battery utilization against home Battery Energy Storage Systems (BESS).

The primary advantage of V2H is capacity. By leveraging the vehicle's existing battery, homeowners can access a significantly larger buffer for peak shaving without the capital expenditure associated with high-capacity static batteries.

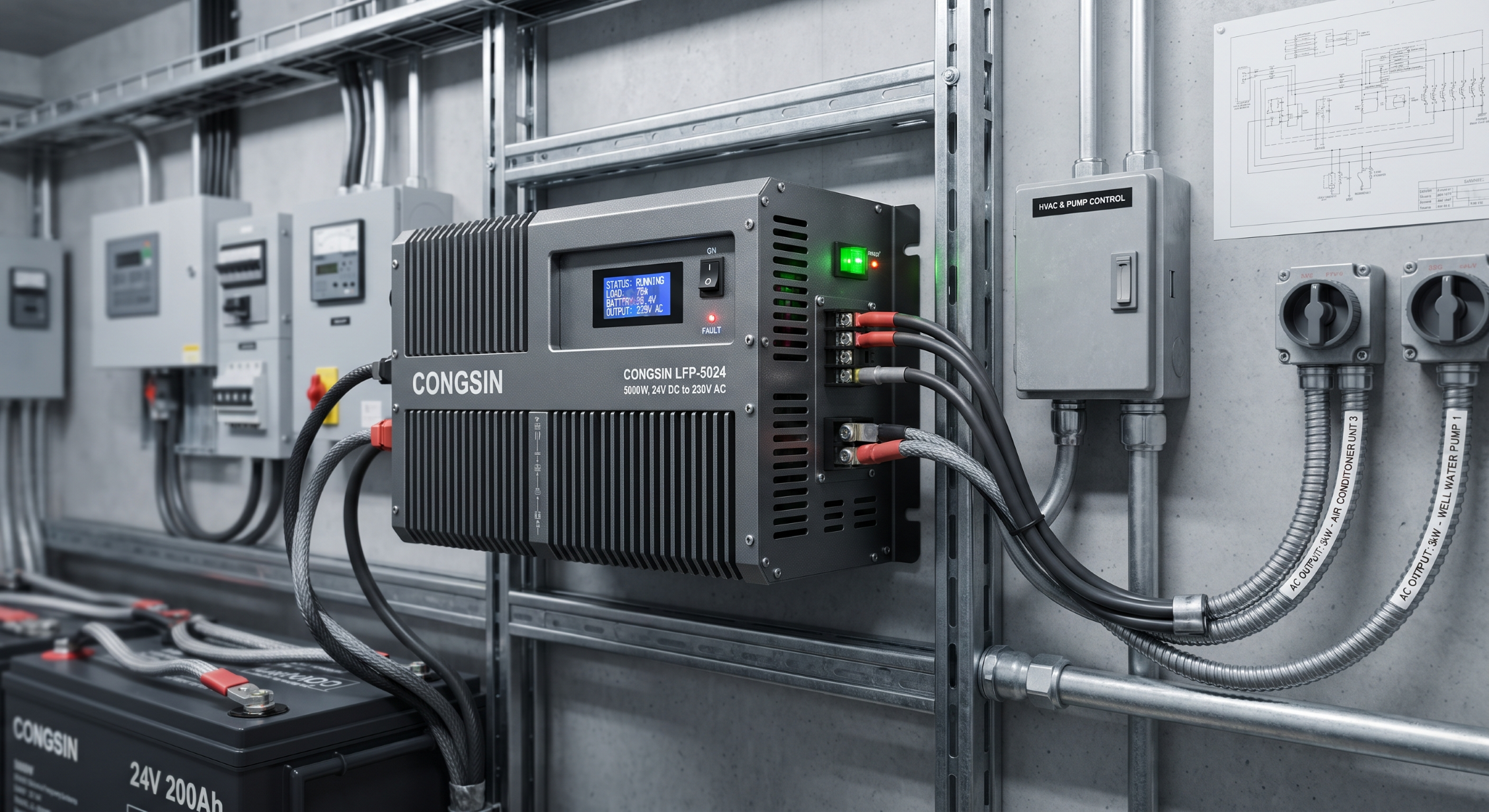

Hardware Topologies and Residential Surge Loads

Effective peak shaving requires the system to support the home's heaviest loads—such as air conditioners, well pumps, and large refrigerators—during evening hours.

These inductive loads require massive transient surge currents to start their electric motors. For robust residential load management, residential peak-shaving equipment must be selected according to continuous power, transient overload capability, isolation requirements, conversion efficiency, thermal limits, and installation constraints. Both low-frequency transformer-based designs and high-frequency isolated converter architectures may be suitable, depending on the target application. These topologies can reliably sustain peak transient overloads (depending on the inverter topology, transformer design, control strategy, and manufacturer rating), helping to ensure that the microgrid's voltage does not collapse when the HVAC system cycles on.

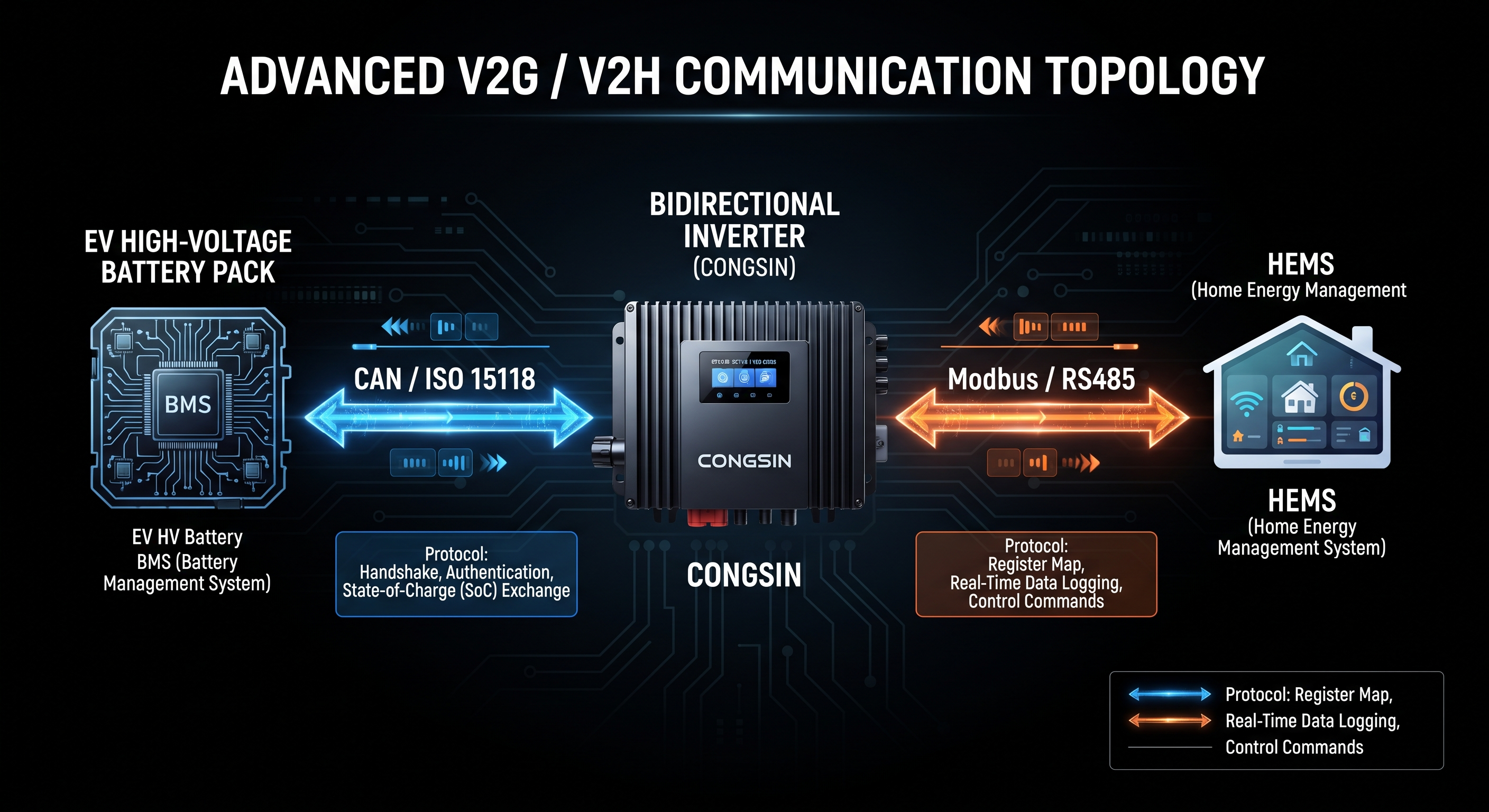

HEMS, BMS, and Communication Protocols

Peak shaving relies on precise digital communication. The bidirectional inverter must act as a translator between two distinct systems:

1. Vehicle BMS: The inverter communicates with compatible EV systems through protocols such as CHAdeMO-based communication or ISO 15118 standards, depending on vehicle architecture and regional deployment requirements. This verifies the State of Charge (SoC) and enforces discharge limits.
2. HEMS (Home Energy Management System): Connected via Modbus TCP/IP or RS485, the HEMS provides tariff schedules and real-time consumption data to dictate exactly when peak shaving should start and stop.

Estimating Peak-Shaving Value

The Return on Investment (ROI) for peak shaving depends heavily on local utility structures. If a household shifts 15 kWh of daily consumption from a peak rate (e.g., $0.40/kWh) to an off-peak recharge rate (e.g., $0.10/kWh), factoring in bidirectional conversion losses, the daily savings can help reduce electricity costs substantially over the course of a year.

Engineering Lessons from Real-World Inverter Load Management Projects

The following projects were not vehicle-to-home peak-shaving deployments. However, they demonstrate several engineering capabilities required in advanced residential load-management systems, including automatic source transfer, surge-load support, thermal control, voltage adaptation, and application-specific firmware or hardware customization.

What These Projects Demonstrate for Future V2H Systems

The engineering fundamentals derived from traditional load management directly support the architecture required for future bidirectional platforms.

Global Grid and Safety Compliance

Verifying hardware compliance is critical for legal residential installation. Because peak shaving involves grid-interactive electronics, the hardware is heavily regulated:

• North America: Depending on the system architecture and local interconnection rules, applicable evaluation frameworks may include UL 9741 for EV power export equipment, UL 1741 with relevant supplements for grid-interactive conversion equipment, IEEE 1547 interconnection requirements, and other electrical installation rules.
• Europe: Applicable requirements may include IEC 61851 series requirements for EV supply equipment, ISO 15118-20 for bidirectional communication, EN 50549 or local grid codes for parallel connection, and relevant EU conformity legislation.

How Buyers Evaluate an OEM Inverter Manufacturer

For B2B buyers and system integrators, selecting the right manufacturing partner is a strategic procurement decision. Buyers typically evaluate OEM manufacturers across six pillars:

1. Power Topology Expertise: Experience in designing transformers for sustained loads and transient motor surges.
2. Source-Transfer Control: Demonstrated experience in UPS, utility charging, and automated inverter mode switching.
3. Firmware and Communication Capability: The capacity to develop or integrate Modbus, RS485, CAN, or custom HEMS interfaces.
4. Thermal and Environmental Engineering: Ability to adapt hardware for high/low temperatures, humidity, and confined spaces.
5. Regional Electrical Adaptation: Support for specific grid requirements (e.g., 110V/60Hz, 220–240V/50Hz).
6. Certification Readiness: Capability to provide testing support for CE, EMC, and target-market grid compliances.

CONGSIN’s projects across Sri Lanka, Northern Europe, and the wider European market demonstrate practical experience in automatic transfer, surge-load management, thermal optimization, regional voltage adaptation, and OEM deployment. Buyers evaluating future V2H or residential peak-shaving platforms should additionally confirm the manufacturer’s capabilities in bidirectional high-voltage conversion, EV communication protocols, and grid-interactive certification.

Conclusion

As the transition toward intelligent home microgrids accelerates, utilizing peak shaving with EV batteries has emerged as a practical strategy for managing residential energy consumption. Achieving this requires robust power electronics capable of safely interfacing high-capacity automotive batteries with sensitive household electrical panels while adhering to strict global anti-islanding regulations.

By leveraging proven engineering foundations in source-transfer control, surge-load support, thermal management, and regional voltage adaptation, hardware manufacturers play a critical role in this transition. System integrators and global distributors looking to build the next generation of resilient residential load-management systems require OEM partners capable of turning these core engineering competencies into certified, market-ready solutions.
