Safety First: Understanding Overload Protection in Modified Inverters

The demand for off-grid power solutions in the automotive and outdoor sectors is growing at an unprecedented rate. For businesses expanding their product lineups in these markets, product safety and long-term reliability are the absolute cornerstones of market success. Understanding the underlying mechanics of a modified sine wave inverter overload is essential for educating end-users and ensuring the longevity of the equipment you bring to market. Whether you are enhancing your catalog with a compact Portable 150W Modified Sine Wave Inverter or a higher-capacity mobile unit, prioritizing advanced safety features is the key to building brand trust. This guide explores the technical principles behind overload protection, helping you deliver exceptional, safe, and reliable power solutions that exceed market expectations.

What Exactly Is an Inverter Overload?

In power conversion technology, an overload occurs when the connected appliances demand more electrical current than the inverter's internal circuitry is engineered to safely sustain. When evaluating products for your portfolio, it is critical to distinguish between continuous power and peak (surge) power. If a user connects multiple high-draw devices to a 500W DC to AC modified sine wave inverter and exceeds its rated capacity, the system pushes past its operational limits. Understanding these specific engineering thresholds is vital for providing the right power solutions that match your clients' diverse application needs, ensuring they receive equipment robust enough for real-world demands.

How Does Overload Protection Work in Modified Inverters?

Premium power conversion devices are engineered with highly intelligent internal protection circuitry. This built-in microprocessor continuously monitors the output current, input voltage, and thermal state of core components. If the system detects a current draw that exceeds the factory-calibrated safety thresholds, the overload protection mechanism is instantly activated. It swiftly cuts off the AC output, preventing the motherboard and capacitors from critical thermal failure. For suppliers and brand owners, this robust safety mechanism is crucial; it protects the hardware from common user errors, significantly reducing warranty claims and ensuring a much longer product lifecycle in the field.

The "Surge" Trap: Why Compressors Cause Immediate Overloads

A common challenge in the off-grid market is properly educating users about "surge power." Appliances equipped with AC motors or compressors—such as portable refrigerators, power tools, or water pumps—require a massive instantaneous burst of energy upon startup. This surge is often two to three times their continuous wattage rating. This hidden electrical demand is the primary reason behind unexpected overload triggers. By thoroughly understanding these surge requirements, you can better guide your clients in selecting the appropriate inverter capacity, ensuring that the equipment they purchase can handle the rigorous demands of motor-driven appliances without continuously tripping the safety protocols.

Knowing Your Limits: What Will a Specific Inverter Run?

Accurately sizing the power load is the most effective way to prevent system overloads and ensure optimal performance. When evaluating what a 2000-watt inverter can run, it is important to note that it can handle most high-draw appliances provided they are not initiated simultaneously. For lighter, everyday connectivity needs—such as powering laptops and charging mobile devices inside a vehicle—a 200W modified sine wave car power inverter provides a highly efficient and stable solution. The industry best practice is to calculate the total continuous wattage of all anticipated loads and incorporate a 20% safety margin, always factoring in the peak power requirements for any motorized equipment.

Warning Signs: How to Tell if Your Inverter is Overloading

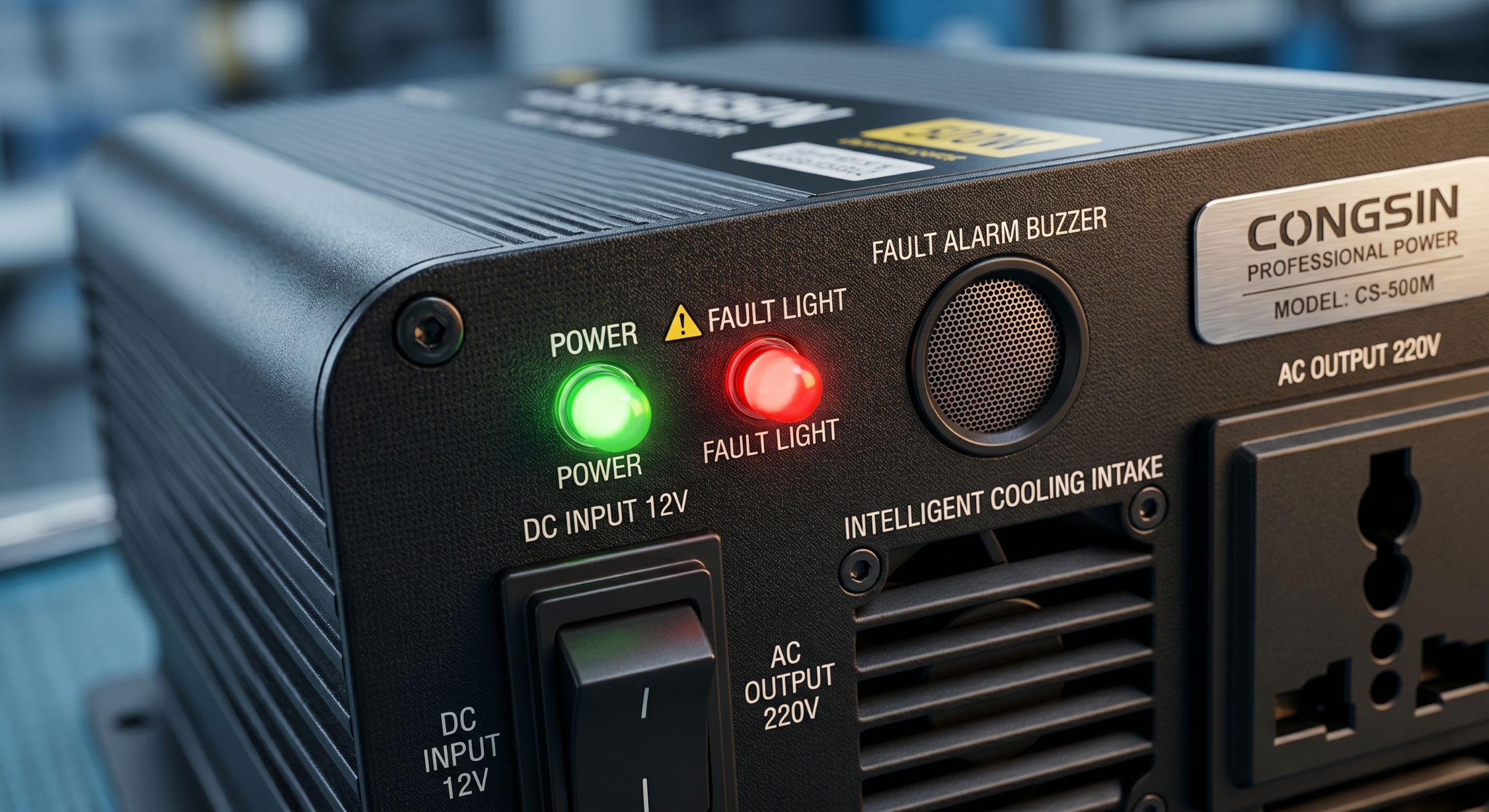

Well-designed inverters communicate clearly with the operator before initiating a complete protective shutdown. A high-quality unit will typically sound a continuous, high-frequency auditory alarm to warn that it is approaching its maximum load capacity or that the input battery voltage is dropping. Following this, a red fault LED indicator will illuminate on the interface, and the internal cooling fans will operate at maximum capacity to aggressively dissipate excess heat. Recognizing and acting upon these intuitive warning signals allows users to safely disconnect unnecessary loads before the system is forced to cut the AC output entirely, protecting both the appliance and the inverter.

Pure Sine vs. Modified Sine: Does Waveform Affect Overloads?

The physical shape of the electrical waveform plays a subtle but highly important role in system efficiency and load management. While a pure sine wave smoothly replicates grid power, a modified sine wave utilizes a stepped, blocky waveform. For purely resistive heating or lighting loads, this difference is negligible. However, for inductive loads like AC motors, the stepped waveform results in slightly lower operational efficiency, generating more waste heat and drawing a higher running current. Consequently, an inductive load connected to a modified sine wave device may reach the overload threshold faster—a critical technical nuance to consider during product selection and market positioning.

Essential Safety Tips to Prevent Overloads

Ensuring consistent and safe power delivery relies heavily on adhering to operational best practices. The fundamental rule for any user is staggered startup: operators should never activate all high-wattage equipment simultaneously. Initiating the largest load first and allowing it to stabilize minimizes the risk of overlapping power surges. Additionally, when running heavy loads in a mobile setup, it is highly recommended to keep the vehicle’s engine idling; low input voltage forces the inverter to draw a higher current to maintain its output, which drastically accelerates the risk of an overload. Proper ventilation is also non-negotiable for optimal thermal management.

Conclusion: Reliable Power Starts with Smart Protection

Deeply understanding the engineering behind overload protection allows you to provide safer, more resilient power solutions to the market. Choosing equipment integrated with highly sensitive, rigorously tested multi-protection circuitry is the smartest strategy to ensure long-term reliability and high customer satisfaction. When evaluating your next line of off-grid energy products, partner with CONGSIN. With a relentless focus on safety, durability, and advanced engineering, CONGSIN delivers top-tier power inverters you can trust to elevate your brand's reputation and power the future of mobile energy.

Frequently Asked Questions (FAQs)

What happens if too many appliances are connected to a modified sine wave inverter?

The inverter will rapidly trigger its overload protection. It will sound a high-frequency warning alarm and automatically shut down the AC output to prevent internal thermal damage. Once the excess load is removed and the unit is reset, it resumes normal, safe operation.

Why does an inverter shut off when running a seemingly low-wattage small refrigerator?

While a small refrigerator's continuous running power might be low (e.g., 150W), its internal compressor requires a massive "surge power" (often 800W-1000W) to start. If this peak demand exceeds the inverter's maximum surge capacity, the protection circuit will instantly shut the unit down.

What is the proper procedure to reset an inverter after an overload shutdown?

First, disconnect all attached appliances. Switch the inverter to the "OFF" position and wait approximately 60 seconds to allow the internal circuitry to cool and reset. Finally, turn the inverter back on and reconnect devices sequentially, starting with the lowest wattage loads.

Will a frequent inverter overload damage the connected vehicle's battery or alternator?

High-quality inverters are designed to prevent this. They feature comprehensive input-side protections, including low-voltage disconnects and physical fuses. The inverter will proactively cut its own power supply long before any dangerous current can backflow and harm the vehicle's electrical system.

Can the overload protection mechanism be bypassed for higher output?

Absolutely not. Overload protection is a critical, mandatory safety barrier designed to prevent catastrophic failures, equipment fires, and electrical hazards. Attempting to bypass these factory-calibrated safety protocols will result in immediate hardware destruction.

Does a modified sine wave cause certain appliances to draw more power?

Yes, specifically for inductive loads (devices with AC motors). The stepped nature of a modified sine wave causes motors to run less efficiently, producing more heat and drawing slightly more current than they would on a pure sine wave, which can cause the inverter to hit its overload threshold sooner.
