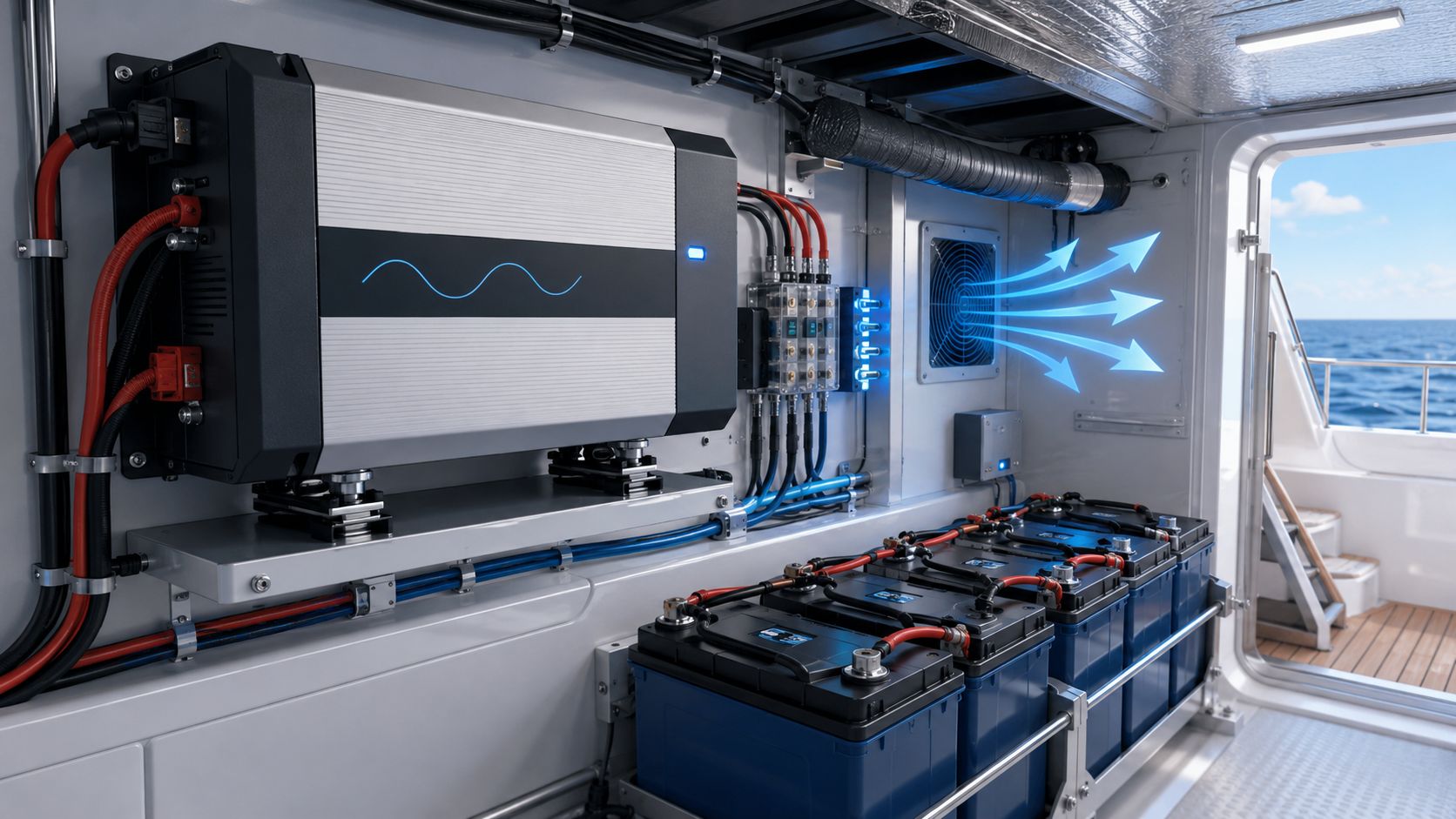

Marine Power Design: Battery Voltage, Ventilation, Vibration and Installation Planning for Pure Sine Wave Inverter Systems

Quick Answer

A marine pure sine wave inverter system should be qualified as a complete onboard power chain rather than as an isolated AC device.

Vessel operating profile → battery architecture → DC protection boundary → pure sine wave inverter → AC load group → ventilation and installation environment → representative testing → approved configuration → RFQ and handover

Pure sine wave output is often a lower-risk choice for communication equipment, laptops, measurement electronics, control systems, chargers and other sensitive onboard loads. However, waveform type alone does not approve the system.

The project should still verify battery voltage, inverter input compatibility, continuous and startup loads, battery reserve, ventilation, mounting and vibration, environmental exposure and representative operating conditions.

Define the Marine Project Boundary

This guide focuses on marine pure sine wave inverter system qualification, installation planning and configuration control.

It is intended to support technical evaluation, supplier qualification, sample validation and B2B project handover. Vessel-specific electrical design, applicable marine electrical requirements and product installation instructions remain project-specific.

The central engineering question is:

Under which vessel architecture, battery system, load profile, installation environment and operating conditions can the inverter configuration be approved?

Marine Pure Sine Wave Inverter System Architecture

A marine pure sine wave inverter should be evaluated as one element within a complete DC-to-AC power chain.

Battery source → DC input and protection boundary → Pure sine wave inverter → AC distribution → Onboard loads → Monitoring and validation

This architecture matters because an inverter can only be evaluated correctly when the upstream DC supply and downstream AC loads are understood.

Build the Vessel Operating Profile

Marine power demand changes with vessel operating mode. The same inverter configuration may experience different battery conditions, vibration levels, operating-duration requirements and load combinations while underway, anchored or operating remotely.

A configuration validated while a charging source is active should not automatically be treated as approved for extended battery-only operation.

Confirm Marine Battery Architecture and Voltage Selection

The battery system defines the DC side of the marine inverter architecture. Nominal voltage affects inverter compatibility, DC current and overall system design.

12V, 24V and Higher-Voltage Marine Systems

Screen the Relationship Between Voltage and Current

For initial engineering review:

Approximate DC Current = AC Load ÷ Battery Voltage ÷ Inverter Efficiency

This calculation helps compare DC-side demand across battery architectures. It is a screening calculation rather than a cable, fuse or breaker design rule.

Confirm Battery-to-Inverter Compatibility

• Nominal battery voltage
• Operating voltage range
• Battery chemistry
• Battery management limits where applicable
• Charging architecture
• Inverter input requirement
• Low-voltage behavior
• Restart or recovery condition

Battery capacity should also be linked with continuous demand, intermittent loads, duty cycle, operating duration and reserve requirements. For detailed Ah/Wh methodology, review the battery runtime guide.

Build the Marine Load Model

A marine inverter project should not treat all onboard equipment as one wattage figure. The load model should document how each device behaves.

Continuous Demand

Representative onboard loads may include communication equipment, laptops, monitors, chargers, selected control devices and other AC equipment. The exact list should be supplied by the vessel project.

Startup and Restart Demand

Pumps, fans, motors, compressor-type equipment, chargers and selected appliances may create short-duration demand above normal running power. The system should therefore be reviewed against the actual startup sequence rather than continuous wattage alone.

Duty Cycle and Load Priority

Average Load = Running Power × Duty Cycle

A commercial marine project can classify loads as Critical → Important → Optional → Restricted → Unverified to make qualification and handover decisions easier to document.

Evaluate Pure Sine Wave Output for Sensitive Marine Loads

Pure sine wave output becomes most relevant when a marine project includes electronically sensitive or power-quality-dependent equipment.

Pure sine wave output should still be treated as a compatibility factor rather than proof that every device is automatically approved.

Loads Requiring Representative Testing

Selected motors, pumps, fans, compressor-type loads and mixed-load systems should still be tested for startup behavior, repeated restart, simultaneous use, low-voltage response and thermal behavior.

Model Evidence to Request

• Exact inverter model
• DC input range
• Continuous output
• Startup or surge behavior
• Efficiency evidence
• No-load consumption where relevant
• Protection behavior
• Environmental limitations
• Applicable technical and compliance documentation

Marine Applications Requiring Power System Evaluation

Recreational Boats

Potential AC demand may include onboard electronics, communication equipment, chargers, laptops and selected small AC devices. Qualification should consider how those loads operate together and how long they rely on the battery bank.

Commercial Marine Applications

Commercial or professional applications may include communication systems, monitoring equipment, mobile work electronics, selected field equipment and charging equipment. The power configuration should be matched to documented operational requirements.

Remote and Off-Grid Marine Operation

Remote or extended operation places greater emphasis on battery reserve, duty cycle, charging availability, no-load consumption, thermal conditions and long-duration validation.

For related application context, review the RV and marine off-grid inverter guide.

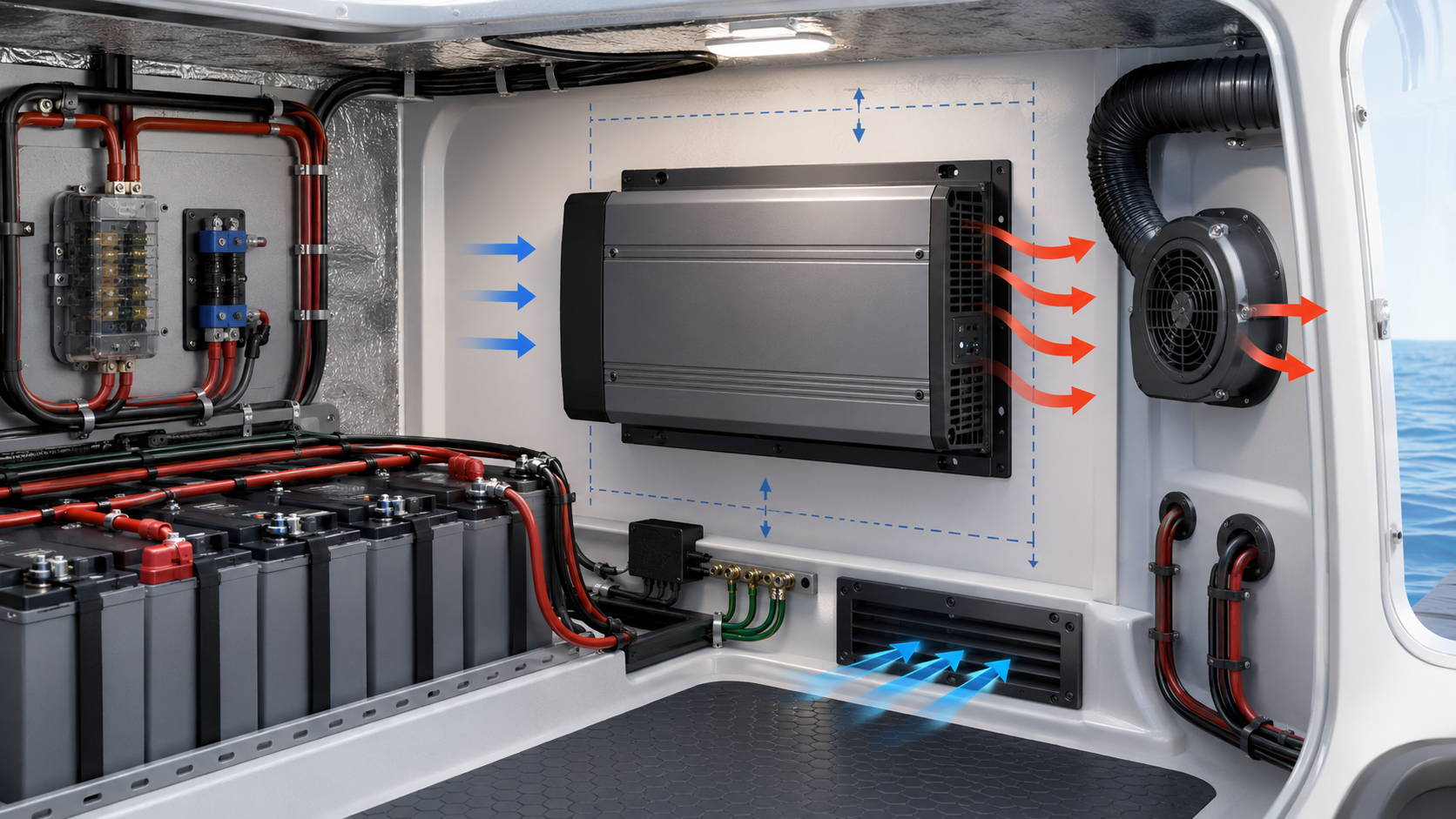

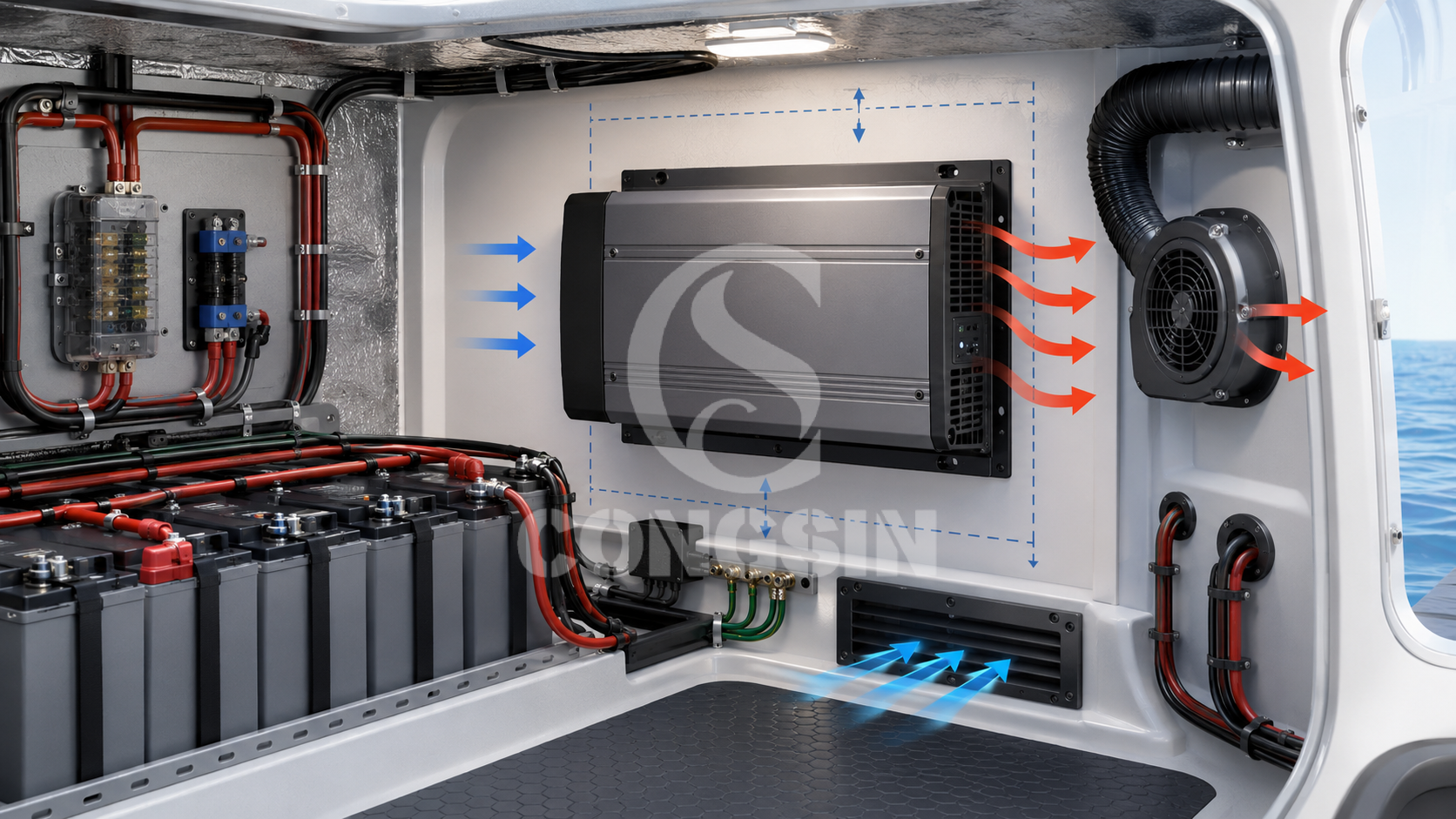

Plan Ventilation and Thermal Management

Ventilation is part of the approved inverter configuration because power conversion generates heat and marine installation spaces may restrict airflow.

Review the Installation Space

• Available air volume
• Airflow path
• Product clearance requirements
• Nearby heat sources
• Mounting orientation
• Expected load
• Operating duration
• Ambient conditions

Protect the Airflow Path

The installation should avoid airflow obstruction from stored equipment, covers, tightly routed cables or surrounding structures. For repeated installations, the approved location should be included in the configuration record.

Validate Thermal Operation

Representative testing should observe inverter operating condition, nearby cables and connectors, load stability, protection events and recovery behavior. Acceptance should use the quoted model documentation and project-specific criteria.

Plan Vibration and Mechanical Stability

Marine operation can subject equipment and connections to repeated mechanical movement.

Mounting Review

The qualification record should identify the mounting surface, orientation, fastening method, structural support, service access and cable strain relief.

Cable and Connector Stability

Review connector retention, terminal movement, cable support, strain at connection points and routing near moving or sharp structures.

Representative Vibration Review

Where vibration is a material project risk, validation should check for connection movement, intermittent shutdown, abnormal noise, mechanical damage and changes in load behavior. Product-specific vibration ratings should come from confirmed documentation.

Review Marine Environmental Exposure

Marine environments may involve humidity, condensation, salt exposure and water-ingress risk. These conditions should be treated as documented installation variables rather than inferred from the word “marine.”

Classify the Installation Location

• Dry technical compartment
• Enclosed cabinet
• Condensation-prone area
• Engine-adjacent space
• Salt-air environment
• Other defined vessel location

Confirm Product Environmental Boundaries

IP rating, waterproof protection, splash resistance, salt-spray testing, corrosion resistance, conformal coating, vibration certification or marine-specific approval should only be attributed to the exact model when supporting documentation exists.

Screen DC-Side Demand and Protection

The DC side connects battery architecture with the selected inverter configuration.

Approximate DC Current = AC Load ÷ Battery Voltage ÷ Inverter Efficiency

The system review should then consider DC source capability, connection architecture, protection boundary, voltage behavior, startup conditions and low-voltage response.

Cable and protection design should follow project-specific electrical requirements and applicable product documentation.

Marine Inverter Supplier Qualification Checklist

For B2B procurement, the inverter supplier should be evaluated against the system requirement rather than product marketing alone.

Validate the Complete Marine Power System

A sample should be tested in the intended or representative system architecture.

Step 1 — Record the Configuration

Document vessel type, battery architecture, inverter model, installation position, load list, startup sequence, operating profile and environmental condition.

Step 2 — Establish the Load Baseline

Where practical, observe important loads operating from their normal AC source and record startup, restart, charging behavior, noise, temperature and normal operation.

Step 3 — Test the Representative Inverter System

Operate the intended load group from the selected battery and inverter configuration. Evaluate continuous operation, startup events, mixed loads, restart and voltage-related protection behavior.

Step 4 — Review Ventilation

Confirm that the representative installation remains within the project and product operating boundaries.

Step 5 — Review Mechanical Stability

Inspect mounting, connections and supported cabling after representative operation.

Step 6 — Assign Approval Status

Lock the Approved Marine Configuration

Approval should apply to the documented system configuration rather than to an inverter model number alone.

Requalification may be necessary when the vessel, battery source, load set, mounting position, ventilation condition or environmental exposure materially changes.

Prepare the Marine RFQ and Handover Record

A useful RFQ should describe the system requirement rather than request only inverter wattage.

Commercial terms and exact model specifications should follow the current quotation and order documentation.

Why CONGSIN Marine Power Discussions Start With System Requirements

Congsin's verified site profile identifies DC-to-AC power inverters, portable power stations and solar charge controllers as core product directions.

For marine inverter discussions, the useful starting point is the system requirement: battery architecture, AC load profile, operating conditions, installation location and target market.

The current site profile also states that Congsin supports OEM/ODM, private labeling, distribution and bespoke customization. For distributors and system integrators, project discussions may therefore include voltage requirements, application scenarios, customization needs and documentation requirements.

Exact inverter performance, environmental limitations, protection functions, applicable certification scope and customization feasibility should be confirmed for the quoted configuration.

For broader product context, review Congsin's pure sine wave inverter range.

FAQ

What is a marine pure sine wave inverter?

A marine pure sine wave inverter converts DC battery power into sinusoidal AC power for onboard equipment. System suitability depends on the battery architecture, load profile, installation environment and exact inverter configuration.

Why is pure sine wave output useful for marine electronics?

Pure sine wave output is often a lower-risk choice for communication devices, laptops, measurement electronics, control systems, chargers and other sensitive loads. Representative compatibility testing may still be required.

Should a marine inverter system use 12V or 24V batteries?

The correct voltage depends on the vessel architecture, expected AC demand, DC current, battery configuration and inverter input requirements. A 24V system may reduce current relative to an equivalent 12V load, but it is not automatically the correct choice for every vessel.

How does ventilation affect marine inverter installation?

Ventilation affects heat removal during power conversion. Installation planning should account for airflow, mounting orientation, nearby heat sources and operating duration according to the quoted inverter documentation.

Does vibration affect a marine inverter system?

Vibration and vessel movement can affect mounting, connectors and cables. Where vibration is a project risk, the representative configuration should be inspected or validated under appropriate operating conditions.

Can a standard inverter be installed in a wet marine compartment?

That should not be assumed. The inverter should be installed only within its documented environmental limits. Any IP, waterproof, corrosion or marine-specific protection claim must be confirmed for the exact model.

What should be tested before approving a marine inverter system?

Testing should cover the documented battery architecture, inverter configuration, continuous and startup loads, operating sequence, ventilation, voltage-related protection behavior, mounting stability and representative operating environment.

What information should be included in a marine inverter RFQ?

A marine inverter RFQ should include vessel type, battery voltage and architecture, AC load list, startup demand, duty cycle, installation location, ventilation, vibration exposure, environmental condition, target market and documentation requirements.

Can the same marine inverter configuration be used on different vessels?

Not automatically. Different vessels may use different battery architectures, loads, connection arrangements, installation locations and operating environments. The configuration should be reviewed before reuse.

What makes a marine pure sine wave inverter system suitable for long-term operation?

Long-term suitability depends on the complete system configuration, including battery architecture, load behavior, ventilation, mounting condition, environmental exposure, protection behavior and representative validation.

Final Engineering Recommendation

A marine pure sine wave inverter should be approved as part of a documented system configuration rather than selected from output wattage alone.

Vessel operating profile → marine battery architecture → load model → pure sine wave requirement → DC-side screening → ventilation → vibration and mounting → environmental review → supplier qualification → representative validation → configuration lock → RFQ and handover

This structure gives distributors, integrators and OEM project buyers a repeatable method for comparing inverter configurations without assuming model-specific capabilities that have not been documented.
