How to Size a Pure Sine Wave Inverter: Engineering Design Envelope and Model Validation

Quick Answer

To size a pure sine wave inverter, begin with the application and real operating conditions rather than selecting a wattage class first.

Define the maximum credible simultaneous load, identify the highest relevant startup event, confirm the battery-side architecture, specify the required AC output, account for installation constraints and known future loads, and then compare those requirements with the documented specifications of the exact inverter model.

Application Definition → Load Envelope → Continuous Requirement → Startup Requirement → DC Architecture → AC Output → Design Envelope → Capacity Shortlist → Exact-Model Verification → System Validation

The objective is not simply to calculate a number such as “2000W required.” A stronger result is a documented design envelope that explains what the inverter must support under normal operation, startup conditions and the intended installation environment.

This distinction matters for distributors, system integrators, vehicle and RV partners, outdoor power partners and commercial buyers because two applications with similar wattage can still require different inverter configurations.

For a broader introduction to pure sine wave inverter selection, see the complete pure sine wave inverter guide.

Key Takeaways

• Start with the application and operating sequence, not the inverter wattage.
• Base continuous sizing on the maximum credible simultaneous load.
• Evaluate startup demand separately from normal running demand.
• Match the inverter with the battery-side voltage, current capability and wiring architecture.
• Define AC voltage, frequency and market-specific configuration before approving a model.
• Do not apply a universal expansion or safety-margin percentage to every system.
• Use a design envelope to combine all major requirements without treating them as one mathematical wattage total.
• Verify continuous rating, surge capability, surge duration, DC input, AC output and operating conditions for the exact proposed model.
• Validate the complete battery-inverter-load configuration before final approval.

Start With the Application, Not the Inverter Wattage

The same inverter wattage can be used in very different systems.

A vehicle installation, an RV power system, an outdoor mobile setup and a solar or off-grid auxiliary system may all have similar continuous loads, but the battery architecture, cable routing, installation space, startup events and operating cycle can be different.

The application therefore defines the constraints that must be included in the sizing process.

These application categories do not determine inverter wattage by themselves. They define the operating conditions that must be represented in the final design envelope.

For example, a vehicle-based installation may place greater emphasis on DC cable length and battery current, while an outdoor application may require greater attention to mixed loads, mobility and available battery capacity.

The sizing method remains consistent. The inputs change according to the application.

Define the Operating Load Envelope

The operating load envelope describes what the inverter is actually expected to power.

It should represent the real operating sequence rather than a simple list of all connected equipment.

This is one of the most important steps when determining how to size a pure sine wave inverter because both oversizing and undersizing often begin with an incorrect load definition.

Identify Simultaneous Loads

The primary question is:

Which loads can realistically operate at the same time?

If six devices are connected to an inverter but only four operate together during normal use, the continuous requirement should reflect that real operating condition.

A practical sizing record can separate several operating scenarios:

• normal operating condition;
• normal operation plus an intermittent load;
• startup of a motor-driven load while background equipment remains active;
• future operating condition after planned expansion.

The continuous requirement should be based on the highest credible sustained operating scenario rather than the total of every connected device regardless of use.

Separate Load Types

A load list becomes more useful when equipment is classified by behavior.

This classification also helps distributors and integrators explain why a particular inverter class has been shortlisted.

Record the Source of Each Load Value

Each important wattage input should have a traceable source.

Recommended source labels include:

• Manufacturer Datasheet
• Nameplate
• Measured Value
• Engineering Estimate

If a value is an estimate, it should remain identified as an estimate until it is confirmed. This prevents estimated load data from being treated as verified product information during supplier comparison or validation.

For the detailed equipment-by-equipment calculation process, use the pure sine wave inverter wattage calculator and load worksheet. That support page handles the detailed calculation. This sizing page uses the resulting load requirement as an engineering input.

Calculate the Continuous Power Requirement

Once the operating scenarios are documented, calculate the maximum credible simultaneous running load.

Continuous Running Load = Sum of Simultaneous Running Loads

The important term is simultaneous.

A simple inventory total can be misleading because it may include equipment that does not operate together.

The objective is to identify the highest sustained load the inverter is expected to support under normal use.

For example, assume a system contains:

• communication equipment;
• a display;
• charging equipment;
• a refrigerator;
• a power tool.

If the power tool is only used temporarily and the refrigerator cycles independently, the continuous operating scenario should reflect the actual overlap of those loads rather than automatically treating every device as continuously active.

The result should answer:

What sustained AC load must the inverter support during the most demanding credible normal operating condition?

This value becomes one dimension of the final design envelope. It should not yet be treated as the complete inverter size because startup demand, DC architecture, output configuration and installation conditions still need to be reviewed.

Define the Startup Requirement

Some loads require temporary power above their normal operating demand.

Examples can include pumps, refrigerators, compressors, power tools and other motor-driven equipment.

A sizing process that considers only running watts can therefore produce a candidate inverter that appears adequate during steady operation but cannot support a real startup event.

Identify Startup-Sensitive Loads

Startup demand should be based on the best available project data.

Possible sources include:

• equipment manufacturer documentation;
• measured startup values;
• verified project test results;
• clearly identified engineering estimates.

A generic multiplier should not replace equipment-specific information when better data is available.

The purpose is not to create the largest possible theoretical startup number. The purpose is to identify the highest relevant event that can realistically occur in the application.

Include Background Loads During Startup

A startup-sensitive device may begin operating while other equipment remains active.

Startup Scenario Requirement = Background Active Loads + Starting Load Startup Demand

For example, consider an illustrative system with:

• 500W of active background equipment;
• a starting load with 1400W total startup demand.

500W + 1400W = 1900W

This is an illustrative example only. It is not a CONGSIN model specification or a universal sizing recommendation.

Avoid Double Counting

A common calculation error occurs when the startup value already represents the total temporary draw of the starting equipment.

If the startup-watt value already represents the total startup draw of the starting load, do not add that load's running wattage again.

Always confirm whether the available startup value means:

• total startup demand; or
• additional demand above normal running power.

Compare the Requirement With Model-Specific Surge Capability

After the system startup requirement is defined, compare it with the exact inverter model. Confirm:

• surge or temporary rating;
• surge definition;
• surge duration;
• applicable DC condition;
• relevant test conditions;
• protection behavior.

A peak-wattage number without a duration or definition is not enough for model approval.

For the detailed distinction between continuous, peak and surge ratings, use the continuous vs peak inverter power guide.

Match the Battery Architecture

AC inverter power must be supported by the upstream DC system.

A candidate inverter should therefore not be approved from AC wattage alone. The battery voltage, battery current capability, wiring arrangement and voltage stability all influence whether the system can support the required operating and startup conditions.

Confirm Battery Voltage

The DC input configuration of the inverter must match the battery architecture.

The correct battery voltage depends on the selected inverter configuration and the rest of the system. Do not assume that every inverter model is available in every DC input version. Exact availability should be confirmed for the proposed model.

Estimate DC Current

A simplified planning relationship is:

Approximate DC Current = AC Load ÷ Battery Voltage ÷ Inverter Efficiency

Efficiency should be entered as a decimal. For example:

90% = 0.90

However, 90% is only an example of decimal conversion. For a real sizing decision, use model-specific efficiency information where available.

This formula is a planning reference only. It does not replace final cable, fuse, breaker or battery-system design.

Actual DC current can vary with:

• inverter efficiency;
• operating load;
• battery voltage;
• battery condition;
• cable resistance;
• connections;
• protection components;
• transient demand.

Separate Current Capability From Energy Capacity

Battery energy and battery current capability answer different questions.

Energy capacity mainly affects how long the system can operate.

Current capability affects whether the DC source can support the required power at a particular moment.

A battery bank can have sufficient stored energy for the expected runtime but still perform poorly during a demanding startup event if the current-delivery capability or voltage stability is inadequate. Both requirements should be reviewed separately.

Check Cable Length and Voltage Drop

Cable routing is particularly important in vehicle, RV and other battery-based systems.

Voltage drop can be affected by:

• cable length;
• conductor size;
• terminal quality;
• connector resistance;
• fuse or breaker connections;
• installation workmanship.

During a high-current startup event, voltage at the inverter input can fall even when the battery appears acceptable before the load starts.

For detailed battery-capacity and runtime planning, use the battery sizing guide for pure sine wave inverters.

Define the AC Output Requirement

Power capacity is only one part of model selection.

The inverter must also match the connected equipment and destination-market requirements. This includes nominal output voltage, frequency and market-specific interface configuration.

Confirm AC Output Voltage

Define the required nominal AC voltage from the connected equipment and target market.

Depending on the application, requirements may include 110V, 120V, 220V, 230V or 240V configurations.

Do not assume that every inverter model supports every output option. The required configuration should be confirmed for the exact proposed model.

Confirm Frequency

The required 50Hz or 60Hz configuration should be defined before final model approval and should match the connected equipment and destination-market requirements.

Confirm Market Interface

Where relevant, buyers should also identify:

• socket or output interface;
• wiring expectations;
• labeling requirements;
• destination-market configuration.

These requirements do not change the mathematical continuous load, but they can determine whether a particular inverter configuration is suitable for the project.

For a dedicated discussion of output-market configuration, see the 12V pure sine wave inverter output configuration guide.

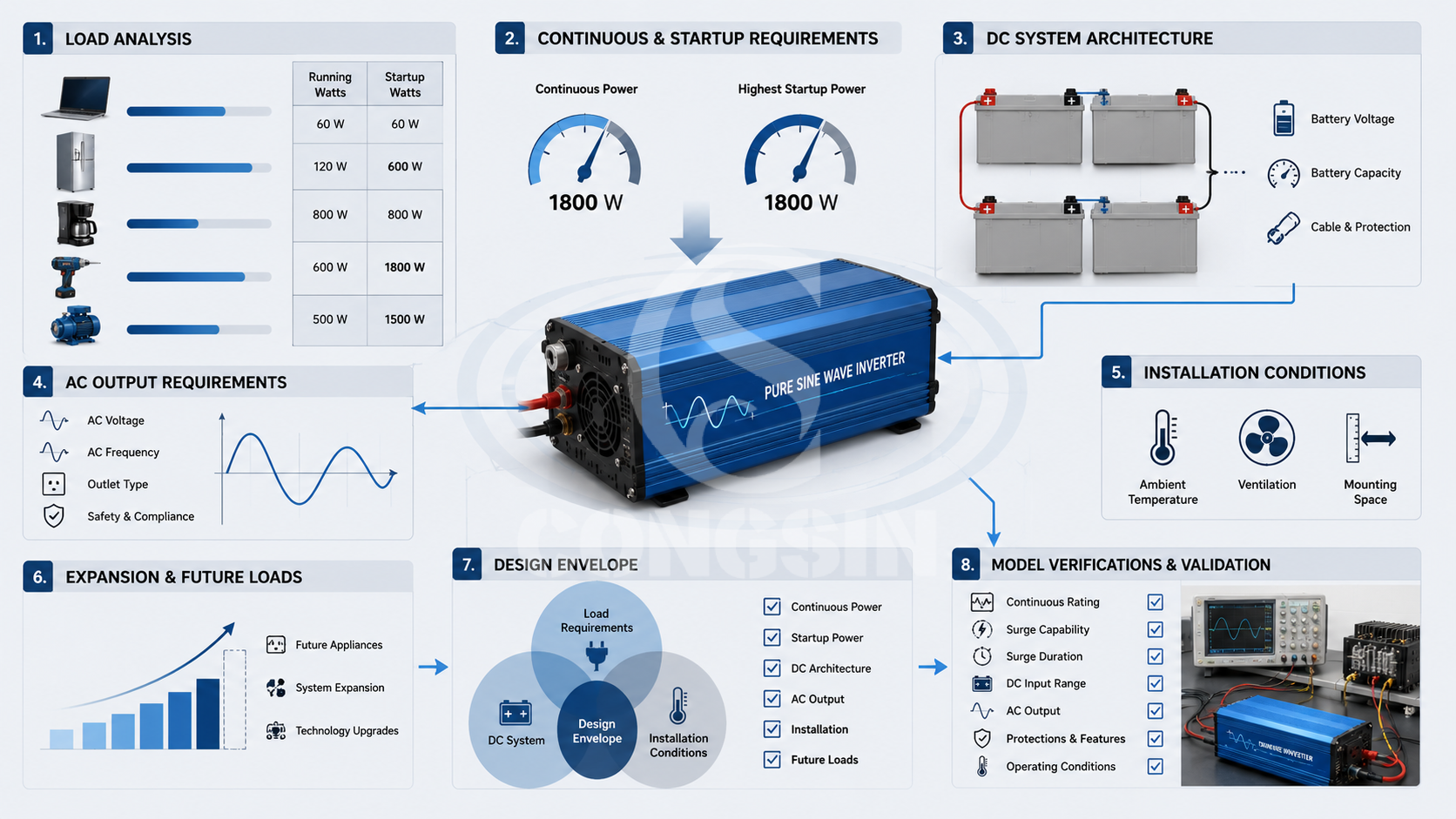

Build the Inverter Design Envelope

The design envelope is the central output of the sizing process.

It combines the main requirement groups that must be satisfied by the selected inverter.

These requirements should be evaluated together, but they are not added into one single wattage value.

Battery voltage is not mathematically added to running watts, and installation space is not converted into a wattage number.

Instead, each dimension acts as a selection or validation condition. A candidate inverter is suitable only when the complete set of requirements can be satisfied.

Continuous Requirement

This dimension defines the sustained AC output required during normal operation. It should represent the highest credible simultaneous steady load.

Startup Requirement

This dimension defines the temporary power event that the inverter must support. It should include relevant background loads and the startup behavior of the starting equipment.

DC Architecture

This dimension defines the upstream electrical system. It can include:

• battery voltage;
• battery current capability;
• DC wiring;
• expected voltage drop;
• relevant protection architecture.

AC Output

This dimension defines what the connected AC equipment requires. It can include:

• nominal voltage;
• frequency;
• output interface;
• destination-market configuration.

Installation Conditions

This dimension records physical and operating constraints such as:

• available ventilation;
• mounting space;
• cable distance;
• vehicle or stationary installation;
• outdoor or mobile use;
• expected operating duration.

Expansion

Known future loads should be included directly in a future operating scenario where possible.

If a project uses a defined engineering margin, record that margin as a project-specific requirement. There is no universal percentage that should automatically be applied to every pure sine wave inverter system.

Convert the Design Envelope Into a Capacity Shortlist

Once the design envelope is documented, buyers can begin shortlisting practical inverter capacity classes.

The purpose is not to choose the highest wattage. It is to identify candidate classes that satisfy the continuous and startup requirements before exact-model verification.

Start by eliminating candidates that cannot support the documented continuous load. Then check whether the remaining candidates can support the required temporary startup event.

A candidate can be rejected even if its nominal wattage appears sufficient if:

• the DC input configuration does not match;
• the required AC output is unavailable;
• the surge duration is inadequate;
• the installation conditions are unsuitable;
• the exact model documentation does not support the required operating envelope.

For detailed comparison between common inverter capacity classes, use the 1000W vs 1500W vs 2000W vs 3000W pure sine wave inverter guide.

The output of this stage should be a shortlist, not a final approval.

Verify the Exact Inverter Model

This is the stage that separates basic wattage selection from model-specific sizing.

A nominal wattage class such as “1500W” or “2000W” does not fully describe inverter capability. Two products within the same class can differ in temporary power behavior, DC input, AC output, protection logic or supported configurations.

Verify Continuous Rating

Confirm the exact model's documented continuous output rating. The rating should satisfy the sustained requirement defined in the design envelope. Do not infer one model's performance from another product with the same nominal wattage.

Verify Surge Rating and Surge Duration

Confirm both the temporary power level and the duration. A supplier should be able to clarify:

• how the surge rating is defined;
• how long it can be supported;
• under what DC input conditions it applies;
• what test conditions were used.

This information should then be compared with the actual startup event defined earlier.

Verify DC Input

Confirm that the exact inverter configuration matches the battery architecture. Where relevant, review:

• nominal DC input;
• applicable operating voltage range;
• project battery configuration.

Model-specific limits should come from applicable documentation rather than assumptions.

Verify AC Output

Confirm:

• nominal output voltage;
• frequency;
• required market configuration;
• applicable output interface.

This is particularly important for distributors supplying different regions.

Verify Efficiency

Where efficiency is relevant to DC-current or runtime planning, use documented information for the exact model and appropriate operating condition. Do not assume that every inverter has the same efficiency across all loads.

Verify Protection Behavior

Where the project requires defined protection behavior, confirm the applicable model documentation. Possible areas for review can include:

• overload response;
• low-voltage behavior;
• high-voltage behavior;
• thermal protection;
• short-circuit protection.

Exact thresholds and recovery behavior should not be guessed.

Verify Technical Documentation

Before final approval, the buyer may also need:

• product specifications;
• test information;
• model-specific documentation;
• configuration confirmation;
• applicable compliance documentation.

If certification or market-specific compliance is required, confirm that the documentation applies to the exact model and destination market. Exact-model verification should be completed before the capacity class is treated as a final selection.

Validate the Battery-Inverter-Load System

Calculation and documentation create a proposed configuration. System validation determines whether that configuration performs correctly under representative use.

Battery → DC Wiring → Inverter → AC Load → Installation Environment

Normal Operation

Test the intended continuous operating condition. The purpose is to confirm that the complete system can support the expected sustained load without unexpected interruption.

Observe relevant factors such as:

• load stability;
• inverter status;
• battery-side behavior;
• cable and terminal condition;
• ventilation;
• unexpected alarm or protection behavior.

The test duration should reflect the intended application rather than only a short demonstration.

Highest Startup Event

Reproduce the most demanding relevant startup event. Keep the background loads active if they would remain active during real use.

Record:

• starting equipment;
• active background load;
• startup result;
• inverter response;
• battery-side response;
• any protection event.

A successful normal-load test does not automatically prove that the startup requirement is satisfied.

Representative Battery Condition

Where the application may operate after some battery discharge, validation should consider representative battery conditions rather than only an ideal fully charged state. Do not invent universal battery-voltage thresholds. Acceptable limits should come from the battery system, inverter documentation and project requirements.

Installed Environment

A bench test and an installed configuration may behave differently. Where practical, review the system in a representative installation.

Important areas include:

• ventilation;
• mounting space;
• cable routing;
• connection quality;
• surrounding heat;
• vehicle or mobile mounting conditions.

Repeated Operating Cycle

If equipment repeatedly starts and stops during normal use, test that behavior.

Normal Operation → Startup Event → Continued Operation → Shutdown → Restart

The exact sequence should reflect the real application. The final approval should document what was actually tested.

Use Different Sizing Priorities for Different B2B Buyers

Different B2B customers use the same sizing framework but may emphasize different evidence.

A distributor may prioritize whether several supplier quotations can be compared on the same technical basis. A system integrator may require deeper validation of the battery, wiring and operating sequence.

The underlying design envelope should remain consistent. This allows technical requirements to move from the end user to the distributor, supplier and project team without changing the meaning of the sizing decision.

Prepare a Model-Specific RFQ

A good inverter sizing process should improve procurement.

Instead of sending only “Please quote a 2000W pure sine wave inverter,” the buyer can submit a structured requirement that allows the supplier to evaluate the actual application.

Buyer Input

Price, MOQ, lead time and other commercial terms should be requested rather than assumed.

Supplier Confirmation

This creates a common technical basis for quotation comparison and reduces the risk that two suppliers are quoting products with similar wattage labels but different technical assumptions.

The model should only move toward approval after the supplier's confirmed configuration has been compared with the documented design envelope.

How CONGSIN Supports Project Selection

CONGSIN supplies DC-to-AC inverter products for battery-based applications including vehicles, RVs, solar and off-grid systems, outdoor use and related mobile or commercial power requirements.

Project discussions can begin with the actual application rather than only a requested inverter wattage. Useful inputs include:

• load profile;
• startup requirement;
• battery voltage;
• AC output requirement;
• installation conditions;
• destination market;
• quantity;
• customization requirements.

CONGSIN also supports OEM/ODM, private labeling, distribution and project-based customization discussions.

Exact continuous rating, surge capability, surge duration, efficiency, protection behavior, input/output configuration and applicable compliance documentation should be confirmed for the quoted model and project.

Final Engineering Sizing Workflow

The complete process for determining how to size a pure sine wave inverter can be summarized in nine stages.

Stage 1 — Define the Application

Identify where the inverter will be used, what it must power and how the system is expected to operate.

Stage 2 — Build the Operating Load Envelope

List connected equipment, classify load behavior and identify realistic simultaneous operating scenarios.

Stage 3 — Calculate the Continuous Requirement

Determine the maximum credible sustained load.

Stage 4 — Define the Startup Requirement

Identify the highest relevant startup event and include background loads that remain active.

Stage 5 — Define the DC Architecture

Confirm battery voltage, current capability, wiring and relevant voltage-drop considerations.

Stage 6 — Define the AC Output

Confirm required voltage, frequency and market-specific interface requirements.

Stage 7 — Build the Design Envelope

Document the six requirement groups: continuous power, startup demand, DC architecture, AC output, installation conditions and expansion.

Stage 8 — Shortlist and Verify the Exact Model

Identify suitable capacity classes and confirm model-specific continuous rating, surge capability, input/output configuration, efficiency, protection and documentation.

Stage 9 — Validate the Complete System

Test the battery-inverter-load configuration under representative normal, startup and installed operating conditions.

The final result should not simply state “Use a 2000W inverter.”

Use an exact inverter model that satisfies the documented continuous load, startup requirement, DC architecture, AC output requirement, installation conditions and validated operating envelope.

That is the difference between basic wattage selection and model-specific inverter sizing.

FAQ

How do I size a pure sine wave inverter for my application?

Define the loads that operate at the same time, calculate the maximum credible continuous requirement, identify the highest relevant startup event, confirm the battery and AC output architecture, review installation conditions and known future loads, and then verify those requirements against the exact inverter model.

What is an inverter design envelope?

An inverter design envelope is a documented set of requirements that the selected model must satisfy. It includes continuous power, startup demand, DC architecture, AC output, installation conditions and planned expansion. These dimensions are evaluated together rather than added into one wattage number.

Should inverter size be based on running watts or startup watts?

Both should be evaluated separately. Running watts define the sustained requirement, while startup watts define temporary power demand. The selected inverter must satisfy both conditions.

How does battery voltage affect inverter sizing?

Battery voltage influences the DC current required for a given AC load and affects wiring, voltage drop and overall DC architecture. The selected inverter must also match the project's battery-voltage configuration.

How much extra capacity should I allow for future loads?

There is no universal expansion percentage for every system. If future equipment is known, include it directly in a future operating scenario. A project-specific engineering margin can also be documented where the buyer has an approved design rule.

Should I automatically add 20% extra inverter capacity?

No universal percentage should be added automatically. If future loads are known, include them directly in the future operating scenario. If the project uses an approved engineering margin, document it as a project-specific input rather than applying the same percentage to every inverter system.

Why should I verify the exact inverter model after calculating wattage?

Nominal wattage does not define the complete product capability. Exact models can differ in surge behavior, surge duration, DC input, AC output, efficiency, protection characteristics and supported configurations. These items should be confirmed before final approval.

What information should I provide when requesting an inverter quotation?

Provide the application, connected loads, maximum simultaneous continuous demand, startup requirement, battery voltage, required AC output, installation conditions, destination market, expected quantity and any customization or documentation requirements.

Request a Model-Specific Pure Sine Wave Inverter Configuration Review

For distributors, system integrators, vehicle and RV partners, outdoor power partners and commercial projects, prepare:

• application;
• connected equipment;
• simultaneous running load;
• highest relevant startup event;
• battery voltage;
• required AC output voltage and frequency;
• installation conditions;
• destination market;
• future expansion requirements;
• expected quantity;
• customization needs;
• technical documentation requirements.

Contact CONGSIN to discuss a model-specific pure sine wave inverter configuration
