Home Energy Resilience: How Bidirectional Systems Ensure Seamless Islanding During Outages

Introduction: The Shift from Passive Backup to Home Energy Resilience

Global utility grids are currently operating under unprecedented strain, driven by aging infrastructure and the increasing frequency of extreme weather events. For modern households, luxury recreational vehicles (RVs), and remote off-grid cabins, traditional passive backup power—such as noisy gasoline generators or small, single-direction UPS units—is no longer sufficient to maintain quality of life. The modern standard for residential and mobile power relies on resilience engineering: the ability of a home energy system to autonomously detect grid anomalies, isolate itself from the failing utility (or shore power), and sustain continuous operation using localized solar and battery assets.

Deconstructing the Core: What is Residential Microgrid Islanding Capability?

At the heart of home energy resilience is a highly specialized technical metric: microgrid islanding capability. This refers to a bidirectional inverter system’s ability to instantaneously physically and electrically disconnect from a collapsing main utility grid and subsequently form an independent, localized power network (a residential microgrid) utilizing roof-mounted solar arrays and home battery storage.

For system integrators and distributors designing premium home solar or RV power setups, this capability is not merely an optional feature; it is a mandatory engineering specification. It ensures that a family can utilize its stored and generated energy during prolonged neighborhood blackouts, rather than sitting in the dark while the grid is down.

The Threat of Phase Desynchronization: Why Standard Home Solar Fails

To understand the value of an active islanding system, one must understand the inherent limitations of standard residential grid-tied inverters. Standard solar inverters operate in a "grid-following" mode. They rely entirely on the main utility grid to dictate the voltage reference and AC frequency.

When a neighborhood blackout occurs, standard inverters suffer immediate phase desynchronization. Due to strict safety regulations (such as IEEE 1547) designed to protect utility line workers from back-fed electricity, these inverters are programmed to execute an emergency anti-islanding shutdown. The painful reality for many homeowners is that without bidirectional architecture, a house could have a massive solar array on the roof yet remain completely without power during a blackout.

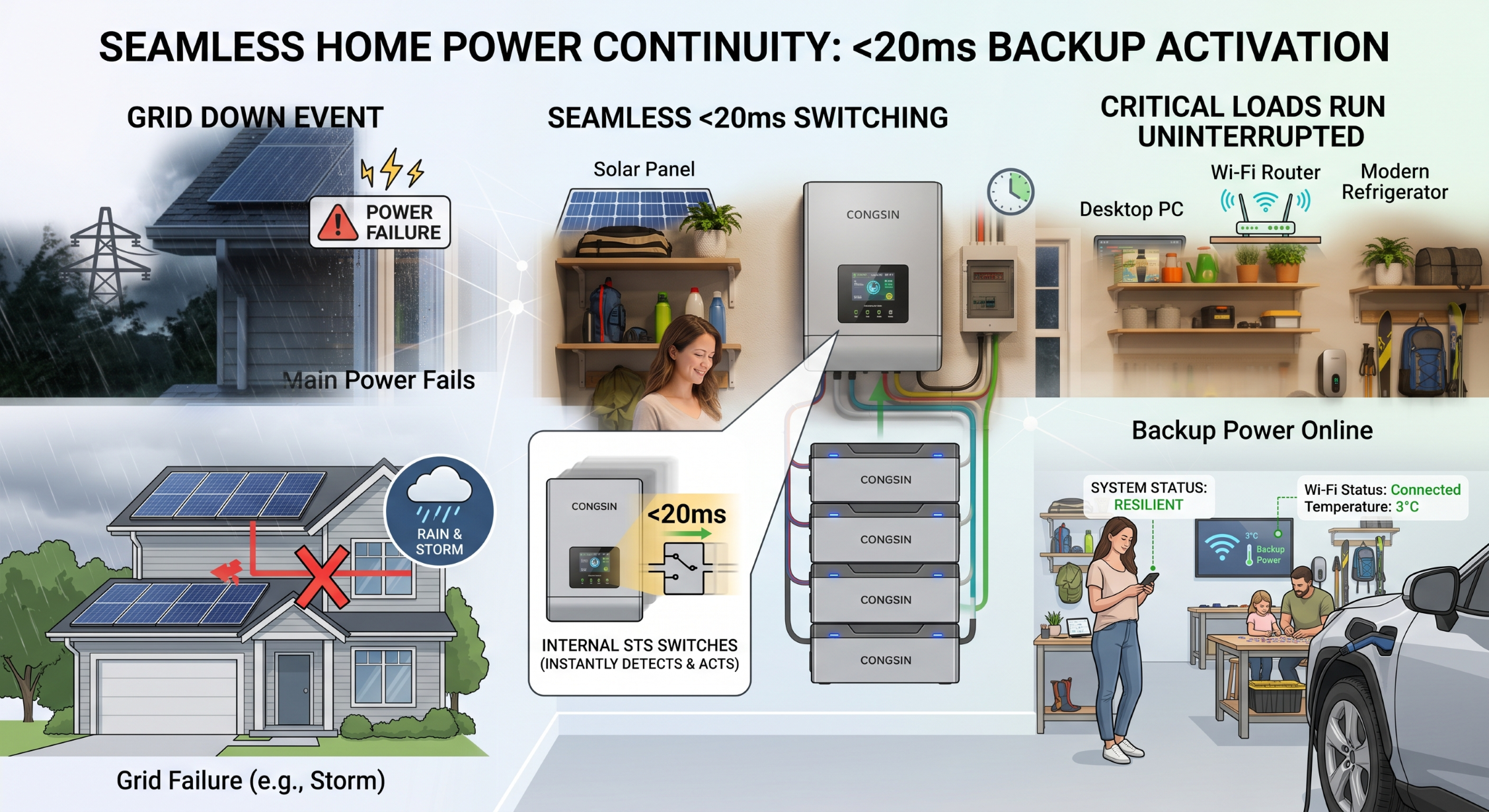

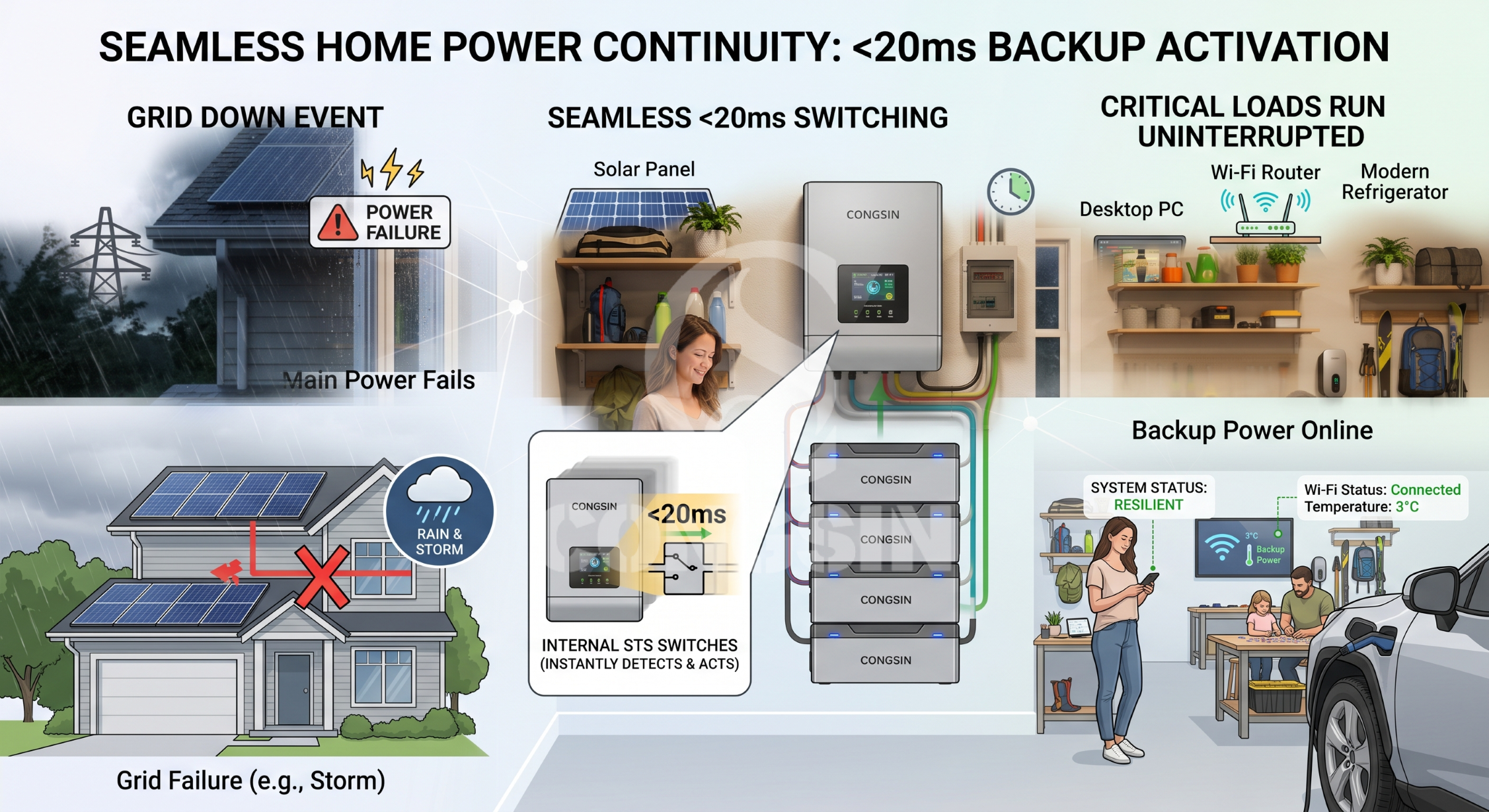

Seamless Transition Mechanics: Achieving <20ms Transfer Times

True resilience requires that the transition from grid-tied operation to an isolated home microgrid occurs without interrupting sensitive electronic loads. This "seamless transition" is engineered to execute in under 20 milliseconds (<20ms).

This instantaneous shift is governed by two critical hardware components:

• Static Transfer Switch (STS): A high-speed solid-state relay that physically breaks the connection to the grid the moment a severe voltage sag is detected.
• Digital Signal Processor (DSP): The "brain" of the inverter. Within milliseconds of the STS disconnecting, the DSP alters the inverter's operational logic from a grid-following current source to a grid-forming voltage source, utilizing V/f (Voltage/Frequency) control mode to establish a stable, Pure Sine Wave for the home network.

At sub-20ms speeds, desktop computers do not crash, smart home network routers do not reset, and sensitive medical devices (like CPAP machines) continue operating without the user even noticing the grid has failed.

Technical Comparison Matrix: Passive UPS vs. Active Home Islanding

When distributors specify components for residential or mobile infrastructure, the differences between passive backup and active islanding dictate long-term system viability.

Off-Grid Cabins & Mobile Living: The Ultimate Resilience Test

The demand for autonomous resilience is most critical in remote environments, specifically for off-grid cabins and luxury RVs. These mobile and remote living spaces operate in harsh conditions where utility grid connections (or RV park shore power) are often unstable or entirely unavailable.

Bidirectional inverters equipped with microgrid islanding capability ensure that these living spaces enter a state of complete autonomous operation seamlessly. By continuously balancing solar generation against battery reserves and automatically starting a backup generator only when battery voltage drops below a critical threshold, these systems ensure zero downtime for refrigeration, heating, and communication networks, transforming a vehicle or cabin into a self-sustaining power plant.

Overcoming Surge Currents: Managing Well Pumps and AC Units

One of the most complex engineering challenges during residential islanding is managing inductive load startups. When connected to the utility grid, a house has access to the grid's virtually infinite electrical inertia to absorb the massive surge currents generated by starting a 5-ton central air conditioner or a 3HP deep well water pump.

In an isolated home microgrid, the bidirectional inverter must bear this burden alone. Premium bidirectional systems overcome this through heavy-duty low-frequency transformers. These transformers provide massive magnetic saturation limits, allowing the inverter to sustain transient overloads of up to 300% of its rated peak power for several seconds. This ensures that heavy household motors (compressors, well pumps, and RV air conditioners) can cycle on and off without collapsing the local microgrid's voltage or flickering the lights.

Global Grid Compliance: Designing for Diverse Residential Voltages

For international distributors and trading partners in the residential sector, a universally adaptable hardware architecture is critical. Global household utility grids are highly fragmented: the European, CIS, and Middle Eastern markets largely rely on 230V/50Hz standards, while North America requires 120V/240V split-phase 60Hz parameters.

To serve these diverse markets without carrying heavily fractured inventory, distributors require bidirectional inverters driven by highly adaptable firmware and flexible hardware topologies. Top-tier residential equipment allows engineers to configure output frequencies and voltage thresholds, ensuring seamless deployment across continents. Furthermore, to cross customs borders and satisfy local residential building codes, the hardware must be engineered to comply with stringent global safety certifications, including CE, ETL, FCC, and RoHS.

Conclusion – Engineering the Future of Home Power with CONGSIN

In the modern landscape of residential and mobile energy, microgrid islanding capability is no longer a luxury upgrade; it is the fundamental lifeline for household comfort, safety, and energy independence. Delivering seamless transition times, handling heavy inductive surges from home appliances, and maintaining absolute phase stability requires deeply integrated, professional-grade power electronics.

With over 27 years of OEM/ODM manufacturing excellence, CONGSIN engineers highly reliable bidirectional inverters built specifically to handle the rigorous demands of home energy storage, off-grid cabins, and RV power systems. Whether you are a system integrator designing off-grid living solutions or a global distributor scaling autonomous home energy products across North American, European, or Middle Eastern markets, CONGSIN provides the one-stop, globally compliant hardware necessary to keep homes powered and protected when the grid goes dark.
