Tech Explained: How High Frequency Transformer Topology Saves Weight

Introduction: The Evolution of Commercial Power Conversion

In the fast-paced landscape of modern energy solutions, equipment weight directly impacts logistics, installation flexibility, and overall project viability. For decades, the industry relied on massive, heavy transformers to manage reliable power conversion. However, the introduction of advanced technology high frequency inverter topology has completely revolutionized how we approach both mobile and stationary power systems. By fundamentally redesigning the internal electronic architecture, modern units have successfully shed excess bulk while maintaining remarkably robust performance. Whether you are outfitting a sophisticated emergency response vehicle or deploying a large-scale commercial power inverter network, understanding this underlying technology is absolutely crucial. This foundational shift not only minimizes the physical footprint but also significantly enhances operational efficiency across the board. In this comprehensive technical guide, we will explore the intricate mechanics behind high-frequency designs, detailing exactly how they eliminate the need for heavy copper cores and why this technological evolution is critical for optimizing your next major power integration project.

Deconstructing the Circuit: Low Frequency vs. High Frequency

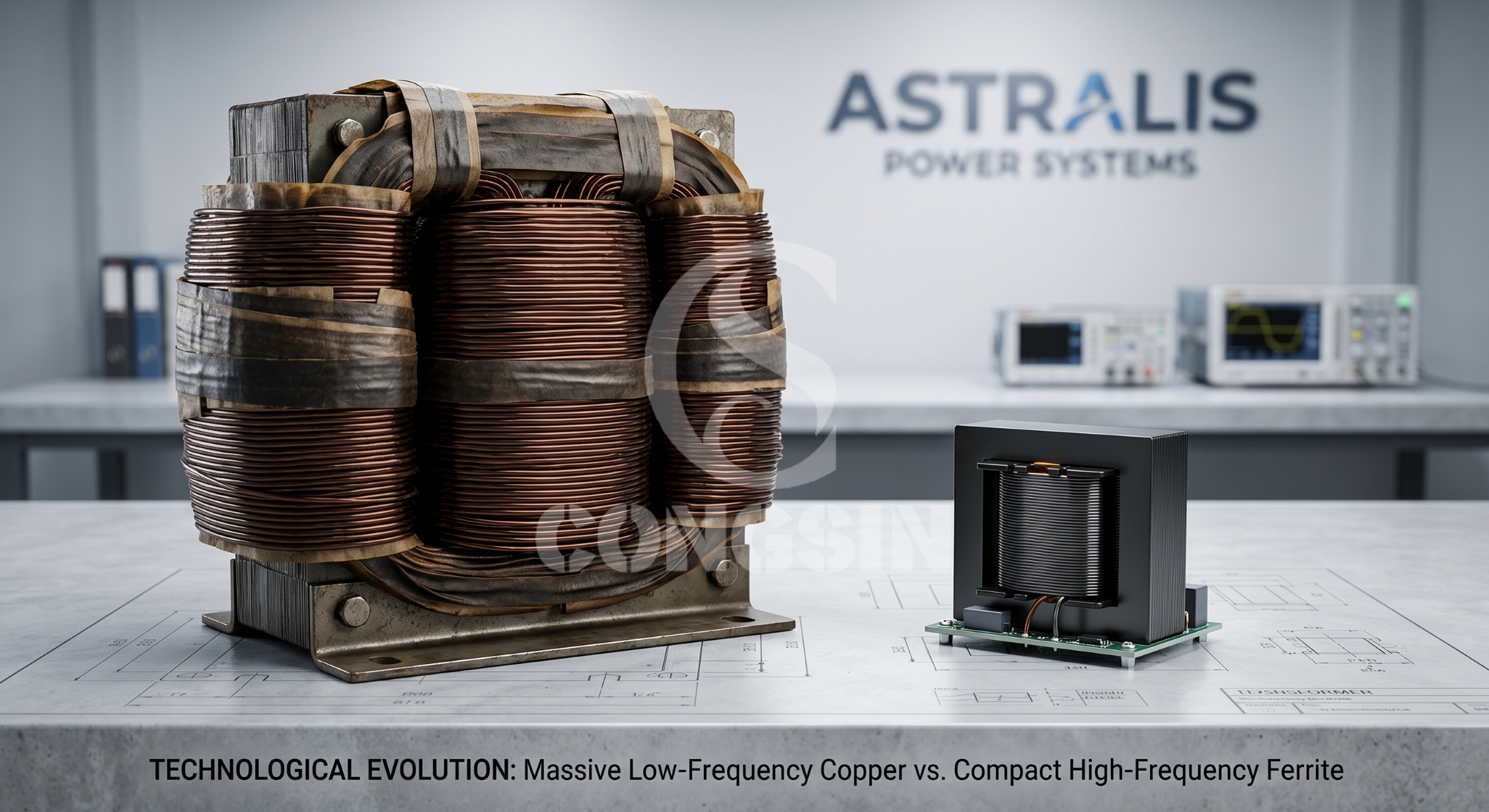

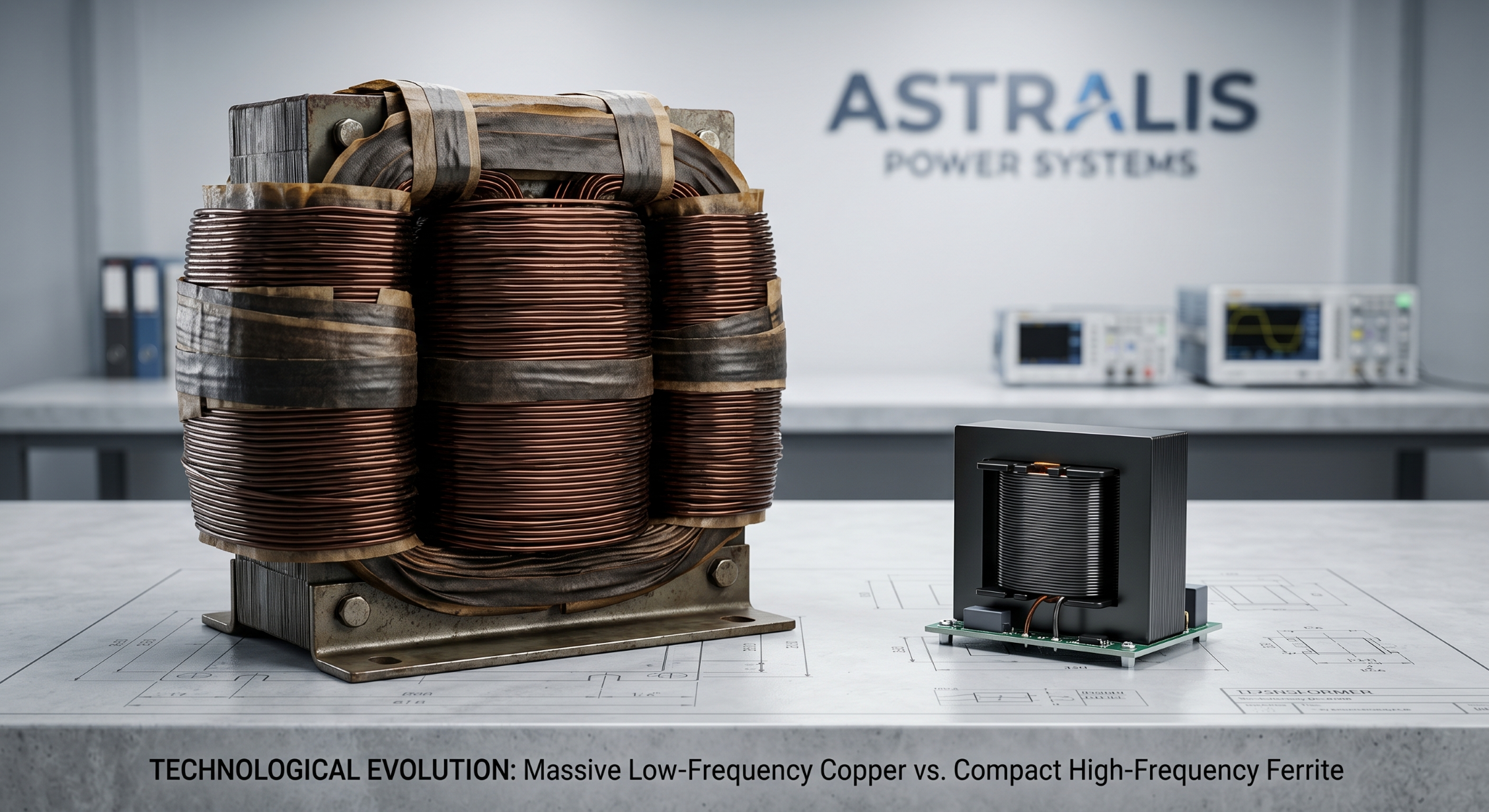

To appreciate the massive weight reduction, we must first deconstruct the core difference in internal architecture. Traditional low-frequency designs rely on large, heavy silicon-steel and copper transformers operating at standard grid frequencies. These components are inherently dense and heavy. In stark contrast, modern engineering has completely reimagined this. Instead of stepping up the voltage at a low frequency, the new design first converts the incoming DC power into high-frequency AC, typically ranging from 20kHz to 100kHz. Because transformer size is inversely proportional to operating frequency, this rapid oscillation allows for the use of incredibly small, lightweight ferrite core transformers. Furthermore, this precise electronic control heavily influences the output wave quality. When evaluating an advanced microprocessor control within a high-frequency layout, it allows for incredibly smooth and accurate wave shaping. This ensures that even the most sensitive electronics receive flawless, clean power without the burdensome weight of legacy magnetic components.

The Core Mechanism: MOSFETs and High-Speed Switching

The true heroes behind this drastic weight reduction are advanced semiconductor switching devices, primarily MOSFETs and IGBTs. These microelectronic components act as incredibly fast digital gates, chopping the direct current into high-frequency pulses. Operating at tens of thousands of cycles per second, these semiconductors completely bypass the need for massive iron cores. This rapid switching is the defining characteristic of it, allowing them to process massive amounts of energy with minimal physical material. This streamlined architecture is incredibly versatile. For example, enthusiasts or system integrators upgrading a diy inverter 12v to 220v setup quickly realize that utilizing high-frequency components makes their custom builds far more manageable and portable. By relying on smart silicon chips rather than brute-force heavy metals, the entire power conversion process becomes faster, cooler, and exponentially lighter, paving the way for the ultra-compact energy systems required in today's advanced mobile and off-grid applications.

Drastic Weight Reduction: A Logistics Game-Changer

Translating this technological leap into tangible project benefits reveals a massive logistics advantage. By eliminating the bulky copper transformers, a high-frequency system typically weighs only one-quarter to one-third of a traditional low-frequency unit of the same wattage. For project managers, fleet operators, and supply chain directors, this weight reduction is a total game-changer. Lighter equipment means drastically reduced international shipping fees, lower warehousing costs, and much easier on-site installation, often requiring only a single technician rather than a heavy-lifting crew or specialized equipment. When sourcing scalable solutions, prioritizing this lightweight topology ensures that the final integrated product remains compact, transportable, and highly competitive in the global market. As you evaluate them, the ability to deliver high continuous wattage in an ultra-lightweight chassis is a critical performance metric. It directly improves the overall return on investment for large-scale deployments by streamlining every logistical step.

Thermal Management in Compact PCB Layouts

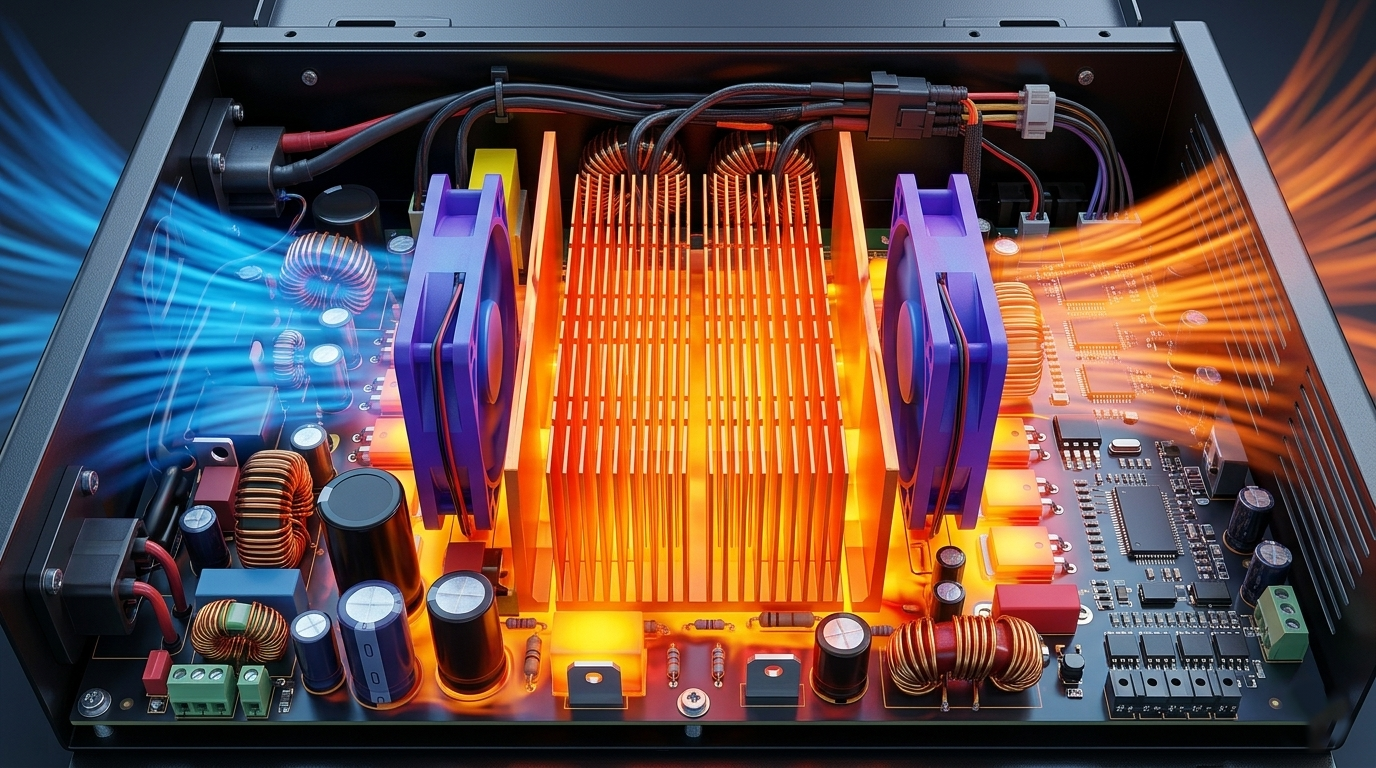

A frequent technical concern when transitioning to significantly smaller, lighter equipment is efficient heat dissipation. How does an ultra-compact device safely manage the thermal output generated during high-power conversion? Top-tier manufacturers address this through highly optimized printed circuit board (PCB) layouts and advanced active thermal management systems. Because the electronic components are densely packed, premium units utilize high-purity die-cast aluminum enclosures that function as highly effective, integrated heat sinks. Coupled with dynamic, temperature-controlled cooling fans, these systems aggressively pull heat away from the sensitive MOSFETs. This rigorous thermal engineering is absolutely essential for demanding, continuous-use applications, such as outfitting telecom fleet inverters that must operate reliably inside hot, enclosed utility vehicles or mobile command centers. Similarly, when installing it in a compact garage or poorly ventilated utility closet, the intelligent cooling design ensures the unit remains safely within its optimal temperature range, guaranteeing consistent, uninterrupted power delivery.

Efficiency Gains: Reducing Idle Power Consumption

The complete removal of the massive iron core does much more than just save physical weight; it drastically improves overall electrical efficiency, particularly during idle or low-load states. Traditional low-frequency transformers suffer from significant "iron losses" and "copper losses," which constantly drain battery power simply by keeping the unit turned on. High-frequency systems, operating primarily through highly efficient semiconductor switches, boast exceptionally low idle power consumption. This efficiency characteristic is a massive operational advantage for energy-sensitive setups. When designing a remote off grid solar inverter system, every single watt harvested from the sun is incredibly valuable. Minimizing the power wasted by the conversion equipment itself ensures that more stored battery energy is directed toward actual appliances. Furthermore, as the industry rapidly moves toward advanced smart-grid integrations, complex technologies like a battery rely heavily on this high-frequency efficiency to rapidly and seamlessly switch between charging and discharging phases without wasting critical energy.

Adapting to Heavy-Duty: Overcoming the Surge Capacity Challenge

While the benefits are extensive, evaluating high-frequency topology requires an objective look at its limitations. Because there is no massive copper transformer to absorb sudden, extreme electrical impacts, these units inherently possess a lower surge capacity compared to their heavy low-frequency counterparts. Users frequently ask, what will a 2000 watt power inverter run "A high-frequency model handles resistive loads like lighting, computers, and heaters flawlessly." However, starting heavy inductive loads, such as large industrial air compressors or older refrigerators, requires a massive split-second power surge. To overcome this, modern engineers implement advanced digital signal processing (DSP) and soft-start technology. This smoothly ramps up the voltage, significantly reducing the initial starting current required by large motors. For demanding applications like heavy-duty power inverter for truck systems, selecting a high-frequency unit with an aggressively over-engineered continuous power rating, paired with sophisticated soft-start firmware, successfully bridges this gap, providing reliable heavy-duty performance without the punishing weight.

Industry Outlook: The Shift Towards Lightweight 3000W+ Units

Looking toward the future, the trajectory of the power conversion industry is unmistakably pointing toward lighter, smarter, and significantly more powerful high-frequency systems. As the manufacturing cost of advanced power semiconductors continues to decrease and their thermal tolerances improve, engineers are aggressively pushing the boundaries of what these compact designs can achieve. According to recent 3000w car inverter market trends 2026 industry analysis reports, there is a massive, accelerating surge in demand for ultra-lightweight, high-capacity units capable of powering complex off-grid mobile clinics, luxury RVs, and demanding commercial work trucks. The modern market simply no longer accepts that high wattage must equate to back-breaking weight. Consequently, partnering with one that heavily invests in next-generation high-frequency R&D is critical for future-proofing your energy projects. This ongoing technological shift promises to deliver even greater power densities, allowing for massive 3000W+ continuous outputs from enclosures that remain remarkably small and highly transportable.

Conclusion: Partnering with CONGSIN for Advanced Topology Solutions

Mastering advanced high-frequency inverter topology is the key to optimizing your power projects for weight, efficiency, and overall logistical cost. By shedding outdated, heavy transformers in favor of precise semiconductor switching, modern systems offer unparalleled performance in an incredibly compact form factor. As a premier global innovator in power conversion technology, CONGSIN engineers cutting-edge, lightweight power solutions tailored to your exact specifications. Whether you are outfitting a commercial fleet or designing an advanced off-grid solar array, partner with CONGSIN to leverage industry-leading topology and elevate your power infrastructure.

Frequently Asked Questions (FAQs)

How does high-frequency inverter topology directly reduce global shipping and warehousing costs?

High-frequency topology replaces massive, heavy silicon-steel transformers with compact electronic switching components (MOSFETs/IGBTs). This reduces the physical weight and volume of the equipment by 60% to 75%. For project managers, this means significantly more units can fit into a standard shipping container or warehouse shelf, drastically lowering freight costs and optimizing supply chain logistics.

Are there any trade-offs in surge capacity when utilizing a lightweight high-frequency topology?

Yes. Because high-frequency inverters lack a massive physical copper core to absorb extreme, instantaneous current spikes, their surge capacity is typically lower and shorter in duration than low-frequency units. When powering heavy inductive loads like large AC motors or compressors, you must either select a unit with a much higher continuous wattage rating or ensure it features advanced soft-start technology.

Can high-frequency pure sine wave inverters reliably power sensitive commercial equipment like telecom arrays?

Absolutely. Premium high-frequency pure sine wave inverters utilize advanced digital signal processing (DSP) to create a highly accurate, clean electrical wave. The output is often smoother and more stable than the local utility grid, making it perfectly safe and highly reliable for sensitive equipment like telecom arrays, medical devices, and computer servers.

Why are more OEM brands transitioning from low-frequency to high-frequency inverter designs?

The transition is driven by three primary factors: 1) A massive reduction in expensive raw materials like copper and iron; 2) The efficiency of SMT automated manufacturing, which lowers production costs and improves consistency; and 3) The overwhelming market demand for compact, lightweight power solutions for modern RVs, mobile workspaces, and off-grid kits.

How do manufacturers manage thermal dissipation in such compact, high-frequency PCB layouts?

While high-frequency components are very efficient, dense PCB layouts still generate heat under heavy load. Top-tier manufacturers like CONGSIN manage this by using high-purity die-cast aluminum enclosures that act as large heat sinks, combined with smart, temperature-controlled cooling fans and optimized thick-copper PCB traces to ensure excellent thermal stability.

What is the typical conversion efficiency of a high-frequency solar inverter compared to traditional models?

By eliminating the severe magnetic and copper losses inherent in large traditional transformers, modern high-frequency inverters typically achieve a highly stable conversion efficiency of 90% to 95%. They also feature extremely low idle power consumption, which is critical in solar applications to maximize battery life and solar harvest utilization.
