Saving Battery Life: Understanding Idle Power Consumption in Solar Inverters

Introduction: The Invisible Drain on Off-Grid Energy Systems

In the rapidly expanding world of off-grid exploration and mobile living, energy independence is the ultimate goal. For recreational vehicle designers and solar system integrators, calculating battery capacity is a meticulous science. Every single ampere-hour is carefully allocated to essential appliances, lighting, and communication gear. However, many system designers overlook a silent, persistent energy draw: the inverter itself. Even when no appliances are actively running, an inverter requires a continuous baseline of electricity to maintain its internal circuitry, microprocessors, and standby readiness. This is known as idle power consumption. If left unchecked, this invisible drain can severely deplete a battery bank overnight, leaving end-users without crucial power by morning. Understanding how high-frequency inverter idle power works and learning how to minimize it is the absolute cornerstone of building highly efficient, long-lasting off-grid energy systems. By prioritizing this metric, fleet managers and vehicle builders can drastically improve the overall autonomy and reliability of their mobile power solutions.

What Exactly is Inverter Idle Power Consumption?

To build a truly resilient off-grid electrical architecture, one must first grasp the physical mechanics of standby energy usage. What exactly constitutes idle power consumption? Simply put, it is the amount of electrical current an inverter draws from the battery bank simply to remain turned on and ready to supply AC power. Even when your screens are off and the microwave is silent, the inverter's internal components—such as cooling fans, LED display panels, logic boards, and voltage detection circuits—are actively working. This continuous background operation acts as a parasitic load on your energy storage. For engineers designing a home UPS inverter battery backup or an advanced RV electrical system, calculating this continuous baseline draw is mandatory. Failing to account for this 24/7 energy expenditure will result in wildly inaccurate battery life projections. By treating idle power as a constant, active load within the overall energy budget, system integrators can select the appropriate battery chemistry and capacity to guarantee uninterrupted power for their clients.

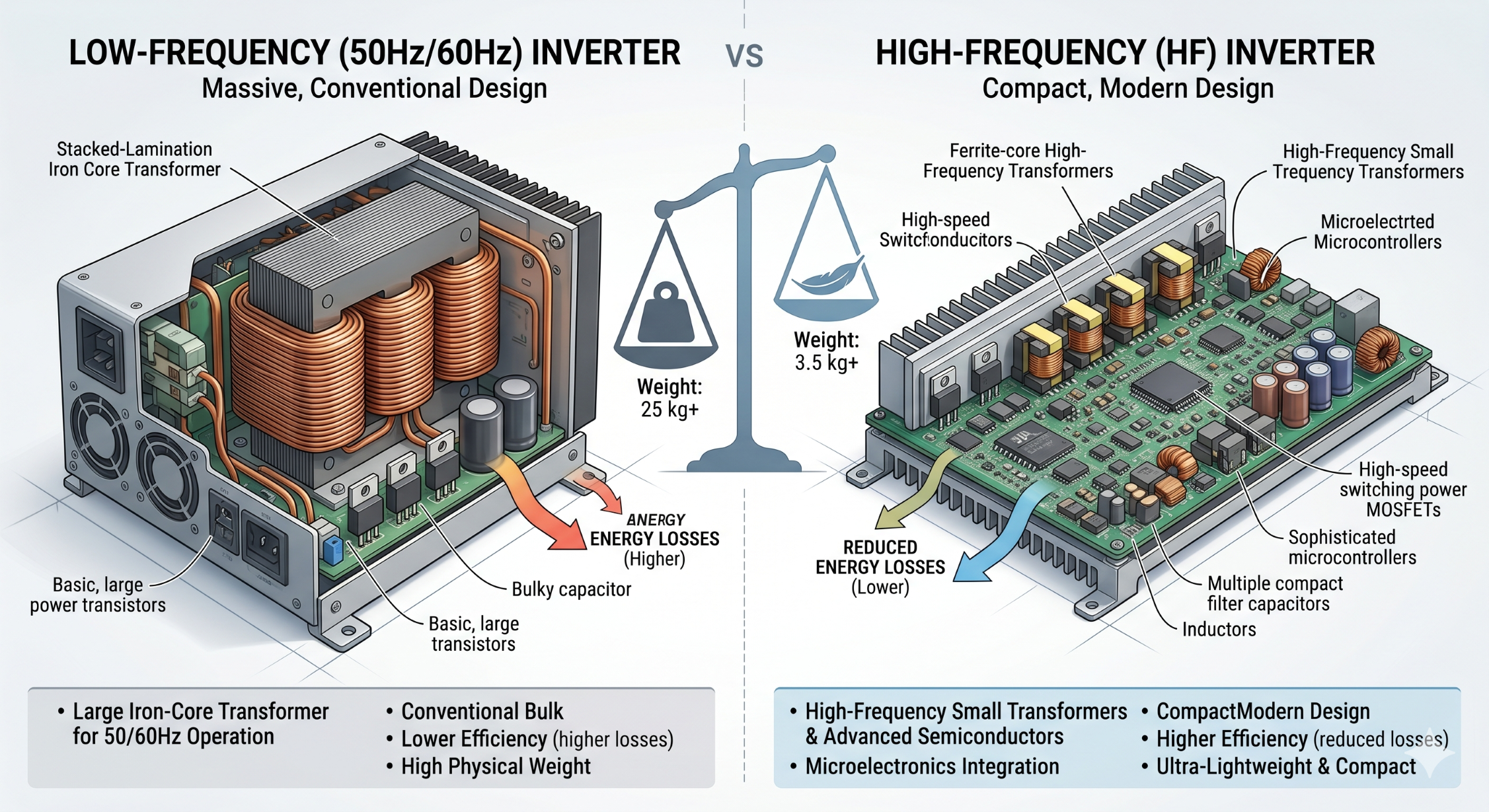

Technology Showdown: Low-Frequency Inverter vs. High-Frequency Inverter

When selecting the core component for a mobile power system, the engineering architecture plays a massive role in overall efficiency. The debate of a low-frequency inverter vs. a high-frequency inverter often centers around physical weight and surge capacity, but idle power consumption is where the true operational difference emerges. A traditional low-frequency inverter relies on a massive, heavy iron-core transformer to convert DC to AC power. This enormous physical component requires a substantial amount of continuous energy just to remain magnetized and operational, leading to notoriously high idle power draws—often several amps per hour. Conversely, modern high-frequency models utilize advanced semiconductor switching technology and highly compact electronic transformers. Because they lack the massive iron core, the energy required to keep the system in a standby state is drastically reduced. For energy-sensitive applications like campervans and marine vessels, this architectural shift means less wasted electricity and significantly more usable power for the end-user's actual lifestyle needs.

The Science Behind High Frequency Efficiency

The exceptional modified sine wave inverter efficiency and pure sine wave performance found in modern systems are largely due to brilliant breakthroughs in semiconductor physics. High-frequency inverters operate by taking the DC battery voltage, converting it to high-frequency AC, rectifying it back to high-voltage DC, and finally using advanced MOSFETs (metal-oxide-semiconductor field-effect transistors) to pulse it into a perfect AC output. This rapid, multi-stage electronic switching occurs tens of thousands of times per second. By utilizing these rapid electronic pulses rather than brute-force magnetic induction, engineers can utilize incredibly small, lightweight transformers. This miniaturization is the absolute key to their superior performance. Not only does this architectural marvel drastically reduce the physical footprint and weight—crucial factors for payload-sensitive RVs and commercial fleets—but it also fundamentally slashes the baseline energy required to keep the circuitry active. The result is an incredibly lean, efficient machine that maximizes battery longevity without compromising on power delivery.

Evaluating Battery Drain in RV and Fleet Applications

To truly understand the impact of standby consumption, fleet managers and vehicle outfitters must look at the mathematical reality of daily operation. Consider a scenario where a client asks, "Can I use a vehicle battery as an inverter battery?" While technically possible, standard starter batteries are not deep-cycle and will suffer immensely from continuous idle drain. Even with a dedicated lithium house bank, the math is unforgiving. If a poorly optimized inverter draws 2 amps of idle current, leaving it switched on for a full 24-hour period results in a loss of 48 amp-hours (Ah). In a standard 100Ah battery system, nearly half of the available energy is wasted doing absolutely nothing. This mathematical reality highlights exactly why minimizing high-frequency inverter idle power is critical for client satisfaction. Supplying an energy system that quietly bleeds power leads to dead batteries and ruined off-grid trips. Selecting highly efficient, low-draw equipment is the ultimate safeguard for your brand's reputation in the field.

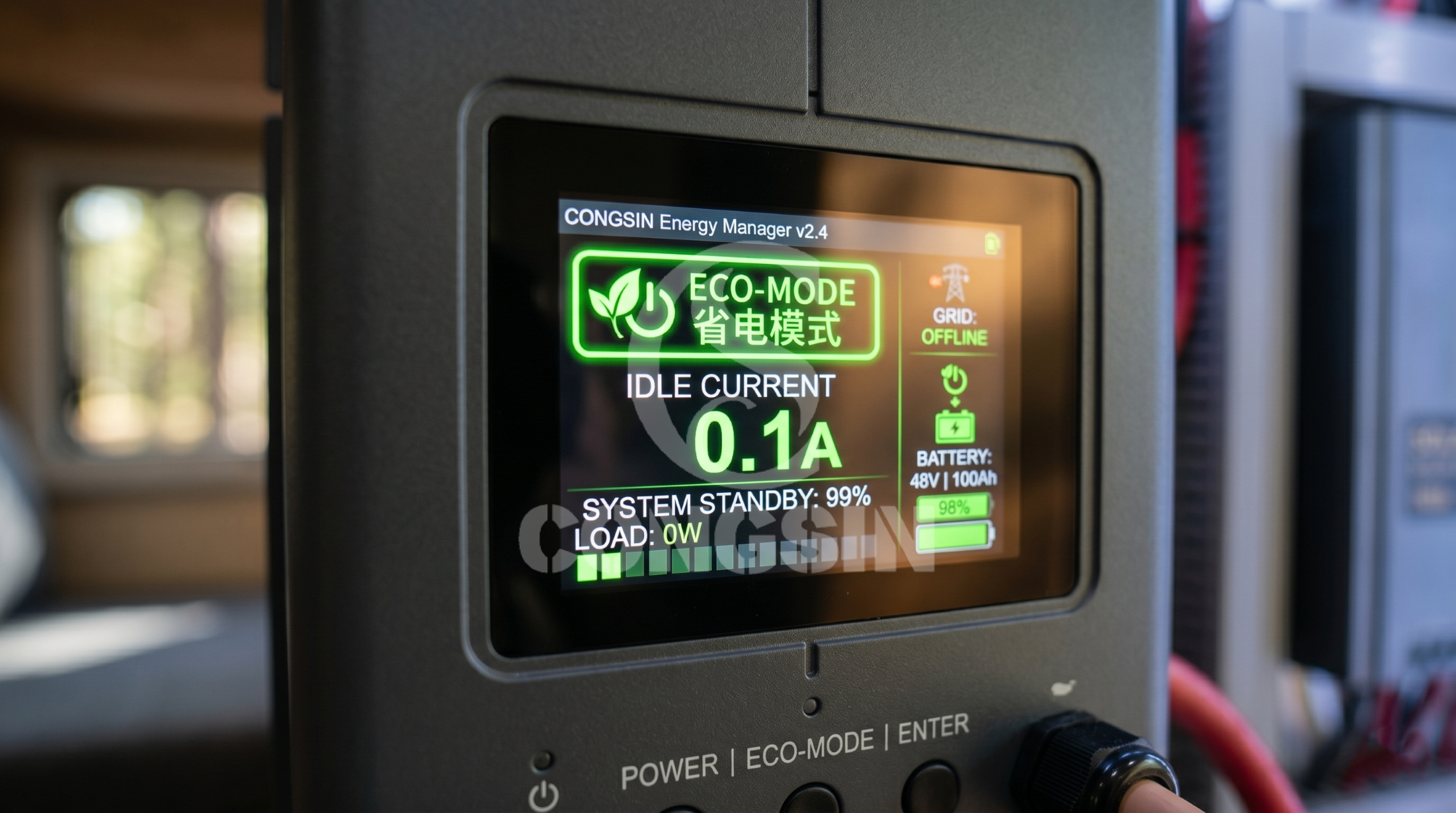

Smart Power Saving Modes and Sleep Functions

Fortunately, modern electrical engineering provides intelligent software solutions to combat parasitic energy loss. The most advanced frequency inverters on the market are now equipped with highly sophisticated power-saving modes, commonly referred to as Eco-Mode, Sleep Mode, or Search Mode. When this function is activated, the inverter actively monitors the AC output line. If it detects that all appliances have been turned off and the load has dropped below a specific threshold (for example, under 10 watts), the inverter automatically transitions into a deep sleep state. Instead of maintaining a full, continuous AC sine wave, it merely sends out a tiny voltage pulse every few seconds to "search" for a new load. This brilliant feature can plummet the idle power consumption from a continuous 1.5 amps down to a mere 0.1 amps. For off-grid installations, this technology is revolutionary, allowing users to safely leave their power systems armed overnight without the constant fear of depleting their batteries.

Sizing the System: Matching Inverters with the Right Batteries

Creating an optimized off-grid power architecture requires more than just selecting a single efficient component; it demands perfect synergy across the entire electrical ecosystem. System integrators must look at the bigger picture to ensure maximum off-grid autonomy. This involves closely pairing your low-idle inverter with highly efficient charging sources. Consulting an MPPT controller battery compatibility guide is a vital step in this engineering process. A high-performance MPPT (Maximum Power Point Tracking) solar controller ensures that whatever minimal idle power the inverter does consume is rapidly and efficiently replenished the moment the sun rises. Furthermore, the battery bank capacity must be sized to comfortably absorb this baseline draw during extended periods of heavy cloud cover. By meticulously matching an inverter boasting ultra-low standby consumption with a highly responsive solar charging network and the correct deep-cycle storage, engineers can guarantee a robust, set-and-forget power system that thrives in the most demanding environments.

Partnering with Elite Inverter Manufacturers for 2025 and Beyond

As the mobile living and remote energy sectors continue to experience explosive, global growth, the competition to provide the most reliable off-grid solutions is fiercer than ever. For system integrators and fleet outfitters looking toward the future, aligning with the best frequency inverter manufacturers in 2025 and 2026 is a strategic business imperative. You need more than just an off-the-shelf product; you need a manufacturing partner capable of pushing the engineering boundaries of energy efficiency. The ideal supplier will have the deep technical prowess to develop a high-frequency custom power supply inverter tailored precisely to your application's unique voltage and standby requirements. Partnering with a source factory that prioritizes minimizing idle power consumption gives your brand a massive competitive advantage. It allows you to confidently promise your clients longer runtimes, lighter vehicle payloads, and superior overall system reliability, ensuring your custom mobile builds stand out in a crowded marketplace.

Conclusion: Maximize Off-Grid Autonomy with CONGSIN

Minimizing idle power consumption is the absolute key to unlocking true off-grid autonomy. As a globally recognized innovator in power electronics, CONGSIN specializes in engineering ultra-efficient, pure sine wave solutions designed to eliminate parasitic energy drain. Whether you need reliable equipment for custom RV builds or are seeking a top-tier car battery power inverter manufacturer for deep OEM integration, CONGSIN delivers cutting-edge, low-idle architecture that keeps your systems running longer. Choose CONGSIN to power your next generation of mobile energy solutions.

Frequently Asked Questions (FAQs)

What is inverter idle power consumption, and why does it matter?

Idle power consumption is the continuous baseline energy an inverter draws from the battery simply to remain powered on and ready, even when no appliances are running. It matters immensely because this invisible drain can silently deplete an off-grid battery bank overnight, reducing your usable power.

Why is the high-frequency inverter's idle power generally lower than low-frequency models'?

When evaluating a low-frequency inverter vs. a high-frequency inverter, high-frequency models utilize advanced semiconductor switching and micro-transformers instead of massive, heavy iron cores. This modern architecture drastically reduces internal magnetic and heat losses, resulting in a significantly lower standby current.

Can idle power completely drain my solar batteries overnight?

Yes. If an older or poorly optimized inverter draws 2 to 3 amps of idle current, a 12-hour night can consume 24 to 36Ah of energy. Without active solar charging, this parasitic drain will heavily deplete smaller or older battery banks.

Do modern high-frequency inverters have power-saving modes?

Yes. The best frequency inverter manufacturers in 2025-2026 integrate intelligent eco-modes. When no AC load is detected, the inverter enters a deep sleep state, emitting only tiny pulses to check for activity. This technology reduces idle power draw to near zero.

How should system integrators account for idle power when designing an RV setup?

Integrators must calculate the total daily idle AH loss and factor it strictly into their energy budget. By referencing an MPPT controller battery compatibility guide, they can ensure the solar array and battery bank are large enough to easily offset this continuous baseline draw.

Can CONGSIN customize the idle power settings for specialized fleet applications?

Absolutely. For commercial partners requiring a high-frequency custom power supply inverter, our engineering team can tailor both the hardware and software. We can adjust sleep-mode wake thresholds and minimize standby consumption to perfectly match your specific operational demands.
