Quick Answer Summary
A high-frequency bidirectional inverter uses high-switching-frequency semiconductor stages to control power flow in both charging and discharging directions. Depending on the design, the system architecture may utilize a high-frequency isolated transformer or employ a transformerless solution.
When specifying these systems, buyers should evaluate the complete topology, voltage range, isolation requirements, efficiency curves, thermal limits, EMI performance, surge behavior, and certification scope rather than judging the design solely by its switching frequency.
Engineering Facts and Evidence Buyers Should Verify
- High-frequency switching can reduce magnetic-component size, but the total system weight also depends on cooling infrastructure, filters, capacitors, the enclosure, and insulation requirements.
- Bidirectional efficiency varies significantly by topology, voltage ratio, load level, switching strategy, and measurement boundary.
- While high-frequency switching may reduce direct low-frequency transformer hum, cooling fans, pulse-width modulation (PWM), magnetic vibration, and mechanical resonance still affect the total acoustic noise.
- Not every bidirectional inverter uses an isolated high-frequency transformer; transformerless architectures exist and require different safety evaluations.
- Grid-tied, residential-storage, and EV power-export systems may fall under entirely different safety and interconnection frameworks.
- Conventional DC-AC inverter experience can provide relevant engineering foundations in topology, PCB assembly, waveform control, thermal management, protection, and manufacturing. However, it should be treated as adjacent evidence rather than proof of high-voltage bidirectional, grid-interactive, or EV power-export capability.
The Shift Towards Compact Power Electronics
In applications where power density, installation volume, shipping weight, and mobile payload are important design constraints, high-frequency architectures are increasingly considered. As residential balcony solar, off-grid recreational vehicles (RVs), and portable home energy storage systems evolve, engineers face strict spatial limitations.
High-frequency topologies can help address these physical constraints when the complete thermal, filtering, insulation, and enclosure design is properly optimized. By reducing the size of magnetic components, integrators can deploy power-conversion hardware in confined utility closets or vehicle electrical bays.
These design considerations are especially relevant to [pure sine wave inverters], [portable power stations], and [RV power solutions] where installation volume and payload are constrained.
Bidirectional Power Flow Architectures
The term "high-frequency bidirectional inverter" encompasses multiple interconnected power stages rather than a single unified block.
| Architecture | Transformer Position | Buyer Concern |
|---|---|---|
| Isolated multi-stage | Bidirectional DC/DC stage | Isolation, leakage inductance, efficiency, cost |
| Transformerless multi-stage | No HF transformer | Leakage current, ground fault, common-mode EMI |
| Integrated/single-stage | Topology-dependent | Control complexity, certification, serviceability |

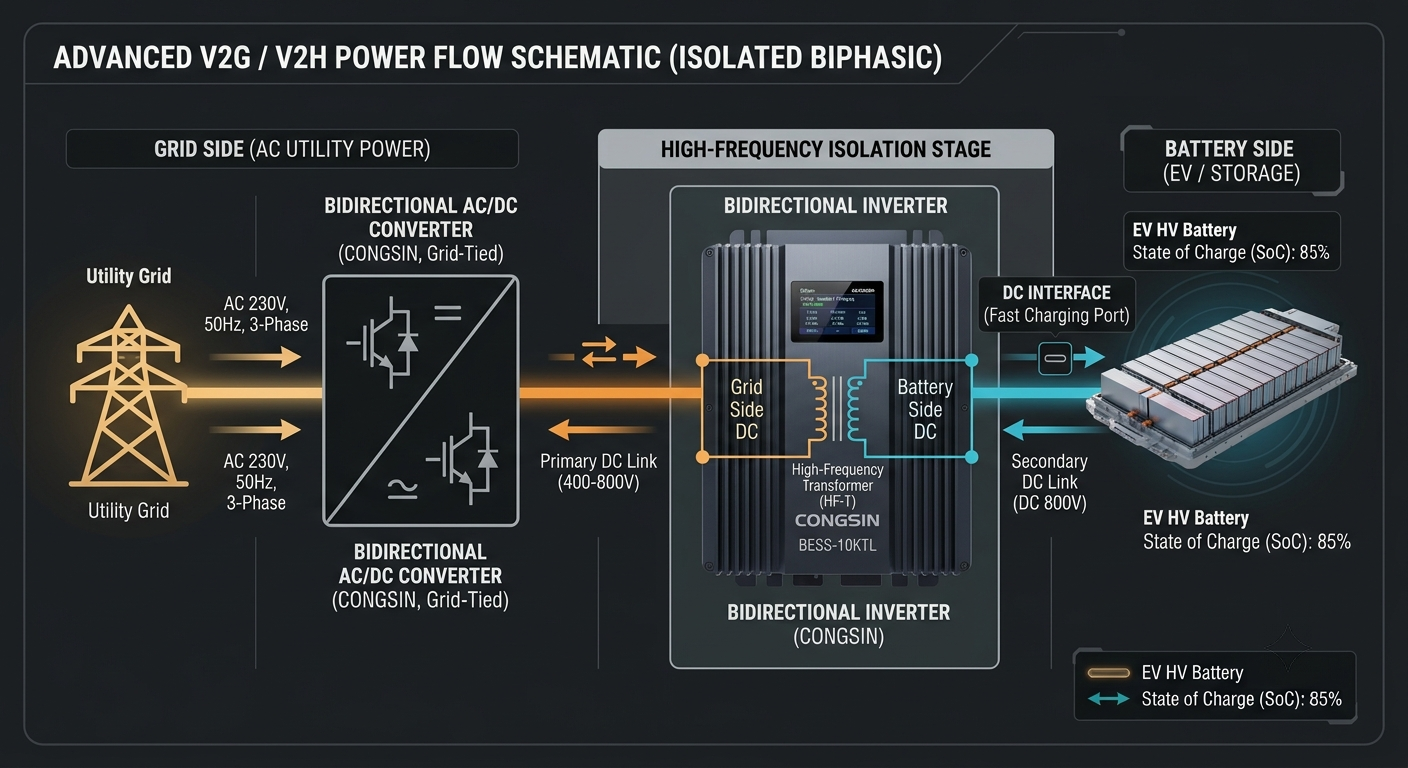

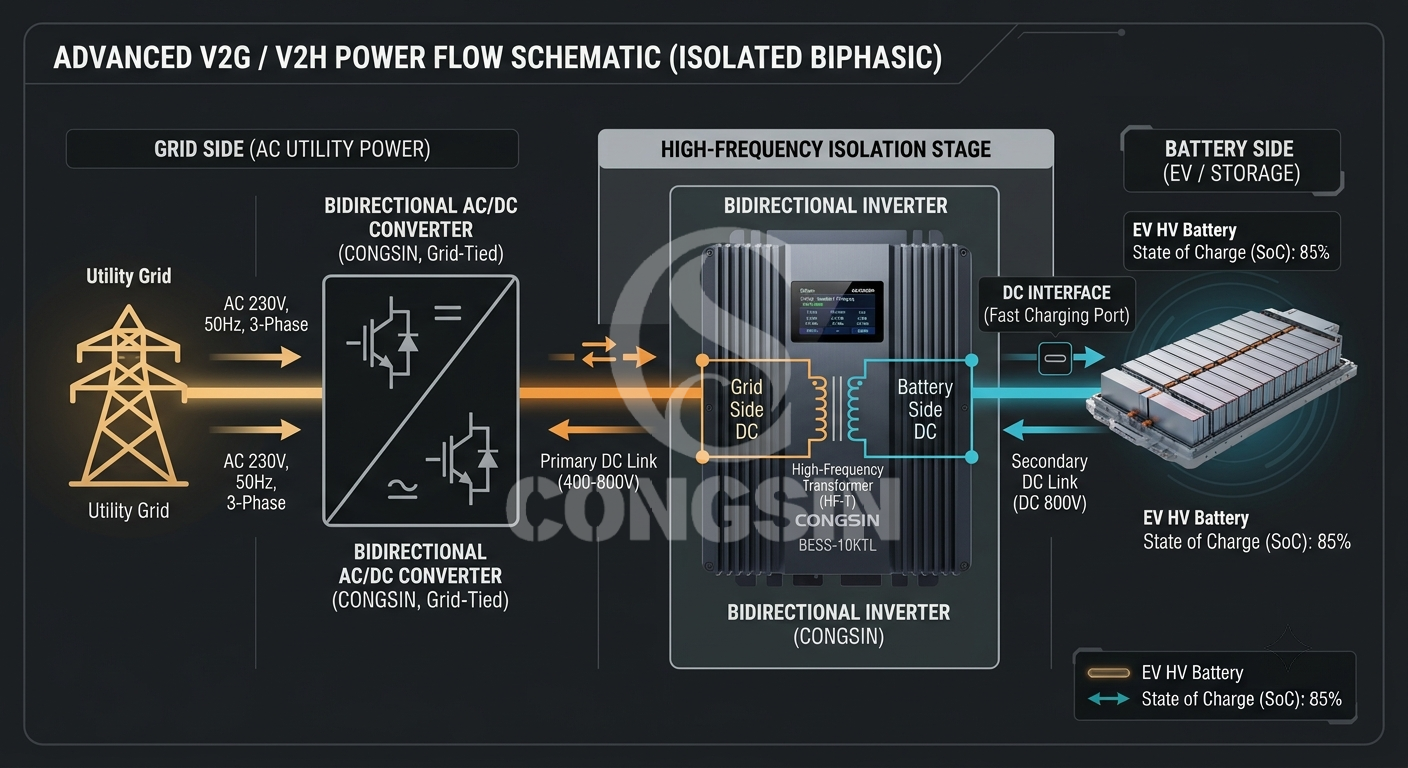

Grid AC → Bidirectional AC/DC Stage → DC Link → Isolated or Non-Isolated Bidirectional DC/DC Stage → Battery
Note: The architecture diagrams and flowcharts described are conceptual examples for technical evaluation rather than current CONGSIN product schematics.

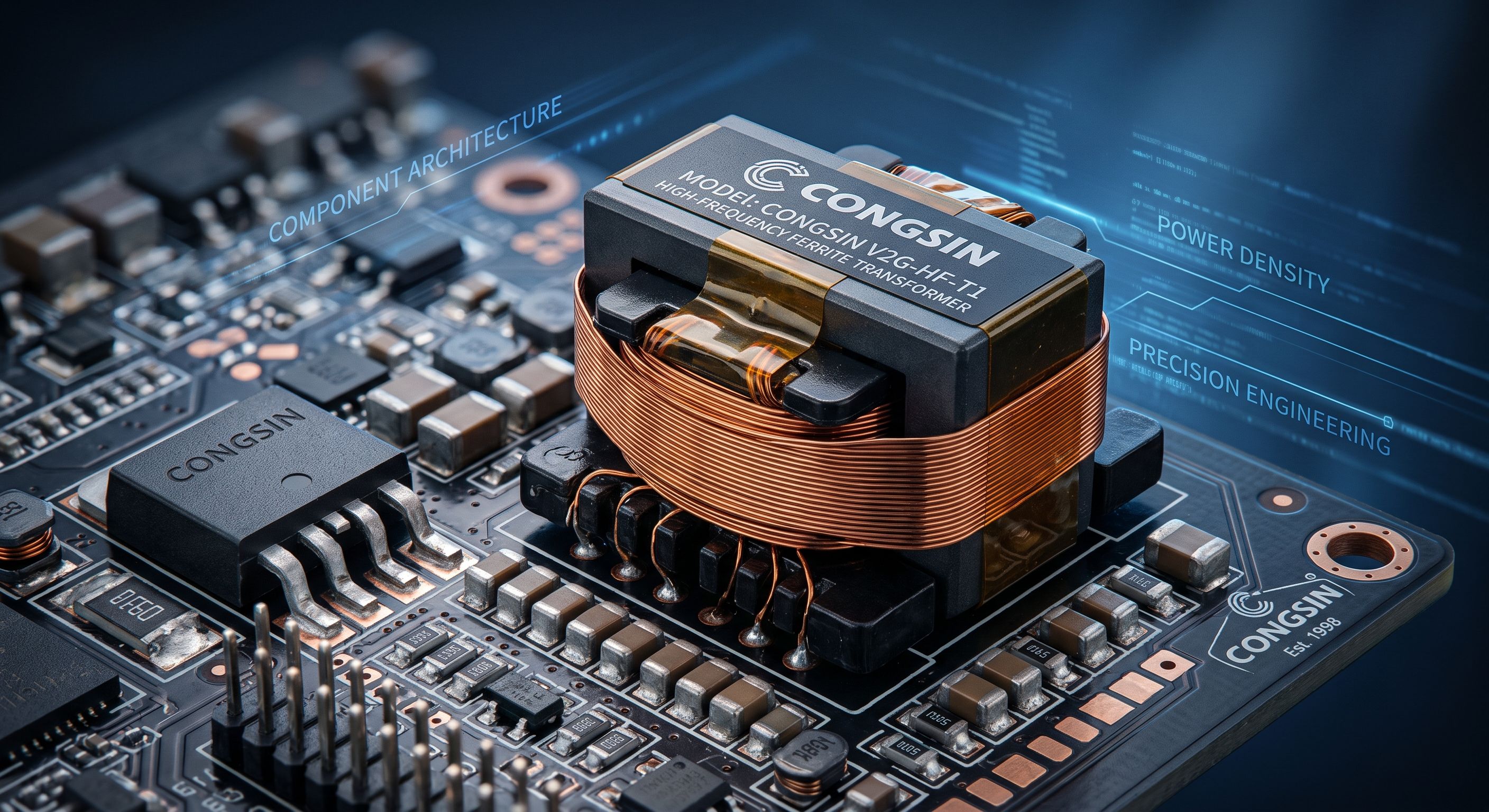

Engineering Factors of High-Frequency Transformers
The integration of high-frequency magnetics requires evaluating several critical engineering factors beyond mere size reduction. Buyers should request specific engineering evidence from their OEM partners.
| Engineering Factor | Evidence Buyers Should Request |
|---|---|
| Core Material | Material grade, loss curve, and operating flux density |
| Switching Frequency | Selected frequency and switching-loss trade-off analysis |
| Winding Design | Litz/foil specification and calculated AC resistance |
| Leakage Inductance | Target value, tolerance, and measurement method |
| Insulation | Working voltage, creepage, clearance, and dielectric test |
| Parasitic Capacitance | Common-mode current or EMI validation |
| Temperature Rise | Full-load hotspot data and ambient conditions |
High-Frequency vs. Low-Frequency Architectures
Topology alone does not determine output waveform quality, surge capability, or appliance compatibility. Buyers should evaluate architectures based on system-level characteristics.
| Engineering Factor | High-Frequency Architecture | Low-Frequency Architecture |
|---|---|---|
| Power Density | Usually higher | Usually lower |
| Magnetic Size | Smaller when HF isolation is used | Larger 50/60 Hz transformer |
| Design Complexity | Higher switching, magnetic, and EMI complexity | Larger magnetic component, potentially simpler switching |
| Surge Capability | Depends on semiconductor, bus, magnetic, and protection | Depends on transformer, switches, control, and thermals |
| Serviceability | Higher component density may complicate field repair | Larger discrete components may be easier to inspect |
| Selection Priority | Power density, compact packaging, controlled HF isolation | Installation simplicity, larger magnetics, overload behavior |
SiC MOSFETs in High-Frequency Bidirectional Power Stages
Silicon Carbide (SiC) MOSFETs may be selected in high-frequency bidirectional stages when voltage, switching-loss, efficiency, and power-density targets justify the additional cost and design complexity.
Engineering Costs and Trade-offs:
Integrating SiC introduces specific engineering challenges, including strict gate-driver requirements, high dv/dt stress, complex EMI generation, layout parasitics, common-mode currents, and stringent short-circuit protection requirements.
Buyer Evidence Checklist for SiC Designs:
- Semiconductor part number
- Switching frequency
- Gate-driver design
- dv/dt measurement
- Efficiency curve
- Short-circuit response
- Thermal test and EMI test
Thermal Validation in Compact Inverter Designs
Concentrating power conversion into a small chassis presents distinct thermodynamic challenges. Buyers should move beyond evaluating which heat sinks are used and instead request verifiable thermal test data.
| Thermal Claim | Required Evidence from Manufacturer |
|---|---|
| Continuous Power | Full-load duration, ambient temperature, and input voltage |
| Derating Behavior | Output-power curve across ambient temperature |
| Transformer Hotspot | Winding/core temperature under defined load |
| Semiconductor Temperature | Case or junction estimate under full load |
| Quiet Cooling | Sound pressure, distance, and fan condition |
| Long Life | Capacitor temperature, fan-life assumption, and shutdown threshold |
Potential Applications in Transportation and Outdoor Microgrids
The spatial and weight advantages of high-frequency architectures make them highly relevant for mobile and off-grid environments. Potential applications may include recreational vehicles, commercial trucks, marine vessels, camping systems, off-grid homes and portable energy platforms where power density and installation volume are important design constraints.
The Role of High-Frequency Isolation in Some V2H Architectures
High-frequency transformers play a key role in certain Vehicle-to-Home (V2H) deployments, particularly within the isolated DC/DC stage of an off-board bidirectional EVSE (Electric Vehicle Supply Equipment). A complete V2H system requires EV compatibility, EVSE communication, grid synchronization, anti-islanding protection, home distribution integration, and utility interconnection approval.
Potential Compliance Frameworks by System Type
Regulatory compliance cannot be generalized across all high-frequency inverters. Buyers must match the certification framework to the specific system type and application.
Listing a standard does not mean that CONGSIN currently holds certification for a high-frequency bidirectional model. Buyers must request the exact model number, test report, issuing laboratory, scope, and validity date.
| System / Application Type | Potential Compliance Frameworks |
|---|---|
| Residential or PV Power Converter | UL 1741, IEC/UL 62109, and local requirements |
| Bidirectional Grid-Connected Converter | IEC 62909 series and target market utility requirements |
| EV Power Export Equipment | UL 9741 / CSA 348 and related EVSE requirements |
| EV–EVSE Communication | ISO 15118-20 or applicable vehicle-specific protocols |
| European Grid Connection | EN 50549 and local distribution network codes |
| EV Charging Equipment | IEC 61851 series or target market requirements |
IEC 62909-1:2025 has a defined product scope and excludes UPS systems, photovoltaic power-conversion equipment, and bidirectional EV charging equipment. Buyers should confirm whether the proposed architecture falls within IEC 62909, IEC 62109, IEC 61851, or another applicable product standard.
Buyer Evaluation Checklist for OEM Procurement
When sourcing high-frequency bidirectional inverters, B2B buyers and system integrators should rigorously evaluate the OEM partner across core engineering and manufacturing dimensions.
| Buyer Evaluation Area | Evidence to Request |
|---|---|
| Architecture and electrical scope | Topology, voltage range, power rating, and isolation definition |
| Magnetic and semiconductor design | Core, winding, Si/SiC/GaN selection, and loss analysis |
| Control and protection | Charge/discharge logic, soft start, fault protection, and communication |
| Thermal and EMI validation | Full-load temperature, derating curves, and EMC test data |
| Prototype and compliance status | Development stage, model-specific reports, and certification scope |
| Manufacturing readiness | SMT, calibration, burn-in, traceability, and change-control records |
According to company-published information, CONGSIN reports annual output exceeding 300,000 units across its existing power-product portfolio. This manufacturing scale should not be interpreted as proven production capacity for a high-frequency bidirectional platform.
Advancing Power Architecture with OEM Partners
Transitioning to compact, high-density power electronics requires thorough validation of topologies, magnetic designs, and semiconductor platforms. Founded in 1998, CONGSIN has more than 27 years of inverter manufacturing experience, delivering DC-AC inverters, solar charge controllers, and battery chargers to partners in more than 40 countries.
CONGSIN’s long-standing experience in inverter manufacturing, PCB assembly, waveform control, thermal design, protection functions, and OEM/ODM customization provides a relevant engineering foundation for evaluating compact power-conversion projects. For a high-frequency bidirectional program, buyers should separately confirm the proposed topology, magnetic design, semiconductor platform, bidirectional test data, communication scope, and model-specific compliance documentation, where available.
FAQ
Does a higher switching frequency automatically result in a better bidirectional inverter?
No. While higher switching frequencies can reduce the size of magnetic components, they also increase switching losses, require more complex EMI filtering, and introduce severe dv/dt stress on insulation. A superior design balances frequency, thermal limits, efficiency, and reliability.
What is the difference between an isolated and non-isolated bidirectional inverter?
An isolated architecture creates galvanic separation between defined circuit domains, interrupting the direct conductive path and changing the system’s fault-protection and insulation strategy. Non-isolated architectures eliminate the isolation transformer and may reduce conversion stages, component count, or transformer-related losses. Their actual efficiency still depends on topology, switching strategy, voltage ratio, and EMI design.
Can high-frequency inverters handle residential motor surges like air conditioners?
Surge capability in high-frequency architectures depends heavily on the semiconductor sizing, DC bus capacitance, and fast-acting protection algorithms. Request a product-level test showing peak power, duration, output-voltage deviation, and the specific type of motor load before deployment.
What certifications are required for V2H bidirectional inverters?
Requirements depend on whether the conversion equipment is onboard or offboard, whether the system exports to the utility grid, and the local interconnection architecture. North American EV power-export projects may involve UL 9741/CSA 348, while grid-interconnection equipment may also fall under applicable UL 1741 requirements, depending on whether the inverter is onboard, offboard, and how the system connects to the utility grid.
How do ferrite cores differ from laminated iron cores in inverter design?
Ferrite cores are ceramic materials that exhibit low electrical conductivity, which severely limits eddy currents at high switching frequencies (20kHz+). Laminated iron-core transformers operate effectively at grid frequency and may support demanding overload profiles when designed with sufficient magnetic, copper, semiconductor, and thermal margins.
Does CONGSIN currently offer a certified high-frequency bidirectional inverter?
CONGSIN’s public website demonstrates conventional inverter manufacturing, OEM/ODM, topology, thermal, EMC, battery compatibility, and firmware capabilities. The availability of a high-frequency bidirectional platform should be confirmed through project-specific specifications, prototype status, test records, and model-specific certification documents.
