Topology Deep Dive: Seamless AC/DC Conversion in Bidirectional EV Infrastructures

What Is EV Bidirectional Inverter Conversion?

EV bidirectional inverter conversion is the process of converting electrical energy between an electric vehicle battery and an AC electrical system in two directions. Unlike traditional EV chargers that only transfer electricity from the grid to the vehicle (unidirectional), bidirectional inverters allow EV batteries to supply power back to homes, buildings, or off-grid microgrids. This bi-directional flow is achieved within a single physical power stage, actively matching the voltage, frequency, and phase of the target AC environment.

Understanding V2G, V2H, and V2L in Bidirectional EV Systems

To fully grasp the scope of bidirectional energy architectures, system integrators must distinguish between the three primary deployment entities.

The Bottleneck of Unidirectional Charging in Modern Homes

For years, the standard approach to residential EV integration relied on unidirectional charging (V1G), where power flowed only from the utility grid to the vehicle. However, as extreme weather events increase grid instability, homeowners and off-grid enthusiasts are realizing that a parked EV is essentially a massive, fully funded lithium battery sitting idle during blackouts.

The transition from V1G charging to bidirectional energy systems represents a major shift from passive EV charging toward active energy management. The engineering bottleneck preventing this active management has been the power conversion stage, which requires sophisticated hardware capable of safely interfacing high-voltage automotive DC with standard household AC.

Deconstructing the Core: EV Bidirectional Inverter Conversion

To understand how a vehicle powers a home or an RV, system integrators must look at the dual-role architecture of the bidirectional inverter.

• AC/DC Rectification: The DSP commands the switching transistors to act as an active rectifier, taking 120V/240V household AC power and converting it into the precise high-voltage DC required by the EV battery.
• DC/AC Inversion: During a power failure, the exact same transistors reverse their operational logic. They draw DC power from the EV and chop it into a high-frequency pulse-width modulated (PWM) signal, filtered into a clean Pure Sine Wave AC output.

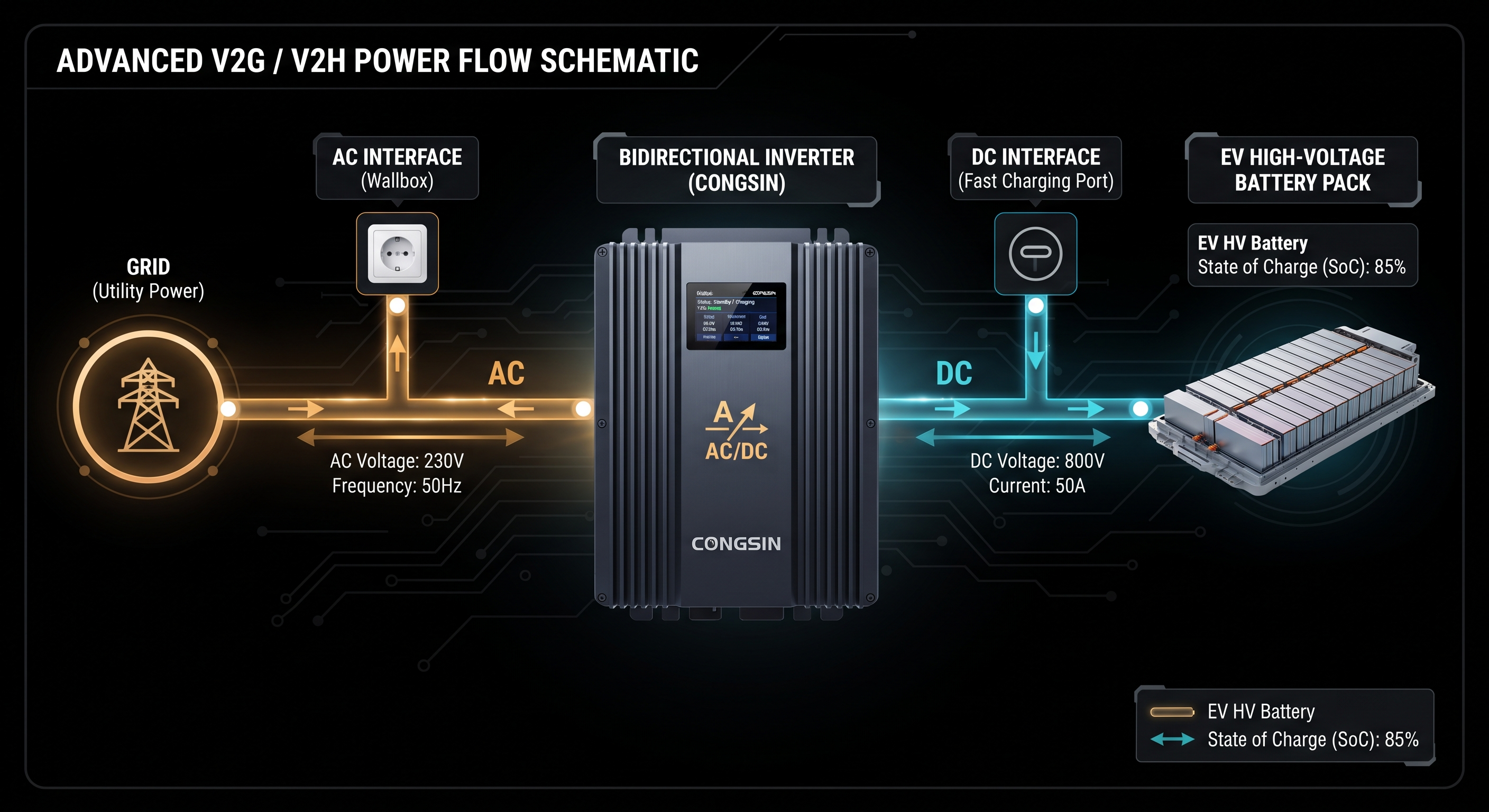

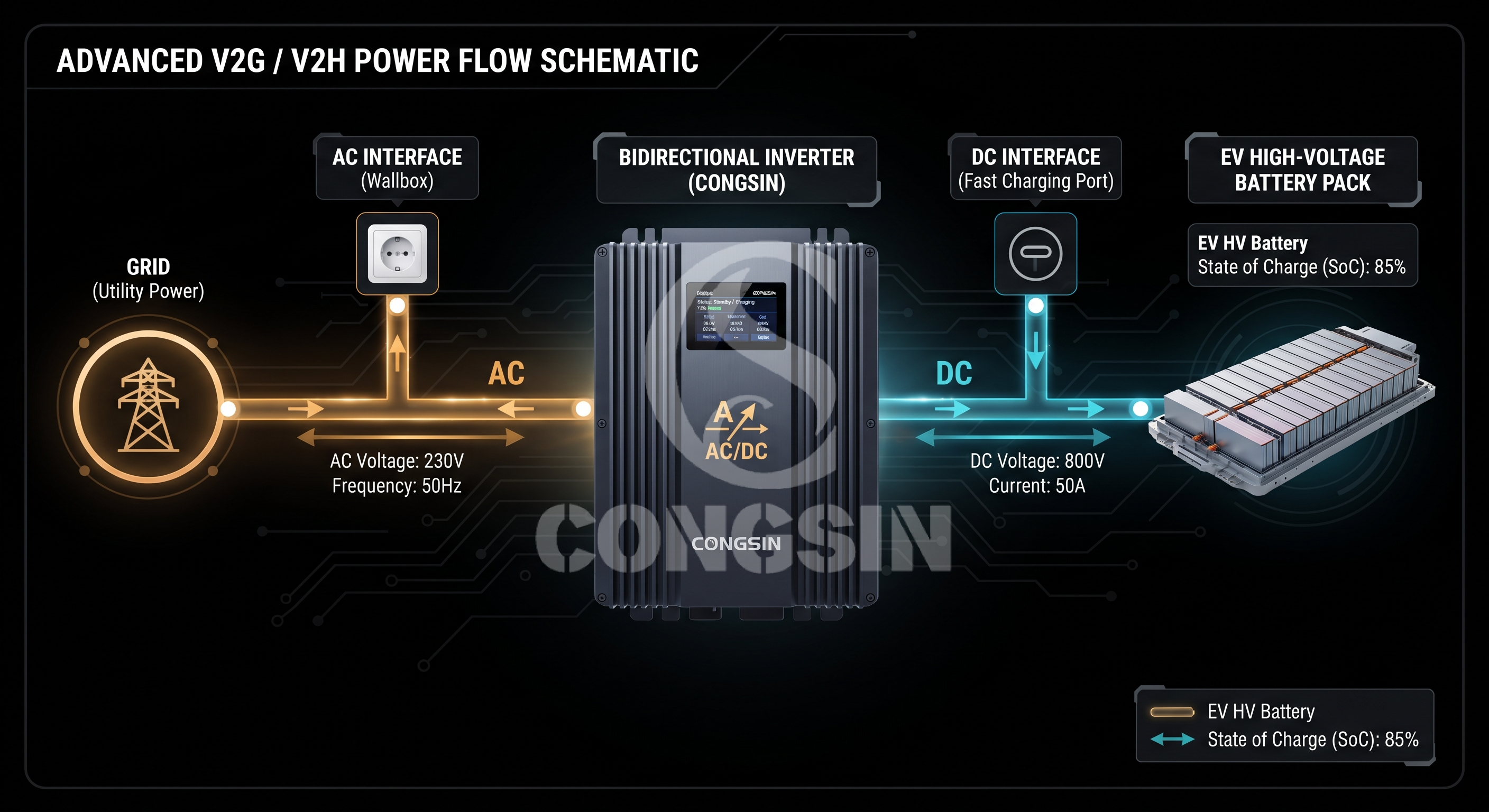

Bidirectional Power Flow Architecture

The operational sequence follows a strict hardware pathway:

This architecture ensures that power can reverse flow instantaneously without requiring secondary, redundant hardware modules.

Topology Showdown: High-Frequency vs. Low-Frequency Transformers

Selecting the correct internal transformer topology dictates what appliances a user can actually run during an off-grid scenario.

• High-Frequency Topologies: Utilize compact ferrite cores. They are lightweight, space-efficient, and ideal for continuous loads without heavy startup surges.
• Low-Frequency Topologies: Utilize heavy iron-core transformers. They provide massive magnetic saturation limits, sustaining 200% to 300% peak transient overloads for up to 20 seconds.

Which Topology Is Better for RV and Home Backup?

For RV and off-grid applications, low-frequency inverters are strongly preferred due to their ability to absorb the massive inrush currents of air conditioners and deep well pumps. For sensitive electronics and standard home lighting backup, high-frequency inverters are highly suitable due to their efficiency and compact installation footprint.

The Silicon Carbide (SiC) Revolution in AC/DC Rectification

Executing high-power bidirectional conversion generates thermal stress. Traditional Insulated-Gate Bipolar Transistors (IGBTs) suffer from switching losses that limit system efficiency. The integration of Silicon Carbide (SiC) MOSFETs has revolutionized this sector. SiC components operate at significantly higher switching frequencies with near-zero reverse recovery charge, resulting in round-trip conversion efficiencies exceeding 97%.

Thermal Management in Confined Spaces

Even with advanced SiC technology, processing continuous bidirectional power generates heat. Thermal management is a critical reliability metric, particularly in demanding mobile environments.

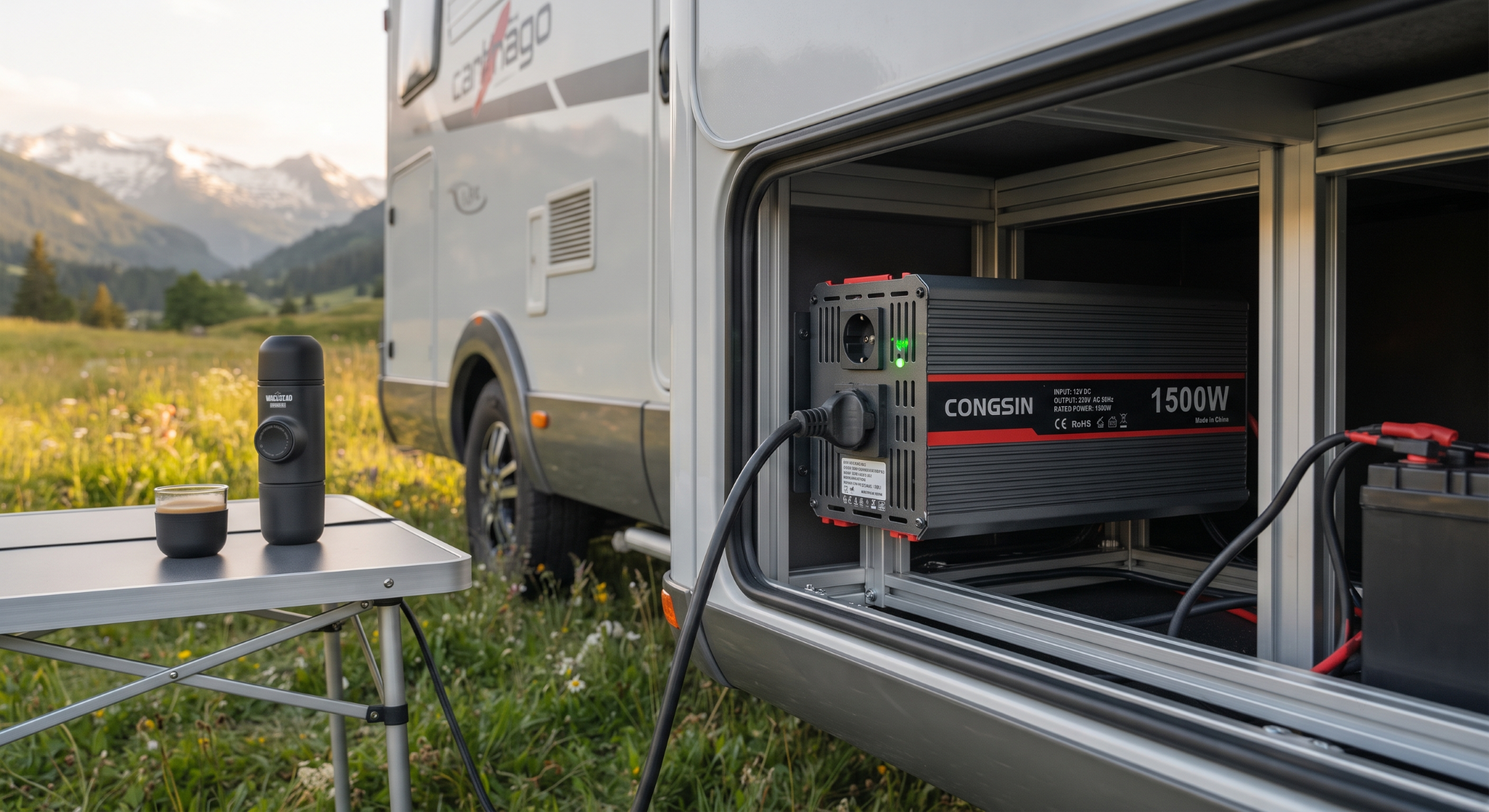

In an RV environment, installers face specific challenges: limited installation space, high ambient summer temperatures, and the demand for continuous load operation. Premium inverters address this through die-cast aluminum heat sinks, variable-speed aerodynamic cooling ducts, and strict thermal derating algorithms that prevent hardware failure during extreme off-grid deployments.

Grid Synchronization and Anti-Islanding Protections

Safety is paramount when integrating vehicular power with household wiring. If the utility grid fails, the bidirectional inverter must instantaneously sever its connection to the incoming utility lines to protect grid repair crews.

This is managed by a Phase-Locked Loop (PLL) algorithm. To ensure legal and safe operation, the hardware must comply with strict certification entities, including UL 9741, UL 1741, EN 50549, and CE standards.

Deployment Scenarios: EV Microgrids and RV Living

The ability to seamlessly convert power bi-directionally unlocks entirely new lifestyle paradigms for non-industrial users, bridging the gap between automotive mobility and residential comfort.

How to Select a Bidirectional EV Inverter Manufacturer

For B2B distributors and system integrators, securing the right OEM inverter supplier requires evaluating four critical pillars.

1. Engineering Capability: Evaluate the factory's expertise in topology design, firmware stability, and thermal management.
2. Certification Support: Verify the ability to provide rigorous lab testing for UL, CE, and EMC standards.
3. Customization Ability: Assess OEM flexibility regarding voltage configurations, custom enclosures, firmware localization, and retail packaging.
4. Application Experience: Ensure the manufacturer has a proven track record of solving real-world grid and off-grid challenges.

Certifications and Global Compliance Requirements

Because bidirectional EV inverters bridge the gap between automotive DC and local AC grids, they are subject to stringent global regulatory frameworks.

• North America: Requires UL 9741 (Bidirectional EV Charging System Equipment) and UL 1741-SA for grid-interactive anti-islanding safety.
• Europe: Demands EN 50549 for grid compliance, alongside CE LVD (Low Voltage Directive) and EMC (Electromagnetic Compatibility) markings.
• Asia / Emerging Markets: Requires strict adherence to specific local grid voltage, frequency requirements, and localized safety testing protocols.

Conclusion

The successful deployment of EV bidirectional inverter conversion technology is the cornerstone of modern, resilient energy architectures. Achieving seamless AC/DC integration for residential backup and off-grid mobile environments requires uncompromising power electronics, advanced SiC topologies, and strict adherence to global safety and anti-islanding standards.
