DC-to-AC Conversion Explained: Switching, Filtering and Waveform Formation

Readers who need a basic product definition should first review what a pure sine wave inverter is. Buyers comparing system voltage, sizing, applications and procurement requirements can also consult the complete pure sine wave inverter guide.

What Happens Inside a Pure Sine Wave Inverter?

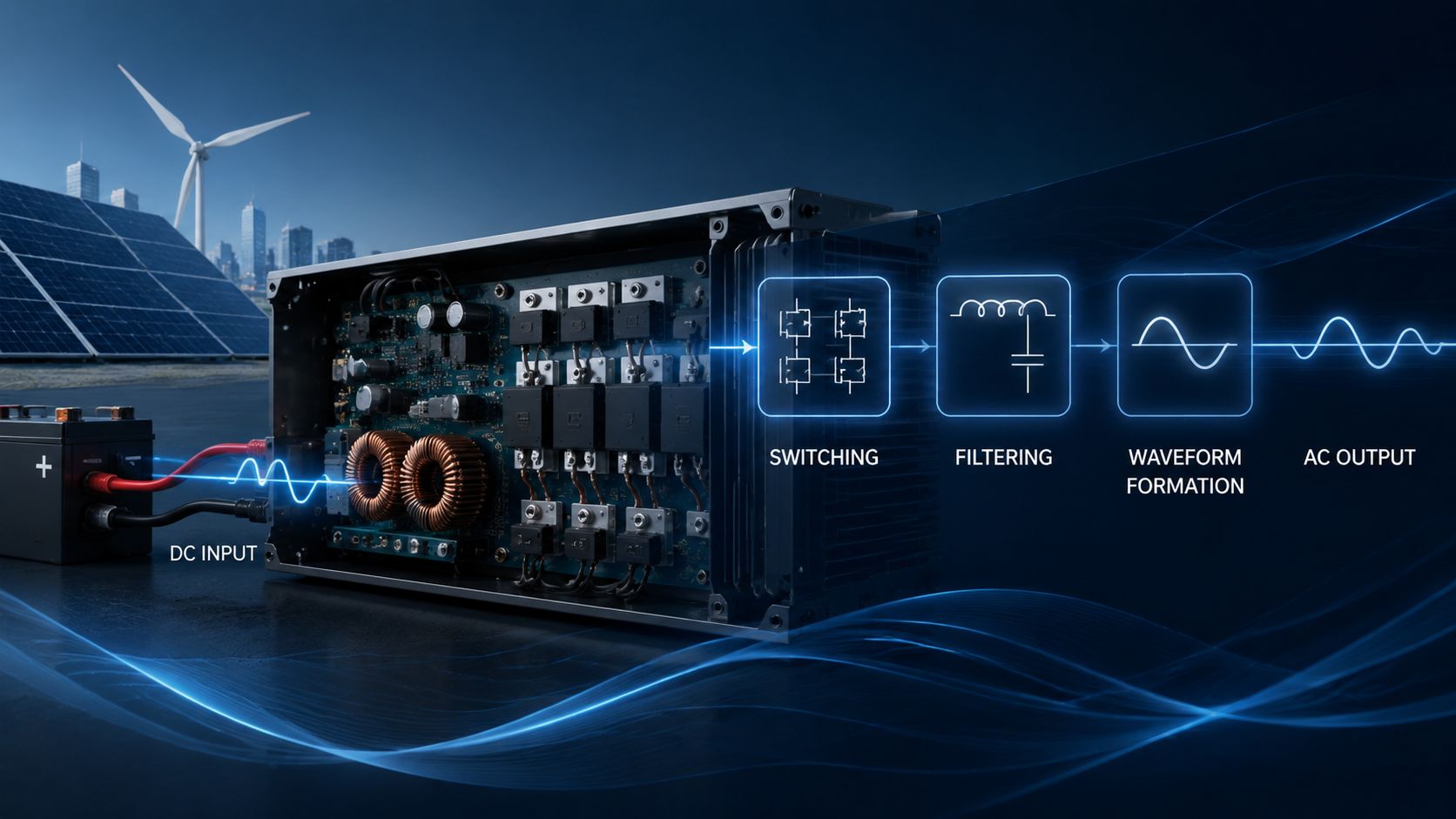

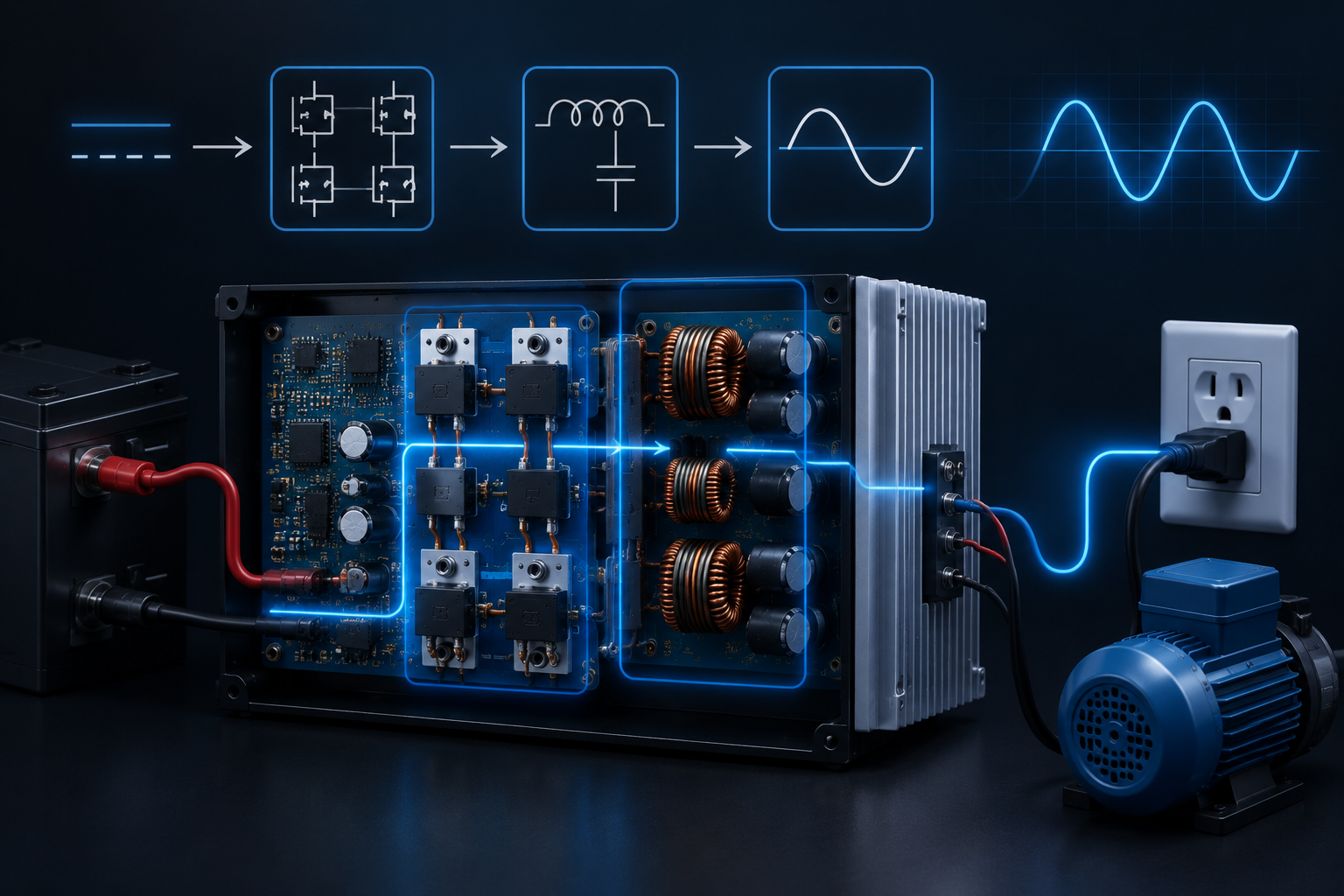

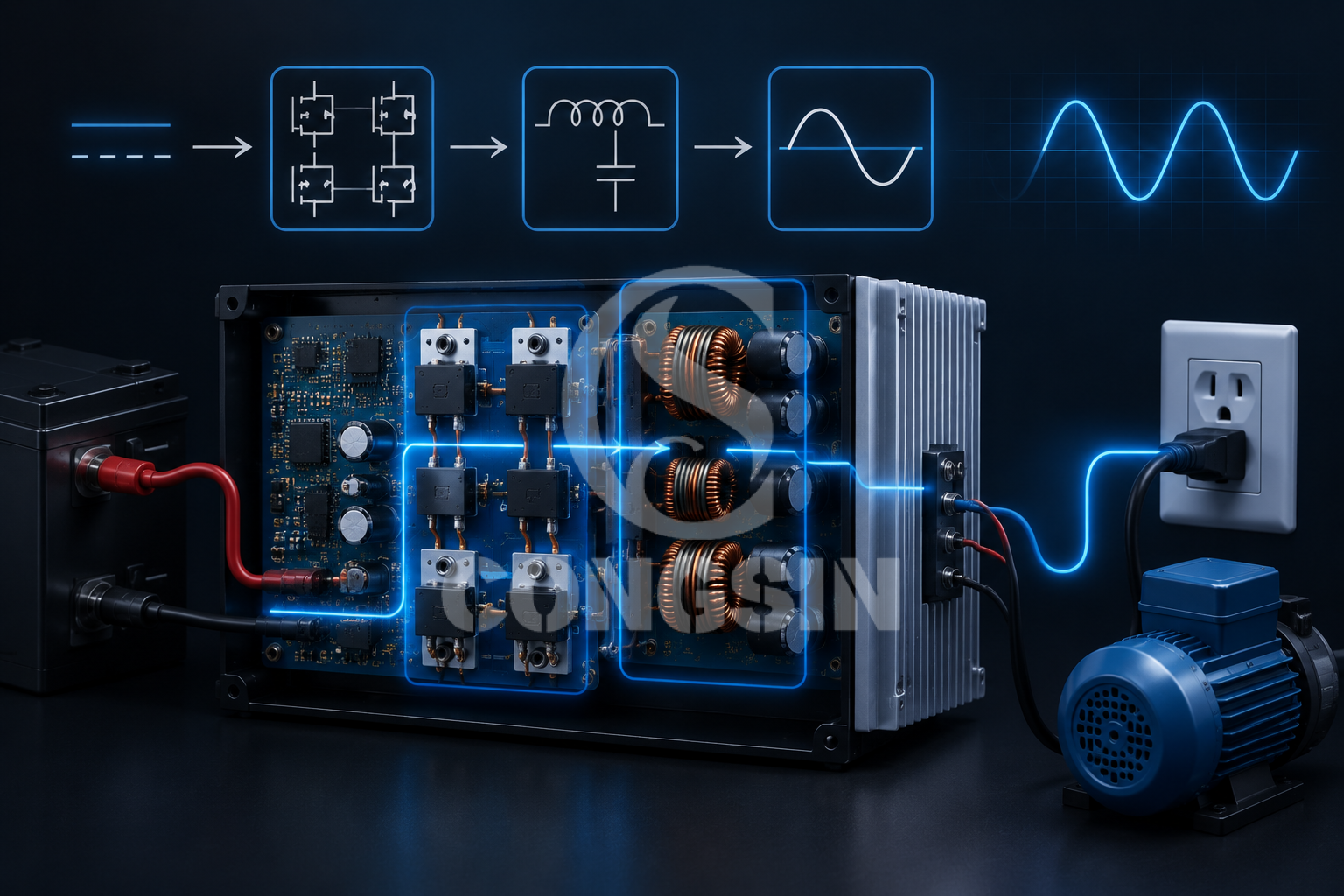

A Functional Block Diagram of the Conversion Chain

A practical functional representation is:

The sequence may differ by architecture, but each functional block performs a distinct purpose:

• Input conditioning prepares and protects the DC source.
• Power switching controls the direction and amount of energy transferred.
• Voltage conversion raises or otherwise adjusts the available voltage where required.
• Modulation represents the desired AC waveform through controlled switching.
• Filtering attenuates unwanted switching-frequency components.
• Sensing and feedback measure the result and correct deviations.
• Protection logic responds to abnormal electrical or thermal conditions.

A functional block diagram is often more useful to a B2B buyer than a proprietary circuit schematic. It allows the buyer to identify where voltage conversion, isolation, waveform control, sensing and protection occur without requiring disclosure of confidential component values or firmware.

Why the Exact Circuit Varies by Inverter Topology

An inverter is defined by its function, not by one universal circuit. Possible arrangements include:

• A battery-side bridge connected to a low-frequency transformer.
• A high-frequency DC-to-DC stage followed by a high-voltage DC-to-AC bridge.
• A transformerless voltage-source inverter supplied by a suitable DC bus.
• Half-bridge, full-bridge, multilevel or totem-pole power stages.
• Bipolar, unipolar, sinusoidal PWM or other modulation methods.
• Analog, digital or mixed control systems.

These choices affect size, weight, isolation, magnetic design, switching loss, thermal behavior, electromagnetic performance, component count and serviceability.

Texas Instruments publishes both a transformer-based 800VA pure sine wave inverter reference design and a separate voltage-source inverter reference design using an output LC filter. These references demonstrate that different circuits can perform the same broad DC-to-AC function.

A reference design should not be treated as proof that a commercial inverter uses the same topology.

Stage 1—Preparing the DC Input

Battery and DC Source Voltage

The conversion process begins with DC power from a battery bank, vehicle electrical system, energy-storage system or regulated DC supply.

A nominal 12V, 24V or 48V source does not remain at one exact voltage. Terminal voltage can change with:

• Battery chemistry and state of charge.
• Discharge current and temperature.
• Cable length, resistance and connector condition.
• Charger or alternator operation.
• Battery-management-system limits.

The inverter must therefore operate across a defined input range rather than at only the nominal voltage. For procurement, verify:

• Minimum operating voltage.
• Low-voltage alarm and shutdown points.
• Restart threshold.
• Maximum permitted input voltage.
• Required battery current.
• Recommended cable and overcurrent protection.
• Behavior during short voltage dips.

A mismatch at the DC input can cause shutdown, overheating, reduced output or unstable operation even when the nominal voltage appears correct.

Input Protection, Capacitors and DC-Bus Preparation

Before power reaches the main switching stage, an inverter may include:

• Fuses or circuit protection.
• Reverse-polarity protection.
• Surge suppression.
• Pre-charge circuitry.
• Input capacitors.
• Contactors or relays.
• Electromagnetic-interference filtering.
• Voltage and current sensing.

Input capacitors help supply rapid current pulses to the switching stage and reduce high-frequency ripple returning through the DC cables.

At higher power, the external DC installation becomes part of inverter performance. Undersized cables, long cable runs, loose terminals or inadequate battery discharge capability can cause a voltage drop at the inverter input. This may trigger low-voltage protection during motor or compressor startup even when the battery’s unloaded voltage appears normal.

When a Step-Up Stage or Transformer Is Used

A low-voltage battery cannot directly provide standard AC output levels without a voltage-conversion stage. Depending on the design, the inverter may:

1. Drive a low-frequency transformer from a battery-side switching bridge.
2. Use a high-frequency isolated DC-to-DC stage to create a higher DC bus.
3. Receive an already elevated DC bus from another system component.
4. Use another application-specific voltage-conversion arrangement.

The relevant procurement question is not simply whether an inverter is described as high frequency or low frequency. Buyers should determine where voltage conversion occurs, whether galvanic isolation is provided, how the neutral and grounding arrangement is defined, how the architecture performs with the intended load, and which test data supports the design.

Stage 2—How Switching Devices Create Alternating Power

MOSFETs, IGBTs and Gate Drivers

The inverter uses semiconductor devices as rapidly controlled electronic switches. Depending on power level, voltage, switching frequency and architecture, a design may use MOSFETs, IGBTs or other power-semiconductor technologies.

A controller generally requires a gate-driver stage between its low-power control signals and the power devices. Gate-driver design influences:

• Switching loss and conduction timing.
• Electromagnetic emissions.
• Device stress and thermal performance.
• Isolation.
• Fault response.

A buyer normally does not need proprietary gate-drive values, but system integrators may need confirmation of the power-stage architecture, isolation method and relevant validation results.

H-Bridge Switching and Polarity Reversal

A common full-bridge arrangement contains four controlled switches positioned around the transformer winding, filter or output stage. By activating opposite diagonal pairs, the bridge applies voltage in one direction and then reverses it. This polarity reversal creates the positive and negative portions required for AC output.

The bridge output is not necessarily a smooth sine wave. In a PWM-controlled design, the switches operate many times during each AC cycle. The resulting pulse pattern is controlled so its average behavior follows the intended sinusoidal reference.

Dead Time and Shoot-Through Prevention

The upper and lower devices in one bridge leg must not conduct at the same time. Simultaneous conduction can create a low-resistance path across the DC source, commonly called shoot-through. Controllers therefore insert a brief interval—dead time—between one switch turning off and its complementary device turning on.

• Too little dead time can increase shoot-through risk.
• Too much dead time can distort the output waveform.
• Device and driver delays change with operating conditions.
• Current direction and switching strategy affect the result.

The TI digital-control application note includes modulation, multiple control loops and dead-time control within an off-grid inverter simulation. Its settings and results apply to that reference system, not to every inverter.

Stage 3—How PWM Encodes a Sine Wave

Sine Reference and High-Frequency Carrier

Pulse-width modulation controls how long the power devices remain on during each switching interval.

In a commonly used sinusoidal PWM process, a low-frequency sine reference represents the intended AC output. That reference is compared with a much higher-frequency carrier waveform. The comparison determines the timing and width of the switching pulses.

• Near a sine-wave peak, the modulation commands a higher average output.
• Near a zero crossing, it commands a lower average output.
• Bridge polarity creates the positive and negative half-cycles.

The switching frequency is much higher than the final 50Hz or 60Hz AC frequency, allowing the controller and output filter to reproduce the lower-frequency waveform.

How Pulse Width Represents the Target Voltage

Before filtering, the bridge produces voltage pulses. A simplified sequence is:

1. The controller generates a sinusoidal reference.
2. The modulation stage converts that reference into switching commands.
3. The bridge changes the polarity and effective voltage applied to the next stage.
4. The output filter attenuates high-frequency switching content.
5. Feedback adjusts the modulation when the measured output differs from the reference.

The final AC waveform is therefore the result of switching, energy storage, filtering and closed-loop regulation—not PWM alone.

SPWM Is Common, but Not Universal

Sinusoidal PWM is widely used, but it is not the only modulation method. Other approaches may include:

• Bipolar PWM.
• Unipolar PWM.
• Modified unipolar modulation.
• Multilevel modulation.
• Totem-pole switching.
• Hybrid low- and high-frequency strategies.
• Other digitally controlled methods.

The selected method can affect switching loss, harmonic content, common-mode voltage, filter requirements, acoustic behavior, control complexity and semiconductor stress. A buyer should not infer the modulation strategy from the term “pure sine wave” alone.

Stage 4—Filtering the Switched Waveform

Why the Raw Switching Waveform Is Not Yet Clean AC

The switching bridge produces the desired low-frequency AC component together with high-frequency switching components. Without adequate filtering and control, these components can contribute to:

• Electrical noise and harmonic distortion.
• Additional heating.
• Electromagnetic-interference problems.
• Acoustic noise.
• Unstable behavior in selected loads.
• Increased stress in motors, transformers or power supplies.

The term “pure sine wave” does not mean the waveform is mathematically perfect or has zero distortion. Actual output quality depends on modulation, dead time, DC-bus stability, filter behavior, feedback, load type, power level, component tolerance and temperature.

Inductors, Capacitors and Output Filters

• An inductor resists rapid changes in current.
• A capacitor provides a path for higher-frequency voltage components.
• An LC filter combines these effects to pass the intended AC component while attenuating switching content.
• A transformer may contribute inductance and voltage conversion but is not automatically a complete substitute for a designed output filter.

The voltage-source inverter reference design uses an LC filter in voltage-source mode and distinguishes it from the LCL filter used in a grid-connected configuration. Filter selection must match the application and control mode.

Filter Design, Load Conditions and Harmonic Performance

The output filter cannot be evaluated independently of the rest of the system. Relevant variables include:

• Switching and output frequency.
• Rated current and inductor saturation.
• Capacitor ripple current.
• Resonant frequency and damping.
• Control-loop bandwidth.
• Load power factor and non-linear load behavior.
• Component tolerances.
• Ambient and internal temperature.

A filter that performs well with a resistive laboratory load may behave differently with a motor, compressor, rectifier-capacitor input, transformer or long output cable. Buyers should therefore request waveform and regulation evidence under defined load conditions rather than relying only on an unloaded oscilloscope image.

Stage 5—Feedback, Regulation and Protection

Output Voltage and Current Sensing

Voltage and current sensing may support:

• RMS voltage regulation.
• Current limiting.
• Overload and short-circuit detection.
• Power calculation.
• Load-transient control.
• Fault logging.
• Display and communication functions.

In a closed-loop design, the controller compares measured output values with reference values and modifies the switching command to reduce the difference.

Maintaining Voltage Under Changing Loads

A refrigerator, pump, motor, compressor or switched-mode power supply may demand a rapid increase in current during startup. Battery voltage may fall, cable loss may increase, DC-bus voltage may change and output voltage may temporarily deviate.

Control design involves a balance:

• A response that is too slow may allow excessive voltage deviation.
• An unstable or poorly damped response can oscillate.
• A response optimized for one load may behave differently with another.
• Current limiting and protection may intentionally restrict output during abnormal conditions.

For procurement, request load-step, startup and recovery data for the selected model and application.

Fault Detection and Controlled Shutdown

A useful protection specification identifies:

• The monitored condition and activation threshold.
• Detection delay and alarm behavior.
• Output shutdown behavior.
• Automatic or manual restart.
• Hysteresis or recovery threshold.
• Applicable input, load and temperature conditions.

Potential protection categories include low or high input voltage, overload, short circuit, overtemperature, reverse polarity, abnormal output voltage and internal sensing faults. Availability and operation must be verified for the selected model.

What Determines Waveform Quality?

Waveform quality results from the interaction of reference-wave generation, modulation, switching frequency, dead time, semiconductor behavior, DC-bus ripple, magnetic design, output filtering, sensing, control-loop tuning, load type, output power, temperature and component tolerances.

Total harmonic distortion is an important metric, but a single THD figure is incomplete without its test conditions.

Buyers should evaluate these items as a set. A low THD value does not by itself prove adequate surge capability, efficiency, grounding, thermal performance or regulatory suitability.

Low-Frequency vs High-Frequency Inverter Architectures

“Low-frequency” and “high-frequency” are simplified commercial descriptions. They may refer to transformer frequency, switching frequency or the overall conversion path.

Neither category is automatically superior. A sourcing decision should be based on:

• Intended load and surge requirements.
• Input system and installation space.
• Weight limits and duty cycle.
• Temperature and noise limits.
• Isolation and grounding requirements.
• Verified model-level test results.

What B2B Buyers Should Verify with an Inverter Supplier

For Distributors and Traders

Distributors and traders need stable product definitions from sample approval through production. Verify:

• Exact model code and revision.
• Continuous and surge ratings.
• Input and output configurations.
• Socket and plug options.
• Labels, manuals and packaging versions.
• Sample-to-production consistency.
• Available model-level test documentation.
• Change-notification process.
• Spare-parts and return-handling process.
• Commercial terms through a formal quotation.

Do not rely only on a catalogue title or product photograph. Use an approved specification sheet and record which characteristics require written confirmation before production.

For System Integrators and Engineering Contractors

Integrators should assess the inverter as part of a complete power system. Confirm:

• DC operating range.
• Continuous output under expected ambient conditions.
• Surge magnitude and duration.
• Output voltage, frequency and load power factor.
• Waveform-quality requirements.
• Battery current and runtime.
• Cable and overcurrent-protection design.
• Earthing, neutral and isolation requirements.
• Compatibility with chargers, transfer switches and controllers.
• Protection coordination.
• Monitoring and remote-control requirements.
• Project-specific compliance documentation.

The assessment should use the project’s actual load list, startup profile, operating cycle and environment.

For Transportation and Outdoor Partners

Vehicle, truck, marine and field-power systems introduce mechanical and environmental constraints. Verify:

• Vehicle-bus compatibility.
• Battery and alternator behavior.
• Low-voltage shutdown and restart behavior.
• Cable length and terminal design.
• Mounting orientation and ventilation clearance.
• Ambient-temperature requirements.
• Vibration and shock requirements.
• Dust, humidity and corrosion exposure.
• Remote on/off control and idle consumption.
• Installation and maintenance access.

A bench test does not automatically demonstrate suitability for a vehicle, marine or outdoor installation.

For Professional and Commercial Buyers

Professional institutions and commercial facilities should begin with a critical-load assessment. Confirm:

• Which loads must continue operating.
• Running and startup power.
• Acceptable transfer interruption.
• Required runtime.
• Redundancy or bypass requirements.
• Output grounding and distribution.
• Electromagnetic compatibility.
• Monitoring and alarm requirements.
• Maintenance access.
• Applicable project and equipment standards.
• Whether the application is safety-critical.

A pure sine wave output label does not prove suitability for medical, laboratory, life-safety or other regulated equipment. Approval must follow the connected-equipment manufacturer’s requirements, the selected inverter’s verified documentation and the project’s applicable standards.

Buyers can review CONGSIN’s published pure sine wave inverter category when identifying candidate products. Any technical or commercial decision should still be based on the current documentation for the exact model being evaluated.

Common Misconceptions About Pure Sine Wave Conversion

1. Every pure sine wave inverter uses the same circuit.
   Different products may use transformer-based, multistage, transformerless or other architectures.
2. PWM is the final sine wave.
   PWM represents the target waveform through switching. The final output also depends on filtering, the power stage, the load and feedback regulation.
3. A pure sine wave inverter automatically includes charging or MPPT.
   Charging, MPPT, bypass and transfer functions are separate unless explicitly included in the selected product.
4. Peak power is available continuously.
   Peak or surge power normally applies for a limited duration under defined conditions.
5. One THD number represents every operating condition.
   Harmonic performance can change with input voltage, load type, load level, temperature and measurement method.
6. Pure sine wave output proves suitability for every sensitive load.
   Voltage, frequency, grounding, isolation, transfer behavior, electromagnetic compatibility and equipment-specific approval may also be required.
7. A semiconductor manufacturer’s reference design proves a commercial product’s internal architecture.
   Reference designs illustrate engineering approaches. They do not establish the topology or component selection of another manufacturer’s product.

FAQ

Discuss Your Inverter Architecture and Project Requirements

Before contacting a supplier, prepare:

• Application and installation environment.
• DC system voltage and operating range.
• Required AC voltage and frequency.
• Continuous load and largest startup load.
• Load category and power factor.
• Required runtime and ambient-temperature range.
• Target market and required documentation.
• Sample quantity and estimated annual demand.
• Branding or product-configuration requirements.
• Communication, display and remote-control requirements.
• Packaging requirements.

For additional site information, review the published Design & R&D, Quality & Reliability and OEM/ODM Customization pages.
