The Complexity of Mobile UPS Architecture

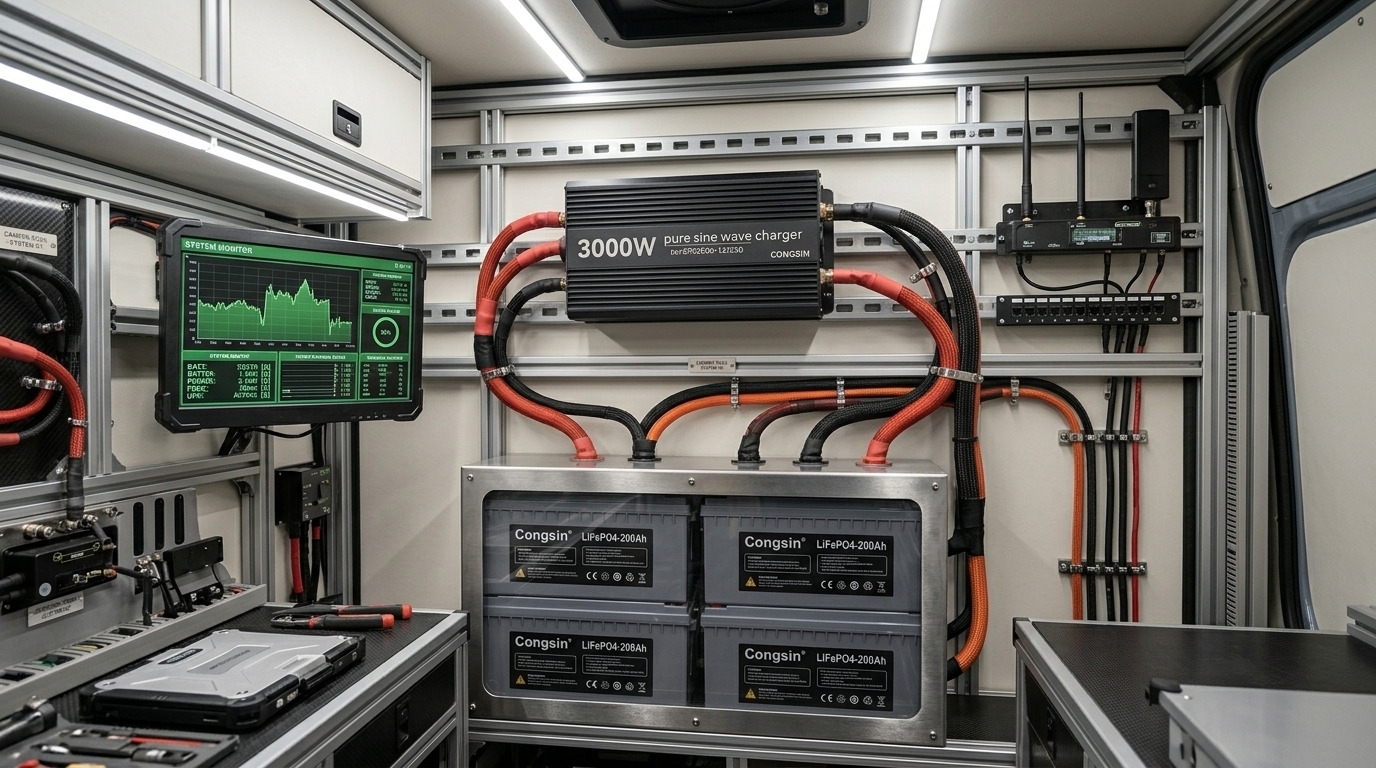

Integrating a multi-functional Uninterruptible Power Supply (UPS) inverter charger into a commercial or utility vehicle introduces severe engineering hurdles that standard static solar setups never encounter. Unlike stationary residential emergency backup configurations, a vehicle-mounted mobile microgrid operates within a harsh environment defined by high-frequency harmonic chassis vibrations, rapid ambient thermal shifts, and fluctuating input sources. Technicians are tasked with seamlessly bridging the vehicle's high-output direct current (DC) alternator system with an independent alternating current (AC) shore power input network. Executing this integration safely demands strict adherence to an engineering-grade car power inverter wiring diagram to protect multi-thousand-dollar diagnostic tools and fleet telecom equipment. Failure to calculate the precise electrical loads and current directional vectors can cause rapid component degradation, high-voltage feedback loops, or devastating vehicle electrical fires, making comprehensive system architecture design mandatory prior to physical deployment.

Decoding the Fundamental Car Inverter Circuit

A professional mobile UPS loop is fundamentally divided into two major interconnected subsystems managed by a central multi-stage control processor. Analyzing the underlying car inverter circuit reveals a closed-loop topology consisting of the auxiliary deep-cycle battery storage bank, a high-interrupt-capacity DC overcurrent protection device, the primary inversion bridge, an automated internal transfer switch, and dedicated AC/DC distribution sub-panels. The system must process direct current from the vehicle alternator during transit while completely isolating the engine's starter motor circuit. When external shore power is detected, the circuit must instantly redirect the energy flow, switching from inversion mode to high-amperage battery charging via a multi-stage profile. Mapping this circuit requires precise cable routing paths that minimize structural resistance and eliminate dangerous ground loops, providing fleet technicians with a predictable and safe operational envelope during strenuous off-grid utility shifts.

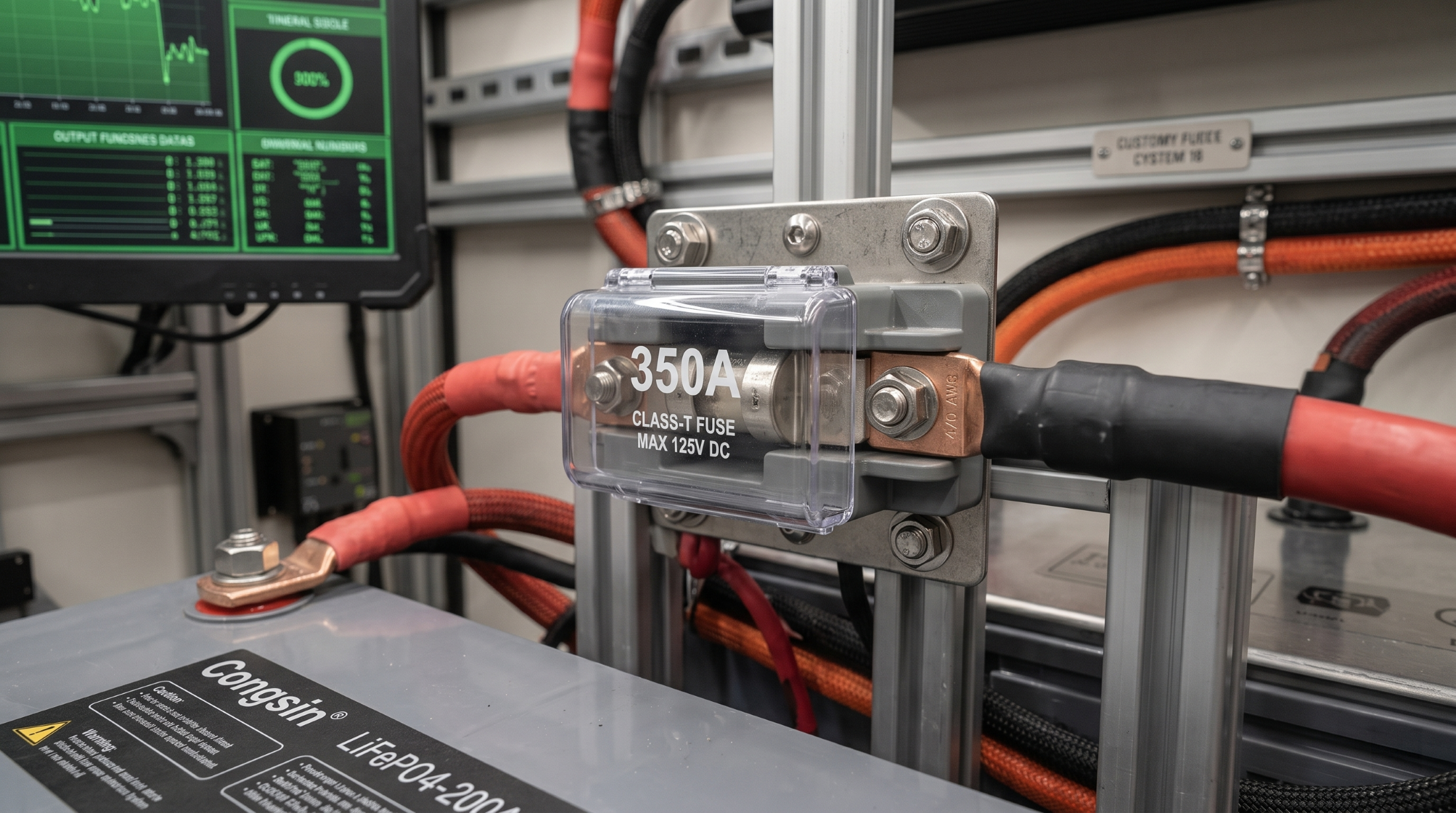

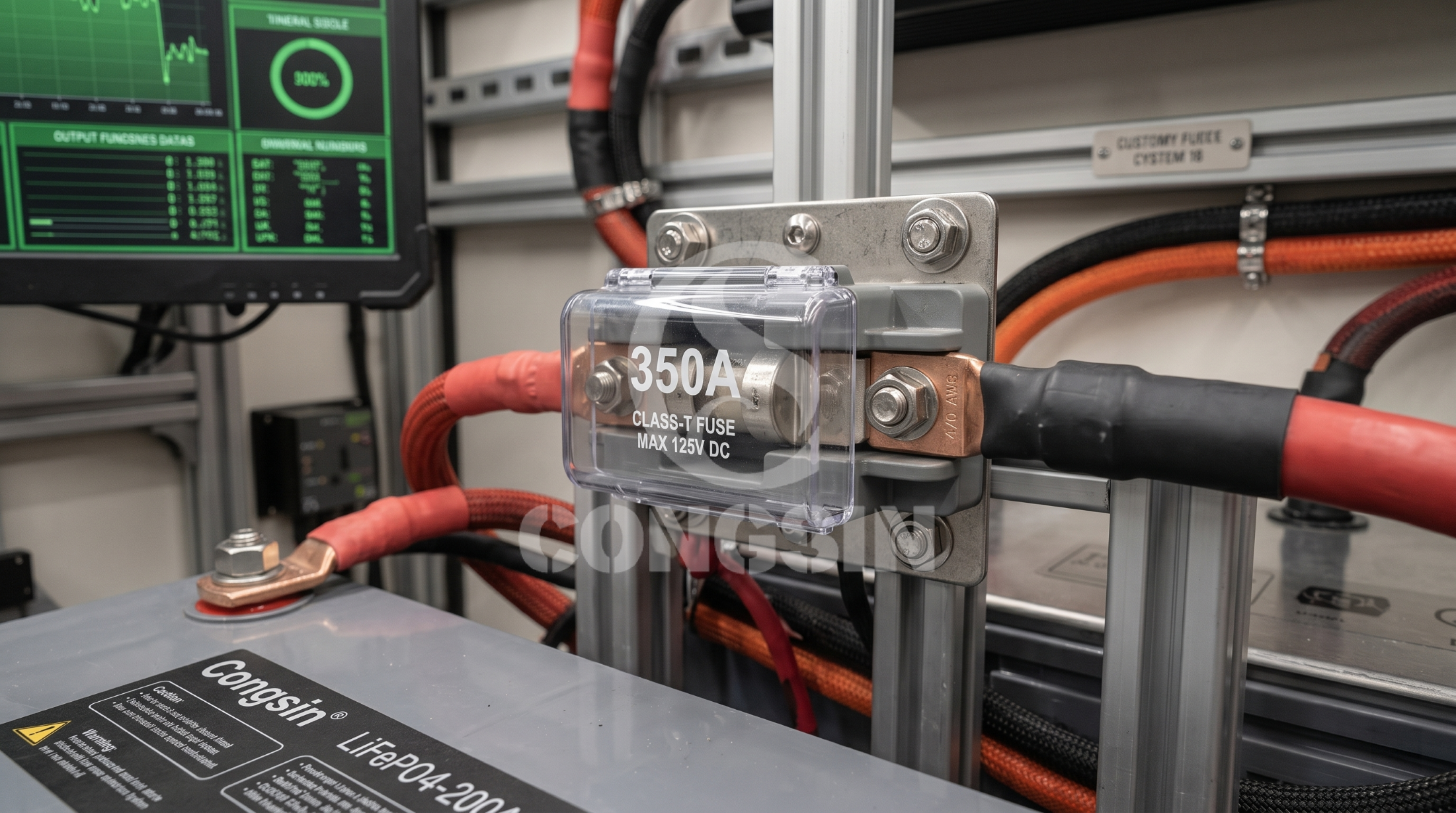

DC Cabling and Catastrophic Fuse Placement

Managing high-amperage direct current is the most critical hurdle in vehicle upfitting. When specifying the wiring architecture for a heavy-duty power inverter for truck applications, engineers must calculate cable gauge based on maximum continuous current draw plus a 25% safety margin under the National Electrical Code (NEC) ampacity tables. For instance, a 3000W inverter running on a 12V system can pull over 280 amps continuously under full load. This requires a minimum of 4/0 AWG pure oxygen-free copper wire to prevent severe voltage drop and catastrophic thermal buildup. Crucially, competitors often overlook fuse characteristics, recommending generic ANL fuses. However, modern low-internal-resistance Lithium Iron Phosphate (LiFePO₄) auxiliary batteries can release tens of thousands of amps during a dead short. Upfitters must install an explosion-proof, high-AIC Class-T fuse rated for the specific current envelope, positioned strictly within 7 inches of the positive battery terminal to immediately isolate short circuits before cables reach ignition temperatures.

Dual-Battery Isolation: Protecting the Starting Circuit

A core mistake in commercial fleet vehicle upfitting is hardwiring high-capacity mobile workstations directly to the vehicle’s primary engine battery. Standard automotive starting batteries are explicitly engineered to deliver intense, brief current bursts to turn over the combustion engine; they suffer rapid plate sulfation and permanent capacity loss when subjected to the prolonged, deep-cycle drains demanded by field equipment. Professional engineering practices dictate implementing a completely isolated dual-battery system to support a fleet vehicle power inverter configuration. The inversion hardware must be wired exclusively to a secondary auxiliary deep-cycle battery bank. This secondary storage loop is linked to the primary chassis alternator via a microprocessor-controlled solid-state smart battery isolator or a dedicated DC-to-DC multi-stage charger. This configuration permits the alternator to actively replenish the auxiliary bank during driving stints but immediately severs the physical connection when the engine halts, entirely preserving the starter battery’s capacity.

AC Wiring: Managing Shore Power and Transfer Switches

The integration of alternating current within a mobile platform requires rigorous synchronization management. When deploying the best rv inverter charger units on the market, upfitters must wire distinct AC input and AC output distribution sub-panels featuring dual-pole main circuit breakers. The internal Automatic Transfer Switch (ATS) acts as the mechanical gatekeeper between incoming utility shore power and the internal inversion bridge. When utility shore power is connected via an external shore power pedestal, the internal ATS must analyze the voltage frequency and execute a clean bypass transfer in under 10 milliseconds. This rapid transition avoids phase conflicts and voltage spikes that can permanently destroy on-board server stacks or high-end diagnostic computers. Technicians must ensure that all AC hot, neutral, and ground conductors are routed inside flame-retardant, flexible liquid-tight conduits to survive the continuous mechanical friction and chassis twisting inherent to long-haul commercial vehicle transit routes.

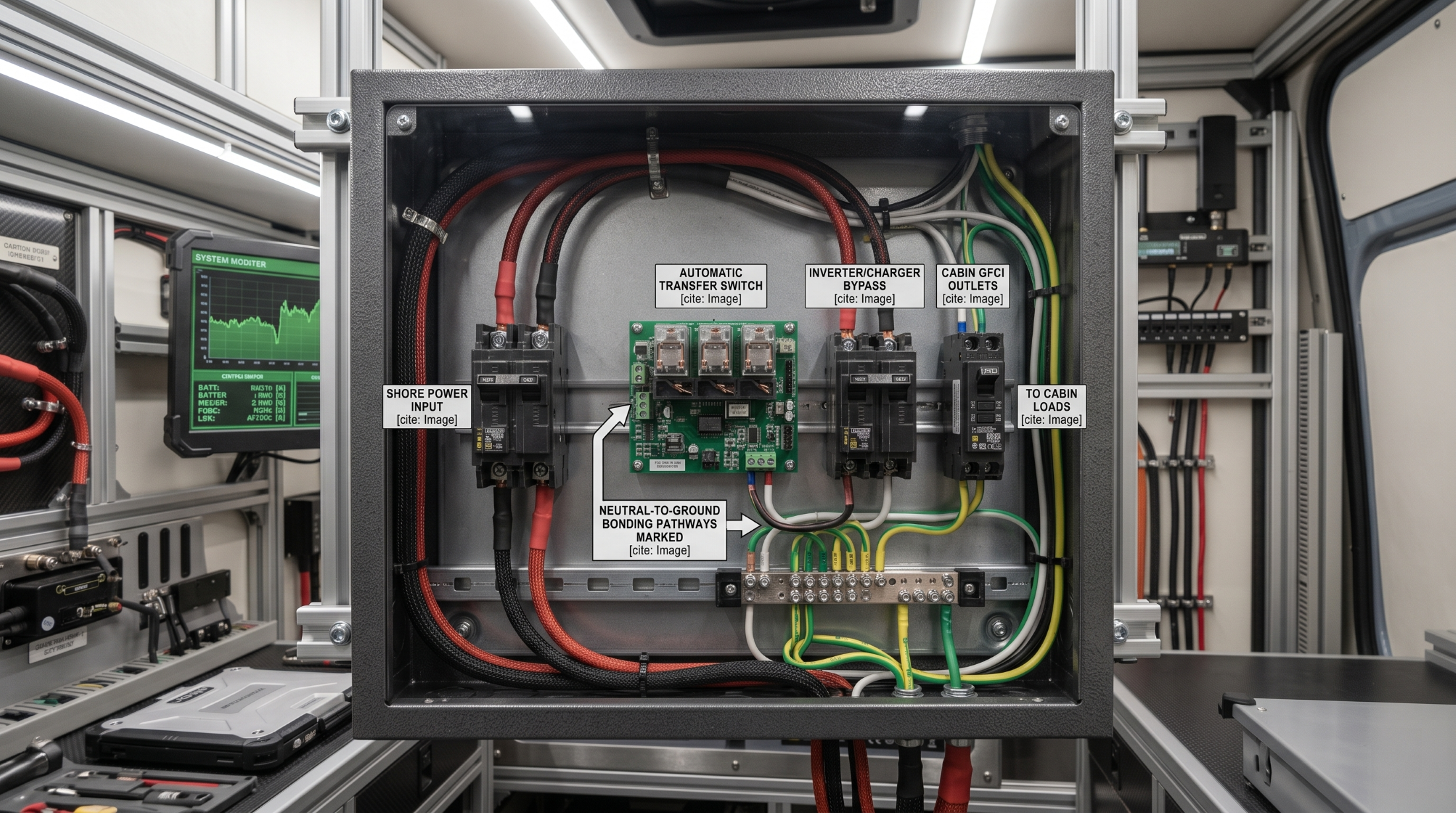

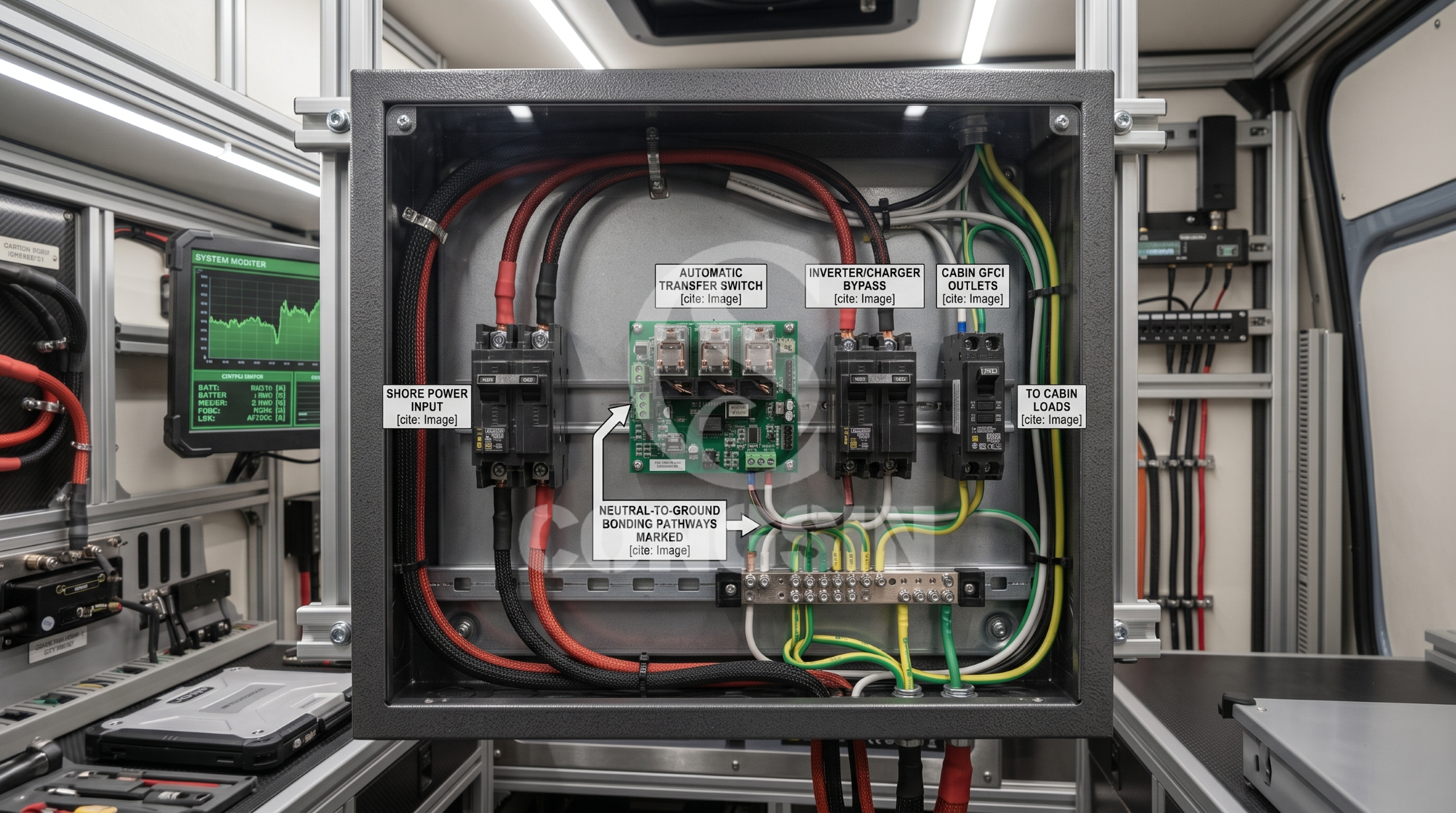

Neutral-Ground Bonding in Mobile Applications

Managing ground-fault protection is arguably the most misunderstood aspect of mobile electrical engineering. In a permanent facility, the neutral conductor is bonded to the earth ground exclusively at the primary service entrance panel. However, a vehicle is a floating microgrid on rubber tires. When a premium pure sine wave inverter for rv configuration operates in standalone inverter mode (off-grid), the unit must internally bond the AC neutral to the vehicle’s chassis ground via an internal programmatic relay. This internal bond is an absolute engineering prerequisite to establish a clear return path for fault current, allowing onboard Ground Fault Circuit Interrupter (GFCI) outlets to trip instantly during a short circuit. Conversely, the instant the vehicle connects to external shore power, this internal bond must automatically open. Breaking the internal bond allows the external utility pedestal to act as the single master ground point, entirely preventing dangerous ground loops and avoiding nuisance tripping of camp-station RCD breakers.

Thermal Clearances and Spatial Mounting Guidelines

Specialty service vans and remote telecom utility vehicles feature severely constrained interior mounting spaces. Even a highly efficient low-frequency pure sine wave inverter for heavy load mitigation handles immense current processing that naturally generates localized thermal output. Upfitting technicians must strictly avoid mounting inverter chargers upside down or inside sealed, unventilated storage lockers. Low-frequency units contain massive copper toroidal transformers that exert significant mechanical force under 3G vehicle vibration vectors; they must be bolted flat to a reinforced flooring structure or vertically onto a structural bulkhead. Upfitters are required to maintain a minimum of six inches of clear workspace around all cooling fan exhaust ports to ensure unhindered laminar air movement. Restricting this ventilation pathway forces the unit’s internal thermistors to detect rapid heat accumulation, triggering automatic thermal protection faults that shut down field operations prematurely to prevent internal MOSFET degradation.

Safety Audits and Pre-Commissioning Testing

Before delivering a newly upfitted vehicle to a commercial fleet crew, the entire electrical topology must undergo a mandatory multi-point pre-commissioning audit. Technicians must utilize a digital multimeter to execute strict continuity verification across the entire chassis ground network, ensuring that the resistance between the inverter grounding lug and the bare metal frame measures below 0.1 ohms. Following continuity checks, execute automated polarity inspections on all AC distribution legs and utilize an adjustable load bank to perform voltage drop diagnostics across the main DC cabling links under maximum wattage strain. Verifying that the voltage drop remains under the strict 3% industrial threshold proves that all crimps, lug terminations, and fuse blocks possess optimal mechanical compression. This comprehensive quality control protocol completely de-risks field operations, eliminating intermittent power dropouts, securing enterprise safety compliance, and validating the structural integrity of your mobile power infrastructure before deployment.

Conclusion: Reliable Infrastructure with CONGSIN

Architecting an unyielding mobile power workstation demands an uncompromising alignment of precise schematic layout, proper component selection, and strict adherence to safety standards. From calculating correct DC cable ampacity to managing the complex physics of dynamic neutral-ground bonding relays, vehicle upfitters require robust hardware engineered explicitly for mobile volatility. CONGSIN stands at the absolute pinnacle of power inversion manufacturing, engineering heavy-duty, globally certified pure sine wave inverter chargers built specifically to withstand the rigorous vibration and thermal demands of specialty vehicle integration. Our solutions empower fleet operators to construct resilient mobile microgrids with absolute confidence. Partner with CONGSIN to secure a world-class manufacturing ally and lock in unbreakable power continuity for your most critical field infrastructure applications.

Frequently Asked Questions (FAQs)

• Why is a precise car power inverter wiring diagram critical for UPS inverter installations?

  Unlike basic conversion units, a specialized mobile UPS inverter charger handles complex, bidirectional current routing (converting DC battery power to AC equipment lines and transforming AC shore power to DC charging paths). A comprehensive wiring diagram avoids catastrophic cross-wiring or out-of-phase feedback loops between utility grid input and the inverter's internal bridge, eliminating severe electrical shocks and immediate component destruction.

• Where should the main DC fuse be located in a car inverter circuit?

  The primary catastrophic overcurrent protection device (such as an industrial Class-T fuse) must be hardwired onto the positive DC line as close to the auxiliary battery terminal as physically possible, strictly adhering to the 7-inch (18 cm) limit. This precise location guarantees that the entire physical length of the heavy-gauge conductor is protected against short circuits to the metal vehicle chassis frame.

• What cable gauge (AWG) is required for a 3000W heavy-duty power inverter for truck integration?

  On a standard 12V system architecture, a heavy-duty 3000W unit under peak load can pull upwards of 280-300 amps from the battery bank. Industry upfitting regulations mandate using a minimum of 4/0 AWG pure oxygen-free copper cabling. Keeping the physical length of the cable below 5 feet is mandatory to maintain voltage drop strictly under the critical 3% operational threshold.

• How does a fleet vehicle power inverter protect the engine's starter battery from draining?

  Professional mobile wiring loops isolate the vehicle's engine starting battery from the high-capacity deep-cycle auxiliary battery bank using a microprocessor-controlled Smart Battery Isolator or a DC-to-DC multi-stage charger. This allows the high-output alternator to replenish the entire network during driving stints but physically severs the link when the engine halts, preventing the inverter from compromising the starting circuit.

• How is AC neutral-ground bonding handled in the best RV inverter charger systems?

  High-end vehicular inverter chargers incorporate an internal dynamic bonding grounding relay. When operating off-grid in inverter mode, the internal relay automatically links the AC neutral to the vehicle chassis ground, permitting onboard GFCI breakers to trip during a fault. When connected to external utility shore power, the relay opens instantly, allowing the external station ground pedestal to serve as the sole bonding point and eliminating dangerous ground loops.

• Can I mount a low-frequency pure sine wave inverter for a heavy load upside down inside a utility van?

  It is highly discouraged. Low-frequency inverters house massive, heavy copper toroidal transformers. Mounting the unit upside down shifts the internal structural load onto unintended support tabs and circuit board brackets under continuous chassis vibration vectors. Always mount units flat to a reinforced floor panel or vertically against a structural bulkhead following clear thermal clearance paths.
