The Definitive Architecture of Bidirectional Inverters: Grid Integration and Energy Management

From One-Way Conversion to Controlled Bidirectional Power Flow

Traditional power grids operated on a unidirectional model: central generation distributed power outward to passive consumers. The widespread adoption of Distributed Energy Resources (DERs) has altered this paradigm. By enabling energy to flow both into and out of storage assets, bidirectional power conversion supports active energy management, demand response, and local resilience. However, bidirectional power flow is not a plug-and-play standard for every project; it requires careful integration of hardware, software, and regulatory compliance to ensure safety and stability.

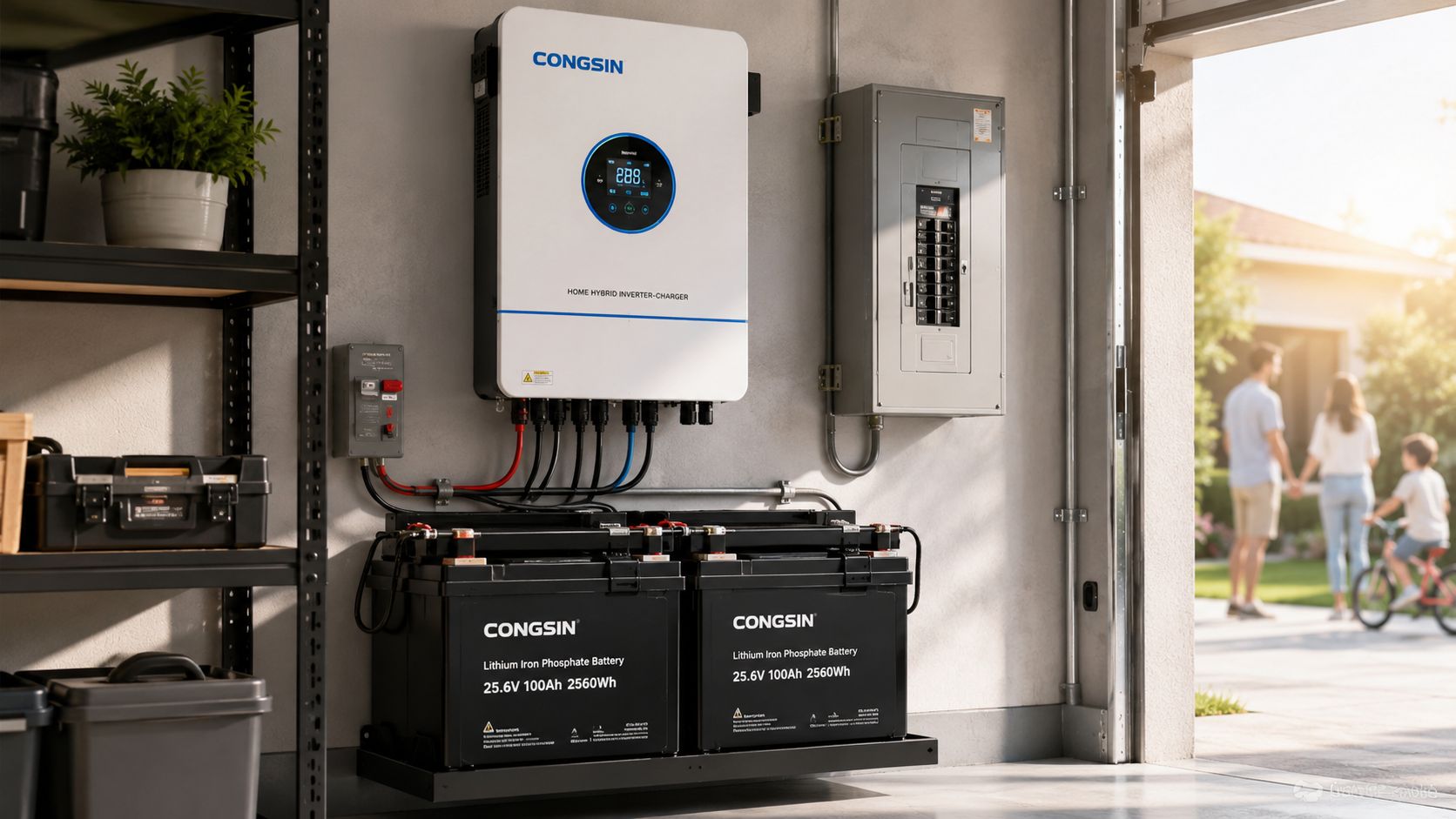

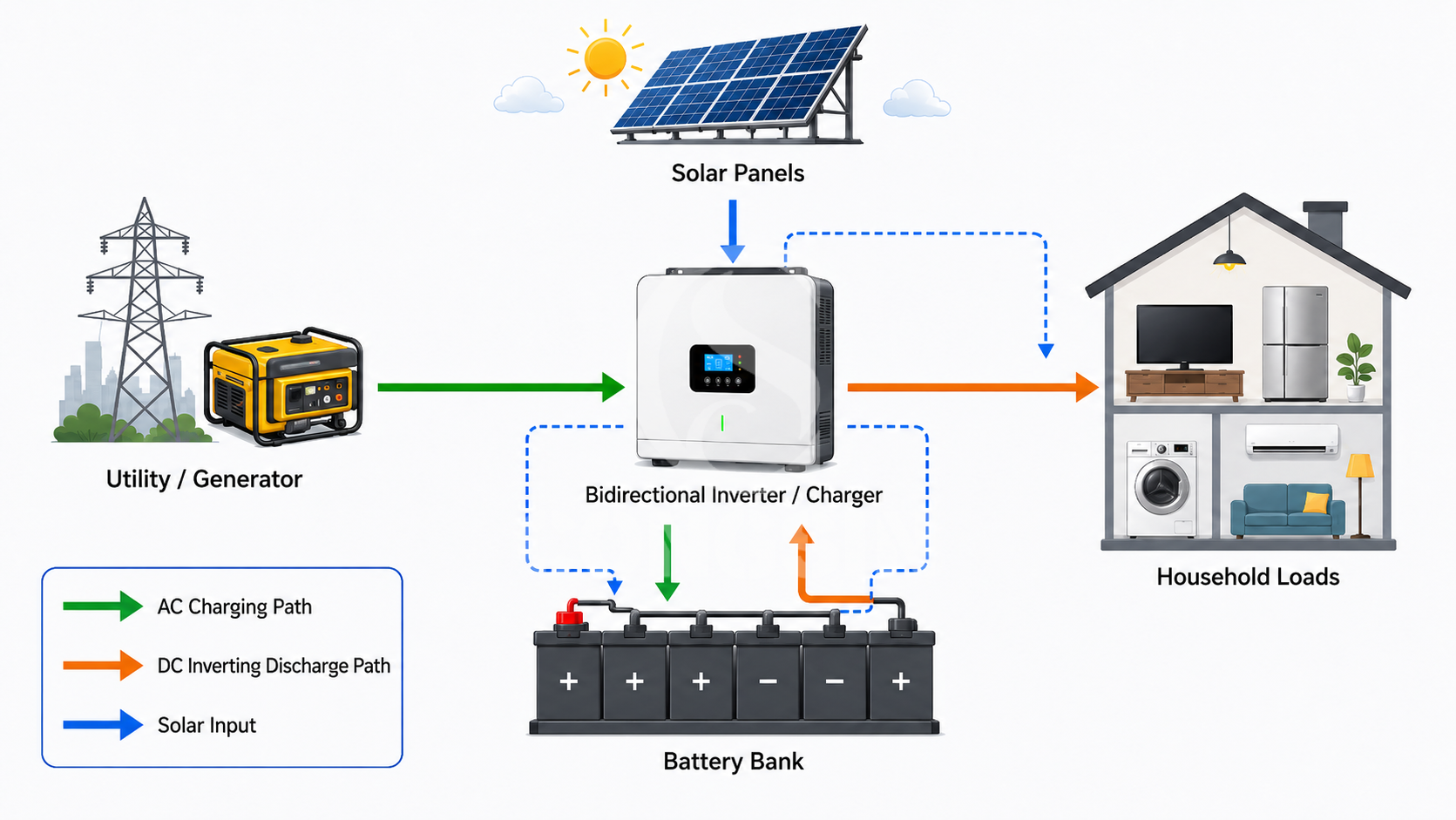

Reference Architecture of a Bidirectional Inverter System

A true bidirectional inverter extends far beyond a simple AC/DC module. It is a highly coordinated chain of power, control, and communication subsystems.

1. AC Grid or Local Load Interface: Manages grid or load connections, measuring voltage, frequency, and phase sequence. Incorporates contactors, fuses, circuit breakers, surge protection, and safety relays.
2. EMI or LCL Filter: Responsible for switching-harmonic control, grid-tied current quality, common-mode and differential-mode noise mitigation, and overall EMC performance.
3. Bidirectional AC/DC Power Stage: The core switching matrix executing AC-to-DC rectification and DC-to-AC inversion, governing active and reactive power control and power-direction switching.
4. DC-Link: Comprises DC-link capacitors, pre-charge circuitry, voltage sensing, active discharge circuits, and ripple management.
5. Optional Bidirectional DC/DC Stage: Inclusion depends on the battery voltage range, DC-link requirements, isolation strategy, voltage step-up/step-down needs, and battery charge/discharge control logic.
6. Isolation Boundary: Can be located internally at a high-frequency DC/DC stage, internally via a low-frequency transformer, or externally as a system-level AC transformer.
7. Battery and BMS Interface: Monitors voltage, current, temperature, State of Charge (SoC), charge/discharge limits, and fault states.
8. DSP, Sensors and Protection Controller: Executes current and voltage control loops, state machines, grid synchronization, protection limits, power commands, and fault-handling logic.
9. EMS, SCADA and Communication: Facilitates external control via CAN, Modbus, Ethernet, RS485, project-specific APIs, or site-controller interfaces.
10. Auxiliary Power and Thermal System: Provides internal low-voltage auxiliary power and manages air or liquid cooling, temperature monitoring, thermal derating, and cooling-failure response.

A bidirectional inverter should therefore be evaluated as a coordinated power-conversion and control system rather than as a single AC/DC switching module.

Charge, Discharge, Grid-Following, and Grid-Forming Modes

Understanding the capabilities of a bidirectional inverter requires separating power direction, internal control modes, and external system scenarios.

Power Direction

• Charge Mode: Converts AC to DC. However, charging voltage, current, and power limits are jointly dictated by the BMS, device controller, EMS, battery temperature, and SoC.
• Discharge Mode: Converts DC to AC. The output capability depends on battery power limits, DC voltage, thermal states, grid or load conditions, and protection boundaries.

Control Modes

• Grid-Following: Follows an externally established voltage and frequency reference and regulates active or reactive current within defined operating limits.
• Grid-Forming: Establishes or regulates a voltage and frequency reference and may support islanded microgrids, black start, weak-grid operation, or selected grid-connected functions depending on the validated design.

System Scenarios

• Grid-Connected Export: Requires active synchronization, grid-interconnection protection, utility permission, metering, and dispatch coordination.
• Intentional Islanding: Requires approved transfer or isolation equipment, a defined neutral/ground strategy, grid-forming control, load management, and a controlled restoration sequence.

Converter and System Isolation Options

The choice of isolation impacts safety, footprint, and system-level grounding.

Digital Control, Synchronization, and Grid Protection

Advanced digital processing is the brain of the operation. DSP or microcontroller platforms execute coordinated current, voltage, power, synchronization, state-machine, and protection functions at application-specific sampling and switching rates.

Grid-following designs commonly use Phase-Locked Loop (PLL) or other synchronization methods to estimate grid phase and frequency. The system remains within defined voltage, phase, and frequency synchronization tolerances before connection.

Protection behavior must follow the required ride-through, trip, anti-islanding, reconnection, and utility-interconnection settings for the exact model and jurisdiction. Buyers should request specific evidence of these capabilities:

• Operating-state diagram and Grid connection sequence
• Ride-through settings and Trip thresholds
• Anti-islanding test results and Reconnection sequence
• Fault recovery and Protection coordination

Power Semiconductor Selection: Si, SiC and GaN

Silicon Carbide (SiC) and Gallium Nitride (GaN) may enable higher switching frequencies and lower switching losses in suitable applications, but they are not universally interchangeable upgrade paths.

Device selection must be evaluated against voltage class, current, power level, thermal limits, switching behavior, packaging, EMC, qualification, availability, and total system cost. Integrating wide-bandgap components requires careful project-level trade-offs regarding high dv/dt stresses, common-mode noise, gate driver design, PCB layout parasitics, insulation stress, and EMC filtering.

BESS and Commercial Microgrid Integration

A bidirectional inverter acts as a core power-conversion subsystem within many BESS (Battery Energy Storage System) installations, but it operates alongside other critical intelligence layers. Clear responsibility boundaries must be established:

• Inverter/PCS: Responsible for power conversion, current and voltage control, partial protection, and operating-mode execution.
• BMS (Battery Management System): Responsible for battery safety, SoC, temperature monitoring, current and voltage limits, and fault states.
• EMS (Energy Management System): Responsible for peak management, tariff strategy, load shifting, dispatch, and energy scheduling.
• Site Protection and Switchgear: Responsible for physical isolation, breaking capacity, protection coordination, and defining the interconnection boundary.

When supported by the inverter, battery system, EMS, site controls, and interconnection agreement, the installation may perform peak management, load shifting, reactive-power control, backup operation, or approved grid services.

V2G and Mobile Energy Applications

Compatible vehicles may participate as mobile energy resources within approved V2G (Vehicle-to-Grid), V2B (Vehicle-to-Building), or backup-power architectures.

To execute this, ISO 15118-20 defines communication messages and sequencing that support bidirectional power transfer between compatible EVs and EVSEs. However, final charging or discharging authorization also depends on vehicle limits, EVSE status, site policies, cybersecurity, and grid-interconnection conditions. Furthermore, vehicle-OEM approval, battery-warranty conditions, minimum SoC, temperature limits, and cycling policies must be evaluated separately by the fleet operator.

Thermal, Duty-Cycle and Transient Validation

Depending on the application, a bidirectional inverter may experience sustained power export, frequent power-direction changes, short-duration overloads, or long standby periods. Thermal and transient validation should therefore match the intended operating profile.

Thermal Validation Evidence: Buyers should review continuous-output duration, charge/discharge transition frequency, ambient temperature range, cooling methods, derating curves, semiconductor and magnetic hotspots, capacitor temperatures, and cooling-failure response mechanisms.

Transient Capability: If the system is required to support HVAC systems, motors, pumps, transformers, or grid-forming backup loads, buyers must verify specific transient data. This includes over-current limits, voltage dips, duration allowances, DC source response, load shedding logic, black start capability, and transfer sequencing.

Potential Safety, Grid-Interconnection, and Market-Access Frameworks

Applicable requirements depend on power level, voltage, topology, system function, target market, installation method, and local utility rules. Buyers should request exact model numbers, report scopes, laboratory details, validity statuses, and supported operating modes.

• Product and Safety Evaluation: UL 1741, applicable UL 1741 supplements, specific product safety standards, and documentation from a recognized laboratory outlining the model scope.
• Grid Interconnection Requirements: IEEE 1547, IEEE 1547.1, EN 50549-1 or EN 50549-2, and compliance with local utility or DSO (Distribution System Operator) requirements.
• Market Access and Product Documentation: Applicable electrical-safety requirements, EMC testing, CE technical documentation, Declaration of Conformity, and adherence to installation and labelling requirements.

OEM Evaluation Checklist

For system integrators and distributors, evaluating an OEM manufacturing partner requires a structured review of both R&D validation foundations and manufacturing readiness.
