Advanced Residential Energy Storage: Coupling Bidirectional Inverters with Lithium Banks

Introduction: The Evolution of Advanced Residential Storage

In the modern landscape of residential and mobile power systems, achieving true energy independence and protecting household appliances are top priorities for homeowners, system integrators, and outdoor enthusiasts. As regional utility grids face increasing strain from aging infrastructure and extreme weather, traditional passive backup options are no longer sufficient. The modern standard for domestic and mobile power relies on resilient microgrid engineering. Specifically, it requires the seamless coupling of bidirectional inverters with advanced lithium battery banks—creating an energy system capable of autonomously managing power routing, isolating itself during grid anomalies, and sustaining continuous multi-device operation.

Deconstructing the Core: Why Advanced Storage Requires Bidirectional Inverters

At the heart of modern energy resilience is a highly specialized power conversion device known as a bidirectional inverter (or single-stage hybrid inverter). To fully harness the potential of a high-capacity lithium bank, the system must simultaneously manage DC-to-AC power conversion for active household loads and AC-to-DC rectification for battery charging.

This single-unit topology eliminates the need for separate grid-tie inverters and MPPT charge controllers that conventional, fragmented residential storage systems require. For households, mobile platforms, and off-grid cabins, this consolidated architecture significantly reduces wiring complexity, mitigates component compatibility mismatches, and allows intelligent scheduling of charge and discharge cycles based on real-time solar availability or grid tariff fluctuations.

Commercial Case Study: Validating the Need for Robust Inverter Solutions

Understanding why bidirectional and high-capacity inverters are critical is best illustrated by the operational failures of traditional, low-capacity alternatives in demanding markets.

Battery Chemistry and Inverter Configuration: The LiFePO4 Advantage

Selecting the correct battery chemistry dictates the configuration parameters and long-term economic viability of the coupled inverter system. Lithium Iron Phosphate (LiFePO₄) has become a widely adopted chemistry across the home and mobile storage sectors due to its thermal stability and predictable voltage discharge profile.

Unlike legacy lead-acid batteries, whose terminal voltage drops sharply under heavy discharge, LiFePO4 chemistry maintains a flat discharge curve, supplying stable voltage across 80% of its capacity cycle. Based on IEC 62619 testing standards for lithium cells, LiFePO₄ batteries cycled at a controlled 80% Depth of Discharge (DoD) routinely deliver 2,000 to 5,000 charge cycles—nearly doubling the total lifetime energy throughput compared to packs subjected to unregulated 100% DoD cycles. A smart bidirectional inverter coordinates directly with the lithium battery's integrated BMS via CAN bus or RS485 protocols, continuously adapting charge currents and low-voltage cutoffs based on real-time cell telemetry to maximize this lifecycle advantage.

Surge Current Management: Keeping Inductive Loads Online

The primary vulnerability in residential off-grid and mobile power configurations is the severe voltage depression that occurs when an inductive load cycles on. Appliances driven by electric motors—such as residential deep-well pumps, compressor refrigerators, and RV air conditioners—demand a massive surge current during startup that can reach 3 to 5 times their continuous running power.

If a compact high-frequency inverter lacks sufficient surge capacity, this instantaneous current spike collapses the localized AC bus voltage, triggering an overcurrent fault and shutting down the entire system. Low-frequency transformer bidirectional inverters natively solve this dilemma by leveraging heavy iron-core topologies that provide robust magnetic saturation limits, allowing the hardware to sustain transient overloads of 200% to 300% for 10 to 20 seconds.

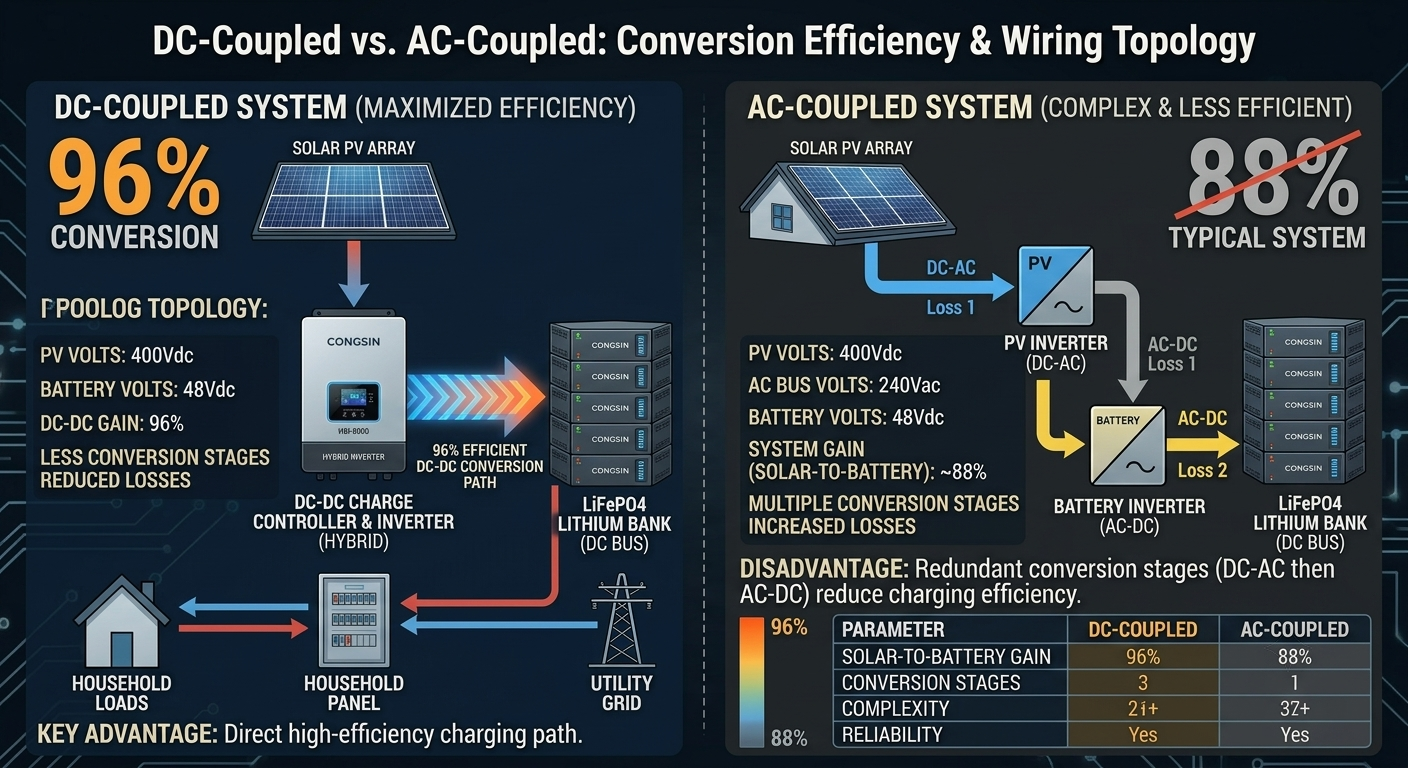

System Integration Matrix: AC Coupling vs. DC Coupling

Evaluating AC vs. DC-coupled solar systems shapes the mechanical footprint, conversion efficiency, and overall wiring architecture of a residential or mobile storage installation.

For recreational vehicles and off-grid mobile platforms, DC coupling represents the industry-preferred architecture. Because mobile setups have no legacy grid-tied inverters to preserve, a direct DC-coupled inverter minimizes space requirements, eliminates weight penalties, and ensures the highest possible conversion efficiency from portable solar blankets to the lithium battery bank.

Time-of-Use Arbitrage: Maximizing Financial Returns

For households remaining tied to a centralized utility grid, a bidirectional inverter utilizes its internal scheduling algorithms to execute time-of-use energy arbitrage. In regions featuring time-differentiated tariffs, utility rates peak drastically during late afternoon and evening hours, while dipping significantly overnight.

The bidirectional inverter automatically programs itself to draw AC power from the grid during low-cost, off-peak night windows to charge the lithium battery bank at an optimized rate. When peak pricing hours initiate, the inverter shifts modes, discharging the stored battery energy to power household appliances and completely offsetting expensive grid imports. Factoring in a typical 93% round-trip efficiency profile, this automated shifting significantly accelerates the system's Return on Investment (ROI) while acting as a reliable residential buffer against grid volatility.

Global Grid Compliance and Distributor Verification Standards

Because residential and mobile power systems interface directly with localized AC distribution networks, they must strictly adhere to regional safety and grid-connection codes. Inverters failing to prove rigorous compliance risk customs rejection, utility interconnection refusal, or the termination of home insurance policies.

OEM Sourcing and Supply Chain Channel Empowerment

For international B2B buyers and mid-sized distributors, establishing a market presence requires more than standard factory procurement. Sourcing from a factory-direct provider that offers structured OEM customization and private labeling allows distributors to build proprietary brand equity. This involves deep firmware customization, localized acoustic and thermal designs, and matching robust inverter hardware with targeted retail channel enablement to ensure seamless lithium battery coupling in diverse global markets.

Modular Project Scaling and Capacity Planning

As household energy demands expand due to the integration of electric vehicle (EV) charging stations or modern heat pumps, capacity planning becomes essential. Scalable bidirectional systems allow multiple identical inverter modules to operate in a parallel configuration across a shared AC bus.

This parallel architecture requires high-speed inter-unit communication to ensure perfect synchronization of voltage phase, amplitude, and frequency. Implementing parallel-capable hardware gives engineering contractors the flexibility to design modular residential storage projects that offer built-in N+1 power redundancy, ensuring the home remains fully operational even if a single unit requires maintenance.

Conclusion: Engineering the Future of Home and Mobile Power

In the modern landscape of residential and mobile energy, coupling advanced lithium banks with bidirectional inverters is no longer a luxury upgrade; it is a fundamental lifeline for household comfort, safety, and energy independence. Navigating complex grid dynamics and power management requires deeply integrated, professional-grade power electronics.

With over 27 years of OEM/ODM manufacturing excellence, CONGSIN engineers highly reliable bidirectional and mobile inverters built specifically to handle the rigorous demands of home energy storage, off-grid cabins, and RV power systems. Whether you are a system integrator designing off-grid living solutions or a global distributor scaling autonomous home energy products across North American, European, or Middle Eastern markets, CONGSIN provides the factory-direct technical support, verifiable laboratory testing, and compliant hardware necessary to keep your clients powered and protected anywhere in the world.
