Battery Bank Sizing for Pure Sine Wave Inverters: Capacity, Discharge Rate, Efficiency and Reserve Time

Key Takeaways

• Battery sizing should begin with the load profile, not a guessed Ah value.
• Ah must be evaluated together with battery voltage because stored energy is measured in watt-hours.
• Inverter efficiency affects how much battery energy is required to deliver a given amount of AC energy.
• Allowable depth of discharge determines how much nominal battery capacity is intended to be used.
• Battery capacity and battery discharge capability are separate checks.
• Lower-voltage battery systems generally require higher current for the same AC power demand.
• Series and parallel arrangements affect total voltage, Ah, current sharing, and system design.
• Runtime, reserve margin, autonomy, and recharge time should be defined separately.
• The charging source must be able to restore the required battery energy before the next operating cycle.
• Exact efficiency, standby consumption, battery compatibility, discharge limits, charging behavior, and commercial terms remain model- and project-specific.

Why Battery Bank Sizing Matters in Solar and Backup Power Systems

Battery bank sizing is one of the central design decisions in a pure sine wave inverter system. A battery bank that is too small may fail to provide the required runtime. A battery bank with insufficient discharge capability may trigger battery-management or inverter protection during startup, even when its nominal energy capacity appears adequate.

For solar and backup power systems, the battery bank affects:

• Practical runtime
• Startup performance
• Inverter stability
• Battery-side voltage drop
• Cable current
• Charging recovery time
• Load prioritization
• Future expansion
• Overall system reliability

Battery sizing should therefore be treated as a system-planning task rather than a standalone product specification. For broader system context, buyers can review the pure sine wave inverter guide.

Battery Size Is Not Only an Ah Number

Amp-hours describe electrical charge, but they do not show the complete stored energy unless battery voltage is also known.

Battery energy in Wh = Battery voltage × Battery Ah

Two battery banks with the same Ah rating may store different amounts of energy when their system voltages differ. Buyers should therefore compare Wh, Ah, voltage, usable capacity, and discharge capability together.

How Pure Sine Wave Inverters Affect Battery Planning

A pure sine wave inverter converts DC battery energy into AC output. During this process, some energy is used by the inverter itself or lost through conversion and heat.

Actual conversion performance may vary according to:

• Inverter model
• DC input voltage
• AC load level
• Ambient temperature
• Operating mode
• Standby condition
• Connected-load behavior

Battery sizing should include an efficiency adjustment. Buyers should request efficiency information that applies to the exact inverter model and intended load range.

Why Buyers Need a Confirmed Load Profile

A complete load profile should identify:

• Each connected device
• Running power
• Startup or surge behavior
• Operating time
• Duty cycle
• Simultaneous operation
• Load priority
• Critical and optional loads
• Future expansion

Key Inputs Before Calculating Battery Size

Before calculating battery size, collect the project inputs that affect capacity, current, runtime, charging, and reserve planning.

If the project also requires inverter power and surge sizing, buyers can review how to size a pure sine wave inverter.

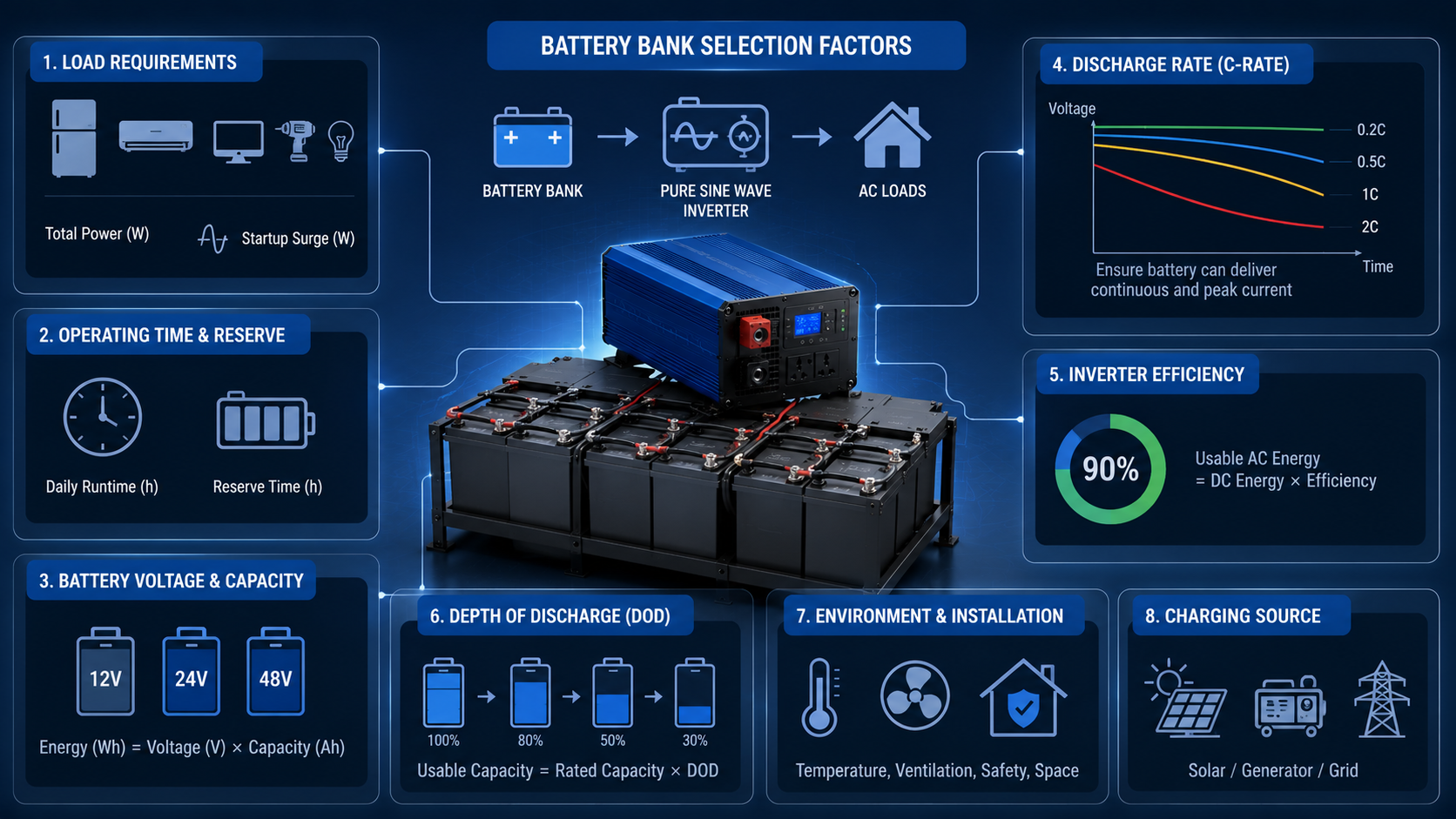

Battery bank selection should review load requirements, operating time, voltage platform, discharge rate, inverter efficiency, depth of discharge, installation environment and charging source.

Running Watts and Startup Watts

Running watts describe the power a device uses during normal operation. Startup watts describe short-duration demand that may occur when equipment such as a motor, compressor, pump, fan, or tool starts.

Running power supports the energy calculation. Startup demand should be checked separately against:

• Inverter surge behavior
• Battery current
• BMS current limits
• Battery-side voltage drop
• Cable and connector requirements
• Protection response

A short startup event may contribute little to total Wh consumption but still require high instantaneous current.

Required Runtime, Reserve Margin, Autonomy, and Recharge Window

Battery Voltage: 12V, 24V, and 48V System Planning

Battery voltage affects current demand. For the same AC load, a lower DC voltage generally requires higher DC current.

Higher current can increase:

• Cable loss
• Voltage drop
• Connector stress
• Protection-device requirements
• Heat
• Installation complexity

The selected battery voltage must match the inverter input requirements and overall system design.

Inverter Efficiency and System Losses

System losses may include:

• Inverter conversion loss
• Cable and connector loss
• Battery-side voltage drop
• Standby consumption
• Low-load operation
• Temperature effects
• Battery aging
• Charging losses

For additional context, buyers can review the pure sine wave inverter efficiency guide.

Capacity Planning: From AC Load to Battery Wh and Ah

The following process supports early-stage planning, RFQ preparation, and system comparison. It does not replace model-specific engineering review.

Step 1: Calculate Total AC Energy Demand

AC energy demand = Load power × Operating time

When several loads operate, calculate each load separately. If loads operate at different times, use the operating time or duty cycle of each load rather than multiplying one total wattage value by one universal time.

Total AC energy = P1 × T1 + P2 × T2 + P3 × T3
This symbolic example explains the method and does not represent a CONGSIN model specification or project recommendation.

Step 2: Adjust for Inverter Efficiency

Required DC energy = Total AC energy ÷ Inverter efficiency

The efficiency value should come from the selected inverter’s applicable documentation or defined test condition. A fixed efficiency should not be assumed for every model or load level.

Step 3: Convert Battery Wh to Ah

Initial battery Ah = Required DC energy ÷ Battery voltage

This is the battery capacity before applying allowable depth of discharge and reserve margin.

Step 4: Adjust for Allowable Depth of Discharge

Depth-of-discharge-adjusted Ah = Initial battery Ah ÷ Allowable DoD

Allowable depth of discharge may depend on:

• Battery type and design
• BMS settings
• Cycle-life target
• Temperature
• Project requirements
• Battery-supplier guidance

Step 5: Add Reserve Margin

A reserve factor may account for:

• Load uncertainty
• Longer-than-planned runtime
• Battery aging
• Temperature changes
• Cable losses
• Future expansion
• Charging delays
• Additional standby use

Final planning Ah = Depth-of-discharge-adjusted Ah × Reserve factor

Combined Planning Relationship

Battery Current and Discharge-Rate Planning

Capacity determines how much energy is stored. Discharge capability determines how quickly that energy can be delivered.

Approximate DC current = AC load power ÷ inverter efficiency ÷ battery voltage

Actual battery current may vary with:

• Battery voltage under load
• Inverter efficiency
• Changing AC demand
• Startup conditions
• Cable loss
• Temperature
• Battery condition

Continuous Current Demand

Planned continuous current should be reviewed against:

• Battery continuous-discharge limit
• BMS continuous-current limit
• Cable design
• Connector rating
• Fuse or protection design
• Inverter DC-input requirements

Startup and Surge Current

Startup review should consider:

• Inverter surge capability
• Surge duration
• Battery discharge limit
• BMS peak-current behavior
• Battery voltage drop
• Cable and connection quality
• Protection response

Startup power should not be treated only as an energy-capacity issue. It is primarily a short-duration current and system-response issue.

Battery Chemistry and BMS Limits

Different battery types and battery-management systems may have different:

• Continuous discharge limits
• Peak discharge limits
• Protection settings
• Temperature behavior
• Charging requirements
• Balancing requirements
• Low-voltage cutoff behavior

Series and Parallel Battery-Bank Planning

Battery-bank arrangement affects total voltage, total Ah, stored energy, current sharing, and protection design.

Series Connections

• Total voltage generally increases by adding the battery voltages.
• Ah does not normally add across a single series string.
• Total Wh increases because the total string voltage increases.
• The final series voltage must match the inverter input requirement.

Parallel Connections

• Voltage generally remains at the battery-string voltage.
• Ah generally increases by adding matched parallel-string capacities.
• Available current may be shared between properly designed parallel strings.

Parallel systems require careful attention to:

• Battery matching
• Cable symmetry
• Protection
• Connection method
• Current sharing
• BMS compatibility
• Maintenance access

Series-Parallel Systems

1. Establish the inverter’s required DC voltage.
2. Define the number of batteries needed in each series string.
3. Calculate the energy and Ah of one complete string.
4. Determine whether additional matched parallel strings are required.
5. Review current sharing, protection, cable design, and battery consistency.

Batteries should not be mixed casually across different models, capacities, chemistries, states of charge, or aging conditions. Final connection rules should follow the relevant battery and system documentation.

Charging Source and Recovery-Time Planning

Battery capacity and battery recovery are different planning problems. A battery bank may provide the required runtime but still be unsuitable if the charging source cannot restore the required energy before the next operating cycle.

Charging Inputs to Define

• Charging source
• Available charging power
• Charger or controller output
• Charging schedule
• Solar-production window
• Grid availability
• Vehicle-charging availability
• Charging efficiency
• Simultaneous charging and load operation
• Time between discharge cycles
• Required recovery state

Solar Charging

Solar charging may vary with:

• Solar-array output
• Weather
• Shading
• Daylight hours
• Charge-controller behavior
• Battery state
• Simultaneous load demand

Grid or Generator Charging

• How long charging power is available
• Whether charging occurs while loads remain connected
• The effective charging output available to the battery bank
• The required recovery time after an outage or discharge cycle

Recovery-Time Planning Relationship

Recharge time depends on the energy that must be restored ÷ effective charging power

Effective charging power and the actual recharge process depend on the battery, charger, controller, system losses, and charging profile. They should be confirmed for the project.

Efficiency Losses That Affect Practical Runtime

Inverter Conversion Losses

A pure sine wave inverter requires energy to operate and convert DC input into AC output. Exact conversion performance may vary by model, load percentage, input voltage, temperature, and operating condition.

Cable Loss and Battery-Side Voltage Drop

Higher battery-side current can increase:

• Voltage drop
• Heat
• Energy loss
• Protection sensitivity

Cable length, cable size, connectors, current, and installation quality should be reviewed as part of the battery system.

Standby Consumption and Low-Load Operation

For systems that remain powered on while waiting for use, buyers should review:

• No-load consumption
• Standby consumption
• Sleep or power-saving behavior
• Low-load efficiency
• Cooling-fan behavior
• Wake-up requirements

Temperature and Battery Aging

Battery performance may change with:

• Low or high temperature
• Battery age
• Charging history
• State of charge
• Maintenance condition
• Usage pattern

Load Priority and Load-Shedding Planning

Battery size can often be reduced or used more effectively by defining which loads are essential and which loads can be delayed or disconnected.

Load-Shedding Questions

• Which loads must remain powered?
• Which loads can be switched off manually?
• Which loads can operate on a schedule?
• Which loads have high startup demand?
• Which loads can wait until the battery is recharged?
• Is automatic load shedding required?
• What minimum reserve must remain for critical equipment?

Reserve-Time Planning for Different Buyers

Distributors and Traders

Distributors should avoid fixed runtime promises without knowing the load profile, battery voltage, battery capacity, inverter efficiency, allowable depth of discharge, discharge limits, and charging conditions.

System Integrators and Engineering Contractors

System integrators should define:

• Critical and optional loads
• Operating schedule
• Startup demand
• Battery voltage
• Autonomy
• Reserve margin
• Recharge window
• Installation environment
• Acceptance criteria

Transportation and Outdoor Power Partners

Mobile and outdoor systems may involve:

• Limited charging access
• Variable temperature
• Vibration
• Mixed loads
• Space limitations
• Changing daily operation
• Uncertain recovery time

Professional Institutions and Commercial Users

Professional buyers may require:

• Documented backup time
• Critical-load planning
• Repeatable procurement criteria
• Sample testing
• Commissioning records
• Defined recovery time
• Approval before deployment

Battery Bank Sizing Checklist for Solar and Backup Power RFQs

A battery-sizing RFQ should provide enough information to evaluate energy, current, recovery, and installation requirements.

Related system-pairing considerations can also be reviewed in the guide to matching an off-grid inverter with a battery bank.

Model- and Project-Specific Verification Boundary

The following information should be confirmed for the exact inverter, battery system, charger, and project:

Common Battery-Sizing Mistakes to Avoid

Using Ah Without Battery Voltage

Ah alone does not define stored energy. Convert Ah and voltage into Wh before comparing battery banks.

Ignoring Inverter Efficiency

Battery energy is not converted into AC output without loss. Use model-specific efficiency information when available.

Ignoring Startup Loads

A battery may provide enough total energy but fail to support startup current.

Treating Capacity and Discharge Rate as the Same Check

Capacity determines runtime. Discharge rate determines whether the battery can deliver the required current.

Using the Full Nominal Capacity Without DoD Planning

Usable capacity should reflect the planned allowable depth of discharge.

Ignoring Series and Parallel Configuration

The battery arrangement must provide the required voltage, capacity, and current while following battery-system guidance.

Ignoring Recharge Time

A battery bank that cannot recover before the next operating period may not meet the project requirement.

Forgetting Standby Power

Long standby periods can consume a meaningful amount of battery energy.

Sizing for Every Possible Load

Backup systems should prioritize critical loads and identify optional or deferrable loads.

Mixing Batteries Without Review

Different battery models, capacities, conditions, or ages should not be combined without appropriate system guidance.

Forgetting Future Expansion

Future loads, longer runtime, or changing operating conditions may require additional reserve.

How CONGSIN Can Support Battery-Sizing Discussions

CONGSIN publishes product and service pages covering pure sine wave inverters and OEM/ODM customization.

• Pure sine wave inverters
• OEM/ODM customization

These pages establish product and service directions. They do not by themselves confirm a battery capacity, runtime, efficiency value, battery compatibility result, or project-specific recommendation.

For a productive battery-sizing discussion, prepare:

• Complete load list
• Running and startup demand
• Operating schedule
• Runtime and autonomy target
• Reserve margin
• Battery voltage
• Battery type where already selected
• Discharge and BMS information where available
• Charging source
• Recharge window
• Installation environment
• Target market
• Required documents

Final Buying Advice

Battery-bank sizing for a pure sine wave inverter should be based on four separate checks:

1. Energy capacity: Can the battery provide the required Wh and runtime?
2. Discharge capability: Can the battery and BMS provide continuous and startup current?
3. Charging recovery: Can the charging source restore the required energy before the next use?
4. System compatibility: Do the inverter, battery, charger, voltage platform, wiring, and environment work together?

A single Ah value cannot answer all four questions. For distributors, a structured calculation reduces unsupported runtime claims. For system integrators, it supports system design and commissioning. For mobile and outdoor projects, it improves reserve and recovery planning. For professional users, it supports critical-load prioritization and documented procurement.

FAQ

How do I calculate battery size for a pure sine wave inverter?

Calculate total AC energy from load power and operating time. Divide by inverter efficiency, divide by battery voltage, adjust for allowable depth of discharge, and multiply by the project reserve factor. Then separately check the required continuous and startup battery current.

Is Ah enough to choose an inverter battery bank?

No. Ah must be evaluated together with battery voltage to determine Wh. The battery’s discharge capability, BMS limits, depth of discharge, and charging requirements must also be reviewed.

How do I convert battery Wh into Ah?

Divide the required battery Wh by the battery-bank voltage. The required Wh should already include the relevant inverter-efficiency, depth-of-discharge, and reserve adjustments.

How does 12V, 24V, or 48V affect battery current?

For the same power demand, a lower DC voltage generally requires higher current. Higher current may increase cable loss, voltage drop, heat, and protection requirements.

How do series and parallel batteries change a battery bank?

Series connections generally increase voltage while maintaining the Ah of one string. Parallel connections generally maintain voltage while increasing total Ah. The final arrangement must match the inverter voltage and battery-system requirements.

Why can a battery BMS trip even when the Ah appears sufficient?

Ah describes capacity, not the maximum current the battery or BMS can deliver. A high continuous load or startup surge may exceed the BMS current limit.

Should startup watts be included in the capacity calculation?

Startup events may add little to total Wh when they are brief, but they should be included in the inverter-surge, battery-current, BMS, voltage-drop, and protection review.

How should solar charging affect battery-bank size?

Battery planning should consider the available solar-energy recovery window, expected production, simultaneous loads, charge-controller behavior, and the time required to restore energy before the next operating cycle.
