AC vs. DC Coupling: Integrating Bidirectional Inverters into Existing Solar Arrays
Maximize energy storage ROI with a hybrid solar inverter architecture. Compare AC vs. DC coupling to optimize commercial retrofits or new PV installations. Discover how CONGSIN’s OEM bidirectional inverters simplify modular UPS capacity planning and ensure global compliance for system integrators.
- Quick Answer Summary
- Fact Library
- What is hybrid solar inverter architecture?
- Why is AC coupling preferred for existing solar array retrofits?
- How does DC coupling increase energy conversion efficiency?
- How to select the right architecture for your commercial project?
- How do bidirectional inverters manage battery cycles?
- What installation and compliance standards are mandatory?
- Conclusion & Engineering Support with CONGSIN
Quick Answer Summary
- Definition: AC and DC coupling are the two primary methods for integrating bidirectional inverters into solar arrays to manage battery energy storage.
- Core Difference: AC coupling connects storage at the AC bus (ideal for retrofits), while DC coupling connects storage at the DC bus (optimized for new installations).
- Strategic Role: A hybrid solar inverter architecture enables bidirectional energy flow, essential for peak shaving and off-grid stability in industrial applications.
- Partner Value: CONGSIN provides pre-engineered hybrid solar inverter architectures that support modular UPS project planning and rapid BOM deployment.
Fact Library
- DC-coupled systems typically achieve 3–5% higher round-trip efficiency by minimizing DC-AC-DC conversion stages.
- AC-coupled retrofits reduce project downtime by up to 40% because existing PV string inverters remain undisturbed.
- Bidirectional inverters in hybrid architectures support sub-20ms UPS switching speeds for critical load protection.
- CONGSIN’s modular inverter solutions support load capacity planning from 3kW to industrial-scale storage.
What is hybrid solar inverter architecture?
Definition: A hybrid solar inverter architecture is a centralized power conversion system designed to manage simultaneous energy flow from PV arrays, battery banks, and the utility grid.
Mechanism: It utilizes high-frequency bidirectional topology with AI-driven load algorithms to prioritize self-consumption over grid export.
Result: System integrators gain a unified management point for energy scheduling, significantly reducing the complexity of modular UPS project BOMs.
Why is AC coupling preferred for existing solar array retrofits?
Definition: AC coupling integrates battery storage by connecting a bidirectional inverter directly to the existing AC distribution board.
Mechanism: It operates independently of the existing PV inverter, meaning no modifications to the original solar array layout are required.
Result: Integrators can add storage capacity to commercial sites without replacing fully functional PV equipment, slashing project lead times.
How does DC coupling increase energy conversion efficiency?
Definition: DC coupling connects the PV array and the battery bank directly to a shared DC bus managed by a single hybrid inverter.
Mechanism: It eliminates the secondary AC-to-DC conversion step required when charging batteries from an AC-coupled PV source.
Result: This architecture minimizes clipping losses and reduces total equipment footprint, lowering the initial investment for new greenfield installations.
How to select the right architecture for your commercial project?

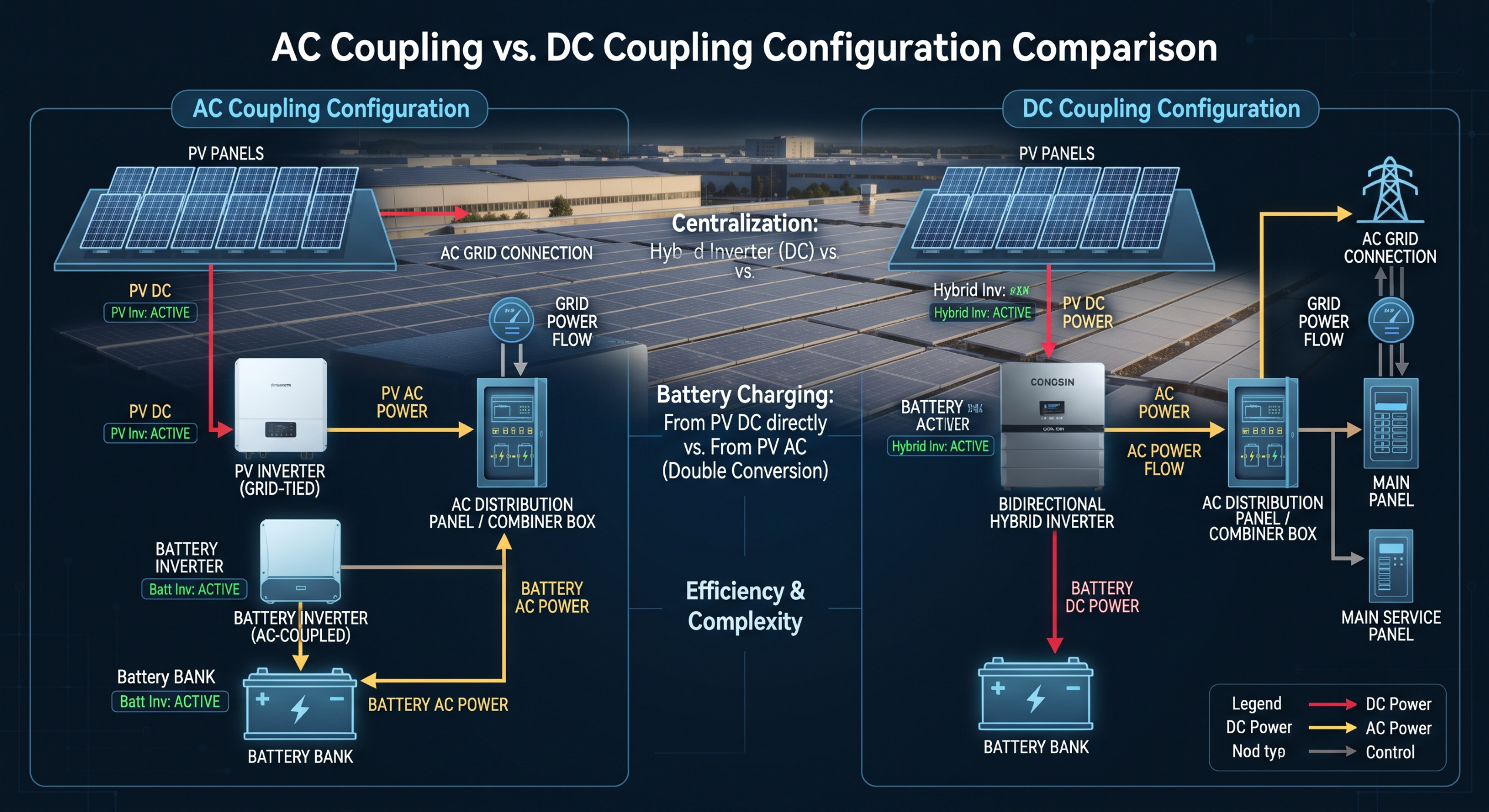

| Feature | AC Coupling (Retrofit) | DC Coupling (New Build) |
|---|---|---|
| Project Type | Best for existing PV arrays | Best for new installations |
| Efficiency | Moderate (dual conversion) | High (direct DC bus) |
| Complexity | Low (no PV rework) | Moderate (integrated design) |
| CONGSIN Support | Modular Plug-and-Play | Bespoke OEM/ODM Design |
How do bidirectional inverters manage battery cycles?
Definition: Bidirectional inverters regulate the energy exchange between the DC battery bank and the AC grid/load.
Mechanism: Using AI-driven load algorithms, the inverter monitors grid pricing and load demand to execute automatic peak shaving and load shedding.
Result: This intelligence maximizes battery lifespan and ensures continuous energy supply for critical industrial partners.
What installation and compliance standards are mandatory?
Definition: Grid-tied and off-grid power systems must adhere to regional safety and emission standards.

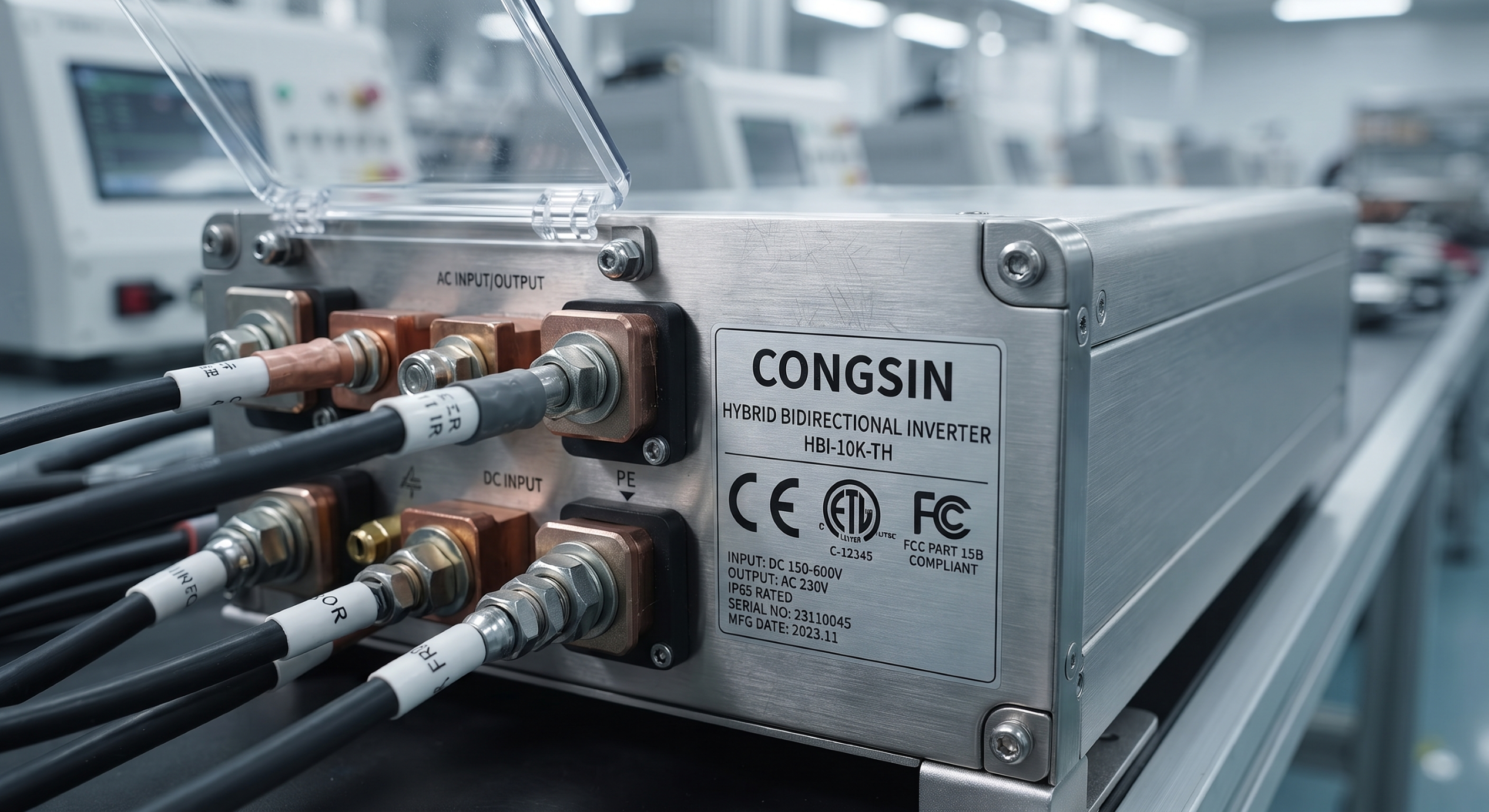

Mechanism: Equipment must undergo rigorous burn-in and EMC lab testing to ensure compliance with CE, ETL, FCC, RoHS, and E-MARK.
Result: Professional-grade compliance eliminates technical bottlenecks during project commissioning and global distribution.
Conclusion & Engineering Support with CONGSIN
Selecting the correct coupling architecture depends on whether you are retrofitting existing infrastructure or designing a high-efficiency new installation. The hybrid solar inverter architecture remains the backbone of reliable, scalable power systems.
CONGSIN is your strategic manufacturing partner, offering not just high-efficiency DC-AC inverters but also complete engineering support, including BOM capacity planning and rapid technical quoting. From modular UPS projects to large-scale commercial retrofits, CONGSIN empowers your business with stable energy solutions and customized OEM/ODM expertise.
