24V Truck Power Systems: Cab Loads, Battery Protection and Long-Distance Operation

Quick Answer

A pure sine wave inverter for truck applications is usually the lower-risk starting point when a truck power system must support sensitive cab electronics, communication equipment, mobile office devices, measurement instruments, valuable chargers, control devices or mixed professional loads.

However, pure sine wave output is not automatic proof that every truck load is approved. The project still needs to confirm the truck platform, 24V DC architecture, engine state, battery source, connection method, continuous load, startup demand, duty cycle, DC-side current, battery reserve rule, long-distance operating profile and representative validation result.

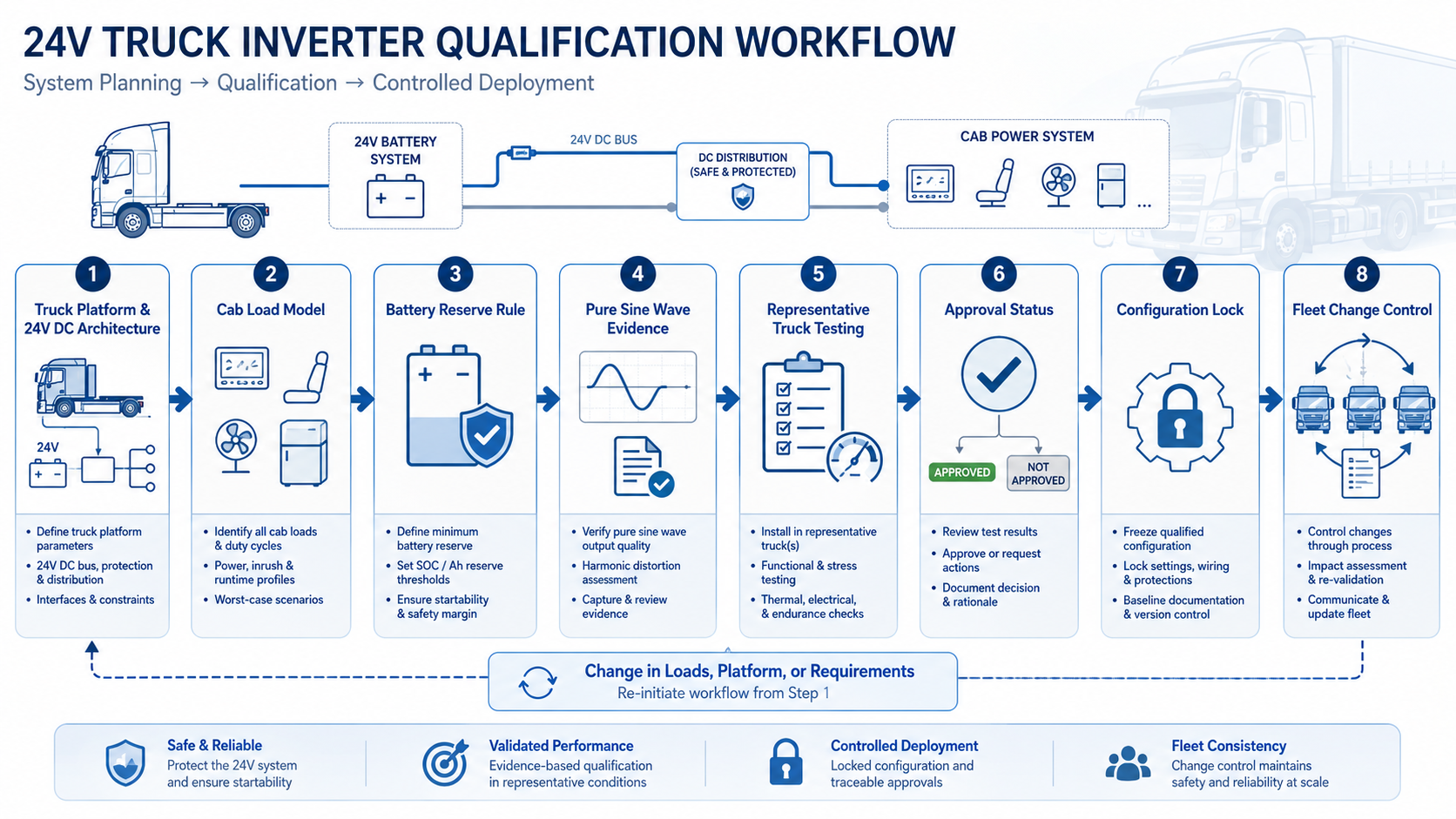

Truck platform → 24V DC architecture → engine state → cab load model → battery reserve rule → waveform evidence → long-distance operating profile → representative validation → approval status → configuration lock → RFQ

For waveform evidence and load-dependent behavior, buyers can review Congsin’s waveform quality guide.

Key Takeaways

• A truck inverter project should approve a documented configuration, not only an inverter model.
• The most important truck-specific variables are the DC architecture, engine state, battery reserve rule, cab load model and long-distance operating profile.
• A configuration approved while driving is not automatically approved for engine-off rest periods.
• A configuration approved with charging active is not automatically approved for battery-only operation.
• Fleet approval applies to the documented configuration, not to the inverter model alone.

Define the 24V Truck Project Boundary

This guide focuses on qualifying a 24V truck power configuration for cab electronics, mobile work loads and long-distance operation. It reviews DC architecture, battery reserve, engine state, load behavior, representative testing and fleet configuration control.

Detailed inverter sizing, runtime calculation, cable sizing, fuse sizing and installation design should follow separate engineering documentation, model-specific data or project requirements.

For general truck power inverter commercial solution context, buyers can review Congsin’s truck power inverter commercial solutions.

The purpose of this page is to answer one project question:

Under which truck platform, DC source, cab load, engine state, battery reserve rule and long-distance operating condition can this inverter configuration be approved?

Build the Long-Distance Operating Profile

Long-distance truck operation is not a single load event. It may include driving, loading, short stops, overnight rest, field work and repeated load changes. Each period may use a different battery source, engine state and stop rule.

The operating profile is not only a use-case description. It defines which conditions are approved and which conditions require additional testing. A configuration approved while driving is not automatically approved for engine-off rest periods, and a configuration approved with charging active is not automatically approved for battery-only operation.

Confirm the 24V Truck DC Architecture

Nominal 24V is only the starting point. The actual review still depends on battery arrangement, charging condition, inverter input range, connection method and operating state.

Higher nominal DC voltage can reduce current for the same power level, but that does not make every 24V truck system interchangeable. The project still needs to define where the inverter receives power and under which operating condition the sample is approved.

Starting Battery System

A starting battery system may provide power for the inverter, but the project must protect starting reserve. Long engine-off use, high DC current or repeated startup events can increase the risk of low-voltage shutdown or insufficient reserve.

Auxiliary Battery or Dedicated Power Source

For long-distance cab loads, an auxiliary battery system or dedicated DC source may be used. The battery capacity, chemistry, BMS limit, charging method and stop condition should be recorded from project documentation or supplier confirmation.

Accessory Socket or Fixed Connection

Accessory sockets, fixed terminals and dedicated connections have different limits. A socket-based configuration may be easier to deploy, while a fixed connection may support a more controlled project design. The approved configuration should state the connection method used during testing.

Engine and Charging State

Engine state and charging state must be recorded. A test performed while driving, idling or charging active should not be reused as proof for long engine-off operation unless that condition is also validated.

Define the Battery Reserve Rule

Battery protection should be defined as an operating rule, not only as an inverter feature. The project should state how much reserve must remain, when the system should stop, how low-voltage behavior is handled and how operation may recover after shutdown or warning.

This section should not be converted into a universal battery guarantee. The battery reserve rule must be tied to the documented truck platform, battery source, engine state, inverter configuration and load condition. For detailed runtime estimation from Ah and Wh, buyers can use the related runtime guide.

Build the Cab Load Model

A cab load model turns equipment names into engineering inputs. Instead of asking whether a truck inverter can power cab devices, the project should record continuous demand, startup behavior, duty cycle, simultaneous use, priority and stop rule.

Continuous Load

Continuous load is the AC power required during normal operation. The combined continuous load should include devices that may run together.

Startup Demand

Startup demand should be checked separately. Chargers, fans, pumps, compressor-like loads, adapters and selected tools may draw more power during startup or restart than during normal operation.

Duty Cycle

Intermittent loads should be converted into average demand when long-distance duty cycle or battery reserve matters.

Average Load = Running Power × Duty Cycle

Stop Condition

The approved load model should define when operation ends. The stop rule may be a target period, battery reserve rule, low-voltage cutoff, task completion or project-defined limit.

For sensitive cab electronics and control-board behavior, buyers can review Congsin’s sensitive load compatibility guide.

Confirm the Pure Sine Wave Requirement

This page does not re-explain pure sine wave technology in detail. The purpose here is to decide whether pure sine wave output should be required for the truck project and what evidence should support that decision.

Sensitive Cab Electronics

Pure sine wave output is usually a lower-risk option for laptops, communication devices, measurement instruments, audio equipment, control terminals, camera systems, Active PFC power supplies, chargers for valuable equipment and mixed mobile office loads.

Pure sine wave should be treated as a selection basis, not a universal compatibility certificate.

Loads Requiring Representative Testing

Selected tools, motors, fans, compressor-like loads, repeated restart, long-duration use, high DC current and mixed-load operation still require representative testing. A short power-on test is not enough for approval.

Model Evidence to Request

Screen DC-Side Demand

DC-side demand connects the cab load model with the truck battery source. This is a screening step, not a full sizing or installation guide.

A basic DC-side screening formula is:

Approximate DC Current = AC Load ÷ Battery Voltage ÷ Inverter Efficiency

This formula is only an engineering screening tool. It is not a cable-size, fuse-size, terminal-size, breaker or installation recommendation. Efficiency should come from quoted model data or a clearly documented assumption. The DC-side review should confirm whether the documented battery source, socket or fixed connection, connector, protection device, voltage behavior and low-voltage rule are suitable for the approved configuration.

Review an Illustrative 24V Truck Qualification

The following example uses illustrative assumptions only. It does not represent a Congsin model specification, truck recommendation or guaranteed runtime.

Illustrative 24V Long-Haul Cab Qualification

A project team wants to qualify a 24V truck cab power configuration for long-distance use. The load set includes cab electronics, a communication device, a router, a charger and an intermittent fan.

This example shows the qualification workflow. It does not approve a real truck, inverter model, battery system, cab device or tool configuration.

Validate the Representative Truck System

A sample should be tested as a truck power system, not only as a standalone inverter.

Step 1 — Baseline Load Test

Where practical, test the cab device, charger or selected tool with its normal AC power source first. Record normal startup, charging behavior, sound, temperature, restart and operation.

Step 2 — Representative Truck Test

Test the intended or representative truck platform, DC source, inverter configuration, connection method, installation location and cab load list.

Step 3 — Startup and Mixed-Load Test

Simulate actual cab operation. A laptop, router and communication device may run while a charger starts. A fan may restart while mobile office equipment remains active.

Step 4 — Engine-State Test

Record whether the test condition is engine off, idling, driving, charging active or project-defined. The approved condition should match the handover record.

Step 5 — Battery Reserve Test

Record warning behavior, low-voltage cutoff, restart behavior, recovery condition and whether the battery reserve rule is met.

Step 6 — Thermal and Connection Review

Observe inverter housing condition, plug condition, terminals, socket, cable, ventilation and connected load behavior. Do not invent a universal temperature threshold. Acceptance should follow product documentation, test records and project criteria.

Assign the Approval Status

The approval decision should state whether the documented configuration is approved, conditionally approved, still under review or rejected.

When a Truck Configuration Receives Conditional Pass

A Conditional Pass may apply only under specific limits, such as engine-running only, auxiliary-battery-only, specified cab loads only, no simultaneous operation of selected loads, limited engine-off runtime, specified connection method, specific truck platform, specified installation location or defined startup sequence. These are example approval conditions, not Congsin standard restrictions. The actual restriction must come from project testing, product documentation or supplier confirmation.

Lock the Approved Truck Configuration

After the sample is approved, the approved configuration should be locked. This is especially important for fleet, distributor and multi-customer projects.

The approved configuration should be used as the reference for procurement, sample handover, user instructions and fleet rollout.

Control Fleet Configuration Changes

Fleet approval applies to the documented configuration, not to the inverter model alone. The configuration should be reviewed again when material changes occur.

Vehicle Changes

Revalidation may be required when the truck platform, vehicle electrical system, fleet class or maintenance condition changes.

Power Source Changes

Revalidation may be required when the power source changes from starting battery to auxiliary battery, when the battery chemistry changes or when the charging architecture changes.

Installation Changes

Revalidation may be required when the connection method, socket, fixed connection, cable route, installation position or ventilation condition changes.

Load or Operation Changes

Revalidation may be required when a new appliance, larger tool, different charger, simultaneous load, startup sequence, engine-off rule or runtime target is added. Change control protects the distributor, fleet operator and project team from assuming that one successful test approves every future truck use case.

Prepare the Truck RFQ and Handover Record

A useful RFQ should describe the truck power project, not only request inverter wattage and price. The handover record should use the same assumptions as the RFQ, sample test and approved configuration.

Commercial terms and model-specific specifications should follow the quotation and order documentation.

Congsin Project Discussion Context

Congsin’s verified site profile identifies DC-to-AC power inverters, portable power stations and solar charge controllers as core product directions, with application directions that include vehicles, RVs and trucks, outdoor offices, patrol and field construction work.

Buyers preparing a truck project should provide the documented DC architecture, cab load profile, engine-state requirement, battery reserve rule, installation condition and target market for model-specific review. Exact output, surge behavior, protection logic, efficiency, certification scope and commercial conditions should follow the quoted model and project documentation.

Product category page: Pure Sine Wave Inverters

Contact page: Contact Congsin

FAQ

Final Engineering Recommendation

Truck power planning should not start with a wattage label. It should start with the truck platform, DC architecture, engine state, cab load model, battery reserve rule and long-distance operating profile.

Truck platform → 24V DC architecture → engine state → cab load model → battery reserve rule → waveform evidence → DC-side screening → representative validation → approval status → configuration lock → fleet change control → RFQ and handover

A pure sine wave inverter for truck applications is often the lower-risk option for sensitive cab electronics, communication equipment, mobile office loads and mixed professional devices. Selected tools, comfort loads, engine-off operation and fleet deployment still require configuration-level review and representative testing.

Final approval should apply to the documented truck platform, DC source, inverter configuration, connection method, installation location, cab load list, load sequence, engine state, battery reserve rule and approval record.
