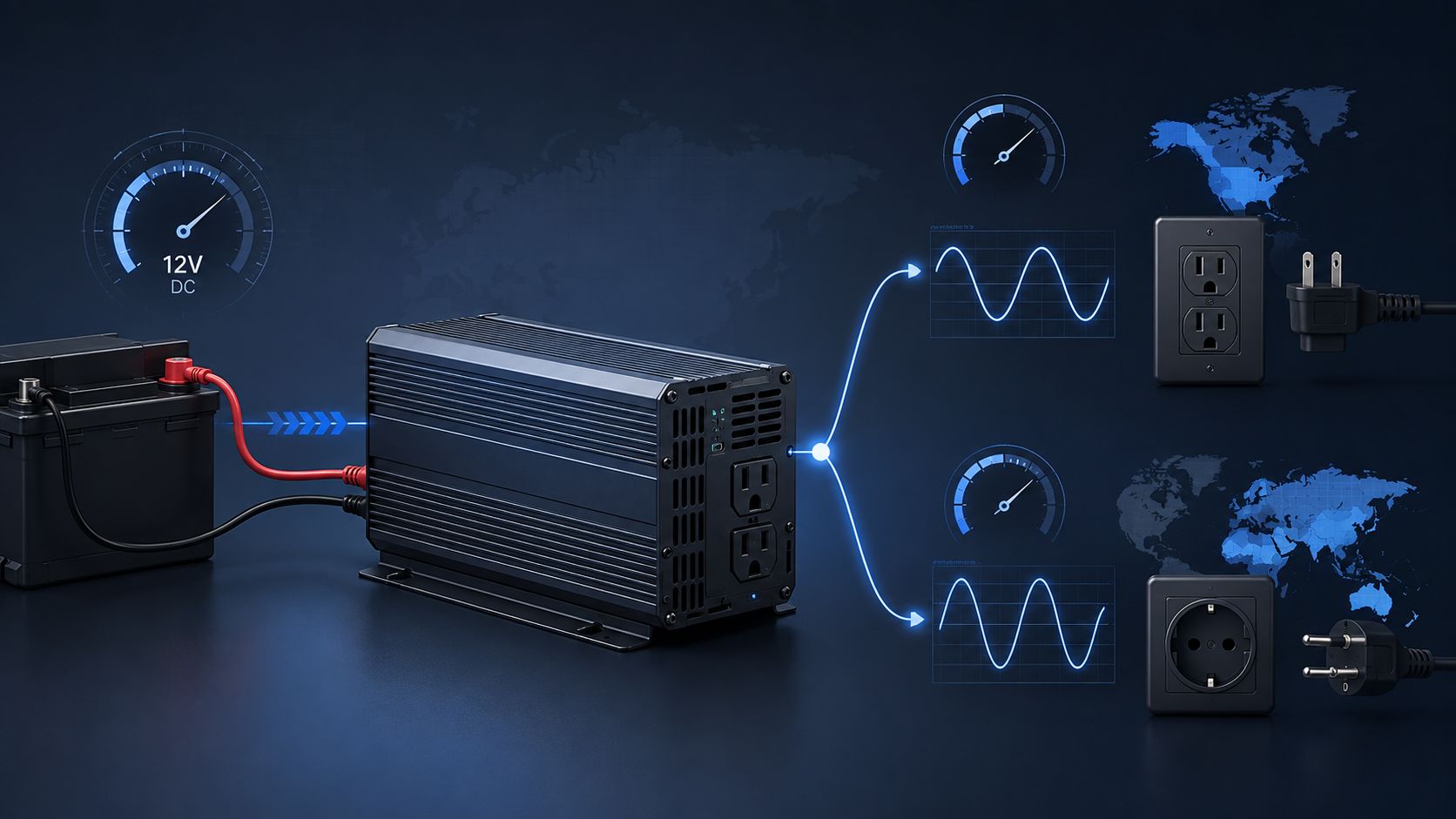

12V Pure Sine Wave Inverter Output Configuration Guide: 110V/120V vs. 220V/230V/240V Markets

Quick Definition

A 12V pure sine wave inverter converts energy from a 12V DC battery system into configured AC output power.

The 12V specification refers to the battery-side input, while 110V/120V or 220V/230V/240V refers to the AC output requirement for the target market and connected equipment.

For multi-market projects, output voltage, frequency, socket interface and documentation should be treated as separate configuration variables before SKU approval.

Quick Answer

The main difference between a 12V to 110V/120V pure sine wave inverter and a 12V to 220V/230V/240V pure sine wave inverter is the AC output configuration.

The 12V value describes the DC input architecture. The 110V, 120V, 220V, 230V and 240V values describe the nominal AC output family.

12V DC source → destination market → required AC voltage → required frequency → socket/interface → load compatibility → compliance documentation → sample validation → approved SKU

Do not select an inverter only from the destination-country name or plug appearance. The actual appliance nameplate, project electrical architecture and quoted inverter specification should be confirmed together.

For broader technical principles, review the complete pure sine wave inverter guide.

Define the Output Configuration as a Market Requirement

For multi-market inverter projects, output voltage should be treated as one part of a controlled product configuration.

The engineering question is not:

Is 110V better than 220V?

The more useful question is:

Which inverter output configuration matches the destination market, actual connected equipment and project approval requirements?

That difference matters for distributors, private-label buyers and system integrators because two products with the same 12V DC input can still require different AC-side configurations.

For broader architecture context, the pure sine wave inverter system design should be treated as the pillar reference, while this page focuses specifically on output-market configuration.

Separate DC Input From AC Output

A 12V battery system describes the inverter input side. The AC output side is a different part of the architecture.

12V battery source → DC input → pure sine wave inverter → configured AC output → distribution or socket → connected load

12V input does not define the AC market.

The same general battery-voltage category may be used in projects requiring different AC output families, provided the exact inverter configuration supports that requirement.

Output Voltage Is Only One Configuration Variable

DC input → AC output voltage → frequency → waveform → socket/interface → load profile → labeling → documentation

If one of these variables changes, the approved SKU may also need to change.

Compare 110V/120V and 220V/230V/240V Output Families

For procurement purposes, it is useful to think in terms of output-voltage families rather than assuming every nominal value is interchangeable.

The comparison should not be interpreted as a universal country map. The nominal voltage used in a project should come from the destination requirements, appliance specifications and inverter documentation.

Market Configuration Selection Checklist

For the lower-voltage family, see the 12V to 120V pure sine wave inverter guide.

For the 220V product direction, see the 12V to 220V pure sine wave inverter solutions.

Map the Destination Market to the Inverter Configuration

Market selection should begin before the final inverter SKU is approved.

Confirm the Nominal AC Requirement

The buyer should first define the intended destination or project market.

The required AC output should then be verified against:

• Local project requirements
• Connected equipment
• AC distribution architecture
• Customer documentation
• Applicable technical requirements

The country name alone should not be used as the only configuration input.

Confirm the Actual Appliance Nameplate

A destination market may have a typical nominal supply standard, but the actual equipment being powered remains the more direct compatibility reference.

• Rated input voltage
• Rated frequency
• Power demand
• Startup behavior
• Acceptable input range if documented
• Whether the load is single-voltage or multi-voltage

A multi-voltage laptop adapter and a single-voltage motor load should not be evaluated in the same way.

Confirm the AC Distribution Architecture

The output may supply:

• One appliance
• Several sockets
• An RV or vehicle distribution panel
• An off-grid AC circuit
• A professional equipment group
• Another project-defined distribution system

Understand What Changes on the 12V Battery Side

A common misunderstanding is that changing from a 110V-class output to a 220V-class output automatically changes the battery-side current by the same proportion.

That is not a reliable design assumption.

Output Voltage and Battery Current Are Different Questions

AC Current ≈ AC Power ÷ AC Voltage

For a similar AC power level, a higher AC output voltage can correspond to lower AC-side current.

But the 12V battery side is governed primarily by the power being delivered, the battery voltage and inverter losses.

Approximate DC Current = AC Load ÷ Battery Voltage ÷ Inverter Efficiency

Therefore, a 220V output does not automatically mean that a 12V battery bank will supply half the DC current of an equivalent 110V-output system.

Use DC Current as a Screening Calculation

The approximate DC-current relationship can help buyers compare:

• Battery demand
• Operating condition
• Architecture options
• Expected load severity

It should not be treated as a cable-size, fuse-size or breaker specification. Those decisions should follow the exact inverter documentation and project electrical requirements.

Match Output Voltage With the Actual Load System

Voltage matching should be performed at the system level.

Sensitive Electronics

• Laptops
• Communication equipment
• Chargers
• Control electronics
• Measurement devices
• Professional field electronics

Pure sine wave output is often a lower-risk choice for these loads, but the equipment voltage and frequency requirements still need to match the inverter output. Pure sine waveform does not correct an incorrect output voltage.

Motor and Compressor Loads

Selected motors, pumps, refrigeration equipment, compressors and similar loads may have startup demand significantly different from normal running demand.

Correct voltage + correct frequency + insufficient startup capability can still result in a failed configuration.

• Rated voltage
• Rated frequency
• Running power
• Startup event
• Restart behavior
• Simultaneous loads

Mixed Commercial Loads

Commercial vehicles, field systems and mobile work applications may combine electronic chargers, communication devices, office equipment, motor-driven loads and intermittent appliances. The approved inverter should be validated against the representative load combination rather than each appliance in isolation.

Validate Output Frequency Together With Voltage

Voltage and frequency are separate specifications. A correct nominal AC voltage does not automatically mean that the output frequency is correct for the connected load.

Voltage and Frequency Are Separate Configuration Fields

AC output voltage + frequency

An RFQ should therefore not request only 12V to 220V inverter if the project also has a specific frequency requirement.

12V DC input + required AC output voltage + required frequency + load profile + interface + target market provides a stronger configuration request.

Confirm Load Frequency Requirements

• Equipment nameplates
• Technical specifications
• Project requirements
• Destination-market requirements
• Supplier documentation

Some electronic loads may accept more than one frequency, while some motor-driven or timing-dependent loads may require closer review.

Where market approval or documentation scope is relevant, buyers should also review pure sine wave inverter compliance requirements for the applicable configuration rather than assuming certification coverage from voltage alone.

Configure Socket, Connector and AC Interface Requirements

The visible outlet is important for usability, but it should not become a substitute for electrical configuration control.

Do Not Select by Socket Appearance Alone

A plug or socket shape does not by itself confirm:

• AC output voltage
• Frequency
• Waveform
• Power capacity
• Electrical compatibility

The buyer should verify both the mechanical interface and the electrical output specification.

Treat the Interface as an SKU Variable

DC input + AC voltage + frequency + socket/interface + label + manual

This reduces the risk of selling the correct inverter electronics with the wrong interface, packaging or documentation.

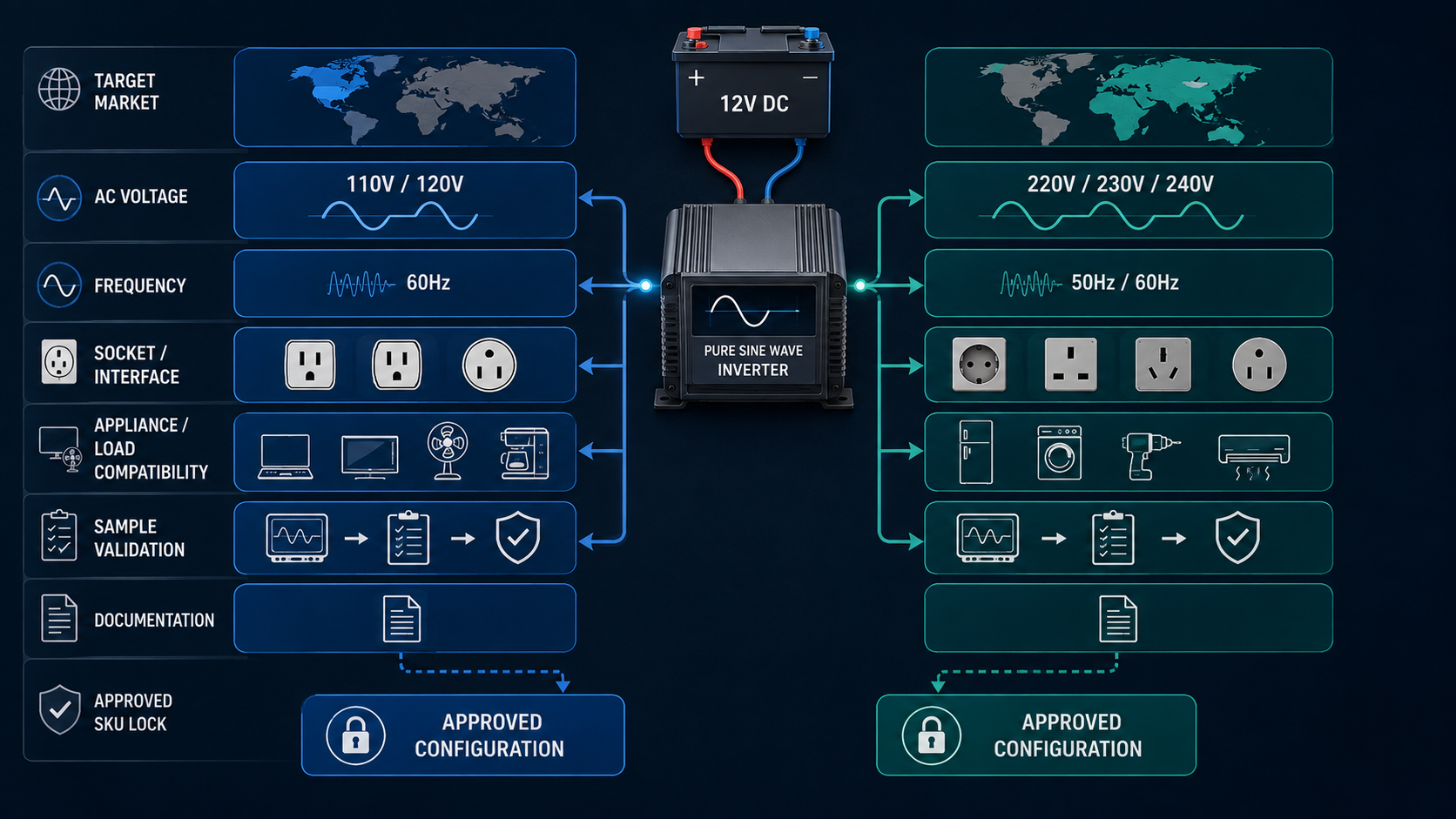

Multi-Market Pure Sine Wave Inverter Configuration Workflow

A multi-market project should convert the destination requirement into a controlled inverter configuration before bulk ordering.

Market Requirement → AC Voltage → Frequency → Interface → Load Validation → Documentation → Sample Approval → SKU Lock

Step 1 — Define the Target Market

• Destination country or region
• Appliance requirements
• Project electrical requirements
• Required documentation
• Labeling and language requirements where applicable

Step 2 — Confirm the AC Output

• Required nominal output voltage
• Required frequency
• Pure sine wave requirement
• Representative AC load profile

Step 3 — Validate the Interface

• Socket requirement
• Connector type
• Cable or distribution arrangement
• Physical integration requirement

Step 4 — Lock the Approved SKU

• Inverter model
• DC input
• AC voltage
• Frequency
• Interface
• Label
• Manual
• Packaging reference
• Sample or approval reference

Build a Market Configuration Matrix Before Ordering

Before sample purchase or bulk procurement, the buyer can convert the market requirement into a configuration matrix.

Validate a Representative Market Configuration

A multi-market inverter SKU should be validated as a complete configuration.

Step 1 — Lock the Proposed Configuration

• DC input architecture
• AC output voltage
• Frequency
• Waveform
• Socket or interface
• Inverter model
• Load list
• Destination market
• Documentation requirement

Step 2 — Establish the Load Baseline

Where practical, observe important loads using their normal AC supply and record:

• Startup behavior
• Restart behavior
• Normal operation
• Load combinations
• Unusual sensitivity

Step 3 — Test Representative Loads

• Continuous loads
• Startup loads
• Mixed loads
• Repeated restart where relevant
• Longer operating periods where required

Step 4 — Verify Voltage and Frequency Behavior

The project should confirm that the representative configuration matches the documented output requirement.

Acceptance should follow the exact product and project criteria rather than generic assumptions.

Step 5 — Assign Approval Status

Prevent Wrong-Market SKU Deployment

For distributors, the technical selection problem does not end when the sample passes. The approved configuration must remain identifiable through procurement, packaging and delivery.

Lock the Approved SKU

• Inverter model
• DC input
• AC output voltage
• Frequency
• Socket or interface
• Load scope
• Label version
• Manual version
• Project or market reference
• Approval status

Keep Packaging and Technical Documents Aligned

Potential mismatch points include:

• Wrong voltage printed on packaging
• Wrong frequency shown in the manual
• Wrong socket image
• Wrong label
• Wrong market document
• Wrong product code

Product configuration → product label → packaging → manual → quotation → order → sample approval should be controlled as one linked record.

Supplier Qualification for Multi-Market Inverter Programs

Supplier qualification should focus on configuration evidence rather than generic product availability.

Request Exact Configuration Evidence

Instead of asking:

Do you have a 220V inverter?

A B2B buyer can ask:

Which exact configuration supports the required 12V input, AC output voltage, frequency, interface, load application and project documentation?

Confirm Configuration Control

• How is the output-voltage version identified?
• How is frequency identified?
• How are different sockets or interfaces controlled?
• How is the approved sample linked to the production configuration?
• Which technical documents apply to the exact SKU?
• Which customization items require separate confirmation?

How CONGSIN Approaches Multi-Market Inverter Configuration

CONGSIN supports market-specific inverter discussions by connecting electrical configuration, application requirements and documentation preparation.

For distributors, OEM buyers and system integrators, project evaluation can begin with:

• Target market
• DC input requirement
• AC output voltage
• Frequency
• Socket or interface
• Load profile
• Customization requirement
• Documentation requirement

Congsin's current site profile identifies DC-to-AC power inverters as a core product direction and states support for OEM/ODM, private labeling, distribution and bespoke customization.

These facts should not be interpreted as proof that every Congsin model is available in every 110V, 120V, 220V, 230V or 240V combination.

Exact output voltage, frequency options, interfaces, certification scope, labeling and customization feasibility should be confirmed for the quoted configuration.

Prepare the Final RFQ and Configuration Handover

A useful multi-market inverter RFQ should function as a configuration-control document.

Target market → 12V DC architecture → AC output voltage → frequency → socket/interface → load profile → documentation → sample configuration → validation → approved SKU → order handover

Commercial terms, MOQ, lead time, warranty, price and exact model specifications should follow the current quotation and order documentation.

FAQ

What is the difference between a 12V to 110V and a 12V to 220V pure sine wave inverter?

Both may use a 12V DC source, but they provide different nominal AC output configurations. The correct version should be matched to the destination market, appliance voltage, required frequency and system architecture.

Can the same 12V battery power both 110V and 220V inverters?

A 12V battery architecture may be used with different AC-output inverter configurations when the exact inverter input requirements are compatible. The inverter itself must be designed for the required 12V input and AC output configuration.

Does a 220V inverter use less battery current than a 110V inverter?

Not necessarily. For similar AC output power, battery-side current is mainly related to load power, battery voltage and inverter efficiency. A higher AC output voltage does not automatically reduce the 12V battery current by the same proportion.

Is 110V the same as 120V for inverter selection?

They belong to a similar nominal-voltage family, but they should not automatically be treated as identical for every product or appliance. The exact inverter output specification and load nameplate should be confirmed.

Are 220V, 230V and 240V inverter outputs interchangeable?

They should not be assumed to be interchangeable. Compatibility depends on the inverter's documented output, the connected load's acceptable input range and the project requirements.

Should I choose a 50Hz or 60Hz pure sine wave inverter?

The required frequency depends on the connected equipment and destination requirements. Voltage and frequency should be specified separately in the RFQ and confirmed for the quoted configuration.

Can a 110V appliance be connected to a 220V inverter?

That should not be assumed. The appliance should only be connected when its documented input range is compatible with the inverter output.

Can one inverter support multiple AC output voltages?

Only if the exact model documentation confirms that capability. Buyers should not assume that one inverter can switch between 110V, 120V, 220V, 230V or 240V outputs.

What should distributors include in a multi-market inverter RFQ?

The RFQ should include destination market, DC input voltage, required AC output voltage, frequency, socket or interface, load profile, startup demand, labeling, documentation and sample-validation requirements.

How should OEM buyers control different inverter market SKUs?

Each approved SKU should be linked to its DC input, AC output voltage, frequency, interface, labeling, manual, sample reference and approval status so that different market configurations are not mixed during production or delivery.

How do distributors avoid selecting the wrong inverter voltage version?

Distributors should define the destination market, AC voltage, frequency, socket interface, load profile, documentation requirement and approved SKU before bulk ordering.

The sample, quotation, packaging and technical documents should reference the same approved configuration. Supplier capability and configuration-control processes can also be reviewed when evaluating a power inverter manufacturer.

Final Engineering Recommendation

A 12V to 110V vs 220V pure sine wave inverter decision should be treated as a market-configuration problem rather than a simple voltage comparison.

Destination market → appliance requirements → 12V input architecture → AC output family → frequency → interface → load model → representative validation → documentation → SKU lock → RFQ and deployment

The approved configuration should remain traceable from technical evaluation through sample approval, quotation, packaging and final delivery.

Request a Multi-Market Pure Sine Wave Inverter Configuration Review

Share the destination market, 12V battery architecture, required AC output voltage, frequency, socket or interface, load profile, operating environment and documentation requirements for a model-specific configuration discussion.

Contact Congsin
