1000W vs 1500W vs 2000W vs 3000W Pure Sine Wave Inverter: How to Choose the Right Capacity

Quick Definition

1000W, 1500W, 2000W and 3000W are inverter capacity categories, not guaranteed application limits.

The actual usable capacity of an inverter system depends on the exact model, real load profile, battery system, startup behavior and operating environment.

A capacity class answers only part of the selection problem. The buyer still needs to determine:

• how much power is required continuously;
• which loads operate at the same time;
• which loads create temporary startup demand;
• whether the battery and DC-side system can support the required power;
• whether the quoted inverter rating is defined under conditions relevant to the project.

Inverter capacity should be matched to a load profile, not to one appliance label.

For broader technical context, review the pure sine wave inverter fundamentals guide.

Quick Answer

Choosing between a 1000W, 1500W, 2000W and 3000W pure sine wave inverter should begin with the project's continuous load, not the largest appliance nameplate or the highest inverter wattage available.

The correct inverter capacity is usually the smallest validated capacity class that supports the required continuous load, startup event and operating conditions.

A useful engineering sequence is:

Continuous load → startup event → simultaneous loads → battery-side capability → specification comparison → representative validation

The four capacity classes can be treated as progressively larger screening bands:

• 1000W class: lower aggregate continuous demand;
• 1500W class: moderate mixed or simultaneous load demand;
• 2000W class: larger mixed-load profiles and more demanding startup conditions;
• 3000W class: higher aggregate demand that requires closer DC-side and system-level review.

These descriptions are screening categories, not fixed appliance recommendations. The final capacity should be approved only after the buyer confirms the exact model rating, the startup condition, the battery architecture and the representative operating profile.

Define the Load Profile Before Comparing Inverter Capacity

A capacity comparison becomes meaningful only after the buyer defines what the inverter actually needs to power.

A list of equipment names is not enough. A real load profile should show:

which loads operate continuously → which loads operate together → which loads start intermittently → which loads may overlap during startup

This structure is more useful than simply adding every wattage printed on every device.

Establish the Continuous Load

The continuous load is the group of equipment expected to remain active during normal operation.

Depending on the project, this may include:

• communication equipment;
• displays;
• laptops;
• chargers;
• control electronics;
• monitoring equipment;
• other project-defined electronics.

The practical calculation is:

Continuous Load = Load A + Load B + Load C + other sustained simultaneous loads

The exact combination should reflect real operation. If a device operates only occasionally, it should not automatically be treated as part of the permanent baseline.

Identify Real Simultaneous Operation

A common capacity-selection mistake is to evaluate each appliance separately. Another is to add every appliance together even when the full combination never operates at the same time.

The better method is to define realistic operating modes.

Mode 1: communication equipment + controls

Mode 2: communication equipment + controls + chargers

Mode 3: continuous electronics + intermittent motor-driven load

These operating modes show the actual demand the inverter may need to support. Capacity should then be screened against the most relevant operating combinations.

Separate Startup Demand From the Continuous Baseline

Selected motors, pumps, compressors, refrigeration loads and other intermittent equipment may require more power during startup than during stable operation.

That temporary event should be recorded separately:

continuous baseline → startup event → temporary overlap → stabilized operation

The startup condition must then be compared with the documented short-duration capability of the proposed inverter. For a deeper explanation, review how to compare inverter continuous and surge power.

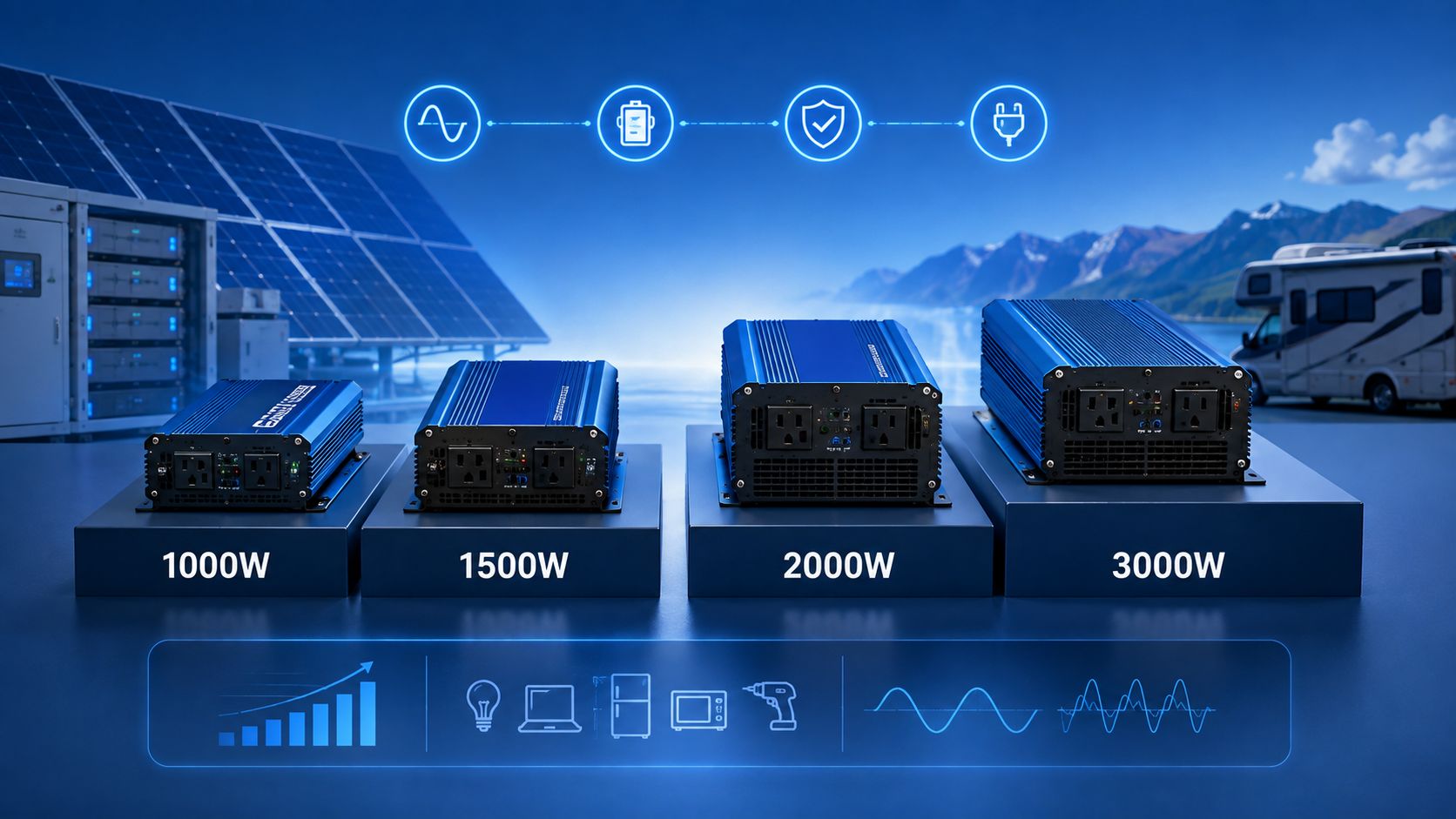

1000W vs 1500W vs 2000W vs 3000W Inverter Capacity Comparison Table

The table below provides a capacity-screening framework for B2B projects. It does not define fixed application limits for any specific Congsin model.

The important difference between these classes is therefore not simply:

1000W < 1500W < 2000W < 3000W

Which capacity class gives the project an approved continuous and startup operating envelope without unnecessary over-capacity?

Compare the Four Capacity Classes as Engineering Options

Each capacity band should be evaluated using the same engineering logic. That makes adjacent options easier to compare and prevents selection from becoming a simple preference for the largest wattage.

1000W Pure Sine Wave Inverter Class

Suitable Evaluation Scenario

A 1000W-class inverter can enter the shortlist when the continuous load profile remains relatively limited and the expected startup events can be supported by the exact proposed model.

The key question is whether the complete project can remain inside the validated operating boundary of a lower-capacity configuration. This can be attractive when the buyer is trying to avoid unnecessary system size, cost or DC-side requirements.

Buyer Should Check

• continuous load;
• simultaneous loads;
• highest startup event;
• battery voltage;
• runtime target;
• operating environment;
• future expansion requirement;
• exact inverter rating definition.

Avoid Assuming

A 1000W inverter is not unsuitable simply because larger inverter classes exist. If the validated operating profile remains within the model's documented limits, a lower-capacity solution may be the more appropriate engineering choice.

1500W Pure Sine Wave Inverter Class

Suitable Evaluation Scenario

A 1500W-class inverter may be considered when the project requires more continuous capacity or more simultaneous load than a lower-capacity configuration can comfortably support.

It can also enter consideration when the buyer expects modest future load growth but does not yet require the system-level demands associated with a substantially higher capacity.

Buyer Should Check

• the real continuous load group;
• additional simultaneous equipment;
• startup behavior;
• battery-side capability;
• runtime objective;
• installation conditions;
• future expansion.

Avoid Assuming

Moving from 1000W to 1500W should not be treated as an automatic upgrade. The additional capacity is valuable only when it supports a documented operating need.

2000W Pure Sine Wave Inverter Class

Suitable Evaluation Scenario

A 2000W-class inverter may become relevant when the system contains a larger continuous load group, more simultaneous equipment or a startup event that makes lower-capacity alternatives difficult to validate.

This capacity range makes supplier specification comparison especially important because nominal wattage alone may hide meaningful differences between models.

Buyer Should Check

• continuous or rated power definition;
• startup or surge requirement;
• documented surge capability;
• DC input configuration;
• battery architecture;
• simultaneous operation;
• protection behavior;
• representative sample results.

Avoid Assuming

Two 2000W inverters should not be considered technically equivalent until their rating definitions and operating conditions have been normalized. The same headline wattage can represent different real-world operating boundaries.

3000W Pure Sine Wave Inverter Class

Suitable Evaluation Scenario

A 3000W-class inverter may be considered when the project has a higher aggregate continuous demand, more substantial startup events or multiple loads that must operate together.

At this level, the inverter should increasingly be treated as one component of a complete power architecture.

Buyer Should Check

• continuous load group;
• highest startup event;
• DC source capability;
• battery voltage;
• battery current capability;
• BMS limits where applicable;
• installation and ventilation;
• operating environment;
• exact model rating conditions;
• project expansion requirement.

Avoid Assuming

A 3000W label does not mean the system can deliver 3000W under every battery condition or installation arrangement. The upstream DC system must also support the required power envelope.

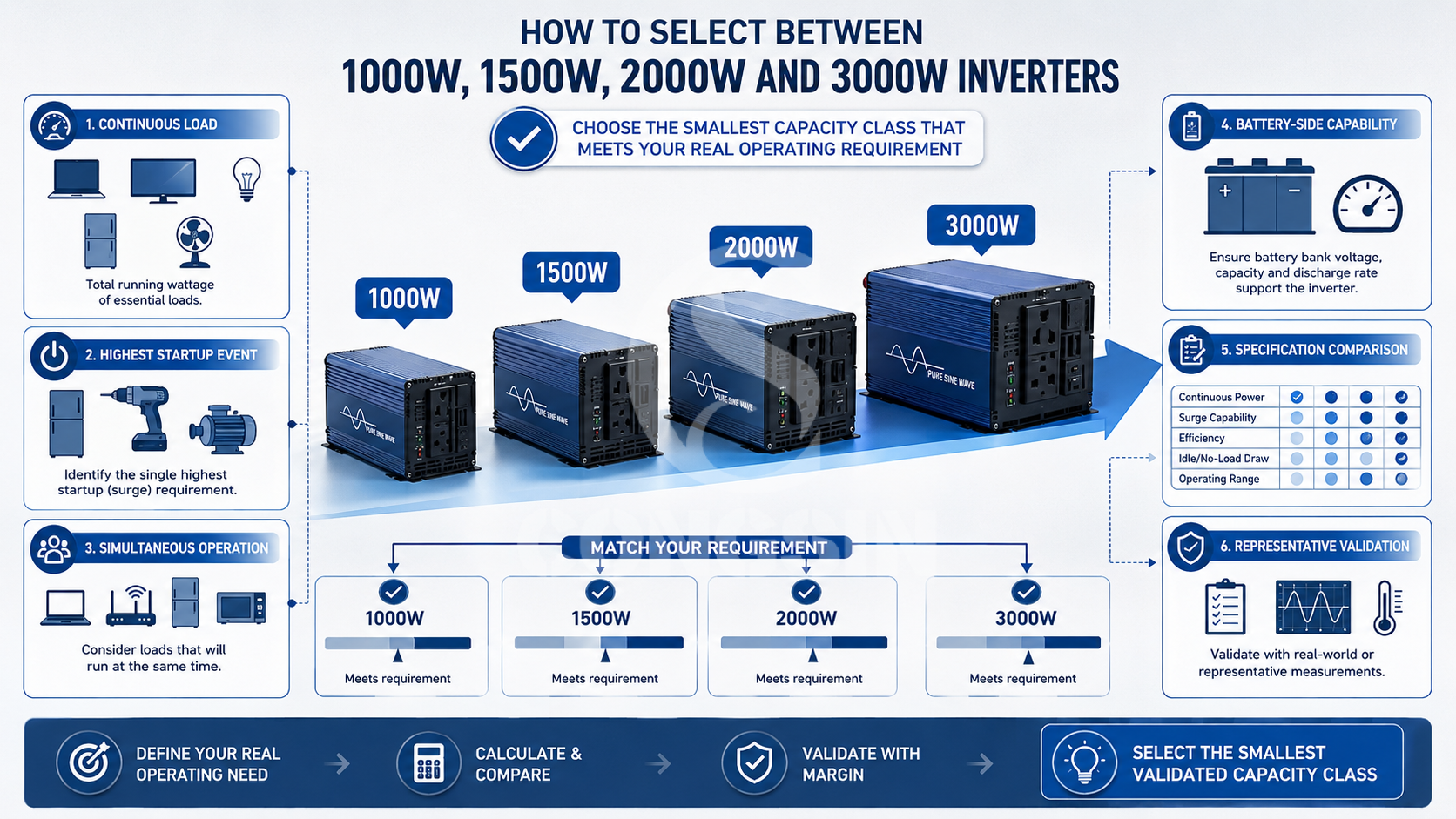

How to Select Between 1000W, 1500W, 2000W and 3000W Inverters

A structured selection process makes the four capacity classes easier to compare.

Step 1 — Calculate the Continuous Load

Identify the loads expected to operate during normal use and calculate the realistic simultaneous continuous baseline. Do not begin with the inverter catalog. Begin with the load profile.

Step 2 — Identify the Highest Startup Event

Record the largest relevant startup or restart event expected during real operation. The purpose is to identify the temporary load condition that the proposed inverter must support. Do not rely on a universal startup multiplier.

Step 3 — Check Simultaneous Operation

Determine which continuous loads remain active while the startup event occurs. The relevant condition is often existing continuous load + startup event rather than the startup device by itself.

Step 4 — Review Battery-Side Capability

Confirm that the proposed battery architecture can support the required AC power through the inverter. Relevant factors include:

• battery voltage;
• available power;
• BMS limitations where applicable;
• inverter DC input requirements;
• operating condition.

Step 5 — Compare Inverter Specifications

Shortlist the 1000W, 1500W, 2000W or 3000W capacity bands that appear appropriate. Then compare exact models on the same basis:

• continuous power;
• surge capability;
• surge duration;
• DC input;
• operating conditions;
• protection behavior.

Step 6 — Validate With Representative Loads

Test the selected configuration with the real or representative load group. The test should include normal continuous operation and the highest relevant startup event.

Step 7 — Approve the Capacity Envelope

Record the configuration that passed. The final decision should be more specific than “Use a 2000W inverter.”

approved inverter model + approved continuous load group + approved startup event + approved battery architecture + approved operating conditions

Connect Inverter Capacity With Battery Requirements

A larger inverter rating does not create additional energy. It only provides a higher power conversion capability when the DC source can support it.

The inverter converts available DC power into AC power. The battery system therefore has to support the corresponding power demand.

Approximate DC Current = AC Load ÷ Battery Voltage ÷ Inverter Efficiency

For this screening formula, inverter efficiency should be expressed as a decimal; for example, 90% efficiency is entered as 0.90.

This relationship can help buyers understand how increasing AC load affects the DC side. It is an architecture-screening relationship, not a final cable, fuse or breaker specification.

For broader planning, review the pure sine wave inverter battery sizing guide.

Power Capacity and Runtime Are Different Decisions

Inverter wattage primarily addresses:

How much power can the conversion system support under the documented condition?

Battery energy addresses a different question:

How long can the system support the load?

These two decisions are connected but should not be confused. A larger inverter does not by itself increase stored energy. Runtime still depends on:

• the real AC load;
• available battery energy;
• inverter efficiency;
• battery operating condition;
• project-specific limits.

Higher Capacity Increases the Importance of DC-Side Review

As inverter capacity increases, the buyer should pay more attention to:

• battery architecture;
• battery current capability;
• BMS limits where applicable;
• inverter input requirement;
• DC connection design;
• protection strategy;
• thermal and installation conditions.

Evaluate Capacity Against Real Load Profiles

Capacity bands become more useful when they are applied to representative project profiles.

The following profiles are illustrative engineering examples rather than model-specific Congsin recommendations.

Profile A — Electronics-Dominant Load

A project may include:

• communication equipment;
• displays;
• laptops;
• chargers;
• control electronics.

The main engineering task is to determine the real simultaneous continuous load.

which devices operate together → how long they operate → whether other intermittent loads start during that period

Once the baseline is known, lower and adjacent capacity classes can be screened. The answer should come from the load total and the exact inverter specification, not from a generic statement that a certain appliance needs a 1000W or 1500W inverter.

Profile B — Mixed Electronics and Motor-Driven Load

Another project may include continuous electronic loads plus an intermittent motor, pump or refrigeration device.

The normal load may appear moderate, but the startup event can change the decision.

continuous baseline → startup event → temporary overlap → inverter response → stabilized operation

This is where two adjacent inverter capacity classes may need representative testing before approval. For load-specific principles, review appliance compatibility for motors and compressors.

Profile C — Higher-Demand Commercial Load Group

A commercial project may operate several loads together and include a larger intermittent demand. The capacity review should include:

• aggregate continuous demand;
• highest startup event;
• battery architecture;
• installation environment;
• operating duty;
• project expansion;
• sample validation.

At this level, selecting a 3000W class simply because it is the largest of the four options would be an incomplete engineering process. The complete DC-to-AC power envelope should determine the result.

Validate Capacity With Representative Loads

Capacity screening should lead to representative validation before final procurement approval. The validation process should be repeatable and connected to the exact configuration being considered.

Record the Proposed Configuration

Document:

• exact inverter model;
• nominal capacity class;
• DC input configuration;
• AC output requirement;
• continuous load group;
• highest startup event;
• operating environment.

Establish the Continuous Baseline

Operate the expected normal load group and record whether the proposed inverter remains stable under the representative sustained condition. The objective is to validate the real operating combination rather than isolated appliances.

Reproduce the Startup Event

With the continuous baseline active, introduce the highest relevant startup event. Observe:

• load behavior;
• inverter response;
• DC-source behavior;
• protection events;
• recovery.

Assign an Approval Status

The result should remain connected to the exact tested model and power architecture.

Compare Supplier Specifications on the Same Basis

Capacity screening identifies a likely wattage class. Supplier qualification determines whether competing models in that class are actually comparable.

Normalize Continuous Power

If two suppliers both advertise a 2000W inverter, confirm what 2000W means for each exact model. The buyer should request the definition of the continuous or rated output and the conditions under which it applies.

Normalize Surge Capability

Request:

• stated surge power;
• documented duration;
• DC input condition;
• relevant test condition;
• protection behavior.

A larger surge number without duration or operating context is not sufficient for supplier qualification.

Compare the Same Project Condition

Build an Approved Capacity Envelope

The final engineering decision should define the operating boundary that has actually been approved.

approved inverter + approved continuous load + approved startup event + approved DC source + approved operating conditions

Define When Requalification Is Needed

The approved capacity envelope should be reviewed when a material system variable changes. Examples include:

• a major load is added;
• the inverter model changes;
• the battery architecture changes;
• the startup sequence changes;
• the operating environment changes;
• a different capacity class is substituted.

How CONGSIN Supports Inverter Capacity Evaluation

CONGSIN focuses on DC-to-AC inverter solutions and supports project discussions around different power requirements.

For distributors and system integrators, a useful capacity discussion begins with the load profile rather than a wattage number alone.

continuous load group → highest startup event → simultaneous loads → battery architecture → operating environment → documentation requirement

CONGSIN also supports OEM/ODM, private labeling, distribution and bespoke customization, with production and testing resources supporting inverter manufacturing activities.

Exact 1000W, 1500W, 2000W or 3000W model availability, continuous ratings, surge performance, input configuration, efficiency and application compatibility should be confirmed according to the quoted model and project requirement.

RFQ Checklist for Inverter Capacity Selection

The RFQ stage should translate the engineering load profile into information a supplier can actually confirm.

Load profile → capacity shortlist → model specification → battery compatibility → representative validation → approved configuration → RFQ

Buyer Inputs

• target application;
• continuous load group;
• simultaneous loads;
• highest startup event;
• battery voltage;
• runtime target;
• operating environment;
• future expansion requirement;
• preferred capacity range, if already screened.

Supplier Confirmations

• exact inverter model;
• continuous or rated output definition;
• surge capability;
• documented surge duration;
• DC input requirement;
• relevant operating conditions;
• protection behavior;
• technical documentation;
• sample availability or validation pathway where applicable.

Commercial Information

Commercial terms should be confirmed through the current quotation or order documentation, including where relevant:

• price;
• MOQ;
• lead time;
• warranty;
• packaging;
• private-label requirements;
• other project-specific commercial conditions.

Engineering approval and commercial approval should remain connected to the same quoted model.

FAQ

What is the difference between a 1000W, 1500W, 2000W and 3000W pure sine wave inverter?

The primary difference is nominal inverter capacity. Application suitability also depends on continuous load, simultaneous operation, startup demand, battery architecture and the model-specific rating conditions.

What size pure sine wave inverter do I need?

The required inverter size depends on the continuous load, simultaneous operation, startup demand, battery architecture and operating conditions. The better approach is to select and validate a capacity class rather than choose by appliance wattage alone.

Is a 2000W inverter always better than a 1500W inverter?

No. A higher-capacity inverter is useful only when the project requires the additional power and the DC-side system can support it. The more appropriate choice is the smallest validated capacity class that meets the complete operating requirement.

How do I choose between a 1000W and 1500W inverter?

Start with the real continuous load, then add the effect of simultaneous operation and the highest startup event. Review battery-side capability and compare the exact inverter specifications before validating the final configuration.

When should I consider a 2000W pure sine wave inverter?

A 2000W class may be considered when the required load profile exceeds the practical boundary of a lower-capacity configuration or when a larger mixed-load and startup condition needs to be supported. Exact model ratings still need verification.

When should I consider a 3000W inverter?

A 3000W class may be considered when the project has a higher aggregate power requirement and the battery architecture, DC-side system and operating conditions can support the proposed configuration.

Should inverter wattage be based on continuous load or surge load?

Both matter for different reasons. Continuous power addresses the sustained operating load, while surge capability addresses temporary startup events. Capacity selection should evaluate both conditions separately.

Does a larger inverter require a larger battery?

There is no universal one-to-one rule, but higher AC power demand increases DC-side power requirements. Battery voltage, available power, runtime, BMS limits where applicable and the exact inverter input requirements should be reviewed together.

Can two 2000W inverters have different real-world capability?

Yes. Two 2000W models may use different continuous-rating definitions, surge capabilities, surge durations, input conditions and protection strategies. Supplier comparison should therefore use model-specific evidence rather than wattage alone.

Final Engineering Recommendation

A 1000W vs 1500W vs 2000W vs 3000W pure sine wave inverter comparison should be treated as an engineering and procurement decision process rather than a ranking of wattage labels.

Define continuous load → identify startup demand → confirm simultaneous operation → screen capacity classes → review battery-side capability → compare exact models → validate representative loads → approve the capacity envelope → prepare the RFQ

The core selection principle is:

Choose the smallest validated inverter capacity class that supports the required continuous load, startup event and operating conditions while remaining compatible with the complete DC-to-AC power system.

Request a Pure Sine Wave Inverter Capacity and Load Profile Review

Share your continuous load group, highest startup event, simultaneous loads, battery voltage, runtime target and operating environment for a model-specific capacity discussion.

Contact Congsin
