The Definitive Guide to UPS Power Inverters: Technology, Integration, and System Scaling

Core Operational Definitions

Key Performance Benchmarks

What Is a UPS Power Inverter?

A standard inverter converts DC to AC passively. When the DC source stops, output stops. A UPS inverter does more: it monitors input power continuously, charges an external battery bank from AC mains, and executes a transfer to battery when input fails.

The switchover happens in milliseconds. Most connected devices — computers, routers, medical equipment — do not detect it. This is seamless power transition technology: the defining capability that separates a UPS inverter from a basic inverter.

Three Things a UPS Power Inverter Does That a Standard Inverter Cannot:

1. Automatically transfers to battery on input power failure.
2. Charges the internal battery bank from AC mains.
3. Regulates output voltage independently of input quality.

How Does a UPS Power Inverter Work?

The system utilizes a multi-stage operational design. High-voltage AC input is first passed through a rectifier to feed the charger circuit. This manages the state of charge of the battery bank.

In a pure sine wave unit, the inverter stage uses Sinusoidal Pulse Width Modulation (SPWM) to shape DC into a smooth AC waveform. This matches grid power mathematically, protecting sensitive electrical loads.

In a modified sine wave unit, the output is a stepped approximation. While cheaper to produce, it introduces high harmonic distortion, making it incompatible with devices that require smooth sinusoidal input.

What Is the Difference Between a UPS and a Standard Power Inverter?

Standard inverters are passive devices suited for temporary tasks. When their input DC voltage from an engine alternator or battery falls below a threshold, they shut down immediately.

A UPS power inverter acts as an active gatekeeper. It incorporates an internal charging circuit and automatic bypass relays, managing two power inputs (AC mains and DC battery) to ensure output continuity.

Furthermore, the certification distinction matters for procurement. A product certified under UL 458 is an automotive inverter — it is not the same standard as UL 1778, which governs UPS equipment. Specifying the wrong standard when sourcing for a UPS application creates severe compliance gaps.

What Is the Difference Between Pure Sine Wave and Modified Sine Wave?

The jagged output of a modified sine wave inverter introduces electrical noise and thermal stress. Inductive loads like electric motors and refrigerator compressors run significantly hotter under modified waves, leading to premature winding failure.

Switching power supplies (like laptop chargers) can tolerate modified waveforms but run at reduced efficiency. Highly sensitive medical equipment, such as CPAPs, will trigger internal microprocessor faults and void manufacturer warranties on modified waveforms.

For any system carrying mixed or unknown electrical loads, specifying pure sine wave output is an absolute engineering prerequisite to protect downstream assets.

What Are the Three UPS Topologies and When Does Each Apply?

Standby (Offline) UPS: The lowest cost option. It normally passes grid power directly to the load, switching to the inverter only when input voltage fails. The 4–25ms transfer time is tolerable for consumer PCs but can cause data loss in critical systems.

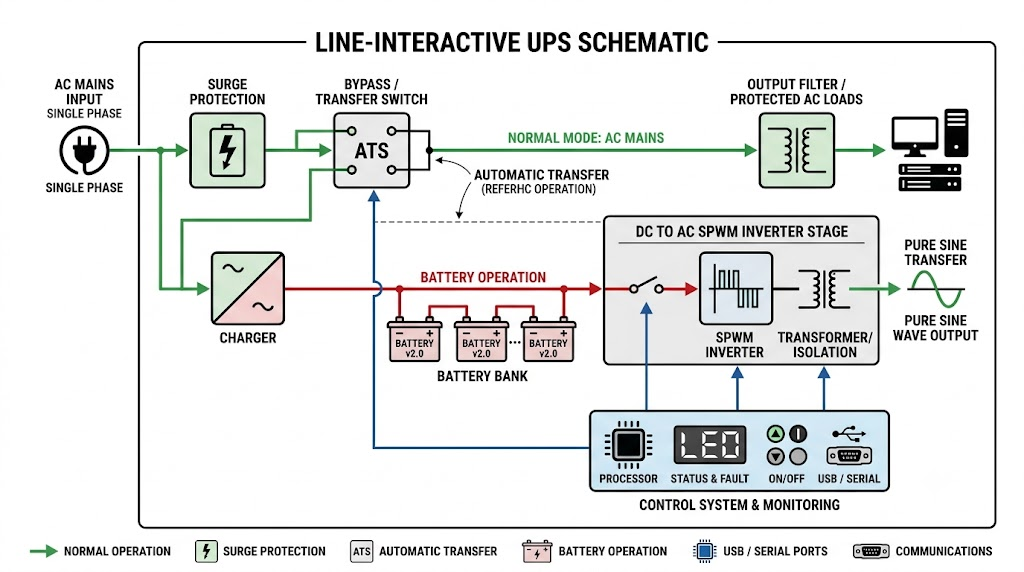

Line-Interactive UPS: Incorporates an Automatic Voltage Regulator (AVR) to correct voltage sags and surges without battery intervention. With a 2–8ms transfer time, it is the standard for commercial workstations and light office systems.

Online Double-Conversion UPS: The ultimate safety topology. Grid AC is constantly rectified to DC to charge batteries and run the inverter, which continuously outputs clean AC. With 0ms transfer time, it provides seamless power transition technology for mission-critical servers and medical hardware.

How Do You Size a UPS Power Inverter?

The most common error is summing the wattage of every device on-site. Operators must only calculate simultaneous loads. Inductive loads like refrigerators or motorized tools pull 2 to 3 times their running watts at startup — this surge determines the peak rating requirement.

Additionally, battery chemistry directly dictates usable capacity. AGM lead-acid batteries have a strict 50% depth-of-discharge (DoD) limit to prevent sulfation. Lithium (LiFePO4) chemistry safely supports an 80% to 90% DoD, providing significantly longer runtimes for the same physical footprint.

Example Calculation: Sizing for a 1200W continuous load using a 24V system, 90% efficient inverter, and 200Ah LiFePO4 battery bank:
(200Ah × 24V × 0.90) ÷ 1200W = 3.6 hours of runtime.

What Certifications Does a UPS Power Inverter Require?

Sourcing uncertified equipment voids commercial liability insurance and creates severe regulatory risk. UL 1778 is the specific standard governing UPS hardware. UL 458 governs automotive inverters. Procurement teams must verify standard numbers, not just brand markings.

To verify compliance, obtain the certificate number from the manufacturer and cross-reference it against the NRTL database (database.ul.com or intertek.com/etl-listing). Ensure the scope explicitly covers the model and wattage you intend to purchase.

How Do You Deploy Mobile Power Inverter Infrastructure in Fleet and Vehicle Applications?

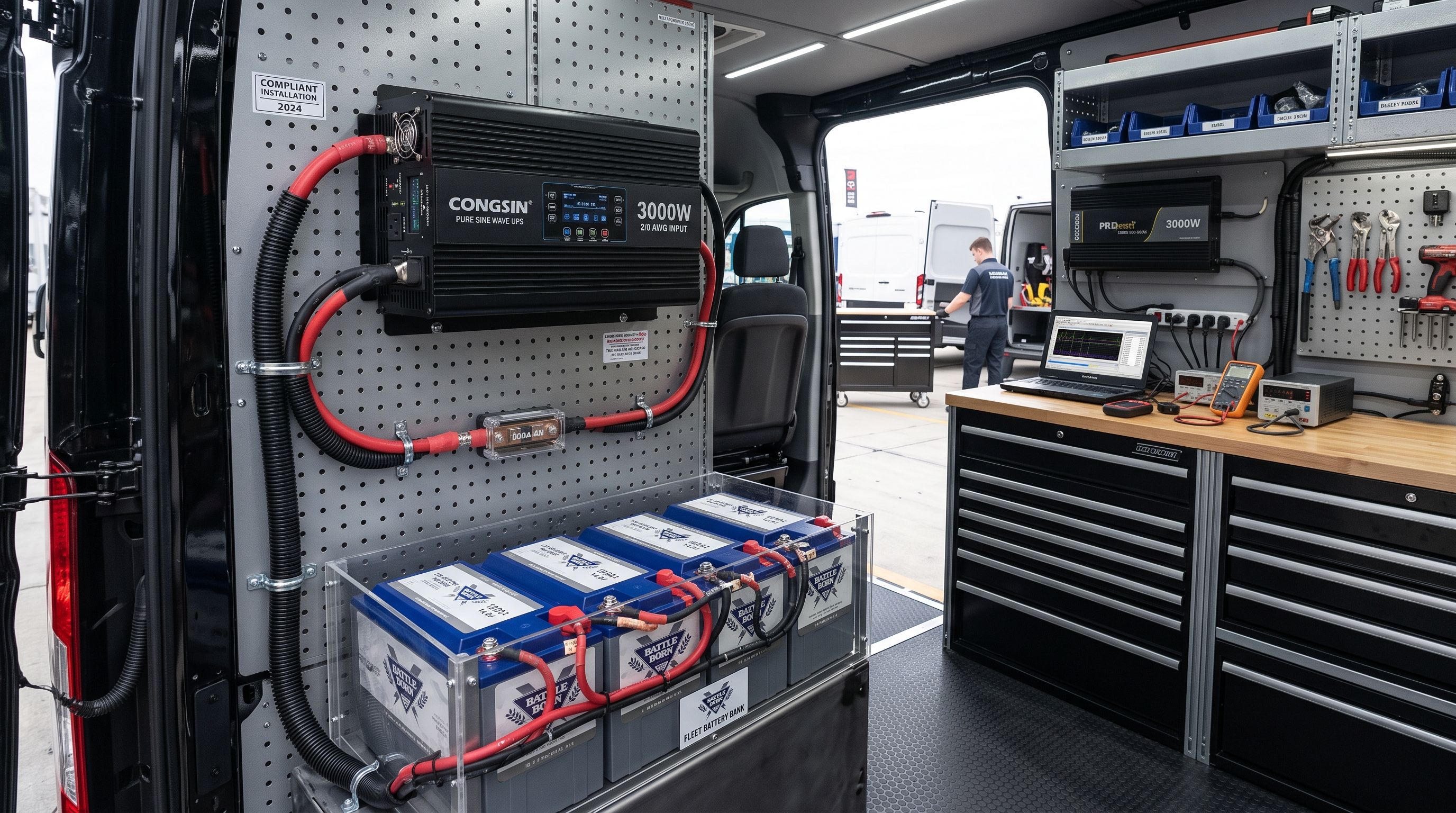

Fixed UPS units and mobile inverters share conversion technology but serve different environments. Vehicles introduce high vibration and require robust chassis-grounding paths. Undersized cable gauge is a leading cause of vehicle fires due to extreme heat generation.

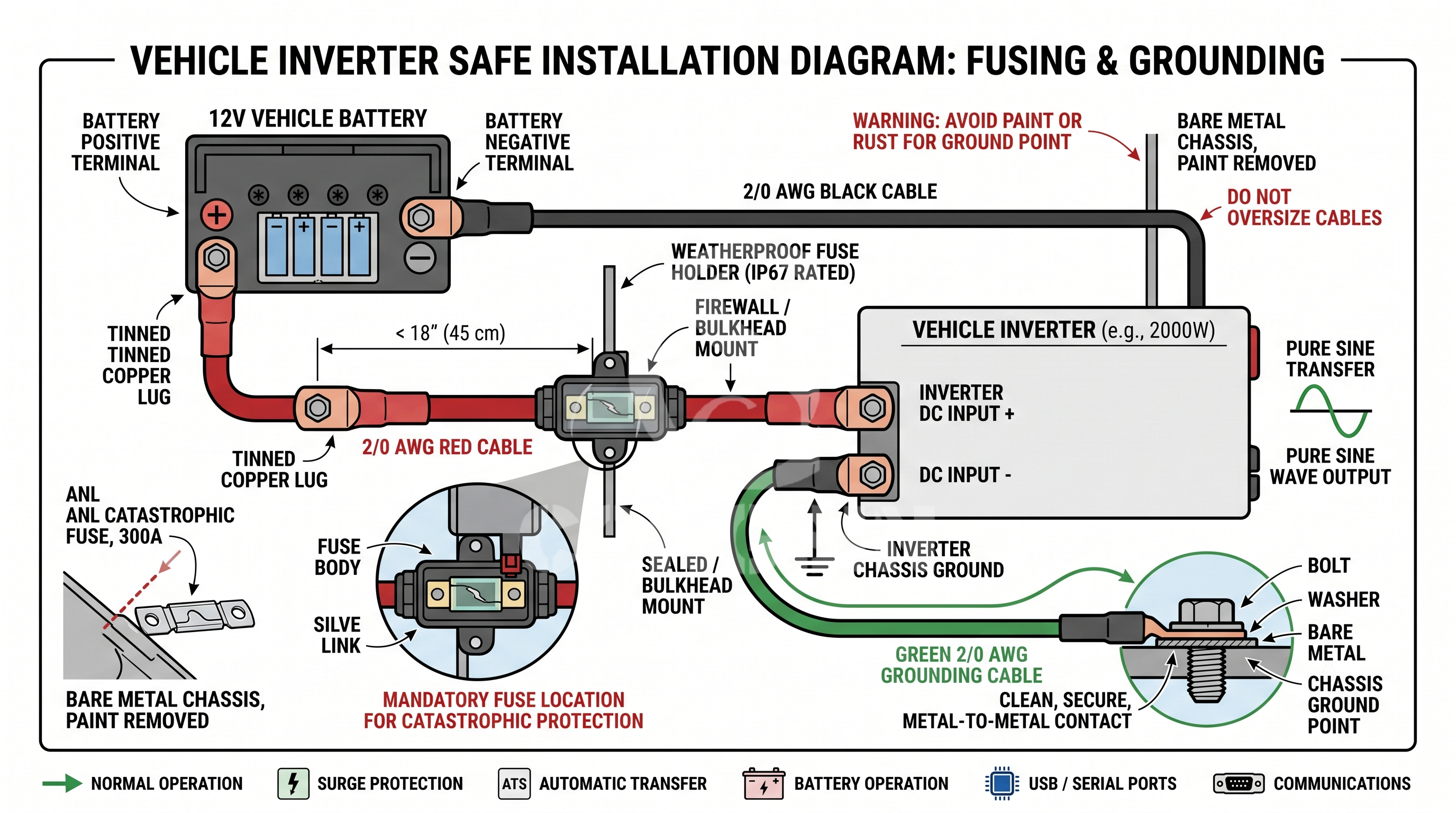

For a 2000W/12V vehicle installation, engineers must specify 2/0 AWG pure copper cabling for any run up to 4 feet. Keep the run as short as possible to maintain a voltage drop below 3%. Always install a high-amperage ANL fuse on the positive cable within 18 inches of the starter battery.

How Do You Scale a UPS Inverter System?

Modular UPS Architecture: Allows capacity expansion (e.g., from 10kVA to 40kVA) by inserting hot-swappable inverter modules into an existing shared chassis. This minimizes installation downtime and eliminates full-system replacement costs as load demands grow.

Parallel UPS Architecture: Involves linking multiple standalone UPS units together via an active load-sharing controller. This architecture is typically deployed in mission-critical datacenters to establish N+1 redundancy, ensuring that if one unit fails, the remaining inverters absorb the load without interruption.
