Mobile Infrastructure: Deploying UPS Power Inverters in Fleet and RV Applications

What Is an Automotive Power Inverter — and Why Does Mobile Infrastructure Depend on One?

An automotive power inverter converts 12V or 24V DC battery power into 110V/120V AC output, letting standard electronics and appliances run entirely from a vehicle's electrical system.

That's the textbook definition. Here's what it looks like in practice.

Fleet mobile power solutions have quietly become load-bearing infrastructure across industries that most people don't associate with "power management." A municipal utility crew's service van needs a stable 120V supply to run diagnostic software that won't tolerate voltage fluctuations. A long-haul driver running a CPAP during a federally mandated 10-hour rest period needs the same clean waveform as a hospital bedside outlet. An RV traveling 200 miles from the nearest campsite hookup—what the RV community calls boondocking—needs a power system that can sustain refrigeration, communications, and sleeping equipment through the night without engine intervention.

Pure Sine Wave vs Modified Sine Wave: What the Waveform Actually Does to Your Devices

The waveform question is where most fleet and RV procurement teams either save money or create an expensive problem they don't trace back to the inverter for months.

Modified sine wave inverters produce a stepped, blocky approximation of the smooth AC curve that comes from the wall. For resistive loads—a basic incandescent bulb, a simple resistive heating element, a non-switching battery charger—the stepped waveform is functionally invisible. The problem is that almost nothing in a modern fleet vehicle or RV is a purely resistive load.

Laptop power supplies, variable-speed power tools, induction cooktops, refrigerator compressors, and CPAP machines all rely on switching power supplies or brushless motor controllers. These components were engineered and tested against a clean sine wave. When they receive a modified wave instead, three specific failure modes appear with regularity: motor windings run hotter than rated (compressor life shortens measurably), switching supplies operate at reduced efficiency (battery depletes faster than the load calculation predicted), and microprocessor-controlled devices—CPAP machines, in particular—generate fault codes or reset unexpectedly.

ResMed and Philips Respironics both explicitly void CPAP warranties for devices operated on non-pure-sine-wave sources. That's not a suggestion; it's written into their product documentation.

The practical procurement decision: for any fleet or RV application carrying electronics more complex than a basic charger or resistive heater, pure sine wave is the only defensible specification. The price delta between pure sine and modified sine wave units at the 1000–2000W level has narrowed to $30–80 landed cost over the past three years. That margin disappears against the first compressor replacement.

How to Size an Automotive Power Inverter: The Calculation Most Guides Get Wrong

Inverter sizing failures fall into two camps: undersizing (the unit trips overload protection under normal operating load) and oversizing (the buyer pays for 3000W continuous capacity on a system that rarely exceeds 600W and absorbs the standby idle draw all day). Both are avoidable.

The simultaneous load mistake. Most sizing guides tell buyers to add up every device on the vehicle. That's wrong. The correct input is every device running at the same time. An HVAC service van carries a 1500W reciprocating saw, a 150W drill, two laptops, and LED work lighting. But during a typical call, the saw runs for 30-second bursts while everything else is on—the laptops and lighting are the sustained base load, and the saw is the surge event. Size for the base load plus the surge ceiling, not the sum of everything that could theoretically be plugged in simultaneously.

Surge wattage is what kills undersized inverters. Compressors, pumps, and any motor-driven tool draw 2–3× their running wattage for the first 1–2 seconds of startup. A mini refrigerator rated 100W running may draw 280–320W during compressor startup. The inverter's surge rating must exceed that peak — the continuous rating handles everything else.

One more number that product listings rarely show: efficiency derating. A 2000W load through a 90% efficient inverter draws 2,222W from the battery. At 85% efficiency, that same load draws 2,353W. Those extra 200–350W represent real battery capacity consumed per hour—the difference between a battery bank that lasts through a full shift and one that doesn't.

12V vs 24V Compatibility: The Procurement Error That Costs More Than the Inverter

Specifying the wrong input voltage is the fleet procurement error that generates the most frustration, because the damage isn't always immediately obvious. Some inverters connected to the wrong voltage simply fail to start. Others start, run poorly, and fail internally within weeks — by which point the installation labor cost has been spent twice.

The secondary error in international procurement is output frequency. North American fleet and RV applications require 110V/120V AC at 60Hz. Suppliers defaulting to EU specifications ship 220V/50Hz output — operationally useless for North American deployment and potentially damaging to 60Hz-rated devices. Confirm output voltage, output frequency, and input voltage range as three separate line items on every purchase specification. This is a basic check that gets skipped under procurement time pressure and creates expensive returns.

For fleets that span North American and European operations, selectable-output models (switchable between 110V/60Hz and 220V/50Hz) eliminate the need to stock two separate SKUs. The unit cost premium is typically recovered within the first order cycle through simplified inventory management.

Safe Inverter Wiring Guide: Cables, Fuses, Grounding, and Mounting

This section covers what a safe inverter wiring guide actually needs to address—and what most product manuals skip.

The majority of inverter failures in vehicle applications are installation failures. Three specific points account for most of them.

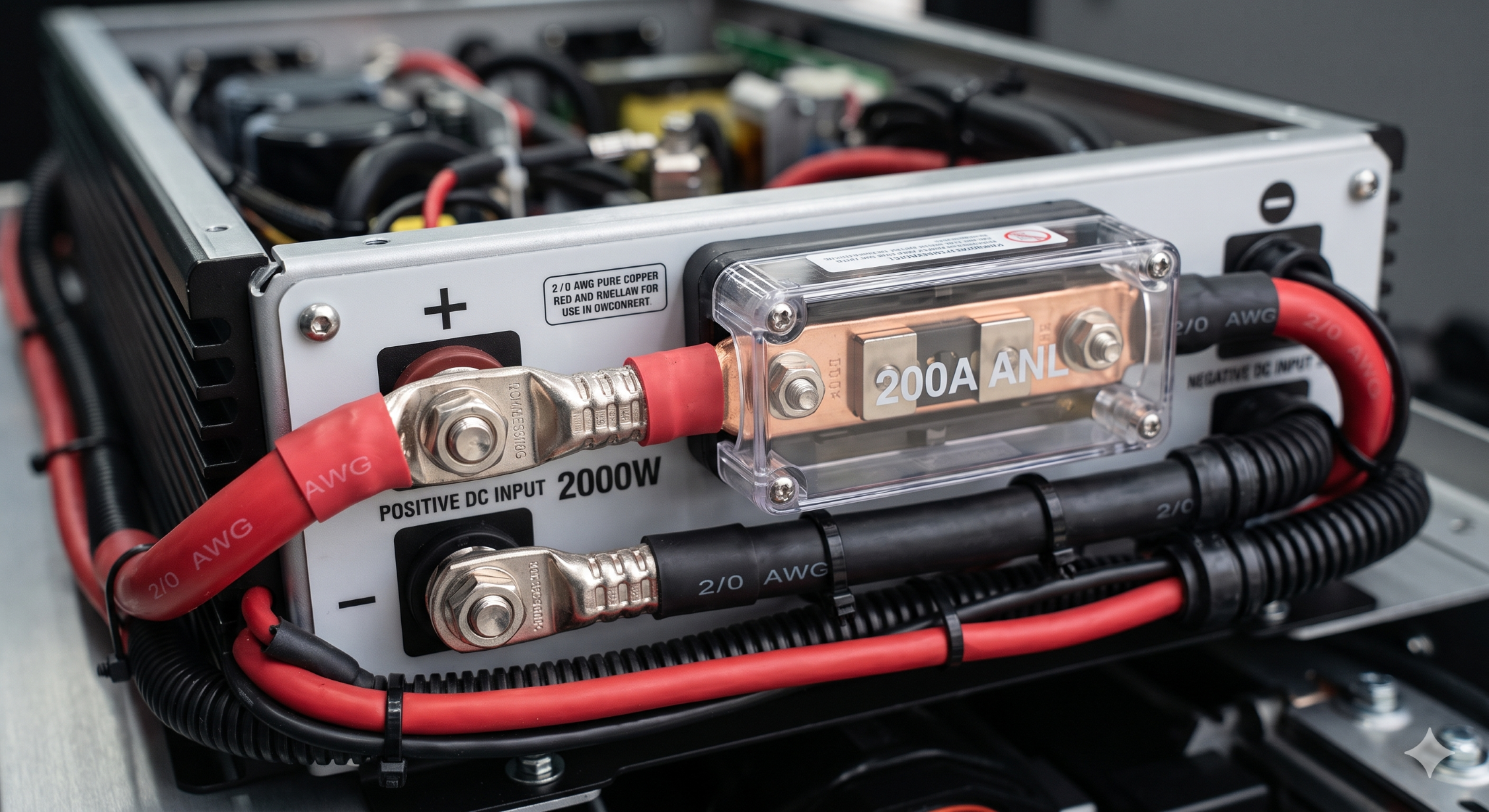

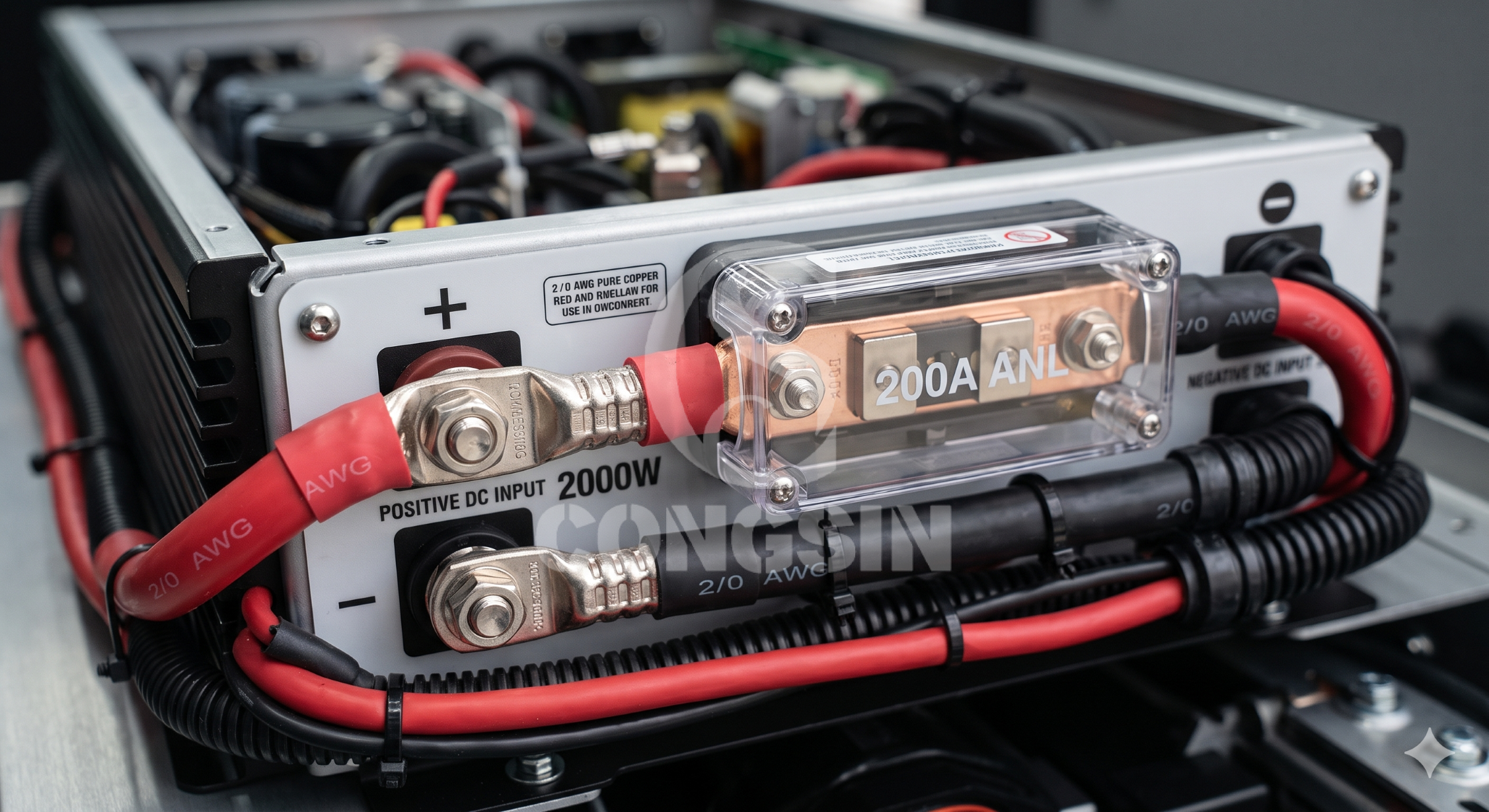

• Cable gauge is the highest-stakes decision in the installation. The physics are straightforward: undersized wire has higher resistance, higher resistance generates heat, heat degrades insulation, and degraded insulation creates a fire risk. This isn't theoretical. Undersized inverter cabling is a documented cause of vehicle fires in both fleet and RV contexts.

During engineering validation on fleet van installations with 2000W pure sine wave inverters, measurements showed that a 2 AWG cable over a 5-foot run produced a 5–7% voltage drop during compressor-start surge events—enough to trigger low-voltage protection shutdowns and cause irregular device behavior. Upgrading to 2/0 AWG on the same run brought voltage drop below 2.5% and reduced cable surface temperature by approximately 18°C under sustained load. The inverter behavior normalized completely.

For runs beyond 4 feet, step up one gauge per additional 2 feet to keep voltage drop below 3%.

• Fusing placement is not optional. An ANL fuse at 125–150% of maximum current draw must sit within 18 inches of the battery positive terminal. The fuse protects the cable from short-circuit current — it does not protect the inverter. A 2000W/12V inverter draws approximately 167A at rated load; spec a 200A ANL fuse. Use a proper weatherproof ANL holder; blade fuses are not rated for these current levels.
• Grounding is where wiring problems hide. Connect the inverter chassis ground directly to a verified vehicle chassis ground point using the same gauge cable as the positive lead. A high-resistance or indirect ground connection is the single most common cause of unexplained shutdowns, output voltage irregularities, radio frequency interference, and GPS disruption in fleet vehicle installations. When a field technician reports "the inverter acts up randomly," the first diagnostic step is always measuring ground resistance, not replacing the unit.
• Mounting: Rigid metal surface, anti-vibration mounts, minimum 6 inches of clearance on all sides for convective cooling. Never mount adjacent to fuel lines or hydraulic lines or in enclosed spaces without active ventilation.

Application Deployment: Fleet Vehicles, RV Boondocking, Trucks, and Marine

Fleet Service and Work Vehicles

For fleet mobile power solutions serving HVAC crews, utility technicians, and telecom field teams, the single most underweighted specification in procurement is continuous duty rating. A unit labeled 3000W peak but rated only 1500W continuous will throttle under sustained tool use—exactly the scenario fleet vehicles encounter.

When a Southwest utility company standardized 48 service vans on a new inverter specification, they discovered their previous units (3000W peak / 1500W continuous) were throttling during afternoon calls when ambient cab temperatures exceeded 95°F—thermal derating reduced effective output to roughly 1200W, causing laptop chargers and diagnostic tools to brown out mid-call. Switching to units with a genuine 2500W continuous rating at 40°C ambient resolved the issue across the fleet within one service cycle.

Remote on/off switching matters for fleet duty cycles: a 2000W inverter in standby draws 15–25W continuously. Across a fleet of 30 vehicles parked overnight without remote shutoff, that's 450–750W of continuous phantom draw—measurable battery drain and fuel cost over a full year.

RV Boondocking Power Setup

RV boondocking power setup is the application that separates adequate inverters from genuinely capable ones. Boondocking — operating fully off-grid, away from shore power — concentrates every demand on the onboard battery bank and inverter simultaneously. There's no grid to fall back on.

The load profile in boondocking shifts constantly: morning CPAP use at low wattage, midday refrigeration cycling every 20–30 minutes, afternoon charging of devices and drones, and evening entertainment drawing 200–400W sustained. The inverter must handle all of it cleanly across that range without introducing noise, waveform distortion, or thermal shutdowns when the sun goes down and battery voltage begins to drop.

The spec that most RV buyers overlook: transfer time on inverter-charger units. When arriving at a campsite with a hookup and switching from inverter to shore pass-through, delays of 20–50ms are common on budget units. Most appliances tolerate this. CPAP machines with heated humidifiers frequently don't; they log the gap as a power failure and reset therapy mid-cycle. Units with sub-16ms transfer time solve this entirely.

For extended boondocking, pair a 2000W pure sine wave inverter with a 200Ah LiFePO4 battery bank for full-load runtime, plus whatever partial-load periods the load profile includes.

Long-Haul Truck Cab

Class 7–8 trucks run on 24V systems. At 24V, a 1000W inverter draws approximately 46A — well within what a truck's battery bank sustains for several hours with engine off. The operational profile is predictable: 10-hour rest period, CPAP running throughout, microwave used twice, mini refrigerator cycling continuously.

The installation variable unique to trucks is vibration. Highway resonance at typical semi-truck frequencies—approximately 8–15 Hz over the powertrain and suspension—progressively loosens terminal connections that passed torque spec at installation. Two field checks from truck fleet maintenance programs: use serrated lock washer hardware on all inverter battery terminals and add inverter terminal inspection to the quarterly PM checklist alongside tire and brake inspection. Intermittent faults that appear after 3–6 months of operation are almost always vibration-loosened connections, not inverter failures.

Marine Installations

Salt air introduces a corrosion variable that is absent in land-vehicle installations. Oxidation on terminals, housing vents, and PCB traces accelerates at rates that can reduce component service life by 40–60% compared to a controlled indoor environment. Specifying standard automotive inverters for marine installation is a warranty-voiding and reliability-reducing decision.

Marine-rated inverters specify conformal-coated PCBs, tinned copper wiring harnesses, and corrosion-resistant housing. ABYC Standard E-11 governs DC and AC electrical systems on US recreational vessels. ABYC compliance is not federally mandated for private vessels, but it is increasingly required by marine insurance carriers as a condition of coverage for electrical system components — meaning non-compliant installations create coverage gaps that most vessel owners discover only after an incident.

Certifications: What to Verify Before Fleet or RV Procurement

Certifications are the most frequently falsified product attribute in the imported inverter market. A certificate image on a product listing page — or even a physical label on the unit — is not verification. Certificate numbers are publicly traceable, and cross-checking takes approximately 90 seconds.

The North American certification checklist:

ETL and UL carry equal legal standing—both are NRTL listings accepted by all US and Canadian jurisdictions. The critical verification is scope: manufacturers sometimes certify a 1000W model and sell uncertified 2000W and 3000W variants under the same brand, relying on buyers not to check. Always request the certificate scope document, not just the certificate number.

For fleet procurement in healthcare, utilities, and government: ETL/UL certification is a contractual requirement in most fleet insurance policies and is audited during annual fleet safety inspections. Sourcing uncertified units to reduce unit cost by $15–30 creates liability exposure that typically exceeds the savings within the first reportable incident. This is not a hypothetical risk — it's a documented outcome in fleet insurance claims involving electrical fires.

Battery Compatibility and Runtime Planning for Mobile Deployments

The most consistent installation mistake in mobile inverter deployment is treating the vehicle's starter battery as a power reservoir. Starter batteries—rated in Cold Cranking Amps—are engineered for one specific task: delivering 400–800A for two to three seconds to start a cold engine. Deep, sustained discharge is precisely the operating condition they were not designed for.

Deep-cycling a starter battery below 50% state of charge five to ten times causes progressive sulfation of the lead plates, permanently reducing capacity. Fleet maintenance programs that track battery replacement rates consistently show elevated failure rates on vehicles where inverter loads drew from the starter battery rather than an isolated auxiliary bank.

The correct architecture for regular inverter use is a dedicated auxiliary battery isolated by a DC-DC charger (battery-to-battery charger). A simple isolator relay — the traditional split-charge solution — does not function correctly on modern vehicles with smart alternator management systems, which dynamically regulate alternator output voltage. A DC-DC charger regulates the charging current correctly regardless of what the smart alternator is doing.

For mission-critical power backup applications where runtime cannot be compromised—emergency medical transport, remote communications infrastructure, overnight fleet operations—size the battery bank to 150% of the calculated requirement to absorb efficiency degradation at temperature extremes and battery aging over the service life.

Troubleshooting Field Problems: Diagnosis Before Replacement

Field problems with automotive inverters concentrate around a small set of root causes. The common mistake is replacing the inverter when the actual fault is in the installation. Here's how to differentiate.

The vibration maintenance point deserves emphasis. Installations that perform flawlessly for three months sometimes develop intermittent faults at month five or six — not because anything broke, but because vibration cycling has progressively loosened connections that were correctly torqued at installation. Adding terminal torque inspection to the quarterly PM checklist costs 10 minutes per vehicle and eliminates the majority of late-developing field faults.

Installation Checklist: Pre-Commissioning Verification

Before energizing any vehicle inverter installation, verify the following:

Electrical:

• Cable gauge matches or exceeds the minimum for inverter rating and cable run length
• ANL fuse rated at 125–150% of maximum inverter current, installed within 18 inches of battery positive terminal
• Ground cable same gauge as positive cable, terminated at verified low-resistance chassis ground point
• All terminal connections torqued to manufacturer spec; ring terminals properly crimped (not twisted)
• No exposed conductor within 2 inches of any fuel line, hydraulic line, or flammable material

Physical:

• Inverter mounted on rigid metal surface with anti-vibration hardware
• Minimum 6-inch clearance on all sides for ventilation
• No mounting within 12 inches of fuel system components
• Remote on/off cable routed to accessible driver or operator position (if applicable)

Verification:

• Battery voltage confirmed >12.4V (12V system) or >24.8V (24V system) before first energization
• Output voltage measured with multimeter before connecting any devices—confirm 110–120V AC (60Hz)
• First load test with non-critical device before connecting sensitive electronics
• For inverter-charger units: confirm shore power passthrough and charging mode function correctly

This checklist captures the verification steps that generate the most returns and warranty claims when skipped. A 20-minute pre-commissioning check eliminates the most common installation-related failures.

Choosing an Automotive Power Inverter Partner for Fleet and RV Programs

Selecting an inverter resolves to five decisions: waveform type, continuous wattage rating, input voltage, certification requirements, and battery architecture. All five must be specified correctly—getting four right doesn't compensate for one wrong.

For sourcing teams and product managers building fleet power programs or RV accessory lines, CONGSIN has manufactured automotive power inverters since its founding, supplying OEM and private label programs across North America and Europe. The automotive product line spans 300W portable units to 3000W hardwired systems in both pure sine wave and modified sine wave configurations.

Every production batch undergoes full-load burn-in testing, surge verification, and ETL compliance inspection before shipment — not sample testing, but production-lot inspection. ETL listing and CE certification cover the complete wattage range offered, not just entry-level models. Full test documentation is standard with every order.

What distinguishes working with CONGSIN at the sourcing stage is pre-order engineering support: load calculation review, cable and fuse specification guidance, battery sizing consultation, and — for fleet programs deploying multiple vehicle classes — configuration review across the full vehicle mix before the purchase order is placed. For fleet managers standardizing power infrastructure across 20, 50, or 200 vehicles, catching a specification error before production is considerably less expensive than catching it during deployment.

Private label programs with US-warehouse stocking are available for qualified distribution partners. To request technical data sheets, ETL certificate documentation, or a pre-order engineering consultation, contact the CONGSIN sourcing team.
