Pure Sine Wave vs Modified Sine Wave Inverter: The 2026 Definitive Comparison

What is the Difference Between Pure and Modified Sine Wave Inverters?

A Pure Sine Wave inverter produces smooth, oscillating AC power identical to the utility grid, whereas a Modified Sine Wave inverter creates a blocky, stepped approximation of a sine wave. This fundamental difference in wave shape dictates which devices will run efficiently and which might fail.

Visual Analogy

Imagine rolling a wheel down a hill.

• Pure Sine Wave: The hill is a smooth, paved ramp. The wheel rolls effortlessly without vibration.
• Modified Sine Wave: The hill is a staircase. The wheel bumps down each step, causing vibration, noise, and friction (heat).

Congsin Lab Data: The Real Performance Impact

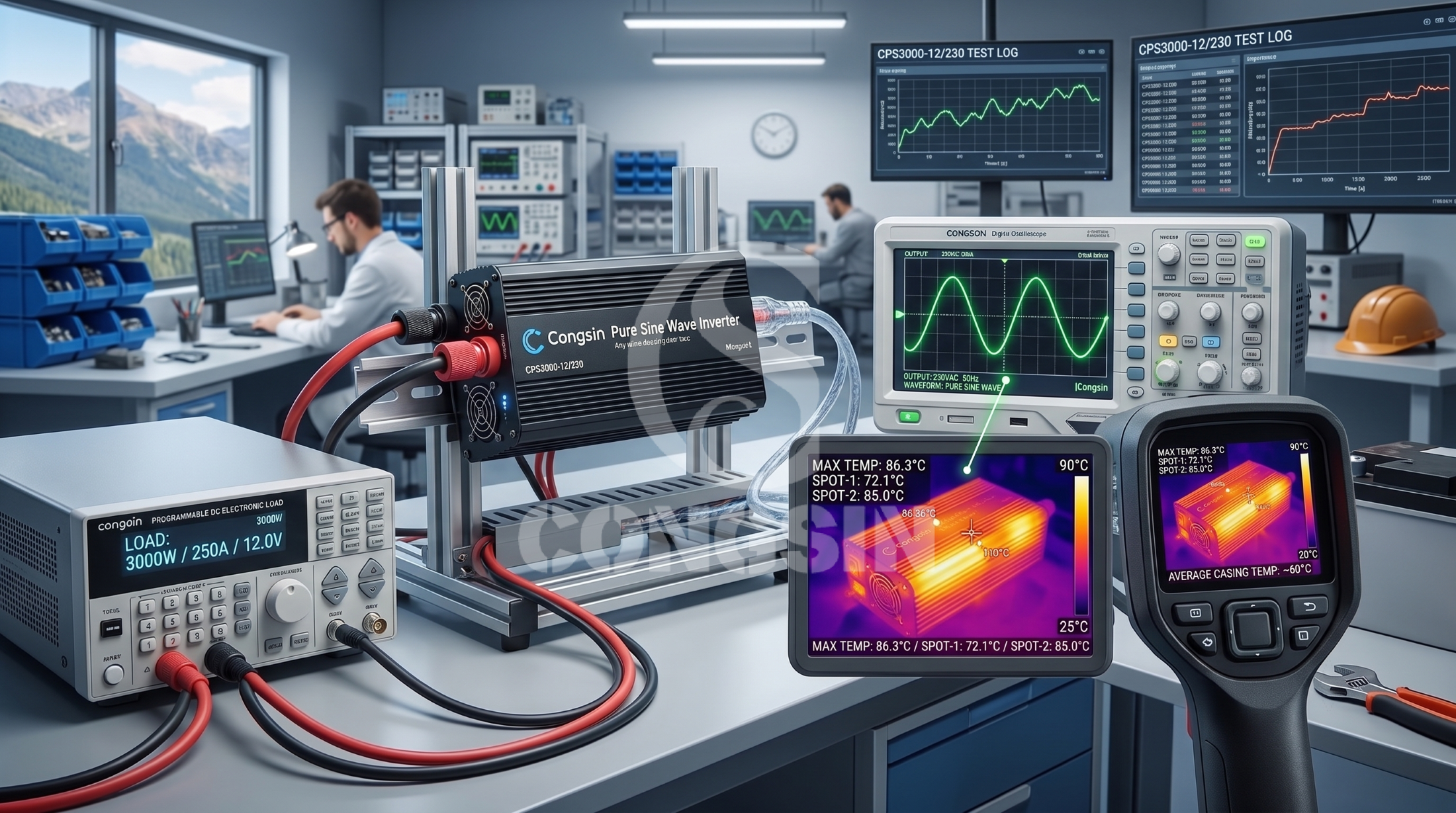

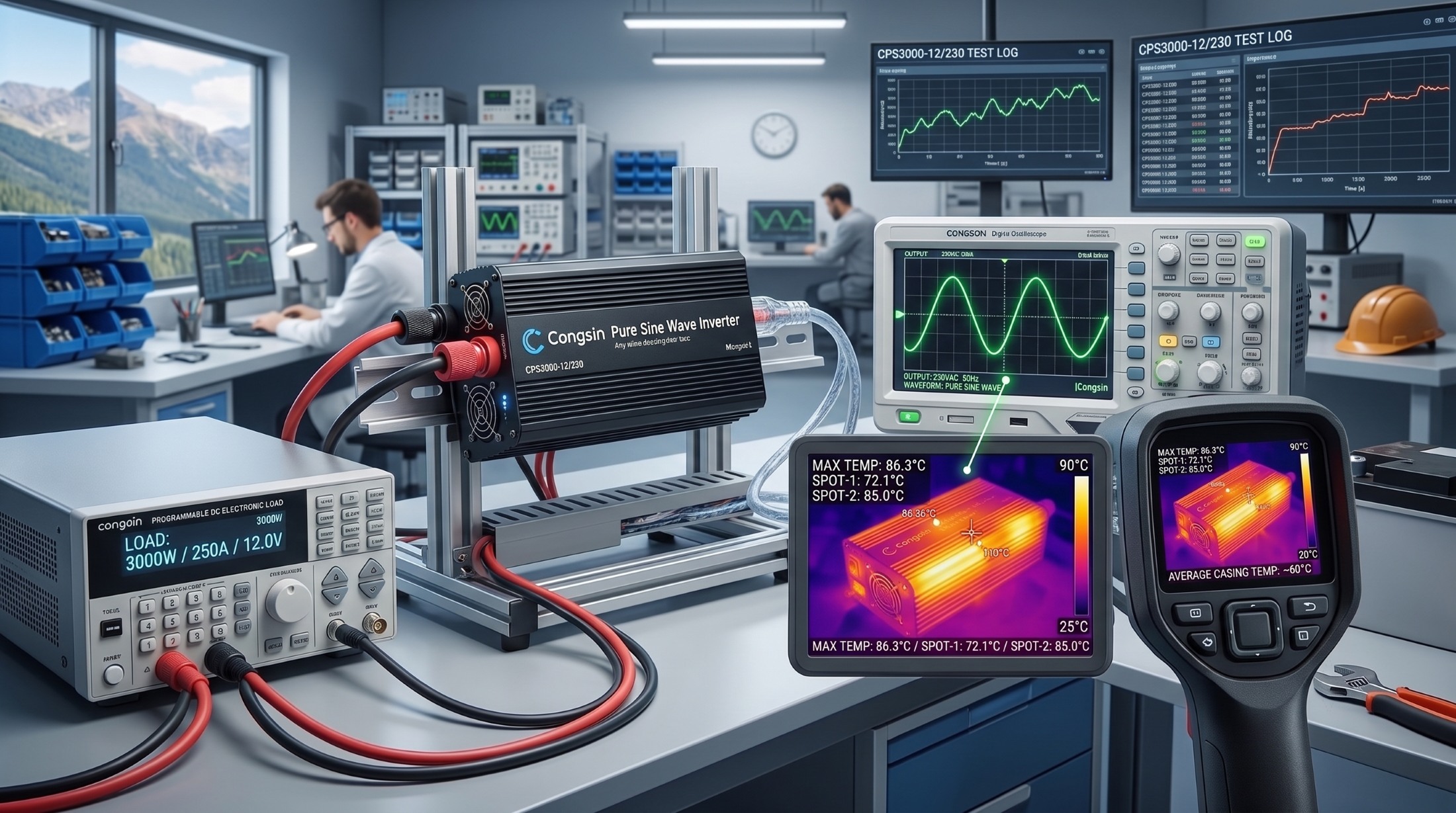

The "choppy" nature of modified waves introduces significant Total Harmonic Distortion (THD). For commercial distributors and OEM partners, relying on analogies isn't enough. In our Congsin R&D testing labs, we continuously measure the operational impact using professional oscilloscopes.

Deep Dive: The Pure Sine Wave Advantage

Pure Sine Wave inverters use sophisticated pulse-width modulation to replicate the natural AC rhythm of the grid. At Congsin, we have observed a massive shift in B2B demand. Today, our automated production lines focus heavily on Pure Sine Wave Inverters because modern electronics demand them.

• Universal Compatibility: Runs everything from microwaves to medical equipment without issues.
• High Efficiency: Typically 90-95% efficient, meaning less battery power is wasted as heat.
• Clean Output: No "buzzing" in audio speakers or lines on TV screens.
• Motor Protection: Inductive loads (motors in fridges/fans) run cooler and quieter.

Deep Dive: The Modified Sine Wave Reality

Modified Sine Wave inverters switch voltage abruptly between positive, zero, and negative states. This abrupt switching is cheaper to manufacture because it requires fewer electronic components. However, this cost-saving comes with severe performance penalties.

The Hidden Risks

• Overheating: The "corners" of the square wave cause excess heat buildup in appliance power supplies.
• Efficiency Drop: Your battery bank drains faster because the inverter itself is less efficient.
• Device Failure: Many modern devices with thyristors (like laser printers or dimmer switches) will refuse to work.

Appliance Compatibility Matrix: What Can You Run?

Not all devices are created equal; inductive loads and sensitive electronics require clean power, while resistive loads are more forgiving. Understanding inductive load inverter compatibility is the key to avoiding equipment damage.

Gap Analysis: Future Trends and Hidden Risks (2026+)

The 'GaN Revolution' is rapidly closing the price gap between pure and modified sine wave inverters. Gallium Nitride (GaN) transistors are replacing silicon in power electronics. This is a game-changer for the market.

• Smaller Size: Inverters are becoming 30-50% lighter.
• Lower Cost: Less copper and cooling material is needed.
• Higher Efficiency: Pushing past 96% efficiency becomes standard.
• Smart Connectivity: Modern PSW inverters now feature Bluetooth and Wi-Fi monitoring for real-time load management.

Expert Tips for Choosing Your Inverter

With over 27 years of experience, Congsin recommends the following decision framework:

• The 20% Rule: Always buy an inverter rated for 20% more than your continuous load. If you need 1000W, buy a 1200W or 1500W unit.
• Check THD: For audio or medical gear, look for a specification sheet listing THD < 3%.
• Invest in Factory Quality: A generic inverter may claim "Pure Sine Wave" but output a dirty signal. Look for OEM manufacturers with ISO9001 certification and established export histories, like Congsin.
