Home Solar Inverter Guide: Selection, Types & Sizing

Step 1: Define Your Usage Scenario

• Small Home / Apartment: Low energy consumption, primarily lighting and basic appliances.
• Medium Home: Standard family usage, including HVAC systems and multiple refrigerators.
• High-Load Home: Heavy consumption featuring swimming pool pumps or EV (Electric Vehicle) charging stations.
• Off-Grid Home: Zero connection to the utility grid; requires 100% self-reliance and heavy battery storage.

Step 2: Match the Inverter Type

Choose a Hybrid Inverter for most modern homes wanting battery backup. Choose an Off-Grid Inverter for remote areas. Stick to a Grid-Tied Inverter if you only want to reduce daytime power bills without battery storage.

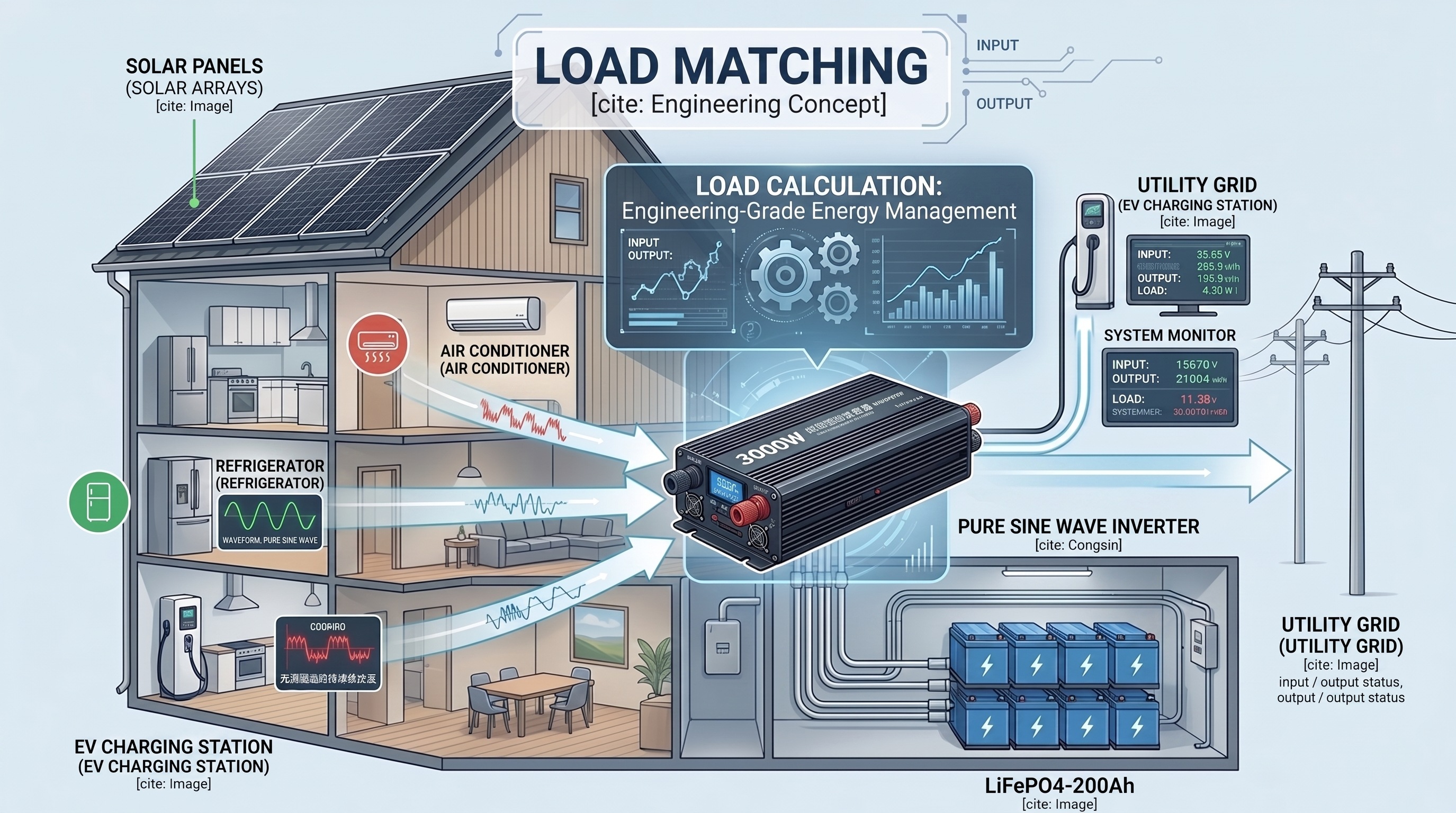

Step 3: The Sizing Rule of Thumb

• 3kW Inverter: Ideal for small apartments or tiny homes.
• 5kW Inverter: The standard choice for an average 3-bedroom home.
• 8kW – 10kW Inverter: Required for large homes, heavy HVAC loads, or EV charging.

Step 4: Plan for Future Expansion

Always build in a 20% to 30% capacity buffer. If your current calculated load is 4kW, purchase a 5kW inverter to allow for future appliance additions or an electric vehicle.

⚠️ Hidden Cost Factors to Consider:

• Installation Labor: Often matches or exceeds the hardware cost.
• Battery Integration: Hybrid inverters cost slightly more upfront but save thousands by not requiring retrofitted AC-coupled battery hardware later.
• Maintenance Cycles: Cheap, non-certified inverters may need replacement in 5 years, doubling your lifetime cost.

Example 1: The Standard Suburban Home

Setup: 5kW Hybrid Inverter with an optional 10kWh battery.
Result: Covers daily household usage, stores excess daytime solar, and provides critical backup during evening grid outages.

Example 2: The Remote Off-Grid Cabin

Setup: A 3kW Pure Sine Wave Off-Grid Inverter paired with a 48V battery bank.
Result: Complete energy independence for lighting, a water pump, and a small refrigerator without any utility connection.

Example 3: The EV Charging Home

Setup: 8kW to 10kW Hybrid Inverter.
Result: Powerful enough to handle standard household loads while simultaneously charging a Tesla or other electric vehicle at Level 2 speeds.

How do I size an inverter for my house?

Calculate your total continuous wattage needs and add 20-30%. A 5kW inverter is standard for most average-sized homes.

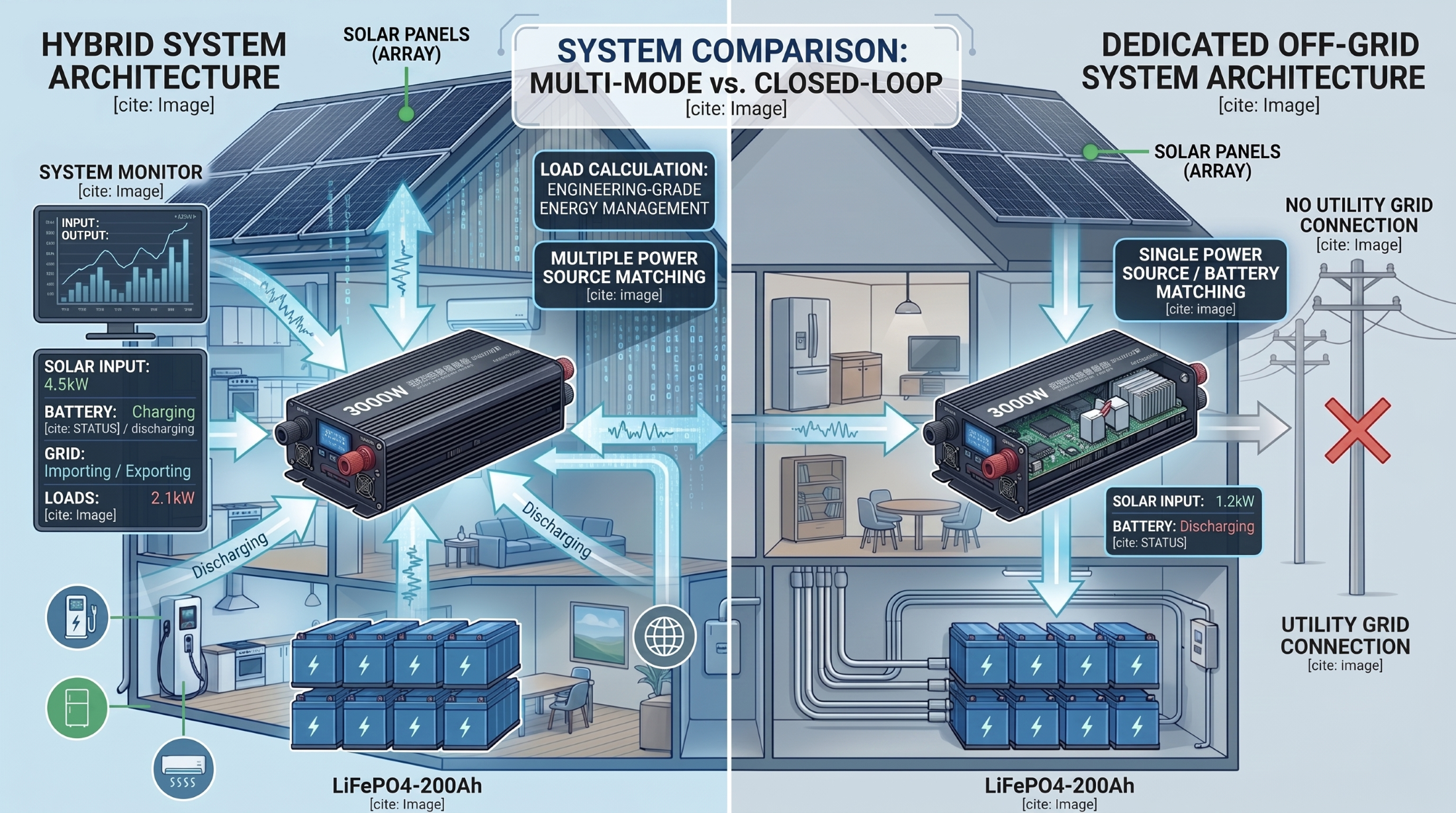

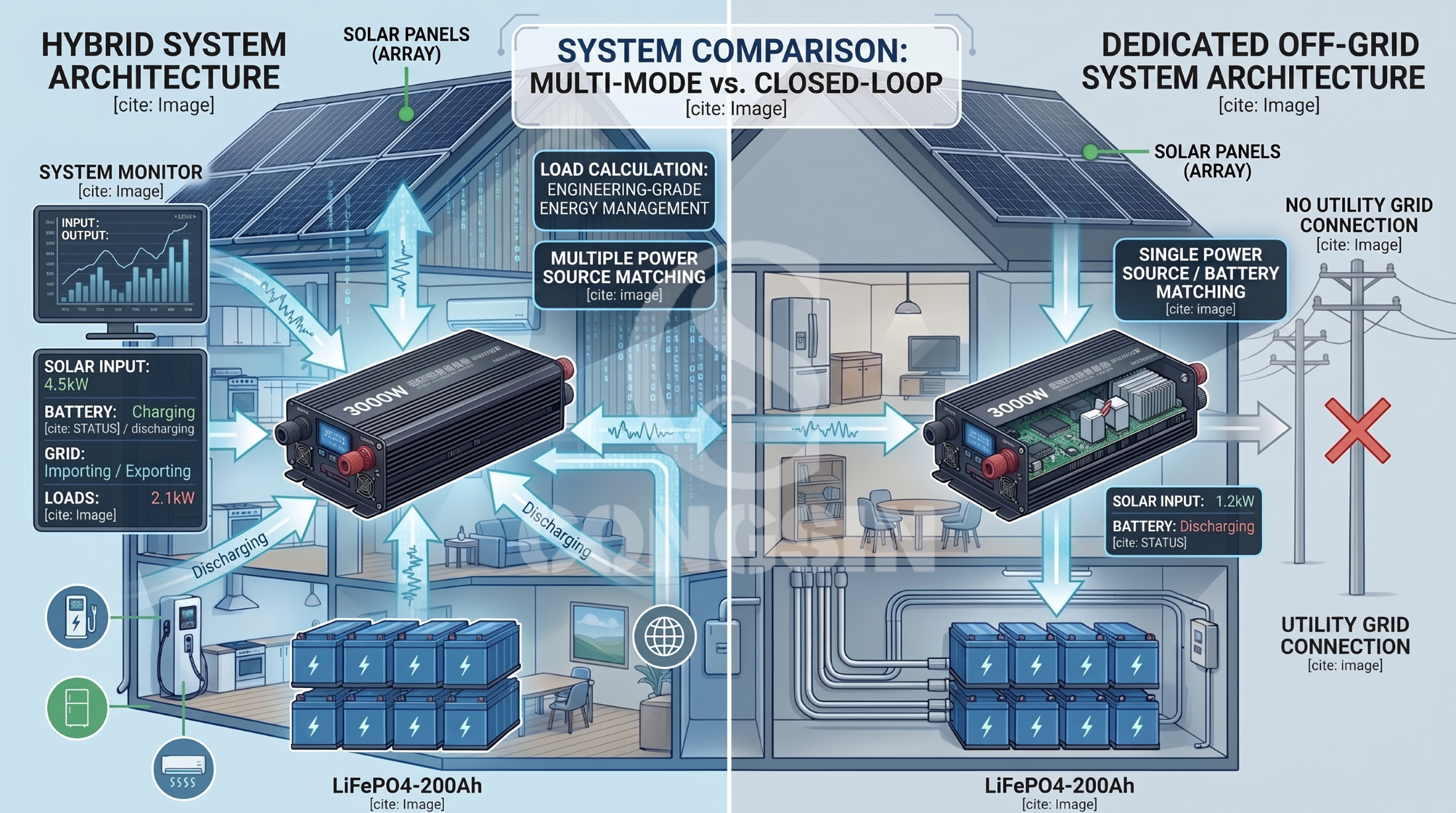

Hybrid vs. off-grid inverters: What's the difference?

Hybrid inverters connect to both the utility grid and a battery bank. Off-grid inverters operate entirely independently of the grid and rely solely on solar panels and batteries.

What is the lifespan of a solar inverter?

High-quality string and hybrid inverters typically last 10 to 15 years, while microinverters can last up to 25 years.

How much does a 5kW inverter cost?

Depending on features and brand, a 5kW residential solar inverter costs between $500 and $1,200 USD.

What is a good inverter efficiency rating?

Look for a minimum conversion efficiency of 95%. Top-tier models will achieve 97% to 98% efficiency.

What does an MPPT controller do?

Maximum Power Point Tracking (MPPT) actively adjusts the electrical operating point of the panels to harvest the absolute maximum energy available under varying sunlight conditions.

Are all inverters compatible with solar batteries?

No. Standard grid-tied string inverters require additional, expensive AC-coupling hardware. Hybrid and off-grid inverters are natively designed to connect directly to batteries.

What size inverter do I need to charge an EV?

Level 2 EV chargers draw substantial power (typically 7kW). Therefore, you need an 8kW to 10kW inverter to charge a car while running other household appliances.

What is the best type of inverter for a home?

For 90% of modern homeowners, a Hybrid Inverter is the best choice, as it provides grid-tie savings while allowing seamless battery backup during blackouts.

Does a solar inverter need maintenance?

They are mostly maintenance-free. Keep the external heat sinks clean from dust and debris, and ensure the cooling fans operate unobstructed.

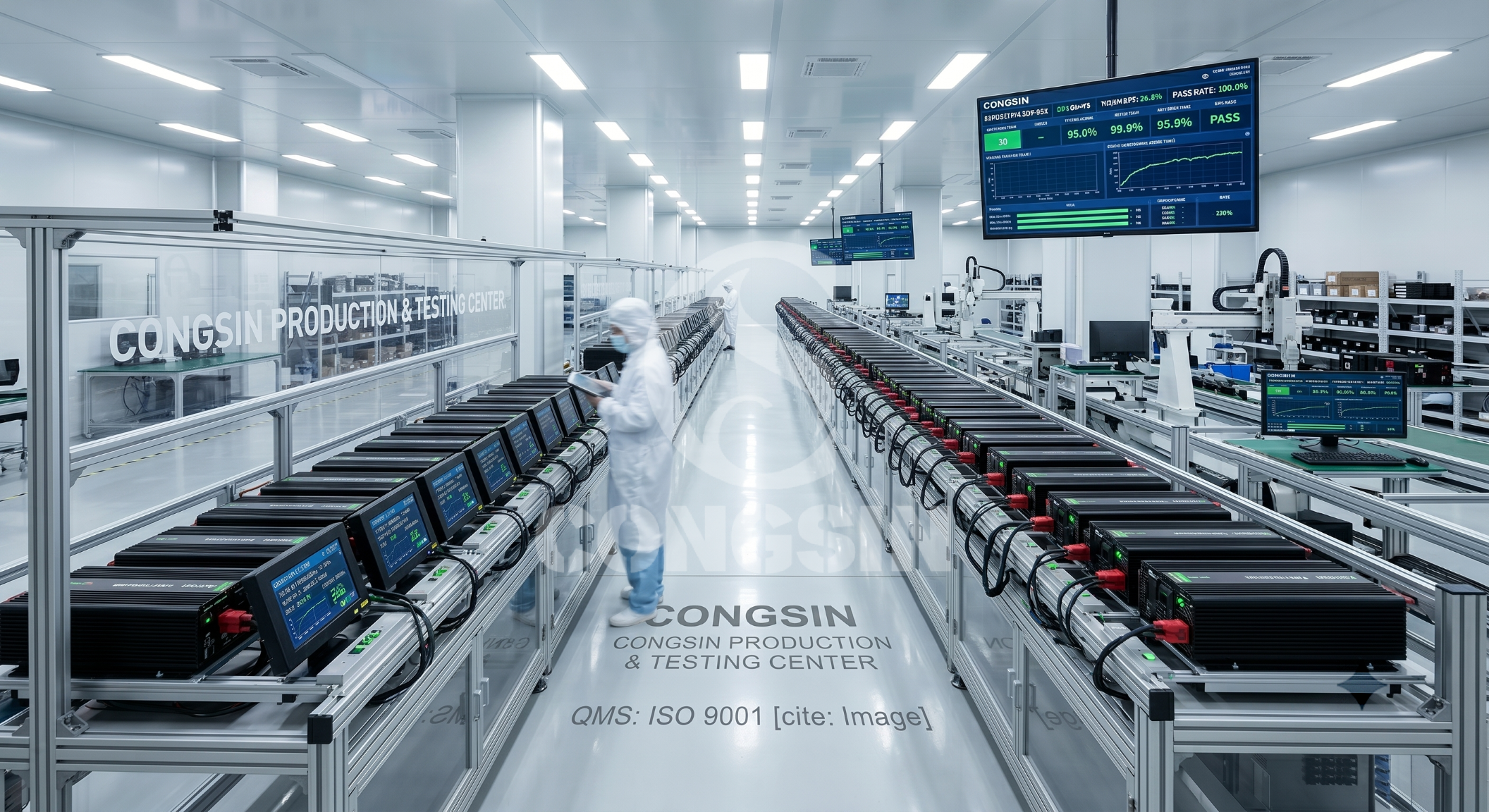

Why should I choose an OEM brand over a retail brand?

Sourcing from an established OEM like Congsin allows buyers to access factory-direct pricing and industrial-grade components without paying the inflated marketing markups of retail brands.
